Mining Equipment High Current Toggle Switch

3 month ago

11 0 

9 year

Product details

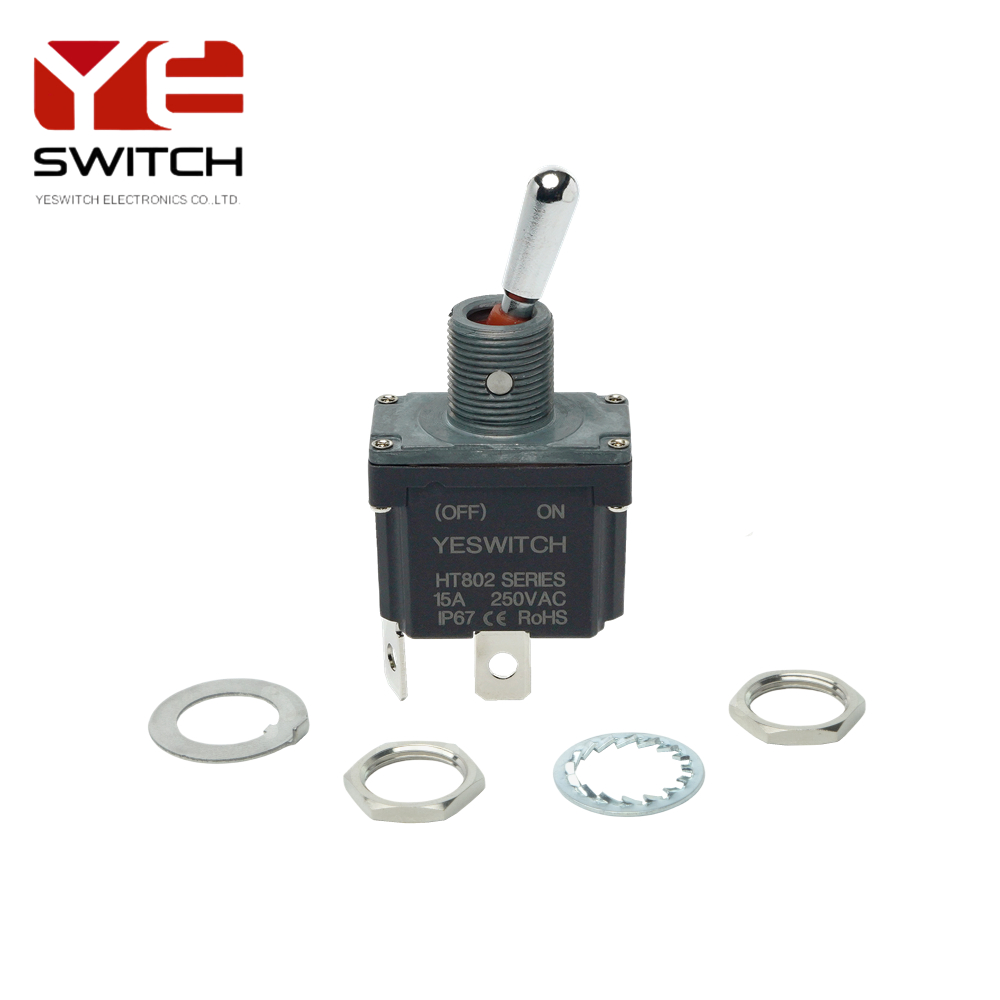

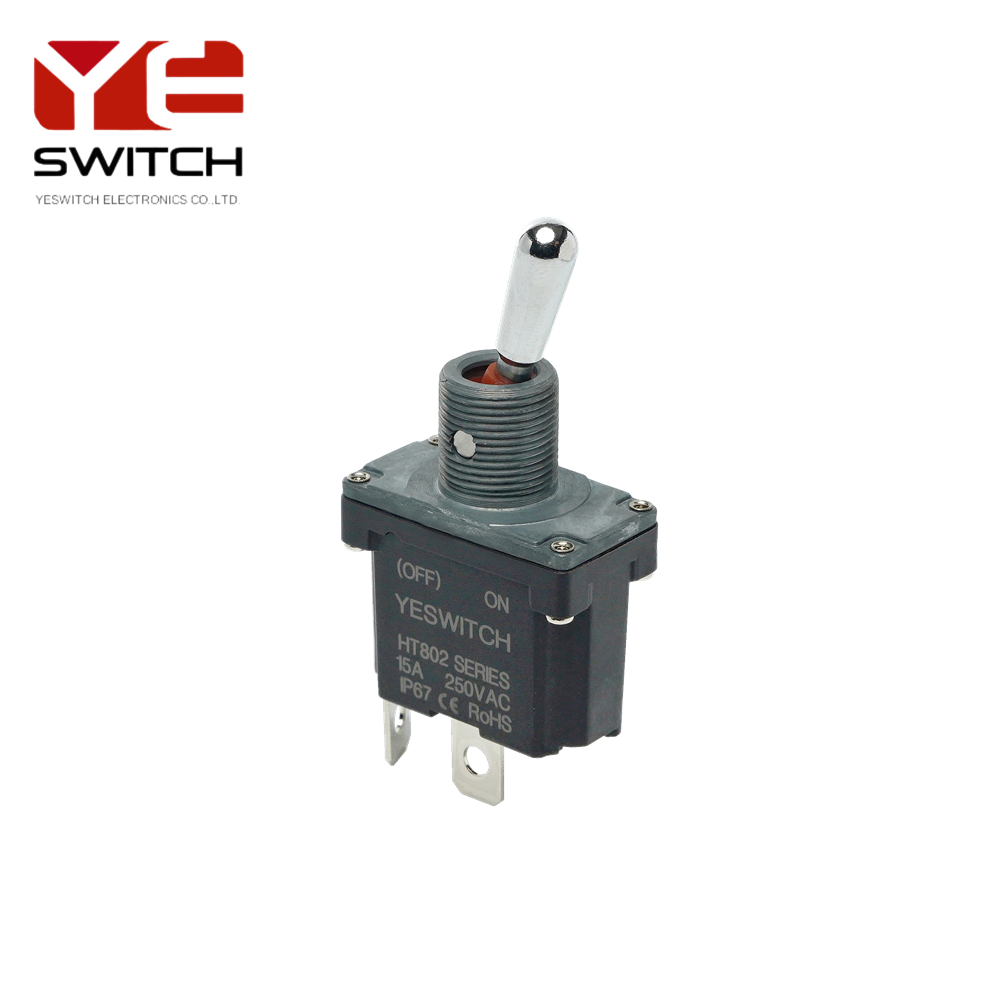

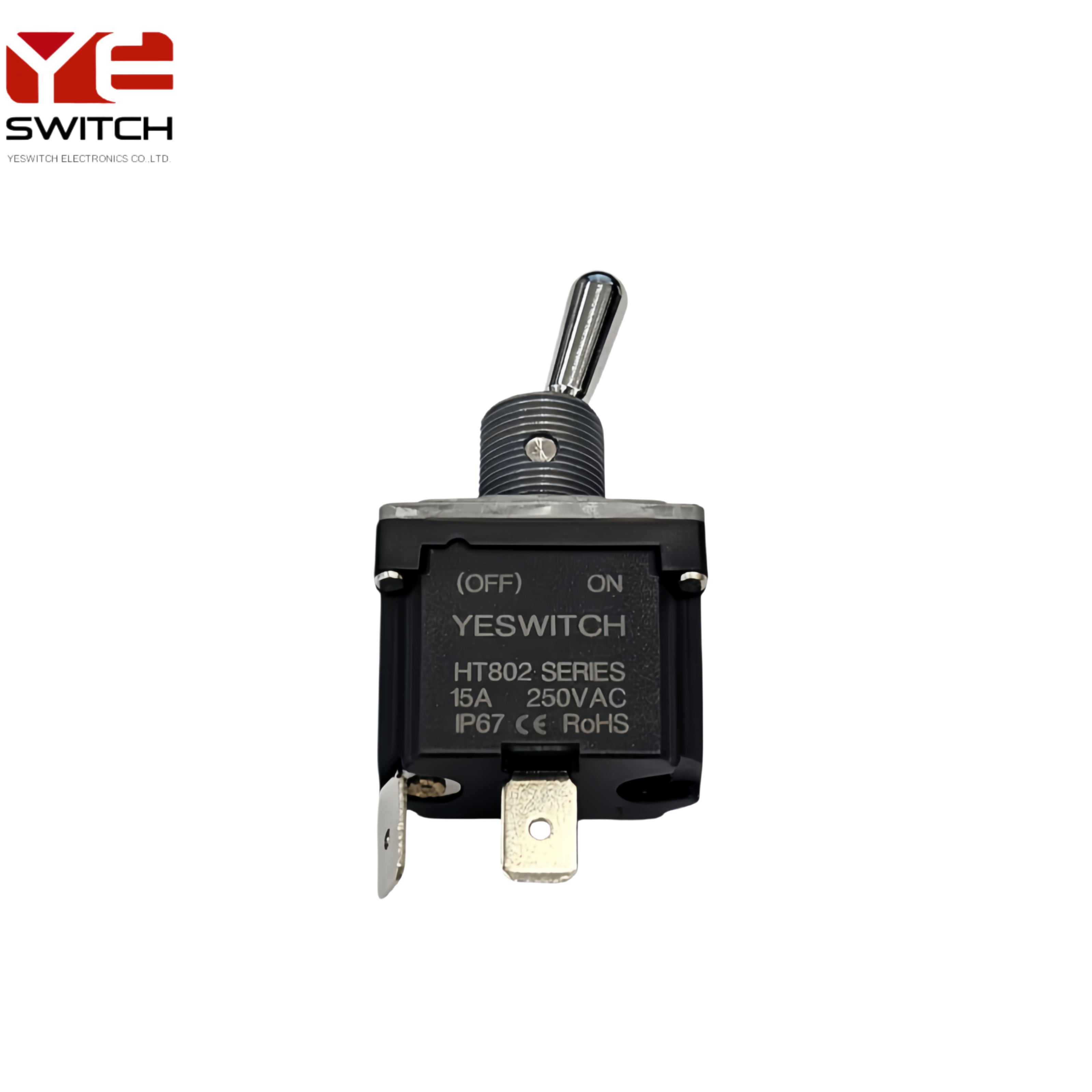

Designed for uncompromising reliability, the YESWITCH HT802 (OFF)-ON Toggle Switch is your ultimate solution for heavy-duty circuit control. Featuring a robust metal round lever and 2-pin quick-connect terminals, this IP68 Toggle Switch delivers dust-tight, water-resistant performance that stands up to the harshest conditions—from construction sites to marine decks.

With a 15A @ 250VAC rating and industrial-grade durability (100,000+ mechanical operations), it ensures stable power switching for trucks, heavy machinery, and outdoor equipment. Backed by CE and RoHS certifications, the HT802 series combines ease of installation with long-lasting performance, making it the trusted choice for engineers and designers who demand zero compromises.

SPECIFICATION-Momentary Toggle Switch

CONTACT RESISTANCE	20m ohm(Max)
INSULATION RESISTANCE	100VDC-100M ohm(Min)
DIELECTRIC STRENGTH	1500VAC-1MINUTE
MECHANICAL LIFE CYCLE	100.000 CYCLES
OPERATING TEMPERATURE	-40 to +85 DEGREES
FRONT SEAL	IP68

RATING

RESISTIVE LOAD	16A 125/250VAC,15A 28VDC
INDUCTIVE LOAD	15A 28VDC

MATERIAL

ACTUATOR	COPPER ALLOY
HOUSING	NYLON (UL94V-0)
BUSHING	ZINC ALLOY
TERMINAL	COPPER ALLOY
O-RING	SILICONE RUBBER

Core Advantages

1. Ultimate protection, adaptable to extreme environments

IP68 high protection level: Completely dust-proof, not afraid of outdoor rain, dusty construction sites, damp ship cabins and other harsh working conditions.

Sealed structure design, effectively isolating water vapor, oil stains and dust, avoiding oxidation or short circuit of contacts.

2.Industrial-grade durability, long service life

With mechanical life ≥ 100,000 times, electrical life ≥ 50,000 times, much higher than that of civilian-level switches, the HT802 Series Toggle Switches significantly reduce equipment maintenance and replacement costs. (For high quality switches, they can also be our Plunger Seat Safety Switch, Metal Push Button Switch and Rocker Switch.)

Metal round handle operation lever plus sturdy shell, shock-resistant, vibration-resistant, suitable for rough scenarios such as construction machinery, heavy trucks, etc.

3. Stable electrical performance, large current carrying capacity

Rated current 15A @ 250VAC, also supports DC circuits (15A @ 125VDC), the High Current Toggle Switch meets the large power on-off requirements of heavy equipment and vehicles.

High-quality contact material, low contact resistance, small temperature rise, ensuring long-term stable operation of the circuit, avoiding overheating faults.

4. International certification, global market access

Obtained CE and RoHS certifications, compliant with EU and international safety and environmental protection standards, the Toggle Switches can be directly exported to global markets such as Europe, Southeast Asia, etc. (The Plunger Safety Switch, as a power switch, even has a UL certificate.)

No harmful substances, meeting environmental protection regulations requirements, suitable for the green manufacturing trend.

5. Precise control, wide application scenarios

(OFF)-ON single-pole single-throw circuit, operation clear, feel definite, avoiding misoperation.

Metal round handle design, solid touch, smooth operation, suitable for wearing gloves or rapid operation in poor visual conditions.

Sealed Waterproof Toggle Switch Application

- High-altitude work platform: Controls platform elevation, emergency stop, main power switch, and maintains stable power connection and disconnection in outdoor wind and rain conditions.

- Excavator / Loader / Road Roller: As a control switch for the cab, it controls lighting, hydraulic pumps, warning lights, etc., and is resistant to vibration and jolts.

- Mining machinery: In dusty, humid, and highly vibrating environments, ensures reliable control of equipment power supply and safety circuits.

- Fire truck / Ambulance / Engineering rescue vehicle: As an emergency function switch, it ensures rapid response and continuous effectiveness in emergency situations.

- Agricultural machinery (mower / tractor): Controls the power, lighting, and spraying systems of agricultural machinery, suitable for muddy and dusty environments in the fields.

- Industrial control cabinet / Distribution box: As the main power switch or branch switch, it is suitable for dust and oil-contaminated environments in factory workshops.

- Vessels / Yachts: Controls cabin lighting, water pumps, navigation equipment. IP68 protection can withstand seawater splashing and high humidity corrosion.

- Military / Security Equipment: Ensuring the on-off control of critical circuits in extreme environments, meeting high reliability and anti-interference requirements.

- New Energy Equipment: Such as electric forklifts, small energy storage systems, meeting the power management needs of DC/AC circuits.

FAQ about the Mining Equipment Toggle Switch

Q1: Can this High Current Toggle Switch be used in DC circuits?

A1: Yes, its DC rated value is usually 15A @ 125VDC, which meets the DC control requirements of most vehicles and low-voltage equipment.

Q2: What is the required installation hole diameter?

A2: The standard installation hole diameter is 12mm. The hexagonal nuts and washers provided can complete the panel fixation, and the installation depth is suitable for the common chassis thickness.

Q3: Does IP68 protection mean the Waterproof Toggle Switch can be submerged in water for a long time?

A3: IP68 indicates that it can be submerged in 1.5 meters of water for 30 minutes without getting wet. It is suitable for short-term immersion or rain exposure scenarios, but it is not recommended to use it for long-term immersion in water.

Q4: Do the terminals support welding or quick plugging and unplugging?

A4: The contact terminals support quick plugging and unplugging wiring or welding connections, meeting the requirements of different assembly processes.
