Welded Wire Mesh Production
5 month ago
Electro Galvanized After Welded Wire Mesh – Smooth Bright Finish for Fencing & Construction
Electro galvanized after welded wire mesh is produced by first welding low-carbon steel wire into a rigid grid, then applying a uniform electro-galvanized coating to the finished mesh. This process results in a smooth, bright surface with excellent corrosion resistance for indoor and light outdoor applications. ANJIA Group manufactures electro galvanized after welded wire mesh in a 72,000m² ISO 9001:2015 facility, offering custom mesh sizes, wire diameters, roll widths and lengths for fencing, caging, machine guards, shelving and general industrial use.

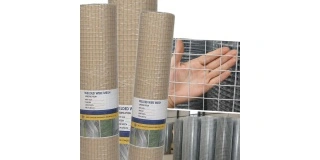

Electro galvanized after welded mesh roll

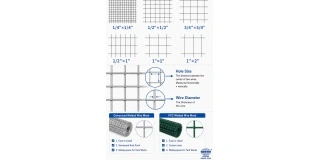

Mesh opening and wire diameter detail

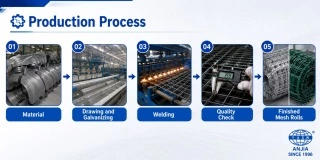

Automated welding production line
Product Specifications
| Parameter | Options |
|---|---|
| Material | Low-carbon steel wire (Q195/Q235) |
| Welding Type | Electric resistance welded before galvanizing |
| Surface Treatment | Electro-galvanized after welding (bright, smooth finish) |
| Wire Diameter | Common range 0.7mm – 4.0mm; confirm per application |
| Mesh Opening | 12.7x12.7mm to 100x100mm; custom available |
| Roll Width | 0.5m – 2.0m; custom widths available |
| Roll Length | 10m, 20m, 30m or custom |
| Packing | Rolls wrapped with plastic film, then hessian cloth or carton; pallet on request |
Key Advantages
Electro-galvanizing after welding ensures a clean, bright appearance with no weld spatter discoloration.
The electroplating process provides a consistent zinc coating over the entire mesh, including weld joints.
Resistance-welded intersections create a strong, dimensionally stable panel that holds its shape.
Suitable for indoor fencing, machine guards, shelving, enclosures, and light outdoor screening.
Applications
FAQ
Before welding: wire is galvanized first, then welded; weld joints may have exposed steel. After welding: mesh is welded first, then the entire panel is electro-galvanized, providing uniform coating including at weld joints and a cleaner finish.
Yes. We can produce a wide range of wire diameters and mesh openings according to your requirements. Please provide your target specifications for confirmation.
Electro-galvanized after welded mesh is suitable for indoor and light outdoor applications. For long-term outdoor exposure or corrosive environments, hot-dipped galvanized or PVC coated mesh is recommended.
Rolls are wrapped with plastic film, then covered with hessian cloth or packed in cartons. Palletizing is available for bulk orders. Custom labels and shipping marks can be arranged.
ANJIA Group – Welded Wire Mesh Manufacturer Since 1996
Hebei Conquer Hardware Wire Mesh Co., Ltd., a subsidiary of Anjia Group, operates a 72,000m² ISO 9001:2015 certified factory in Anping, China. With over 30 years of experience, we integrate wire drawing, welding, galvanizing and packing under one roof. Our welded wire mesh products are exported to 80+ countries. Mill test certificates and third-party inspection are available on request.
