Semi-truck Double Pole Fast Shipping Toggle Switch

3 month ago

21 0 

9 year

Product details

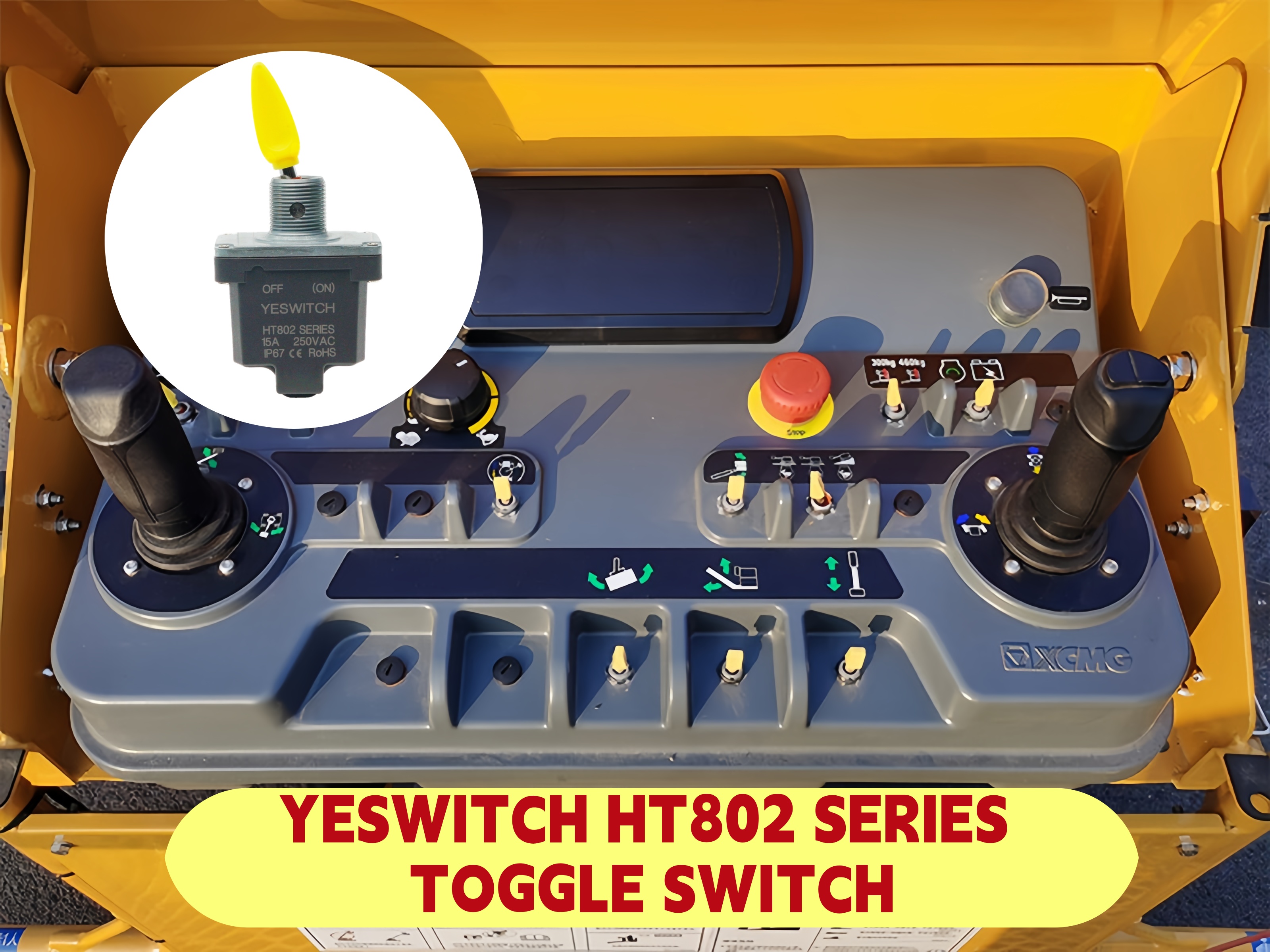

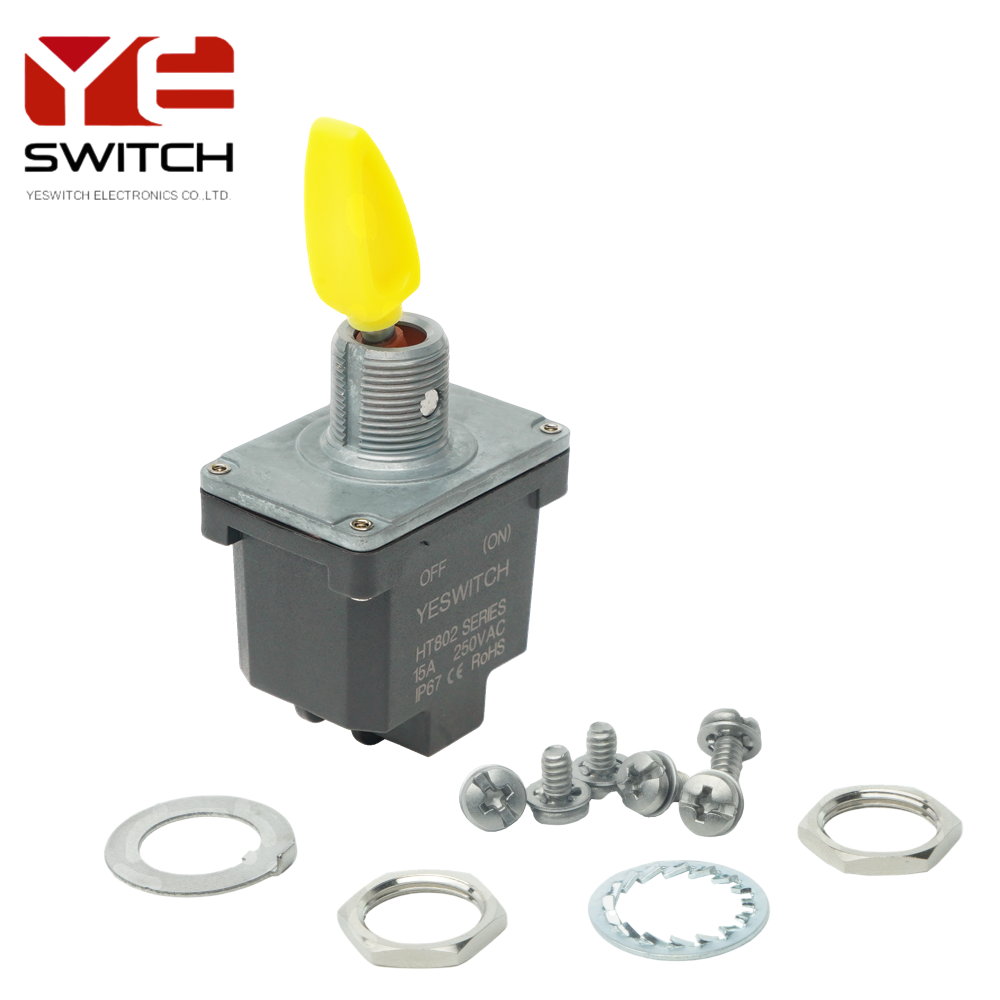

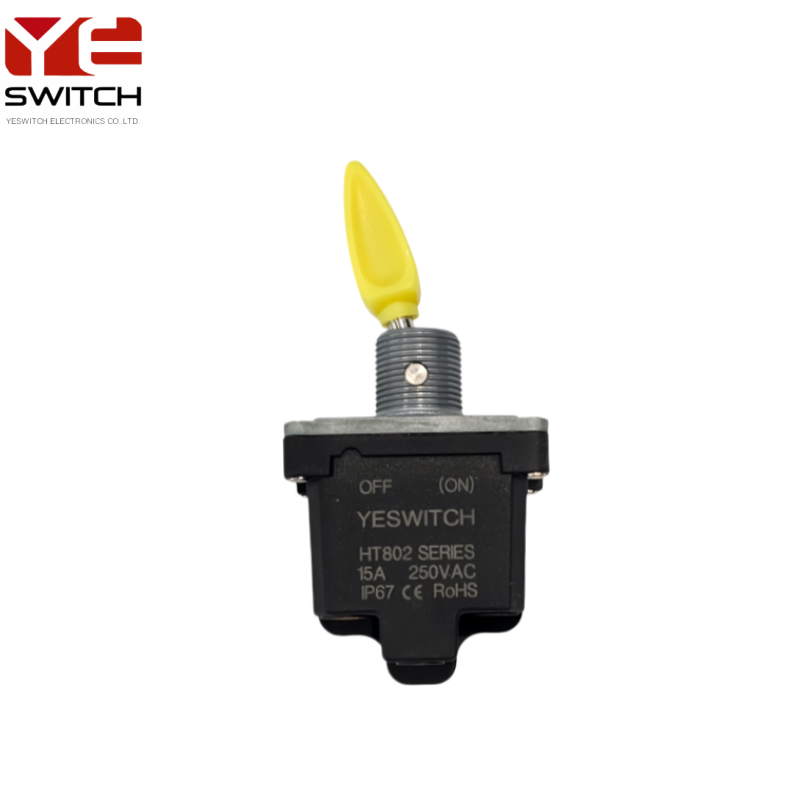

YESWITCH HT802 Series Waterproof Toggle Switches are equipped with a prominent yellow sleeve handle. They feature a dual-channel OFF-(ON) instantaneous reset function structure, are equipped with screw terminals and a protruding base design, and have an overall IP68 high-seal waterproof and dustproof performance. The structure is sturdy, resistant to vibration, and weather-resistant. The wiring installation is convenient, and they are suitable for instantaneous control of circuits in harsh outdoor working conditions of construction machinery, vehicle equipment, and other environments.

SPECIFICATION- Double Pole IP68 Toggle Switch

CONTACT RESISTANCE	20m ohm(Max)
INSULATION RESISTANCE	100VDC-100M ohm(Min)
DIELECTRIC STRENGTH	1500VAC-1MINUTE
MECHANICAL LIFE CYCLE	100.000 CYCLES
OPERATING TEMPERATURE	-40 to +85 DEGREES
FRONT SEAL	IP68

RATING

RESISTIVE LOAD	16A 125/250VAC,15A 28VDC
INDUCTIVE LOAD	15A 28VDC

MATERIAL

ACTUATOR	COPPER ALLOY
HOUSING	NYLON (UL94V-0)
BUSHING	ZINC ALLOY
TERMINAL	COPPER ALLOY
CONTACT	COPPER ALLOY
O-RING	SILICONE RUBBER

Core Advantages- Semi Truck Toggle Switch

1.Yellow exclusive handle: High visibility warning color, anti-slip and anti-drop, resistant to oil stains and aging. It can be easily identified in construction machinery scenarios, effectively reducing the risk of incorrect operation.

2.Dual-channel OFF-(ON) instantaneous reset customization function: Dual-channel synchronous independent control. Point operation and release will return to the middle position. Suitable for temporary start-stop of equipment, instantaneous signal triggering, safe and controllable without jamming.

3.Unique design of raised base sealing structure: Compared to flat base, it has stronger sealing performance, high panel installation fit, internal waterproof and dust-proof isolation from water vapor and dust, and eliminates the problem of water seepage and dust intrusion.

4.Installation is convenient: The design features screw terminals, ensuring secure and stable connections without loosening easily. The wiring can be removed and reinstalled simply, making maintenance in the future more convenient. The protruding base structure fits well with the panel for installation, providing better sealing and a more stable connection. (If you are looking for a riding mower switch with convenient installation, you can take a look at our Plunger Seat Safety Switch which can guarantee your safe work environment.)

5.Integrated high-waterproof and weather-resistant one-piece molding of the entire machine: Professional waterproof sealing process, able to withstand high-pressure water washing, rain and damp environments, vibration and impact resistance, stable performance under high and low temperature conditions, specially designed for harsh environments of construction machinery, outdoor vehicles, etc.

6. Strong durability and robustness: Reinforced body structure, resistant to vibration, impact, and high/low temperatures, long mechanical service life, suitable for long-term high-frequency usage scenarios of construction machinery, heavy trucks, outdoor equipment, etc.

The Toggle Switches have a wide range of application.

1.Construction machinery such as aerial work platforms, excavators, loaders, forklifts, and road rollers, are used for instantaneous point control, emergency operation, and triggering of functional circuits.

2.In the commercial vehicle and heavy truck sector, the driver's cabs of heavy trucks, buses, and engineering vehicles are used for instantaneous switching of auxiliary functions, parking assistance control, and temporary start/stop control of vehicle lights and equipment.

3.Outdoor gardening equipment, riding lawn mowers, gardening construction machinery, and outdoor mobile operation equipment, require dust-proof and water-proof, as well as anti-miscontact control in outdoor open-air conditions.

4.Agricultural machinery such as tractors, agricultural implements, and field operation machinery, are designed to adapt to the harsh conditions of wet, dusty, and muddy fields, and perform dual-channel instantaneous circuit control.

5.Outdoor industrial and hydraulic equipment hydraulic control systems, outdoor electrical control cabinets, mobile generators, and mining equipment, require waterproof, shock-resistant, and instantaneous reset dual-channel switch control.

6.Vessels and special vehicles for environmental cleaning, such as cleaning trucks, water spraying trucks, and small ship decks, require functional operation switches that are resistant to rain, moisture, and vibration.

FAQ about the Fast Shipping Machinery Toggle Switch

Q1: What are the differences between the raised base design and the ordinary flat base?

A1: The raised base fits the panel more closely, has better sealing performance, stronger waterproof, dustproof and water-proof capabilities, is more resistant to vibration and loosening, is suitable for harsh vibration conditions, and has better installation stability than the flat base style.

Q2: What kind of equipment can the dual-channel OFF-(ON) be used to control?

A2: It is suitable for scenarios that require dual-channel synchronous instantaneous on-off control: temporary start/stop of equipment, emergency signal triggering, hydraulic valve control, instantaneous switching of auxiliary lighting, and point control of construction machinery, etc.

Q3: How is the shock resistance and durability of this switch?

A3: It has been specially designed for the vibration environments of construction machinery and vehicles. Its structure is reinforced to withstand impacts and vibrations. It has strong resistance to high and low temperatures and weather conditions, and has a long mechanical lifespan. It is unlikely to malfunction even under long-term high-frequency use.

Q4: Is post-installation repair and replacement supported?

A4: The screw terminal wiring is simple. The standard panel has pre-drilled holes for installation, which is highly versatile. It is easy to disassemble and assemble, and the cost for later replacement and maintenance is low.
