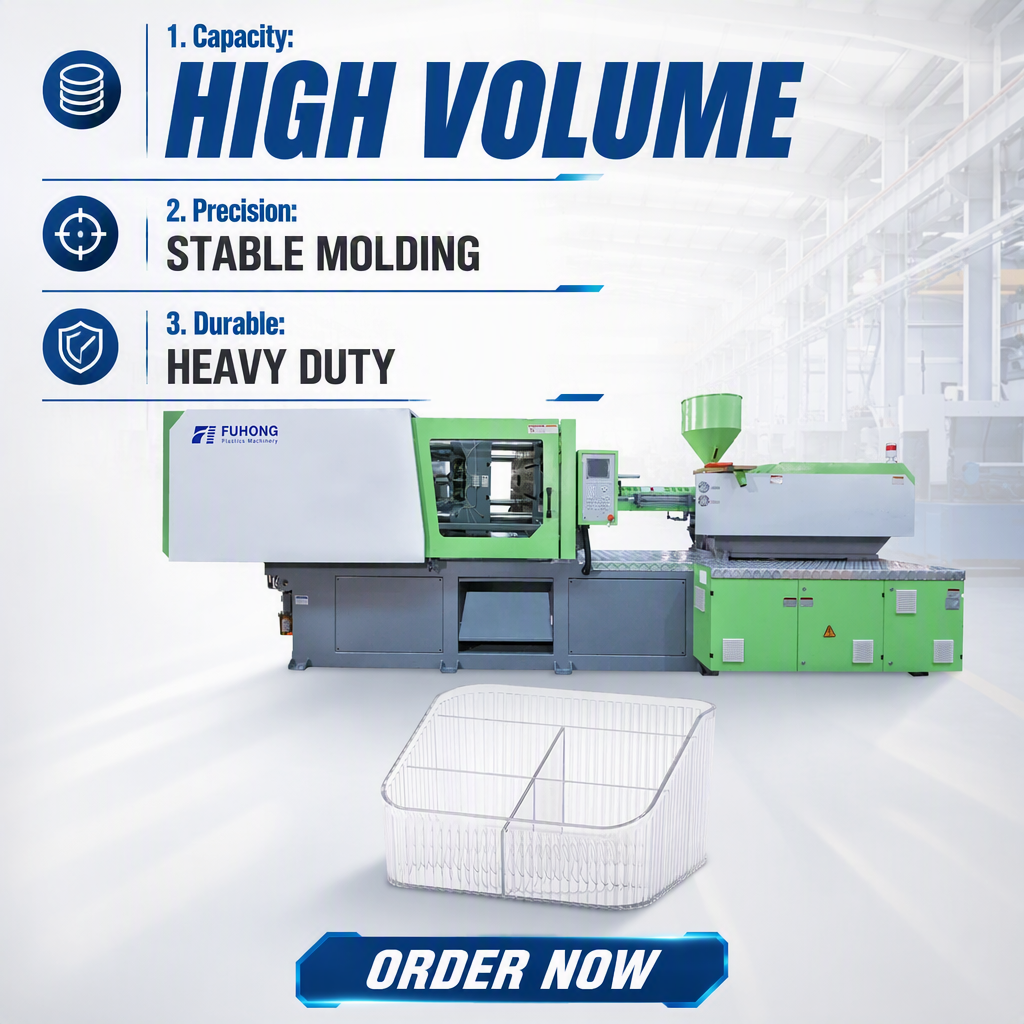

Plastic Toilet Seat Making Mold Customized Fuhong FHG 420 Ton Servo Injection Molding Machine1

6 month ago

51 0 

6 month

Product details

Optimized Performance & Customization Version

Tailored for long-cycle and high-efficiency plastic manufacturing, FUHONG high-stability injection molding equipment delivers consistent molding quality and reliable operational performance for global plastic producers. It adapts to the production of a full spectrum of plastic products, ranging from civilian daily necessities and packaging fittings to industrial mechanical parts, electrical plastic accessories, automotive plastic components and bespoke molded products.

Equipped with a reinforced mold locking mechanism, the machine maintains stable clamping force throughout repeated injection procedures, effectively minimizing plastic overflow burrs and ensuring uniform quality of batch products. The upgraded injection unit achieves homogeneous plastic melting, precise quantitative feeding and highly repeatable injection strokes, enabling manufacturers to obtain flawless product surface texture and accurate dimensional tolerance.

Our professional technical team provides targeted configuration solutions based on clients’ product weight, mold size, cavity quantity, raw material characteristics and daily production volume. Whether for small-batch customized production or large-scale standardized manufacturing, FUHONG can match the most suitable machine and supporting mold scheme for every project.

ITEM		UNIT	FHG140
Injection Unit	Screw Diameter	mm	40	42	45
	Screw L/D Ratio	L/D	23	21.9	20.4
	Injection Volume	cm3	228	252	289
	Shot Weight	g	208	229	263
	Injection Speed	g/s	98	108	124
	Injection Pressure	Mpa	180	163	142
	Screw speed	r/min	0-200
Clamping Unit	Clamping Force	KN	1400
	Opening Stroke	mm	380
	Mould Thickness(Min-Max)	mm	160-430
	Space Between Tie-Bars	mm	420×420
	Ejector Force	KN	33
	Ejector Stroke	mm	115
Others	Motor Power	KW	15
	Heating Power	KW	8.8
	Pump Pressure	Mpa	16
	Machine Dimension	m	5.54×1.27×1.65
	Machine Weight	Ton	13.5
