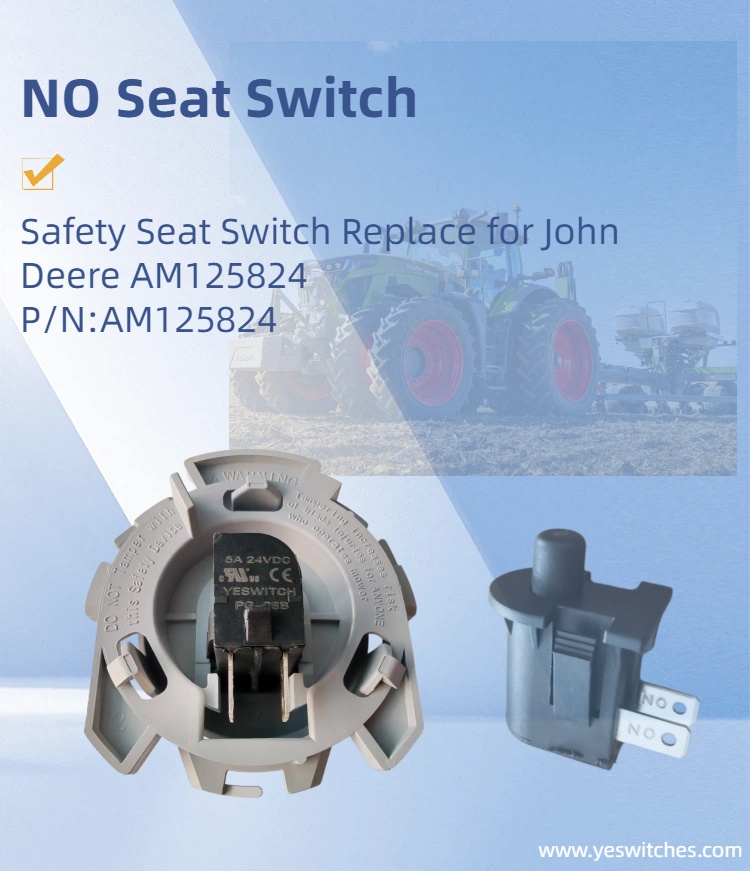

Safety Seat Switch Replace John Deere AM125824
3 month ago
Product details
The PG-03B safety seat switch is a high-quality safety component designed by YESWITCH for ride-on mowers,garden machinery,golf carts,and similar equipment.Featuring a plunger-type structure,the plunger seat safety switch enables equipment safety control through driver seat occupancy detection.It serves as a core safety component to protect operators.When the driver leaves the seat,the push button seat switch automatically opens the control circuit and cuts off engine power,effectively preventing accidental operation caused by the driver being out of position.
Safe and Reliable Reset Function
The PG-03B features an instantaneous reset function.When the driver sits on the seat,the riding mower switch closes the circuit under pressure,allowing the equipment to start and run normally.When the driver leaves the seat,the lawn mower switch automatically resets and opens the circuit,immediately stopping the engine and effectively eliminating safety hazards.The momentary plunger seat switches,has an electrical life of over 10,000 cycles and a mechanical life of over 75,000 cycles,ensuring stable and reliable performance even in high-frequency use scenarios,greatly reducing maintenance costs.
Convenient Snap-Fit Mounting
The PG-03B seat safety switch adopts a snap-fit mounting design that requires no tools for quick installation.Simply align the push button switch with the mounting hole at the bottom of the seat and push it in to secure–much faster and easier than traditional nut-based mounting.The switch housing is made of high-quality PP material compliant with UL 94V-2 flame retardancy requirements.Both the body and plug are made of flame-retardant materials,enhancing operational safety.
2Pin Terminal for Easy Wiring
The PG-03B seat safety switch uses a simple 2pin terminal design,making wiring straightforward.Users only need to connect the two wires of the control circuit to the two terminals of the switch-no complex circuit judgement is required, greatly reducing installation difficulty.For users unfamiliar with electrical wiring,a wiring diagram is supplied with the product,or a multimeter can be used to test the continuity of the terminals before installation.The 5A / 24V DC rating meets the load requirements of most garden machinery and electric vehicles,with an ample safety margin.
Wide Range of Applications
The PG-03B safety seat switch is highly adaptable and suitable for the following equipment and scenarios:
Ride-on Mowers–As a core safety component for seat occupancy detection,it automatically cuts off engine power when the driver leaves the seat, preventing the mower from running unattended.It is a standard safety configuration for turf maintenance equipment.
Garden Machinery–Widely used in various garden and landscaping machines, cutting off the circuit when the operator leaves to ensure safe operation.
Golf Carts–Installed under the golf cart seat,it cuts off power when the driver leaves,preventing the cart from moving while unattended.
Forklifts and Other Industrial Vehicles–Also suitable for driver presence detection in forklifts and similar industrial vehicles,meeting industrial safety standards.
International Certifications
The PG-03B mower plunger safety switch has obtained CE and UL certifications, guaranteeing quality.
Perfect Replacement for AM125824 and Many Other Models.
Specifications
- Operating Pressure:1600gf±300gf
- Operating Stroke:9.5mm±1.0
- Function:OFF-(ON) Momentary
- Body:PP,UL rated:94V-2 Black
- Plunger:PP,UL rated:94V-2 Gray
- Terminal:Brass,Silver plate
- Rating:5A 24VDC
- Contact Resistance:50m ohm MAX
- Insulation Resistance:100m ohm MIN
- Dielectric Strength:1500VAC 1 minute
- Electrical life:10,000 cycles
- Mechanical life:75,000 cycles
- Operating Temperature:-40-85 Degrees
- Relative Air Humidity:45%-85%
