Product details

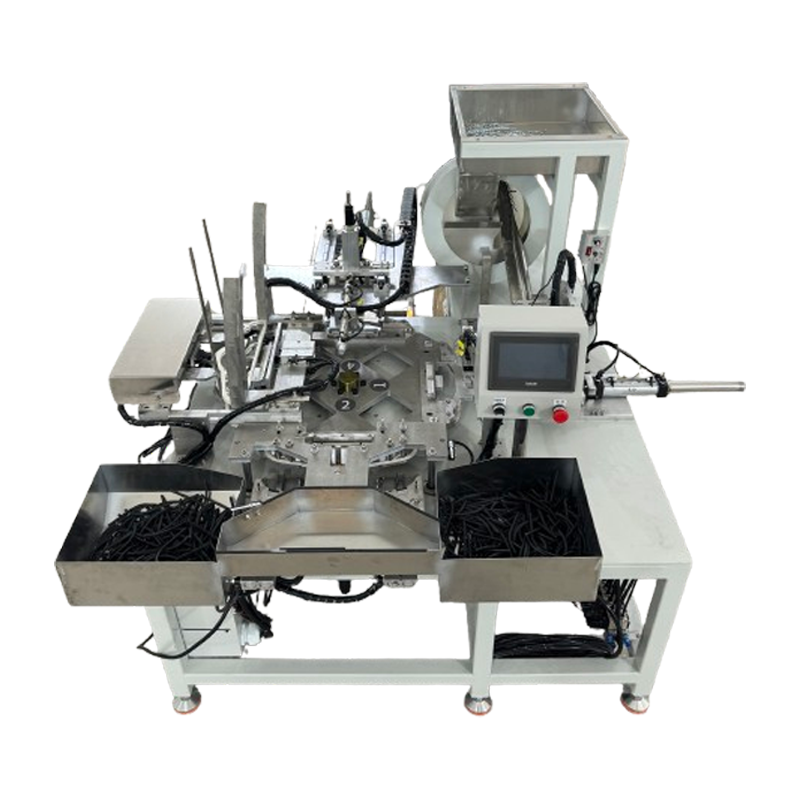

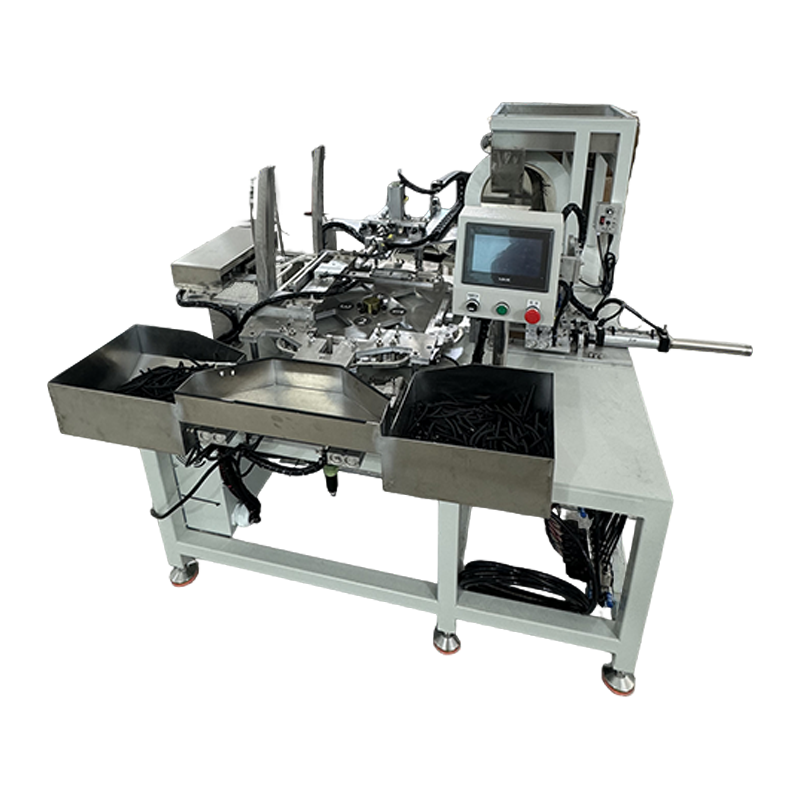

The SH1600A-P is made for hanger factories that want to finish more work in one machine. This model handles two jobs together: metal hook inserting and rubber anti-slip strip assembling. Instead of moving hangers between separate stations, the whole process runs continuously on one machine, which helps save floor space and reduce extra handling during production.

1.Power/ Air Consumption	220V, 50Hz/ 0.5~0.6Mpa
2.Production Capacity(per hour)	10~20pcs/min
3.Machine Size(LWH cm)	L155W155H135cm
4.Package Size(LWH cm)	L165W165H155cm
5.N.W/G.W	320KG/420KG
6.Standard exporting wooden carton packing

The operation is very direct. Workers place the hooks into the rotary feeding disk, and the machine automatically sends them into the insertion position through vibration feeding. Plastic hangers are stacked on the storage shelf, which can hold around 50–80 pieces depending on hanger thickness. At the same time, the soft anti-slip strips are loaded into the working area and automatically attached onto the hanger body. After strip assembly, the hanger parts move straight into the hook inserting section without stopping.

One thing customers often like is the flexibility. Different hanger sizes and shapes can be adjusted according to production needs, so the machine is not limited to only one hanger design.

Another practical point is the simple operation. Even new operators can quickly understand the production flow. Optional high-frequency heating equipment and cooling water systems are also available for factories that need additional process support.

For factories trying to improve product quality, anti-slip hangers are becoming more popular in clothing stores, laundry services, hotels, and home storage markets. Rubber strips help keep clothes from sliding off, while the clean hook insertion gives the hanger a better finished appearance. This is why more plastic hanger manufacturers are upgrading their production lines with integrated equipment like the SH1600A-P.
