24Pin Circular Aviation Plug Multi-Branch Sampling Harness

3 month ago

26 0 

2 year

Product details

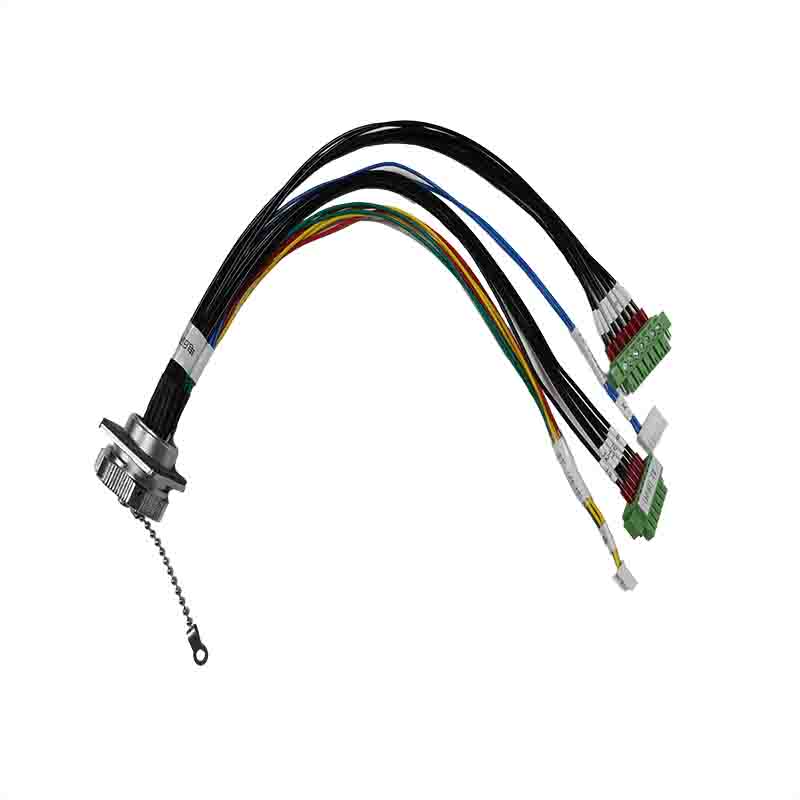

FUBON designs robust, application-specific connection solutions that deliver reliable multi-signal performance in demanding industrial and automotive environments. This 24Pin Circular Aviation Plug Multi-Branch Sampling Harness is purpose-built to handle complex voltage and temperature sampling tasks, engineered for both durability and precise signal routing.

Item	Description
Product Name	24Pin Circular Aviation Plug Multi-Branch Sampling Harness
Connector Configuration	• P1: WY28J24Z 24-pin circular aviation plug (with dust cap, chain, nuts & washers) • P2: 7-pin green terminal block (voltage sampling) • P3: 10-pin green terminal block (temperature sampling) • P4/P5: 6-pin connectors (signal branches)
Length	• Main cable length: 350 ± 10mm • Sub-branch length: 20 ± 5mm • Marked label section: 30 ± 5mm from P1
Appearance Features	1. Multi-conductor UL-rated wires (UL1007 22AWG, UL1332 18AWG) in black, yellow, green, red, blue 2. Metal aviation plug with dust cap and pull chain; green screw terminal blocks with pre-stripped leads 3. Printed labels for "Voltage Sampling Block" and "Temperature Sampling Block" 4. RoHS-compliant materials, with heat-shrink tubing for strain relief
Electrical Performance	• 100% continuity tested (no shorts/opens/miswiring) • Test voltage: DC 500V / 10ms • Conduction resis%tance: ≤3Ω • Insulation resistance: ≥10MΩ
Application	Multi-signal harness for voltage and temperature sampling in industrial control and test equipment

At its core, this assembly features a heavy-duty 24-pin circular aviation plug, paired with multiple color-coded branches that terminate in screw terminal blocks and compact connectors. Each lead is clearly labeled and protected with heat-shrink tubing, ensuring quick, error-free integration into measurement or control systems. As a high-performance automobile wire harness, it is built to withstand vibration, temperature fluctuations, and continuous use, maintaining stable signal integrity across all channels.

24Pin Circular Aviation Plug Multi-Branch Sampling Harness

Unlike generic cables, this car wiring harness is custom-configured for multi-point sampling, with dedicated branches for voltage and temperature signals. Every conductor is UL-rated and 100% continuity tested, with strict checks for shorts, opens, and miswiring. RoHS-compliant materials and reinforced strain relief at every connection point ensure long-term reliability, even in harsh operating conditions.

As a specialized addition to our line of car wiring cables, this harness offers a tailored solution for test equipment, industrial control panels, and custom vehicle monitoring systems. It eliminates the complexity of building multi-signal setups from scratch, delivering a ready-to-deploy assembly that saves time and reduces installation errors.

From standard adapters to fully customized multi-branch harnesses, FUBON delivers the quality and precision your most demanding projects require.
