DB26Pin Male to Multi-Sensor Wiring Harness

3 month ago

10 0 

2 year

Product details

This DB26Pin Multi-Sensor Wiring Harness is engineered to streamline the connection between your diagnostic equipment and a full suite of engine sensors. Designed to integrate TPS, MAP, IAT, O2, and tilt sensors into a single assembly, it eliminates the hassle of managing multiple loose wires during testing or calibration.

DB26Pin Male to Multi-Sensor Wiring Harness

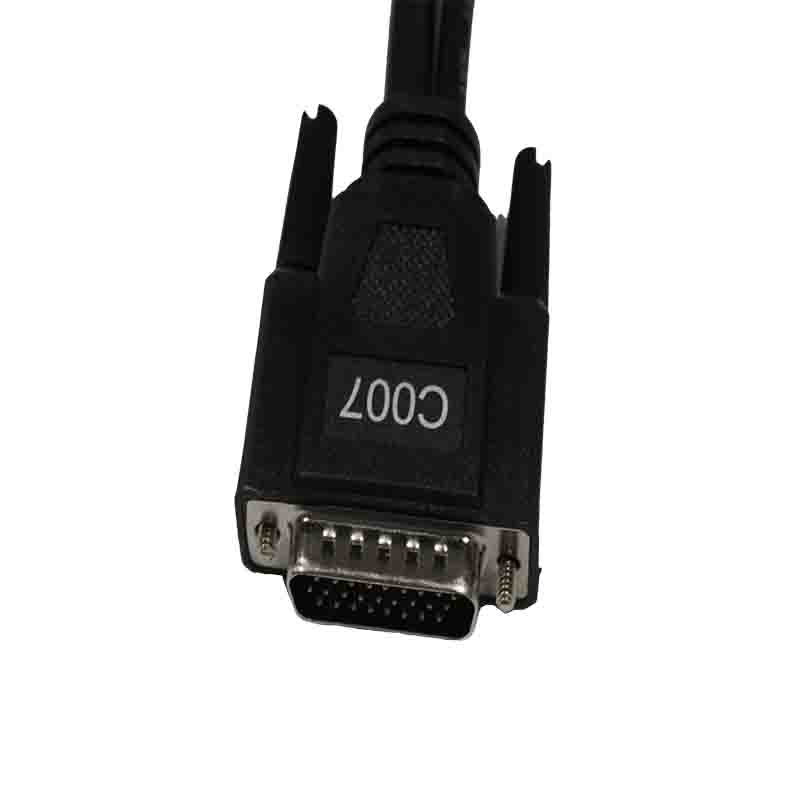

As a purpose-built automobile wire harness, it features a robust DB26Pin male connector at one end, paired with a dedicated DC power lead and clearly labeled sensor branches. Each color-coded lead is pre-terminated and marked with its specific function—such as +5V, +12V, sensor signal, and ground—making setup fast, intuitive, and error-free. The durable black PVC jacket and molded strain relief protect against abrasion and repeated use, ensuring long-term reliability in demanding environments.

Item	Description
Product Name	DB26Pin Male to Multi-Sensor Wiring Harness
Connector Type	• P1: DB26-pin male connector • P2: DC power barrel connector • P3/P4: Multi-pin sensor connectors
Length	• Total length from P1 to split point: 350 ± 20mm • Branch length from split point to P3/P4: 200 ± 20mm (P3/P4 leads: 50 ± 5mm) • Branch length from P1 to P2: 150 ± 10mm

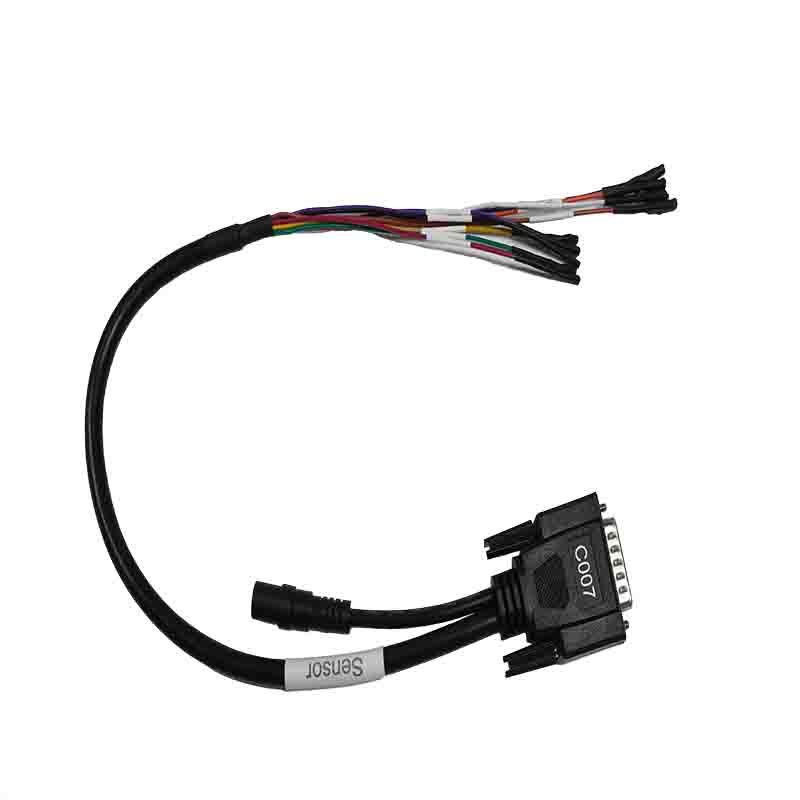

Appearance Features	1. Cable & Jacket: Black PVC outer jacket, main trunk splits into color-coded multi-sensor leads (red, purple, yellow, green, black, brown, orange, blue, white) 2. Connectors: Molded DB26 male plug; DC power connector; exposed terminal ends with heat-shrink protection 3. Markings: PVC label printed with "Sensor" on main cable; individual leads labeled with sensor function (+5V, TPS & MAP, IAT, O2 Sensor, etc.) 4. Finish: Smooth surface, no deformation/scratches; neatly routed and terminated wires
Electrical Performance	• 100% continuity tested (no shorts, opens, miswiring) • Test voltage: DC 300V / 10ms • Conduction resistance: ≤5Ω • Insulation resistance: ≥10MΩ • RoHS-compliant materials
Application	Custom multi-sensor harness for engine test/ECU systems, connecting DB26Pin devices to TPS, MAP, IAT, O2, and other vehicle sensors

This assembly meets the strict quality standards expected of professional automotive cables. Every harness undergoes full continuity and insulation testing to rule out shorts, opens, or miswiring, and is constructed with RoHS-compliant materials. The multi-branch design consolidates power and multiple sensor signals into one tidy package, reducing clutter and simplifying your bench test or ECU integration setup.

As a versatile addition to our line of car wiring cables, this harness is ideal for technicians and tuners working with engine test systems, custom ECU builds, or vehicle diagnostics. It provides a stable, reliable connection that helps you capture accurate data from all critical sensors, whether you’re performing routine checks or advanced performance tuning.

From standard adapters to fully customized multi-branch harnesses, we build each solution to meet the specific demands of automotive applications—delivering the durability and precision your projects require.
