DB26Pin Male to Ignition Coil and Fuel Injector Wiring Harness
3 month ago
Product details

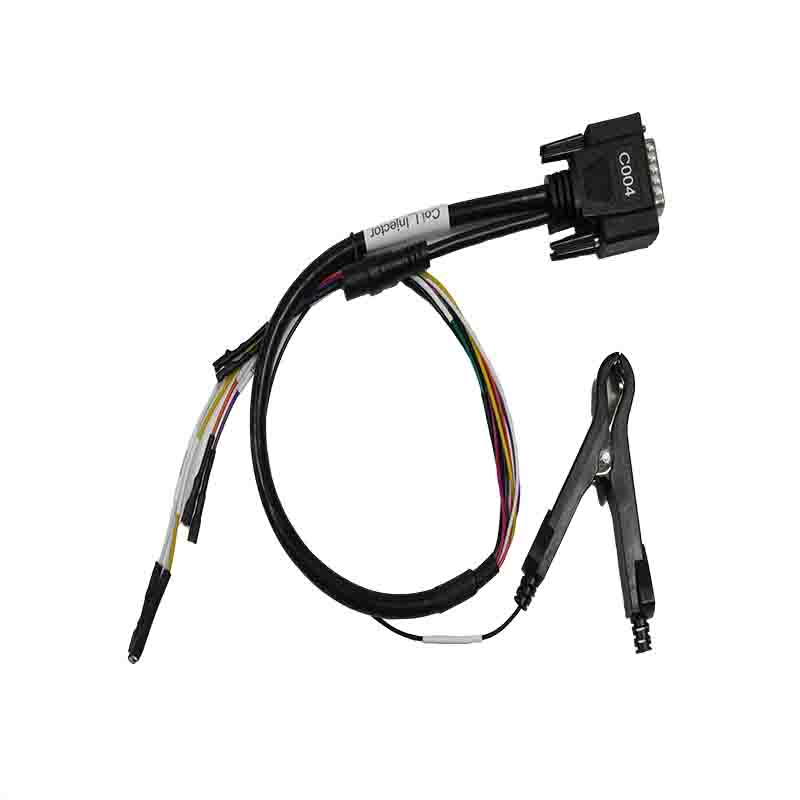

This DB26Pin Male to Ignition Coil and Fuel Injector Wiring Harness is purpose-built for engine diagnostic and bench testing, designed to connect your DB26Pin device directly to ignition coils and fuel injectors with precision and reliability.
Every detail of this assembly is crafted to meet the demands of professional technicians, making it a robust automobile wire harness that simplifies multi-component testing. The molded DB26Pin male connector at one end pairs with a dedicated DC power lead, while color-coded branches clearly separate +12V power, signal, and ground lines for each coil and injector. Reinforced strain relief and heat-shrink protected terminals ensure the harness holds up to repeated use, reducing wear and preventing connection issues.
| Item | Description |
| Product Name | DB26Pin Male to Ignition Coil and Fuel Injector Wiring Harness |

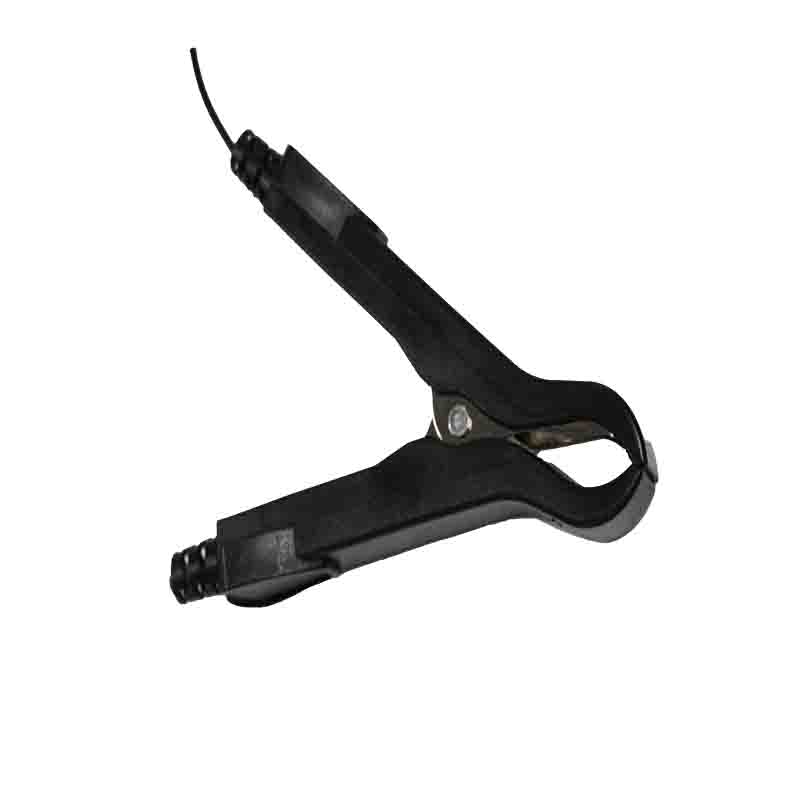

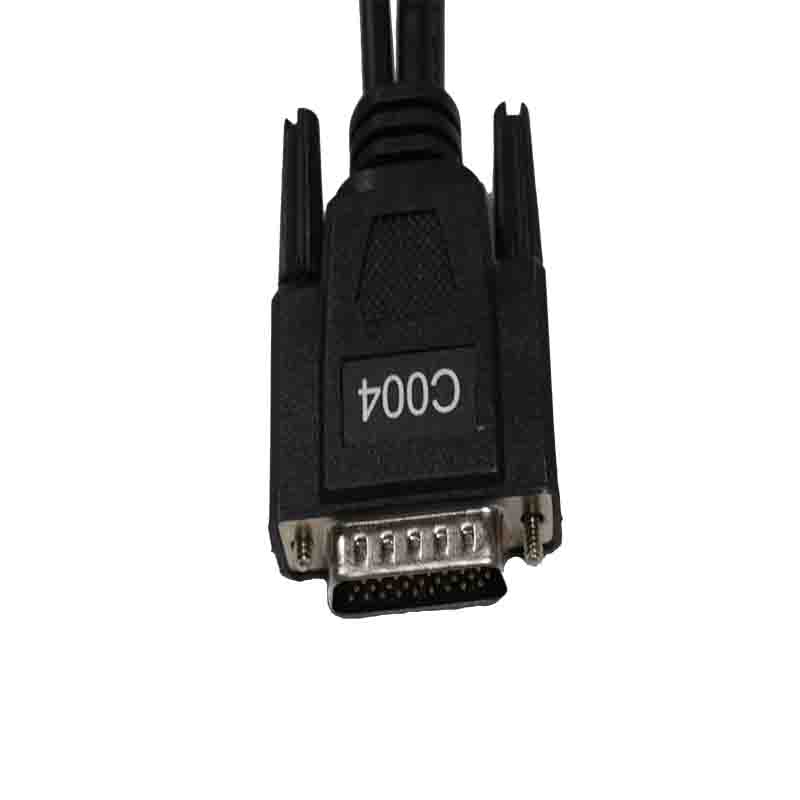

| Connector Configuration | • P1: DB26-pin male connector (labeled “C004”, with mounting screws) • P2: DC power barrel connector • P3-P6: Injector/coil power and signal leads (with pre-terminated terminals) • P7: Ground lead with alligator clip |
| Length | • Main trunk length (P1 to split point): 350 ± 10mm • P2 branch length (P1 to DC plug): 150 ± 10mm • Sub-branch lengths (varies by lead): 155–305mm • Total length (P1 to P7 ground clip): 450 ± 10mm |
| Appearance Features | 1. Cable & Jacket: Black PVC outer jacket, main trunk splits into color-coded leads (brown, green, red, blue, orange, purple, yellow, white, black) 2. Connectors: Molded DB26 male plug with “C004” marking; DC power connector; multiple pre-stripped leads with heat-shrink protection; ground lead with alligator clip 3. Markings: PVC label printed with “Coil Injector” on main cable; leads labeled for power (+12V), signal, and ground 4. Finish: Smooth surface, no deformation, scratches, or flow marks; neatly routed and terminated wires |
| Electrical Performance | • 100% continuity tested (no shorts, opens, or miswiring) • Test voltage: DC 300V / 10ms • Conduction resistance: ≤5Ω • Insulation resistance: ≥10MΩ • RoHS-compliant materials |
| Application | Custom harness for engine coil and injector testing, connecting DB26Pin diagnostic devices to ignition coils and fuel injectors |
As a versatile addition to our line of automotive cables, this harness streamlines the testing process by consolidating multiple connections into one organized assembly. It eliminates the hassle of loose, unmarked wires and reduces setup time, helping you get accurate results faster. Each unit undergoes rigorous continuity and insulation testing to rule out shorts, opens, or miswiring, ensuring consistent performance even in demanding environments.
This is far more than a generic adapter—it is a custom auto wiring harness tailored to the specific needs of engine testing. The pre-terminated leads, labeled functions, and dedicated ground clip are designed to make integration intuitive and error-free, whether you’re working on bench setups or in-field diagnostics.
Built to the highest standards of quality and durability, this custom automotive wire harness offers the reliability you need for every test. It’s engineered to perform under pressure, helping you diagnose issues with confidence and keep your projects moving forward.
From standard adapters to fully customized multi-branch solutions, we design each harness to meet the exact requirements of your application—ensuring performance, precision, and long-lasting reliability.
