SF16 series waterproof cable split 8 way

2 month ago

7 0 

2 year

Product details

CHAMAX can customize various waterproof cable assemblies, outdoor waterproof cables, custom waterproof cable assemblies, molded waterproof cable assemblies.

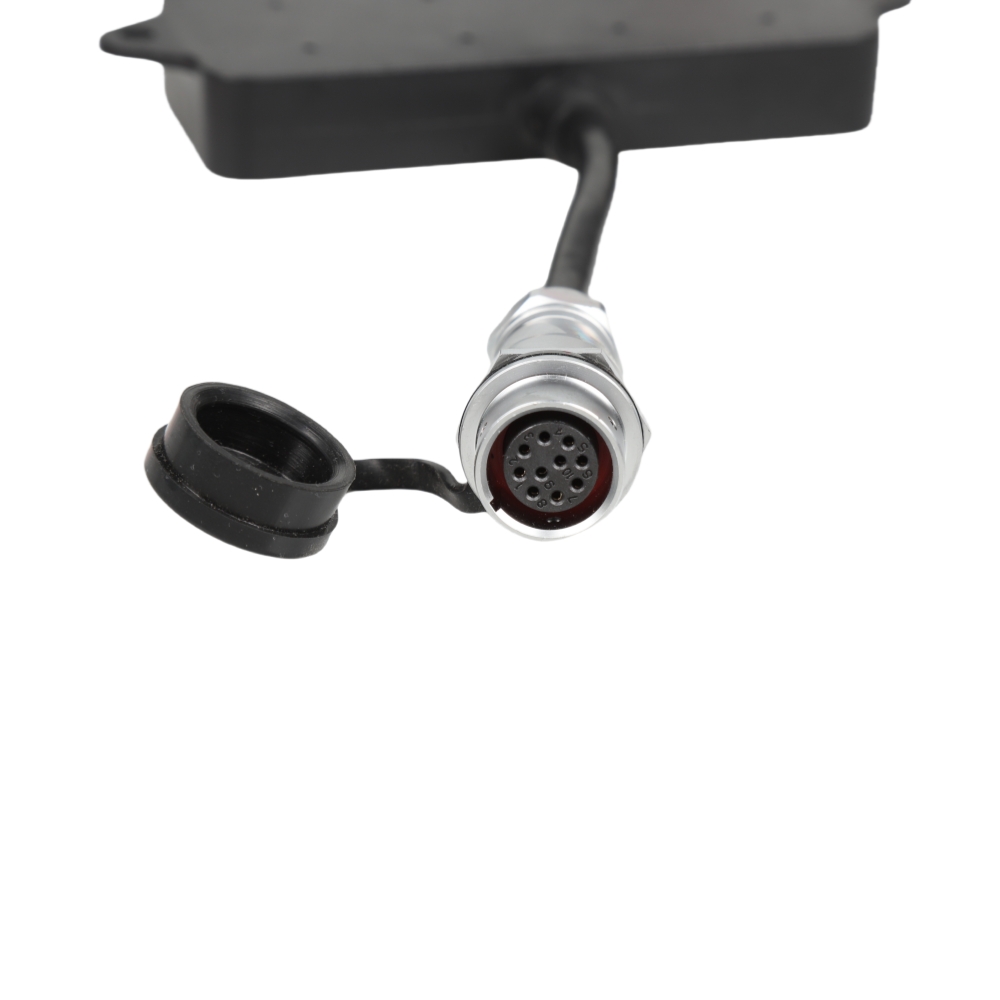

This is a customized waterproof wire for customers, which consists of 1 SF1611/S10 input and 8 WAY SF1611/S3 output. It is converted with a customized PCBA circuit in the middle and undergoes two molding processes

This customized waterproof cable assemblies has the characteristics of high reliability, waterproof and dustproof. The SF16 series connector used has a copper alloy shell and terminals, with gold-plated terminals, providing excellent electrical and mechanical performance and a beautiful appearance PCBA and internal and external molding are designed by CHAMAX according to customer needs. The specific parameters are as follows:

1. 1 to 8 way split cable.

2. IP Rating: IP66.

3. Rated current 5A.

4. Rated voltage 500VAC.

The detailed specifications are as follows:

1. Cable1: #22x10C, OD:7.0mm, UL2464, black.

2. Cable2: #22x3C, OD5.0mm, UL2464, black.

3. 10P Connector: SF1611/S10, shell: copper alloy, chrome plated, contact: brass,gold plated. UL94V-0.

4. 3P Connector: SF1611/S3, shell: copper alloy, chrome plated, contact: brass,gold plated. UL94V-0.

5. PCBA: FR4 UL94V-0, T=1.6mm.

6. Outer molded: PVC UL94V-0, black.

UL certified cables
RoHS, REACH compliant
