DB26Pin Male to Honda CKP Hall Sensor Wiring Harness
3 month ago
Product details
This DB26Pin Male to Honda CKP Hall Sensor Wiring Harness is a purpose-built solution designed to streamline the connection between diagnostic equipment and Honda crankshaft position sensors. It is engineered to deliver stable, noise-free signal transfer during engine testing, sensor calibration, and ECU troubleshooting.

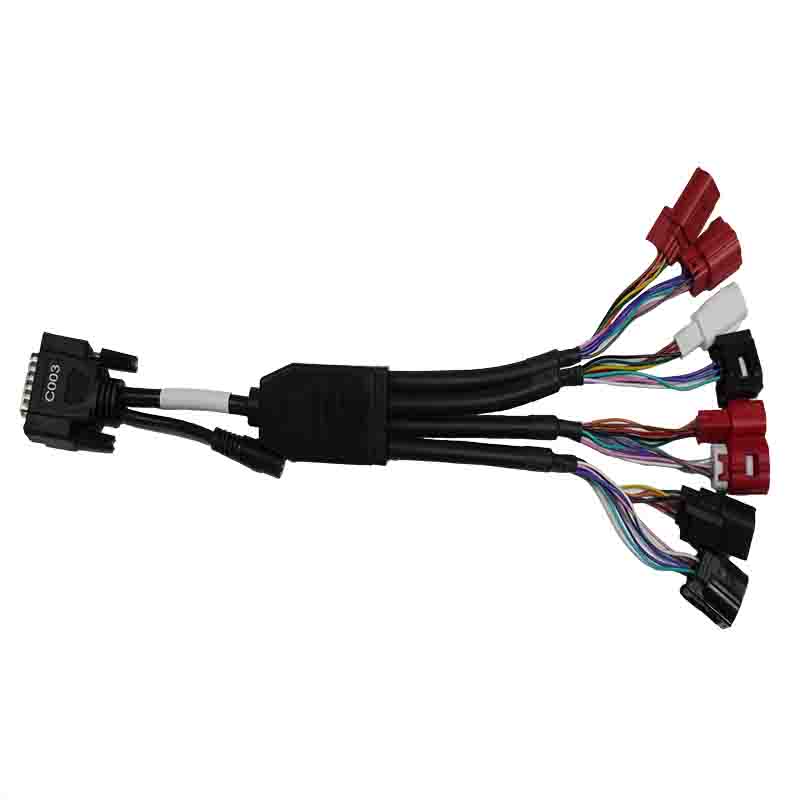

As a precision-engineered automobile wire harness, this assembly features a robust DB26Pin male connector at one end, paired with multiple color-coded branches tailored for Honda CKP Hall sensors. Each lead is clearly labeled and terminated with sensor-specific connectors, eliminating guesswork during setup and ensuring compatibility with a wide range of Honda engine configurations. Reinforced strain relief at the main connector and splitter points protects against repeated flexing, while high-quality insulation prevents signal interference in harsh test environments.
| Item | Description |
| Product Name | DB26Pin Male to Honda CKP Hall Sensor Wiring Harness |

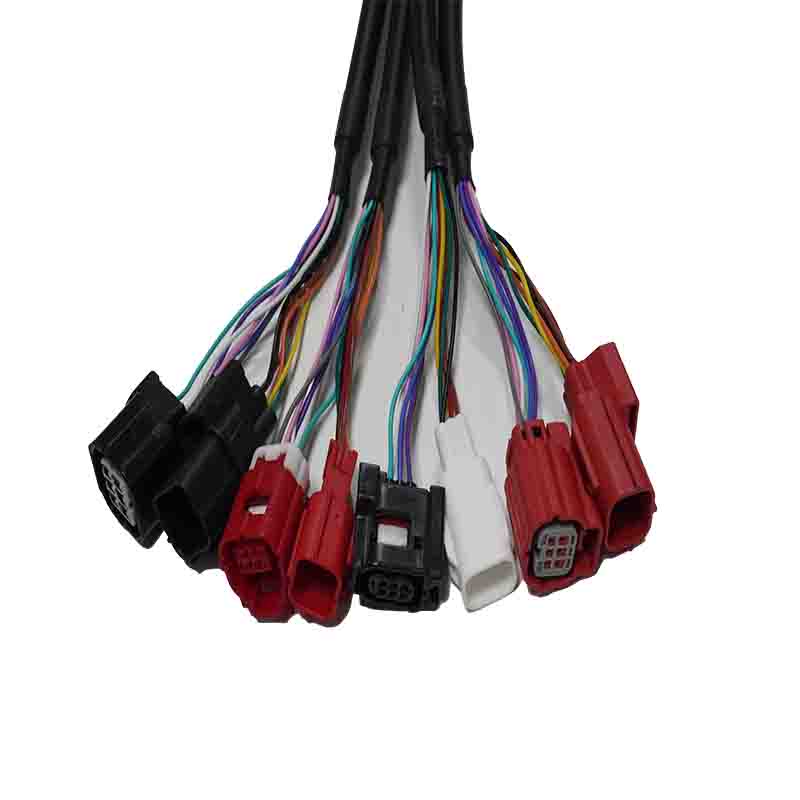

| Connector Configuration | • P1: DB26-pin male connector • P2: DC power barrel connector • P3/P5/P7/P9: 4-pin sensor connectors (4 sets, with red/black/white plastic housings) • P4/P6/P8/P10: 6-pin sensor connectors (4 sets, with red/black/white plastic housings) Total 8 sets of sensor branches, fully compatible with Honda CKP Hall effect sensors |
| Length | • Main trunk length (P1 to SR strain relief splitter): 200 ± 10mm • P2 branch length (P1 to DC power plug): 150 ± 10mm • Sub-branch length (splitter to 4-pin sensor connectors): 100 ± 10mm • Sub-branch length (splitter to 6-pin sensor connectors): 100 ± 10mm |

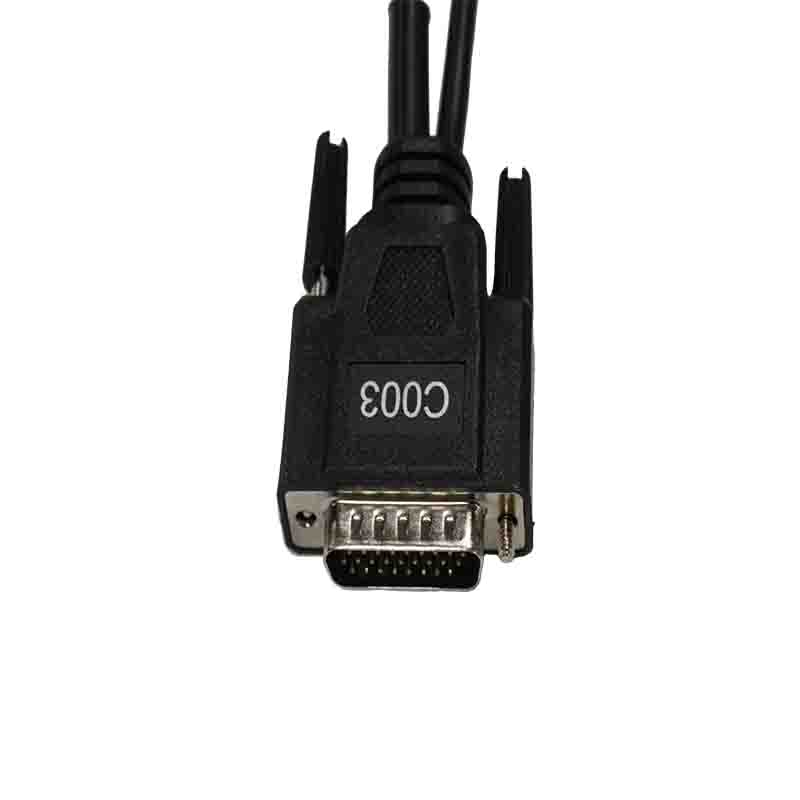

| Appearance Features | 1. Cable & Jacket: Black PVC outer jacket, main trunk with integrated SR strain relief splitter; multi-conductor color-coded wires (red, brown, orange, black, yellow, green, etc.) for clear signal identification 2. Connectors: Molded DB26 male plug with “C003” marking; DC power connector; 8 sets of sensor connectors in red, white, and black plastic housings, with pre-terminated pins and heat-shrink protection 3. Markings: White PVC label printed with “CKP HALL HONDA” on main cable; individual branches neatly routed and separated 4. Finish: Smooth cable surface, no deformation, scratches, bubbles, or flow marks; all connectors and leads neatly terminated and secured |
| Electrical Performance | • 100% continuity tested (no shorts, opens, or miswiring) • Test voltage: DC 300V / 10ms • Conduction resistance: ≤5Ω • Insulation resistance: ≥10MΩ • All materials comply with RoHS requirements |
| Application | Custom multi-branch harness for connecting DB26Pin diagnostic equipment to Honda CKP (Crankshaft Position) Hall effect sensors, ideal for engine testing, sensor calibration, and vehicle diagnostic applications |
Every component of this harness meets the rigorous standards expected of professional automotive cables. It undergoes full continuity and insulation testing to rule out shorts, opens, or miswiring, and is constructed with RoHS-compliant materials. The multi-branch design consolidates multiple sensor connections into a single, organized assembly, reducing clutter and simplifying your bench test setup.
Tailored specifically for engine management diagnostics, this car ECU wiring harness allows technicians to directly interface with CKP Hall sensors without modifying factory wiring. It provides a reliable bridge between your DB26Pin diagnostic tool and the sensor, making it an essential tool for accurate signal reading, fault diagnosis, and performance tuning on Honda vehicles.
Built to meet the unique demands of professional tuners and technicians, this custom automotive wire harness offers the durability and precision required for daily use. It is engineered to perform consistently under the pressure of repeated testing, helping you capture accurate data and diagnose issues with confidence.
From standard adapters to fully customized multi-branch assemblies, we design each harness to meet the exact requirements of your automotive applications—ensuring reliable performance and long-term reliability.
