Product details

Stainless Steel Filter Mesh – Woven Wire Cloth & Micron Sieve Screen | ANJIA GROUP

1–500 Micron | 2–635 Mesh | Wire Ø0.018–3.5mm | SS 304/304L/316/316L | Plain / Twill / Dutch Weave

ISO 9001:201530+ Years Manufacturing72,000m² FactorySGS & ISO Certified

HEBEI CONQUER HARDWARE WIRE MESH CO.,LTD (ANJIA Group) produces stainless steel filter mesh — also known as wire cloth, sieve mesh, or strainer mesh — from a 72,000m² ISO 9001:2015 certified facility. Our stainless steel wire mesh filter products cover micron ratings from 1μm to 500μm across plain, twill, and Dutch weaves. Whether you need 304 stainless steel filter mesh for food-grade liquid filtration, 316L stainless steel filter mesh for marine and chemical environments, or 1 micron stainless steel filter mesh for precision pharmaceutical processing — we produce to your exact mesh count, wire diameter, roll dimensions and certification requirements. Mesh count: 2 to 635 mesh. Wire diameter: 0.018mm to 3.5mm. Roll width: 0.5m to 3.0m (standard 1.0m, 1.22m, 1.5m). Roll length: 30m standard, up to 100m. Available as rolls, cut sheets, discs, or custom-fabricated filter elements. OEM/ODM supported with ISO 9001 and SGS certification. Free A4 samples, 15–25 day delivery.

Related: welded wire mesh | chain link fence | perforated metal mesh | gabion box

ANJIA Group stainless steel woven wire mesh plain weave wire cloth for filtration

Plain Weave Wire Cloth – General Filtration

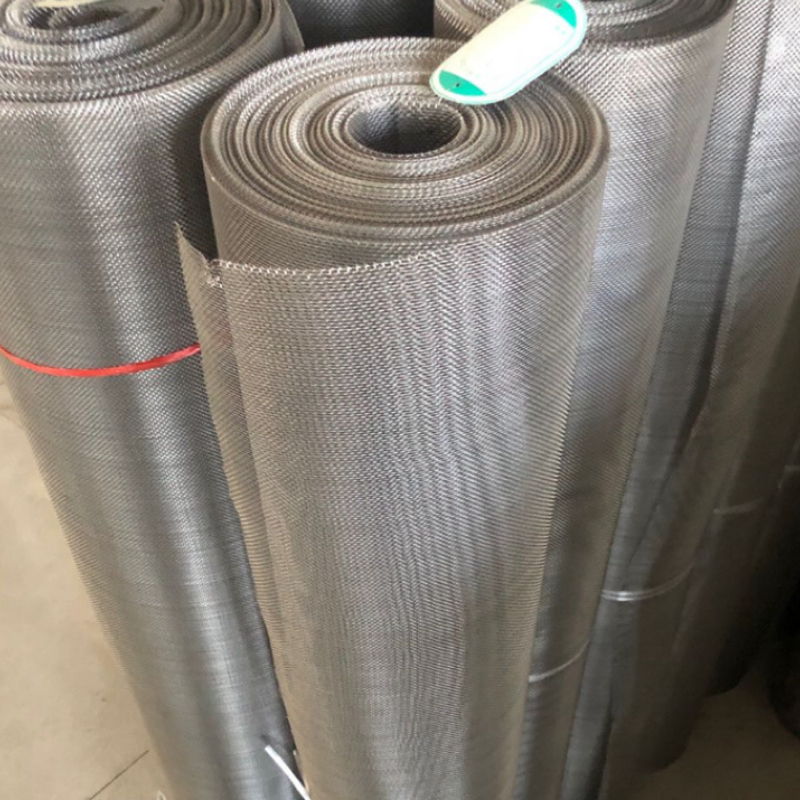

ANJIA Group stainless steel wire mesh filter screen 304 grade for industrial filtration

304 Stainless Steel Filter Screen

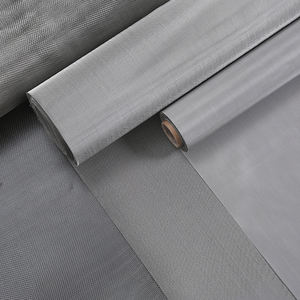

ANJIA Group stainless steel woven wire mesh roll for filtration sieving and separation

Woven Wire Mesh – Roll Form

Technical Specifications – Stainless Steel Filter Mesh

Parameter	Specification
Material Grades	SS 201, SS 304, SS 304L, SS 316, SS 316L (904L, Monel, Inconel on request)
Wire Diameter	0.018mm – 3.5mm
Mesh Count	2 mesh – 635 mesh (plain/twill); Dutch weave up to 400 × 2800 mesh
Micron Rating	1 micron – 500 micron (absolute & nominal)
Roll Width	0.5m – 3.0m (standard: 1.0m / 1.22m / 1.5m)
Roll Length	30m standard; up to 100m on request
Weave Types	Plain weave, Twill weave, Plain Dutch weave, Twill Dutch weave
Form	Rolls, cut sheets, discs, custom-fabricated filter elements
Packing	Water-proof paper + plastic film + wooden case / pallet; OEM labeling
Certification	ISO 9001:2015, SGS, FDA, REACH, RoHS

Weave Types & Micron Selection

Plain Weave: Standard over‑under pattern. Good strength, precise openings. 2–400 mesh, typically 25–500μm.
Twill Weave: Each wire passes over two, under two. Allows higher mesh counts with finer wire. Up to 635 mesh.
Plain Dutch Weave: Warp wires heavier than weft; tightly packed for fine filtration. 10–325μm absolute.
Twill Dutch Weave: For extremely fine filtration — 1–25μm absolute rating. 200×600 to 400×2800 mesh.

Typical Applications

Industrial Liquid Filtration · Air & Gas Filtration · Water & Wastewater Treatment · Oil & Fuel Filtration · Food & Beverage Processing · Pharmaceutical Sieving · Chemical Industry Separation · Aquarium & Coffee Filter Screens · Beer Brewing Strainers

FAQ – Stainless Steel Filter Mesh

Q1: 304 vs 316L — which material should I choose?
SS 304 is suitable for general industrial filtration, food processing, and water treatment. SS 316L contains molybdenum for superior resistance to chlorides and acids — recommended for marine, chemical, and pharmaceutical applications.

Q2: What micron rating do I need for my application?
1–10μm for pharmaceutical and fuel filtration. 20–100μm for food processing and chemical separation. 100–500μm for water intake, coarse screening, and aquarium use. Contact us with your particle size requirement for a recommendation.

Q3: Do you supply custom sizes and OEM/ODM services?
Yes. We produce custom mesh counts, wire diameters, roll widths (0.5–3.0m), cut sheets, discs, and fabricated filter elements. OEM/ODM with private labeling, custom packaging, and certification documentation is fully supported.

Q4: What is the MOQ and lead time?
MOQ: 2 metric tons per specification or 30 square meters for standard stock items. Lead time: 15–25 days for custom production; 5–7 days for stock rolls. Express service available.

Q5: Can I get a free sample before placing a bulk order?
Yes. Free A4 samples of standard specifications are available. Buyer covers courier freight (≈30–50 USD), deductible from the first order. SGS test reports and mill certificates provided with each shipment.

ANJIA GROUP – Stainless Steel Filter Mesh Manufacturer Since 1996

Hebei Conquer Hardware Wire Mesh Co., Ltd. is a subsidiary of Anjia Group, with over 30 years of manufacturing experience. Our 72,000m² facility in Anping, China, integrates wire drawing, precision weaving, slitting, and packing lines. We hold ISO 9001:2015 and ISO 14001:2015 certifications, with products compliant to FDA, REACH, and RoHS standards. Stainless steel filter mesh is exported to over 80 countries for liquid, gas, and industrial filtration applications. Every order includes full traceability, with third-party SGS inspection available on request.
