Cable Adapter M12 male to bare wires
3 month ago
Product details
Fubon Harness is a leading manufacturer specializing in the design and production of high-quality automotive cable and connectors, delivering reliable connection solutions for industrial, automotive and commercial applications worldwide. With years of expertise in precision manufacturing and strict quality control, we focus on creating durable, high-performance products that meet the diverse connectivity needs of our global customers.

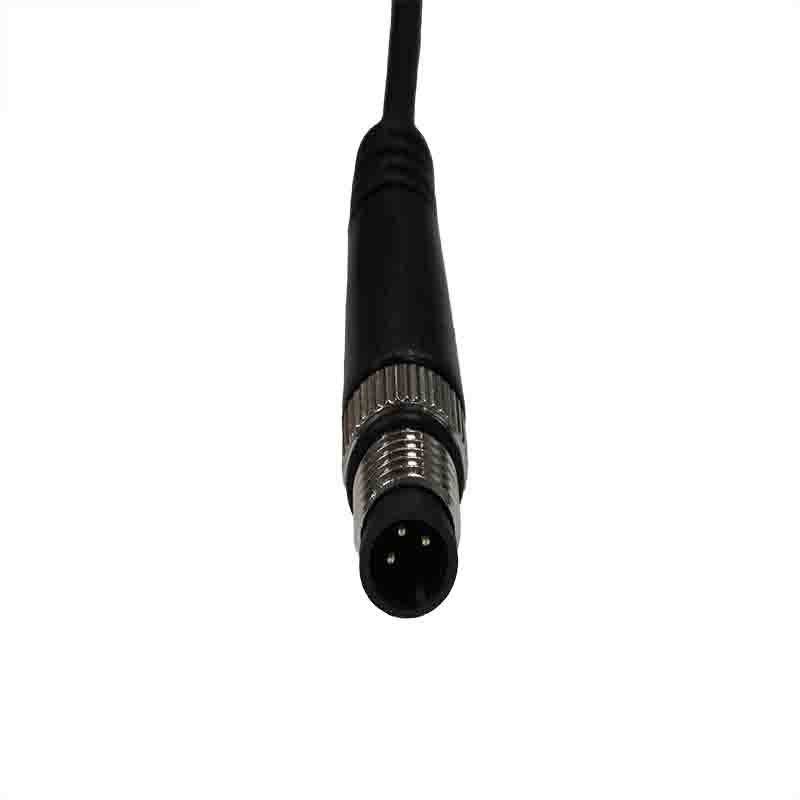

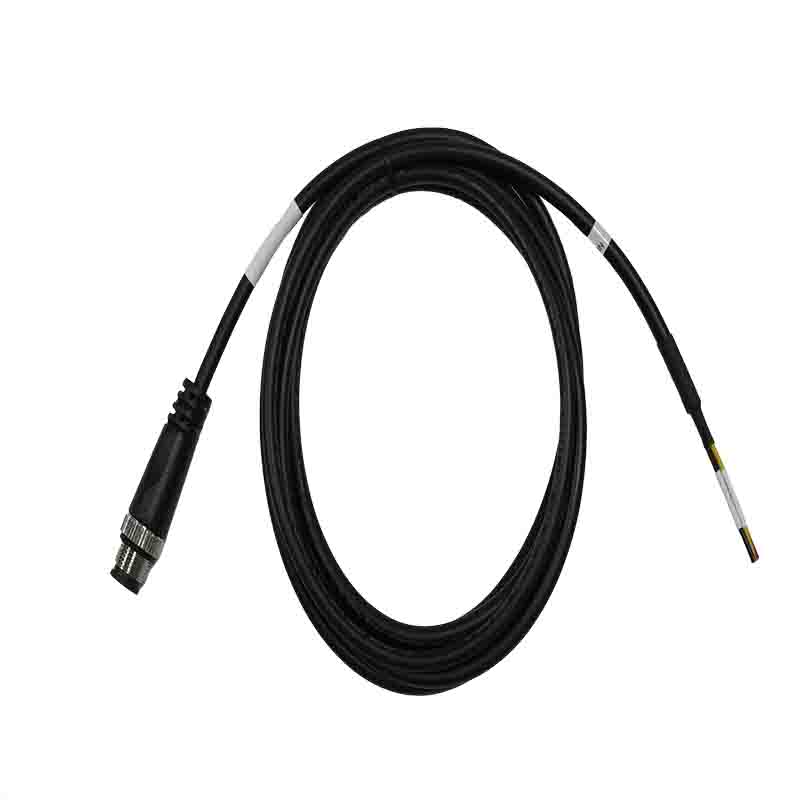

Our Cable Adapter M12 male to bare wires is a versatile power and signal connection solution, engineered to simplify direct wiring for devices with M12 ports. The integrated waterproof design makes it ideal for use in outdoor, industrial and vehicle-mounted environments, ensuring stable connections even under harsh conditions.
As a robust vehicle diagnostic cable adapter, this cable provides a secure link between equipment and power sources. The M12 male connector with threaded locking mechanism ensures a tight, vibration-resistant fit, preventing accidental disconnections during operation. The bare wire end allows for flexible, custom termination to various power terminals or control modules.
| Item | Description |
| Product Name | Cable Adapter M12 male to bare wires |
| Connector Configuration | • P1: M12 3Pin male connector, with metal threaded locking nut, integrated waterproof silicone seal ring, and black PA66 nylon housing • P2: Open bare wire end, 3-core exposed wires with color-coded insulation • Pin Definition: 1-Pin (Black) = GND OUT; 3-Pin (Red) = PWR OUT; 4-Pin (Yellow) = ACC PWR OUT |
| Length | • Total overall length (from M12 male connector end to bare wire end): 2000 ± 30mm • Length of M12 male connector housing: 40 ± 5mm • Distance from M12 connector to the fixed position of the marking label: 118mm ~ 266mm • Length of the marking label: 66mm • Stripping length of bare wire end: 10 ± 1mm • Outer diameter of the cable: 5.0mm |

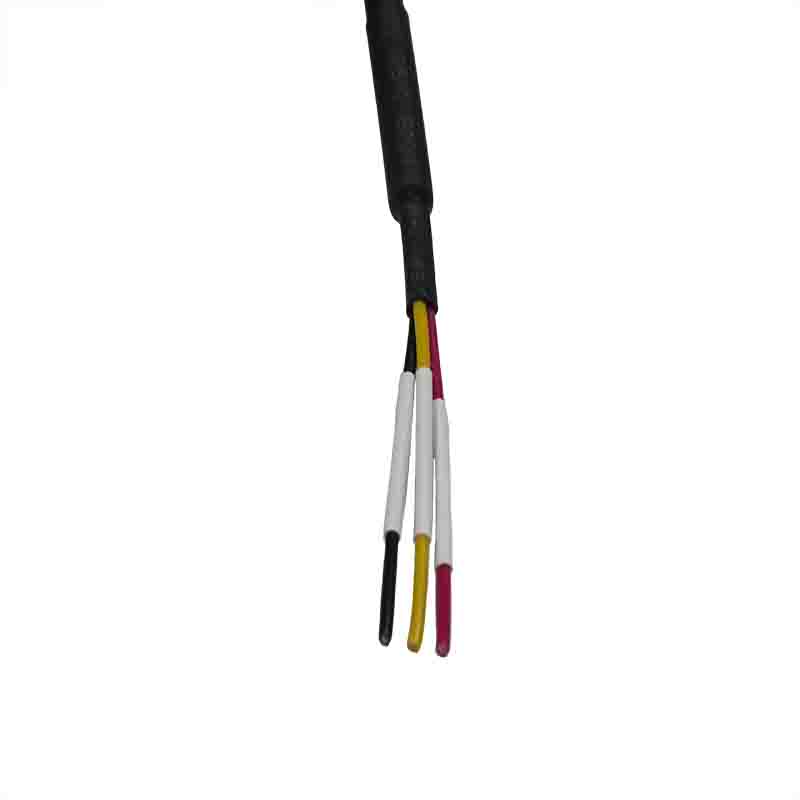

| Appearance Features | 1. Cable & Jacket: Flexible black PVC outer jacket, 3-core multi-strand high-purity copper conductors, with excellent oil resistance and temperature resistance. The cable surface is smooth, burr-free, and resistant to bending and abrasion. 2. Connector: M12 male connector with matte black nylon housing, silver-plated metal threaded locking nut, and built-in waterproof silicone ring for IP65/IP67 level dustproof and waterproof performance. 3. Markings: White tear-resistant, waterproof, and laminated PVC label with black text, printed with "PWR OUT ONLY DO NOT CONNECT PWR IN" in Arial font (2mm height), clearly indicating the cable's usage restriction. 4. Workmanship: Reinforced strain relief with heat-shrink tubing at the cable-connector junction. No deformation, scratches, bubbles, flow marks, or injection defects on all components. Connector pins show no damage, peeling, or rust. 5. Bare Wire End: 3 color-coded wires (black, red, yellow) with neatly stripped ends, no broken wires, virtual connections, or exposed copper burrs. |
| Electrical Performance | • 100% full-pin continuity tested, no shorts, opens, broken wires, or miswiring • Dielectric withstand test: DC 300V / 10ms, no electrical breakdown • Insulation resistance: ≥10MΩ • Conduction resistance: ≤3Ω • Cable and terminal pull test: 20AWG wires withstand minimum 5kgf pull force without terminal separation • Bending test: Withstands more than 1000 bends at 60° angle with 500g load |
| Application | • Power connection for industrial automation sensors, actuators, and control devices with M12 ports • Power supply wiring for outdoor monitoring equipment, roadside cameras, and waterproof IoT devices • On-board power conversion for heavy-duty trucks, buses, and construction machinery • Direct wiring for terminal devices that require bare wire termination, eliminating the need for intermediate adapters |
Built as a reliable car wiring harness, this assembly features high-grade multi-strand copper conductors and a durable black PVC jacket. The cable is designed to withstand repeated bending, temperature fluctuations and environmental stress, maintaining consistent performance over long-term use. The color-coded wires (black, red, yellow) simplify installation and help avoid wiring errors.
Every unit undergoes rigorous electrical testing, including continuity, insulation resistance and dielectric strength checks, to ensure full compliance with industry standards. Reinforced strain relief at the connector-cable junction enhances durability, reducing the risk of damage during frequent use or installation.
Lightweight and easy to handle, this adapter cable is suitable for a wide range of applications, including industrial sensors, vehicle power systems, monitoring equipment and aftermarket installations. Whether you need standard off-the-shelf cables or custom assemblies, Fubon Harness delivers solutions you can trust.
