CBT-60 Razor Wire – Concertina Razor Wire for Airport & High-Security Perimeter
60mm Blade Spacing | 0.5mm Thickness | 2.5mm Core Wire | HDG/PVC Coated
Get a Quote: Send blade type, coating, coil diameter, quantity, and destination port. Reply within 12h.
Product Overview
CBT-60 razor wire is a high-security concertina razor wire designed for perimeter protection at airports, military bases, prisons, and critical infrastructure. Features 60mm blade spacing with sharp stainless steel or galvanized steel blades crimped around a high-tensile core wire, forming a formidable barrier that deters and delays intrusion.
Available in hot-dipped galvanized (HDG) or PVC coated finishes. Coil diameter options: 450mm, 500mm, 700mm, 960mm. Standard length per coil: 8-13m depending on coil diameter. Compliant with BS EN 10223-8 and ASTM standards.

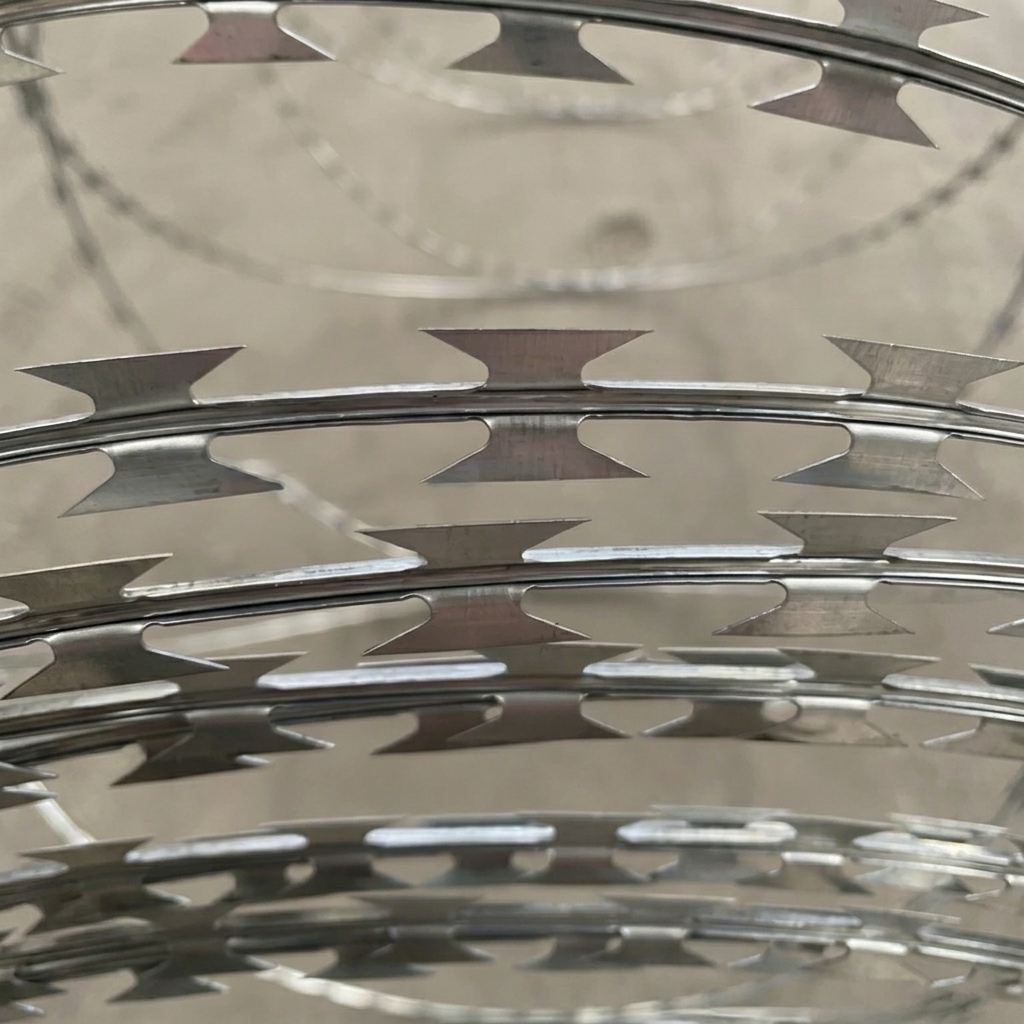

HDG CBT-60 razor wire coil – closeup detail
Core Advantages
Sharp blades with 60mm spacing create a formidable barrier that deters and delays unauthorized intrusion attempts.
HDG ≥65μm or PVC coating provides 15-25 years of outdoor durability in all climates.
Concertina coil design expands and compresses for easy handling, storage, and on-site installation.
Used in airports, prisons, military bases, and critical infrastructure globally. Meets international security standards.

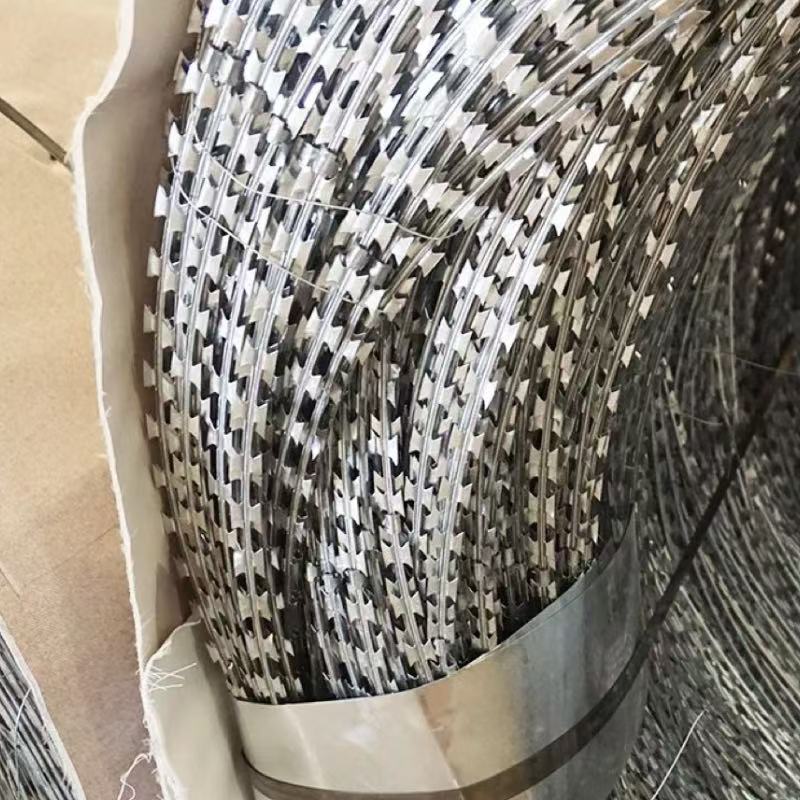

Bulk factory stock – ready for dispatch
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | CBT-60 Concertina Razor Wire |
| Blade Type | CBT (crimped blade type) - 60mm barb spacing |
| Blade Thickness | 0.5mm ±0.05mm |
| Core Wire Diameter | 2.5mm high-tensile galvanized steel |
| Blade Spacing | 60mm ±2mm |
| Blade Length | 65mm ±2mm |
| Coil Diameter Options | 450mm, 500mm, 700mm, 960mm |
| Length per Coil | 8-13m per coil (depending on diameter) |
| Surface Treatment | HDG (≥65μm), PVC coated (green/black/grey) |
| Standards | ISO 9001, BS EN 10223-8, ASTM A121 |

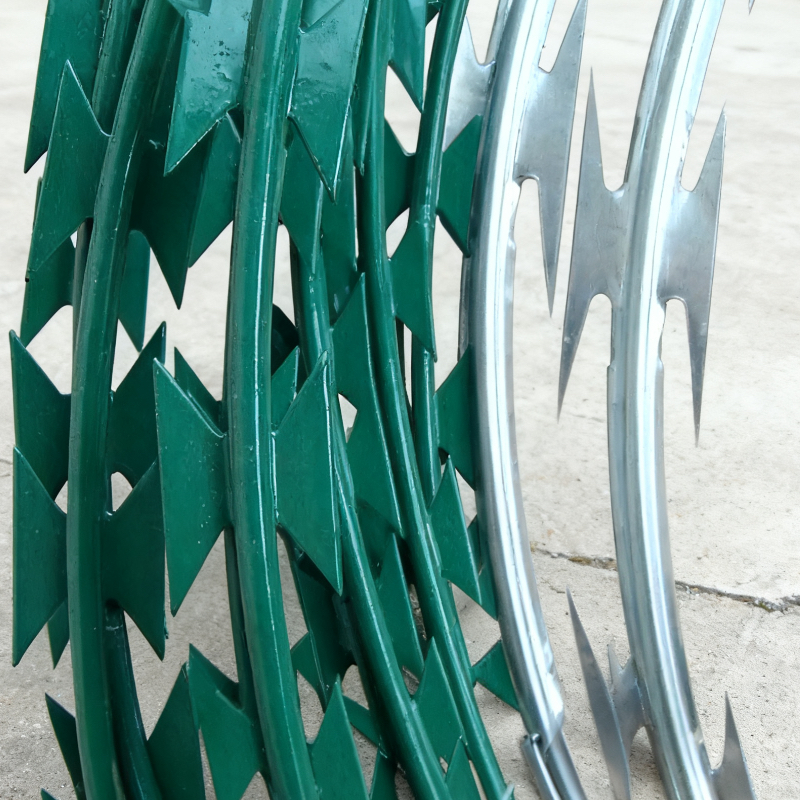

PVC coated coil – side texture detail
Applications
How to Request a Quotation
- Blade type: CBT-60 (or specify other: BTO-12, BTO-22, CBT-65)
- Blade thickness: 0.5mm standard
- Core wire diameter
- Coil diameter: 450mm, 500mm, 700mm, or 960mm
- Surface finish: HDG, PVC coated (green/black/grey), or stainless steel
- Quantity and length per coil
- Application: airport, prison, military, or industrial
- Destination port
Send these details and ANJIA will provide a factory quotation with loading plan within 12 hours.
Packing & Delivery
Packing: Compressed rolls + waterproof paper + plastic woven bag + steel strap
Loading: 20GP – 200-300 coils | 40HQ – 500-700 coils (depending on coil diameter)
Lead Time: 10-20 days (stock sizes ready)
Ports: FOB Tianjin / Qingdao / Guangzhou
Frequently Asked Questions
CBT (crimped blade type) has blades crimped around the core wire with a spiral pattern. BTO (barbed tape open) has blades punched and pressed onto the wire. CBT is often used for demanding applications while BTO is common in standard perimeter security.
Standard coil diameters include 450mm, 500mm, 700mm, and 960mm. Larger coils provide longer coverage per coil and faster installation.
For airport perimeters, HDG (≥65μm) is standard for inland locations. For coastal airports, PVC coated over galvanized is recommended for maximum corrosion protection against salt spray.
Yes. Razor wire can be retrofitted to existing chain link, welded mesh, or palisade fences using appropriate brackets, arms, and tension wire systems.
Please provide blade type, coil diameter, surface finish, quantity, and destination port. We will reply within 12 hours.
