90Degree Waterproof Splitter Cable with M12 6Pin Aviation Plug, SP13 Connector & Open Wire
3 month ago
Product details
Fubon Harness is a professional manufacturer with rich experience in developing and producing automotive cable and connectors. We focus on innovative design, precise production and strict quality inspection, and have long been committed to delivering reliable connection solutions for automotive, industrial equipment and outdoor monitoring fields. We excel at meeting diverse application demands with tailored designs and stable product performance.

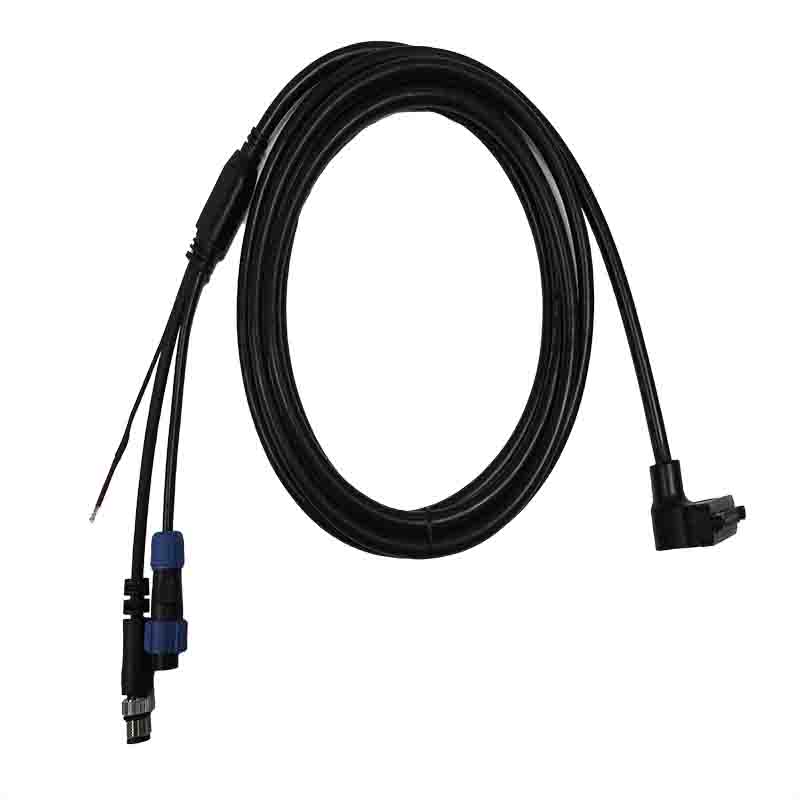

Our 90-Degree Waterproof Splitter Cable with M12 6Pin Aviation Plug, SP13 Connector & Open Wire is a practical Y-type branching wiring assembly built for complex signal and power distribution. Featuring a right-angle connector design, it fits neatly into narrow installation spaces and avoids cable twisting or pulling during use. The overall IP67 waterproof structure makes it fully adaptable to damp, dusty and vibration-prone working conditions.
| Item | Description |
| Product Name | 90-Degree Waterproof Splitter Cable with M12 6Pin Aviation Plug, SP13 Connector & Open Wire |

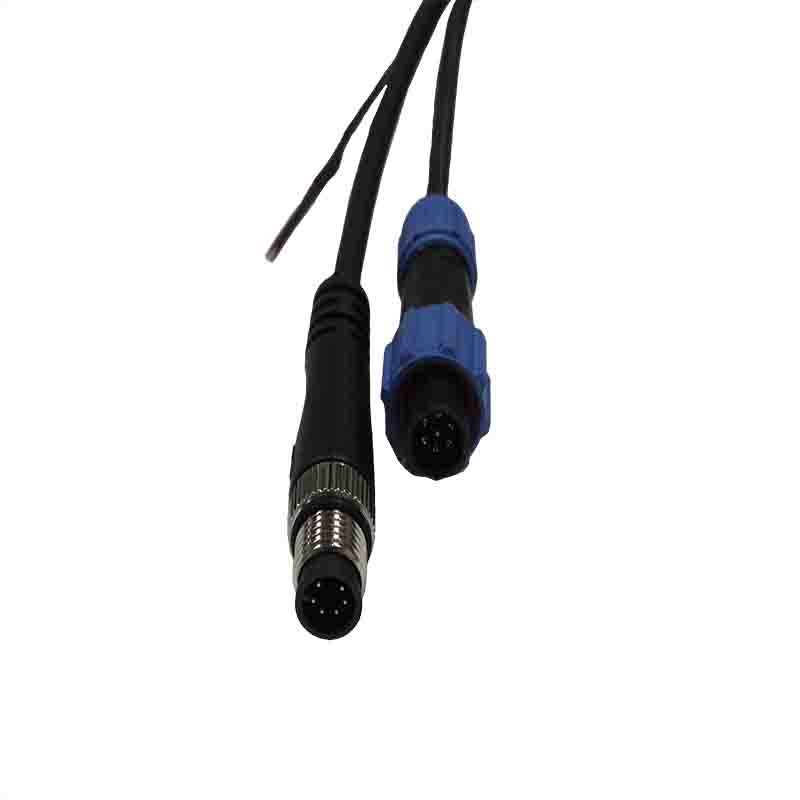

| Connector Configuration | • P1: 90-degree right-angle M12 6Pin male aviation plug, with metal threaded locking nut, black flame-retardant nylon housing, built-in waterproof silicone ring, 6Pin layout with clearly marked pin positions • P2: SP13 waterproof female connector, quick-lock type with blue threaded locking nut, 6Pin layout, IP67 waterproof rating, standard aviation-grade connection • P3: Straight M12 6Pin male connector, with metal threaded locking nut, black nylon housing, waterproof design, compatible with standard M12 6Pin ports • P4: Open bare wire end, 4-core color-coded exposed wires, pre-shrunk with heat-shrink tubing for insulation, ready for custom termination • Integrated Y-splitter design, with overmolded PVC junction for structural strength and strain relief |
| Length | Total overall length (from P1 right-angle M12 connector end to P4 bare wire end): 2970 ± 50mm |
| Appearance Features | 1. Cable & Jacket: Flexible black PVC outer jacket, multi-core multi-strand high-purity copper conductors, with excellent oil resistance, temperature resistance, and bending resistance. The cable surface is smooth, burr-free, and resistant to abrasion, aging, and environmental stress. 2. Connectors: P1 90-degree right-angle M12 connector with matte black nylon housing and silver-plated metal locking nut, designed for tight space installation. P2 SP13 quick-lock connector with blue threaded nut for easy tool-free connection. P3 straight M12 connector with standard locking mechanism. All connectors have reinforced heat-shrink strain relief at cable junctions. 3. Molding & Workmanship: Y-splitter junction is fully overmolded with black PVC, no exposed wires or loose connections. All housing surfaces have no deformation, scratches, bubbles, flow marks, or injection defects. Connector pins are straight, with no damage, peeling, rust, or misalignment. 4. Waterproof Design: All connector ends are equipped with food-grade waterproof silicone rings, meeting IP67 dustproof and waterproof standards, suitable for outdoor and harsh working environments. 5. Wire Markings: Clear color coding for all conductors, with pre-shrunk heat-shrink tubing at the bare wire end to prevent fraying. |
| Electrical Performance | • 100% full-pin continuity tested, no shorts, opens, broken wires, or miswiring • Dielectric withstand test: DC 300V / 10ms, no electrical breakdown • Insulation resistance: ≥10MΩ • Conduction resistance: ≤3Ω • Wire and terminal pull test: 24AWG wires withstand minimum 2.3kg pull force; 26AWG wires withstand minimum 1.4kg pull force; 20AWG wires withstand minimum 5.8kg pull force • Bending test: Withstands more than 1000 bends at 60° angle with 500g load, no conductor breakage or insulation damage |
| Application | • Industrial automation equipment connection with M12 and SP13 aviation ports • Vehicle-mounted AHD camera, backup camera, and monitoring system wiring • Outdoor waterproof surveillance, roadside IoT device power and signal transmission • Heavy-duty truck, bus, and construction machinery on-board wiring and signal distribution • Custom multi-device connection that requires waterproof, vibration-resistant split wiring in harsh environments |
We keep optimizing structural details for customized electrical connectors, and this splitter cable is a typical example of our refined craftsmanship. It combines M12 aviation plug, SP13 connector and open wire terminals in one assembly, enabling one-input and multi-output connection. Each connector adopts reliable threaded locking design, which guarantees tight docking and prevents loose contact in long-term operation.
As one of our featured Customized Electrical Connectors And Harnesses, this product uses high-purity copper conductors and durable anti-aging cable jacket. The integrated overmolded splitter junction effectively enhances tensile resistance and structural stability. Color-coded internal wires and neatly processed bare wire ends also greatly simplify on-site wiring and installation work.
Every finished product goes through full electrical performance and waterproof tests before delivery. It is widely applied to vehicle monitoring systems, industrial automation facilities, engineering machinery and outdoor surveillance devices. Whether you need standard off-the-shelf products or exclusive design solutions, Fubon Harness can create matching wiring products according to your actual usage scenarios.
