8P housing to tinned cables for response system

2 month ago

8 0 

2 year

Product details

This is the harness customized by CHAMAX to connect the access control response system and the host.

One end of the 8P row connector is used to connect the peripheral devices of the access control response system, such as the doorbell and the dialogable display screen, with a spacing of 3.0MM. Its unique shape perfectly matches the customer's access control response system. It has the characteristics of ultra-thin,Foolproof design, anti bending, etc., and has excellent protection level. The entire connector is designed and produced by CHAMAX, and the other end is connected to the host's smart control system.

The 8P connector designed by CHAMAX includes two enclosures, eight terminals and outer molded. It has the following features:

1. It can be used with 3.0MM pin header;

2. Ultra thin, 10.4mm from outer molded to PCB;

3. Foolproof design, and bending resistance;

4. IP grade: IP67;

5. Rated current 3A;

Chamax specializes in customizing products such as Communication cable assemblies, Industrial control cable assemblies, Automation equipment wire harness, Medical equipment cable assemblies, Custom automotive cable assemblies, and Consumer Cable Assemblies for our customers ect.

The detailed specifications of this Custom cable assemblies are as follows:

1. Cable: #24x8C+shielding, UL2464.

2. Top and BTM enclosure: PA + G/F, UL94V-0, black.

3. Terminal: Phosphor bronze, Gold plated or tin plated.

4. Seal pad: Rubber, black, with 3M doubble adhesive.

5. Outer molded: PVC, UL94V-0.

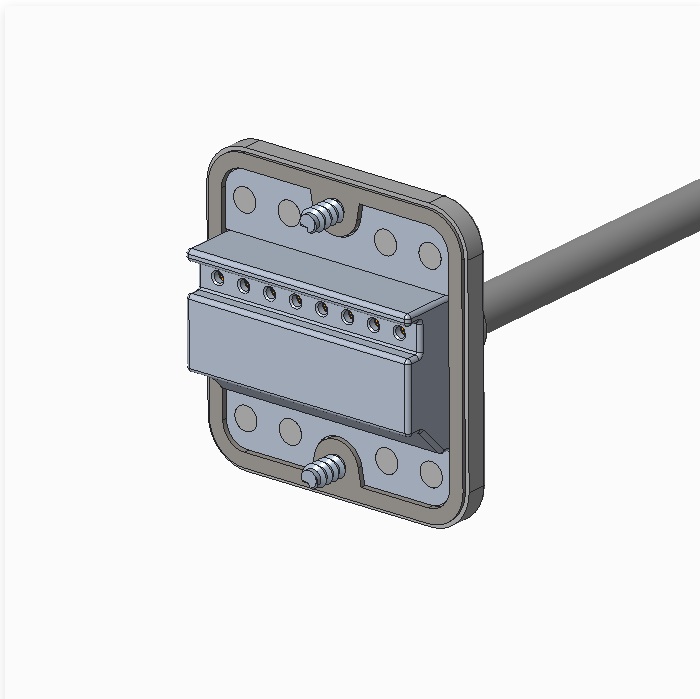

8P housing to tinned cables for response system

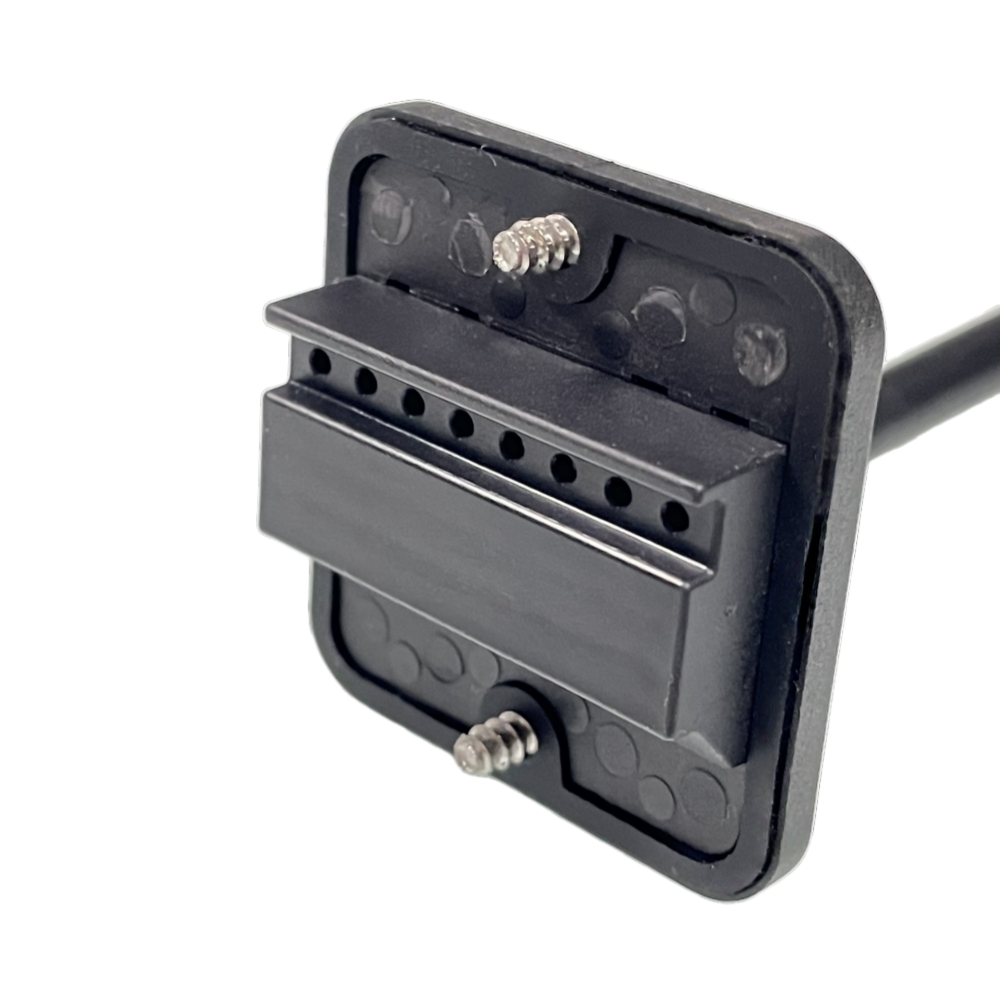

Custom connector to tinned for access control

3D Design Products produced

UL certified cables

RoHS, REACH compliant

Patented Product
