JST 8Pin Connector to Open Bare Wires Wiring Harness
3 month ago
Product details

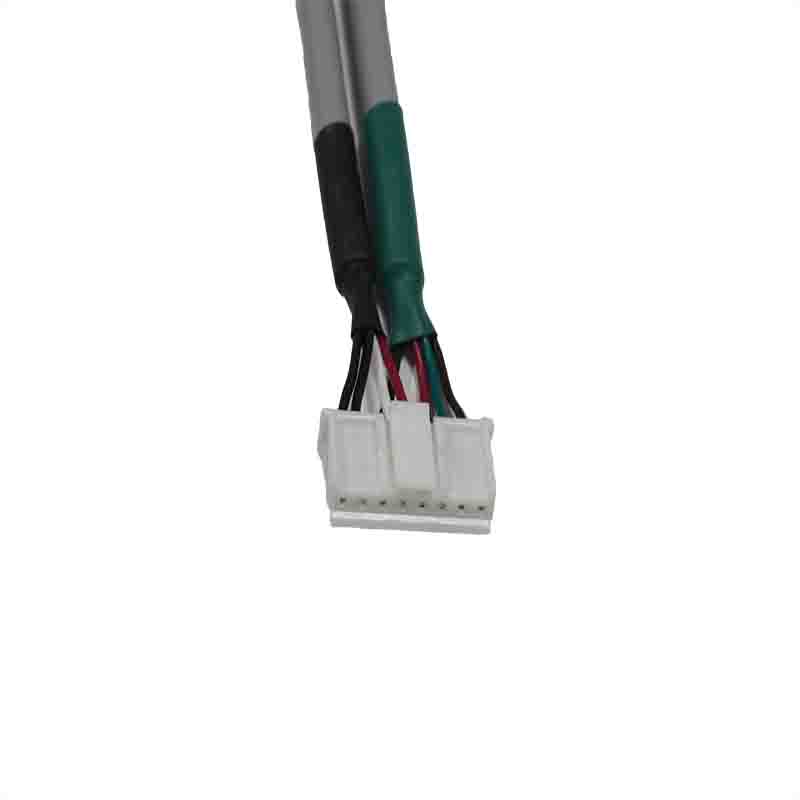

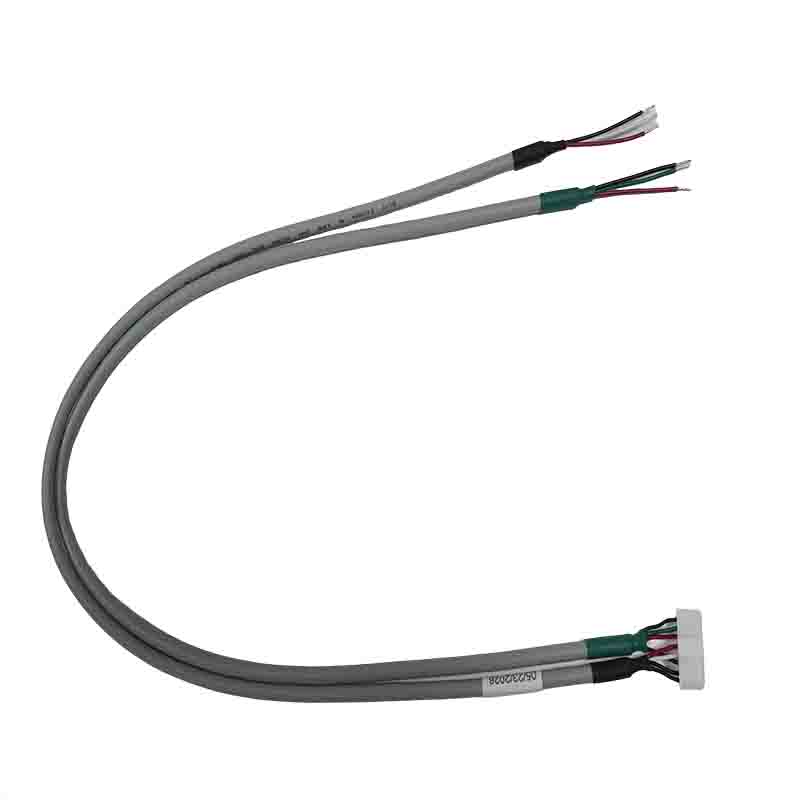

As an experienced manufacturer of automotive cable and connectors, Fubon Harness delivers reliable wiring solutions for diverse industrial and vehicle applications. This JST 8Pin to Open Bare Wires Wiring Harness is a practical connection accessory designed for automotive electronics and industrial control equipment. It is fitted with an original JST 8Pin white housing connector at one end and divides into two independent 4-core open wire branches at the other, perfectly adapting to various custom wiring demands. Equipped with original crimp terminals, the JST 8Pin male connector features clear pin layout to achieve stable and firm connection with matching sockets. All conductors are marked with distinct colors for easy recognition, and the bare wire ends are pre-tinned to support direct soldering and wiring without needing extra auxiliary accessories.
We focus on crafting high-quality custom automotive wire harness with strict material selection and advanced production techniques. This harness adopts UL2464 certified 22AWG multi-strand copper conductors and is covered with a sturdy gray PVC jacket, delivering outstanding abrasion resistance and anti-aging capability to maintain stable performance during long-term vehicle-mounted operation. Heat-shrink tubing is wrapped around the connector joints and wire split sections to enhance insulation and strain relief, with neat overall workmanship and no exposed copper wires or burrs.
| Item | Description |
| Product Name | Cable Adapter M12 male to bare wires |
| Connector Configuration | • P1: M12 3Pin male connector, with metal threaded locking nut, integrated waterproof silicone seal ring, and black PA66 nylon housing • P2: Open bare wire end, 3-core exposed wires with color-coded insulation • Pin Definition: 1-Pin (Black) = GND OUT; 3-Pin (Red) = PWR OUT; 4-Pin (Yellow) = ACC PWR OUT |
| Length | Total overall length (from P1 JST connector to P2 bare wire ends): 610 ± 30mm |
| Appearance Features | 1. Cable & Jacket: Smooth gray PVC outer jacket, UL2464 certified 4-core 22AWG multi-strand high-purity copper conductors, with color-coded wires (black, red, green, white) for easy identification. The cable surface is burr-free, with excellent bending resistance, abrasion resistance and aging resistance. 2. Connector Housing: White JST 8Pin plastic housing with no deformation, scratches, bubbles, flow marks or injection defects. The crimp terminals are straight, with no damage, peeling, rust or misalignment. 3. Heat-Shrink Tubing: Green and black heat-shrink tubing neatly wrapped at the connector and wire ends, with no exposed wires or loose fit. White heat-shrink tubing with clearly printed production date (format: XX/XX/2025) for traceability. 4. Workmanship: All terminals are precisely crimped firmly, with no loose connections, virtual soldering or exposed copper. The heat-shrink tubing ends are flat and even, with no sharp edges or burrs. |
| Electrical Performance | • 100% full-pin continuity tested, no shorts, opens, momentary breaks or miswiring • Dielectric withstand test: DC 300V / 10ms, no electrical breakdown • Insulation resistance: ≥10MΩ • Conduction resistance: ≤2Ω • Terminal to wire pull test: ≥5Lb (2.27KG) without terminal separation or wire breakage |
| Application | • Internal wiring for automotive electronic control systems and on-board accessories • Signal transmission and power connection for industrial control equipment and sensors • Custom electronic device circuit connection and wiring harness extension • Automotive aftermarket modification and electronic upgrade projects • Test bench wiring for electronic product development and verification |
Every finished car wiring harness undergoes comprehensive electrical performance inspection before delivery. All units pass strict continuity tests to rule out short circuits, open circuits and wrong wiring. It can withstand DC 300V voltage for 10 milliseconds without breakdown, with insulation resistance reaching over 10MΩ and conduction resistance kept below 2Ω. The connection between terminals and wires can bear a pull force of no less than 2.27kg, so the harness works reliably even under continuous vibration and mechanical tension.
This product is extensively applied to power supply and signal transmission for automotive control modules, on-board accessories and industrial control systems, and it is also a great choice for electronic modification projects and test bench wiring. The flexible open wire design enables users to carry out customized wiring processing according to actual circuit needs.
