Cable assembly with JST 920mm

2 month ago

18 0 

2 year

Product details

Fubon Harness is a professional manufacturer focusing on the design and production of various wiring products. We deliver well-crafted solutions to meet diverse connection demands across automotive and industrial fields.

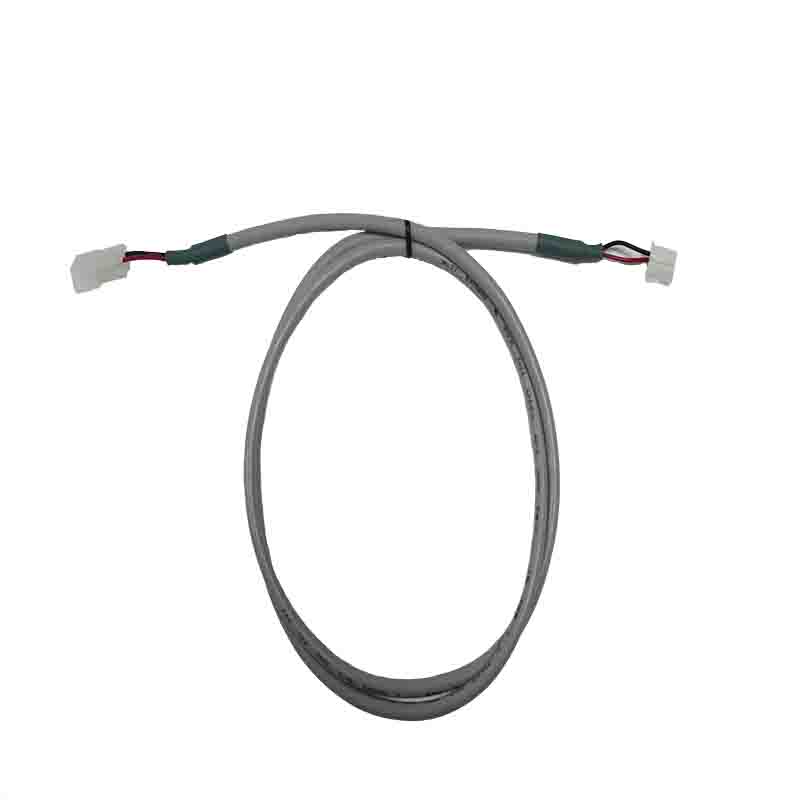

This reliable electrical harness assembly features a JST 3Pin connector on one end and a Molex 2Pin connector on the other, with a total length of 920mm. Made of UL2464 certified wire, it comes with durable PVC jacket and neatly applied heat shrink tubing at both terminals, delivering solid insulation and strain relief for daily use.

Item	Description
Product Name	Cable assembly with JST 920mm

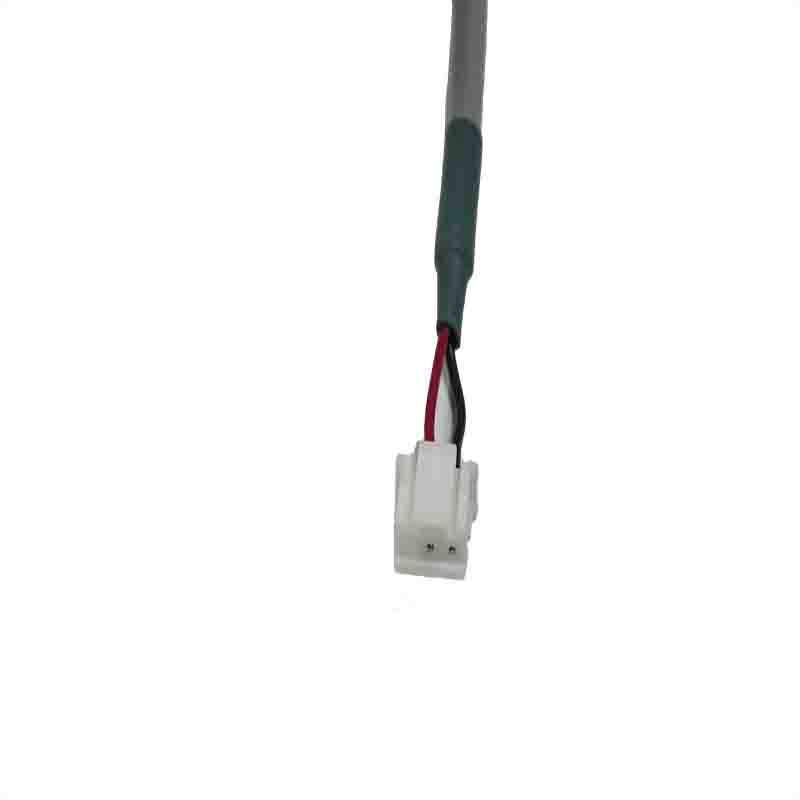

Connector Configuration	• P1: JST 3Pin Male Connector, white plastic housing (XAP-03V-1), matched with original JST SXA-01T-P0.6 crimp terminals, 3-pin layout for stable power and signal connection • P2: Molex 2Pin Male Connector, white plastic housing (03-06-2023), matched with original Molex 02-06-2101 crimp terminals, 2-pin layout for direct power and signal access • Pin Assignment: P1 Pin 1 (Black Wire) → P2 Pin 1; P1 Pin 2 (Red Wire) → P2 Pin 2, 1:1 straight-through connection
Length	• Total overall length (from P1 JST connector to P2 Molex connector): 920 ± 30mm (36 inches) • Length of heat-shrink tubing at each connector end: 25 ± 5mm • Outer diameter of main cable: 4.5 ± 0.15mm • Outer diameter of heat-shrink tubing: 5.0mm
Electrical Performance	• 100% full-pin continuity tested, no shorts, opens, momentary breaks or miswiring • Dielectric withstand test: DC 300V / 10ms, no electrical breakdown • Conduction resistance: ≤2Ω MAX • Insulation resistance: ≥10MΩ MIN • Operating temperature range: -40℃ ~ +80℃, suitable for long-term stable operation in various environments
Application Scenarios	• Power and signal transmission for automotive electronic control systems and on-board accessories • Internal wiring for industrial control equipment, sensors and small household appliances • Power supply and signal connection for test benches and electronic development equipment • Custom wiring harness extension and conversion for various low-voltage DC circuits

As a practical automotive wiring assembly, it adopts color-coded conductors for easy installation and identification. Every unit is strictly inspected to ensure stable electrical performance, resisting abrasion, bending and aging in complex working environments.

We also provide flexible services to create tailored solutions. This item is a typical custom cable assembly and wiring harness, widely used for power supply and signal transmission in vehicle accessories, sensors and industrial control devices. It is a cost-effective choice for standard and modified wiring projects.
