Galvanized Brick Reinforcement Mesh – Slit & Expanded Masonry Reinforcement for Crack Prevention
64-305mm Width | 20m Length | 0.45mm Thickness | HDG / Electro-Galv / Black Annealed
Get a Quote: Send width, finish, qty, destination port. Reply 12h.
Product Overview
ANJIA Group supplies galvanized brick reinforcement mesh – a slit and expanded masonry reinforcement strip for crack prevention in brick and block walls. Manufactured from low-carbon steel strip, slit and expanded into a continuous ladder-shaped grid with no joints or welds. Available in five standard widths: 64mm, 144mm, 178mm, 229mm and 305mm, matching common brick and block sizes. Each roll is 20m long and 0.45mm thick. Surface finishes include hot-dipped galvanized, electro-galvanized and black annealed. Galvanized types are for exterior walls and damp environments; black annealed is for interior walls where mesh is fully embedded in mortar.

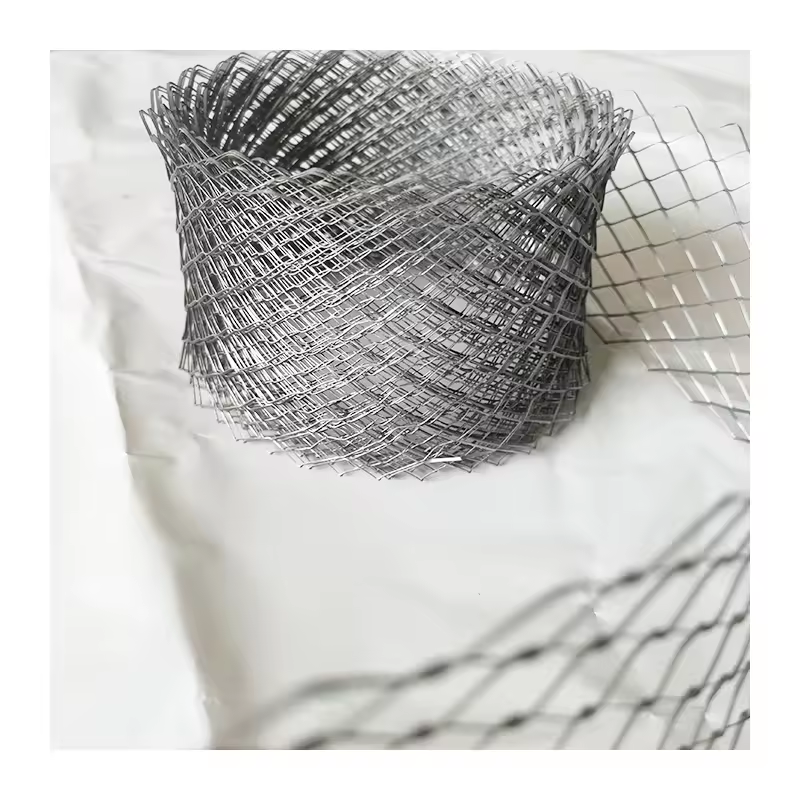

Brick mesh roll – galvanized finish
Production – slit and expanded process
Key Features – Brick Reinforcement Mesh
No welded joints — slit from a single steel strip for consistent strength and reliability.
Distributes structural stress across walls, preventing cracks at corners, windows and door frames.
64mm, 144mm, 178mm, 229mm and 305mm — matching common brick and block sizes.
HDG, electro-galvanized or black annealed — choose by exposure and project requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Brick Reinforcement Mesh / Masonry Mesh / Wall Tie Mesh |
| Material | Low-carbon steel strip (Q195/Q235) |
| Manufacturing Process | Slit and expanded from single steel strip |
| Width Options | 64mm, 144mm, 178mm, 229mm, 305mm (custom available) |
| Roll Length | 20m (standard), custom lengths available |
| Thickness | 0.45mm |
| Surface Finish | Hot-dipped galvanized, electro-galvanized, black annealed |
| Packing | Plastic film + carton or pallet |
| Standards | ISO 9001, BS 5628, EN 845 |
Applications
RFQ Information
- Width required (64mm, 144mm, 178mm, 229mm, 305mm or custom)
- Finish: HDG, electro-galvanized, or black annealed
- Roll length (standard 20m, custom available)
- Quantity (rolls) and packing preference
- Destination port
Packing & Export
Packing: Plastic film + carton box or pallet
Loading: 20GP: 500-800 rolls depending on width
Lead Time: 15-25 days
Quality Control
Strip width, thickness
Slot accuracy, uniformity
Galvanizing thickness
Roll condition, labeling
Related Products
Galvanized Welded Mesh · Chain Link Fence · Hexagonal Wire Netting · Barbed Wire
FAQ – Brick Reinforcement Mesh
Match width to your brick or block size. 64mm for 102mm brick walls, 178mm for 215mm block walls. Tell us your brick dimensions for a recommendation.
HDG for exterior walls and damp locations. Electro-galvanized for protected exterior or interior use. Black annealed for interior walls fully embedded in mortar – most economical.
Neither. It is slit and expanded from a single steel strip into a continuous ladder-shaped grid – no welds or joints to fail.
Yes. Custom widths beyond the five standards and custom roll lengths are available. MOQ applies for non-standard specifications.
