Cummins BMW Molex Diagnostic Adapter Cable

2 month ago

18 0 

2 year

Product details

Fubon Harness owns mature production lines and strict quality control system to develop diversified connection accessories for global automotive aftermarket clients. We customize reliable wiring solutions to fit varied engine and diagnostic equipment requirements from worldwide buyers.

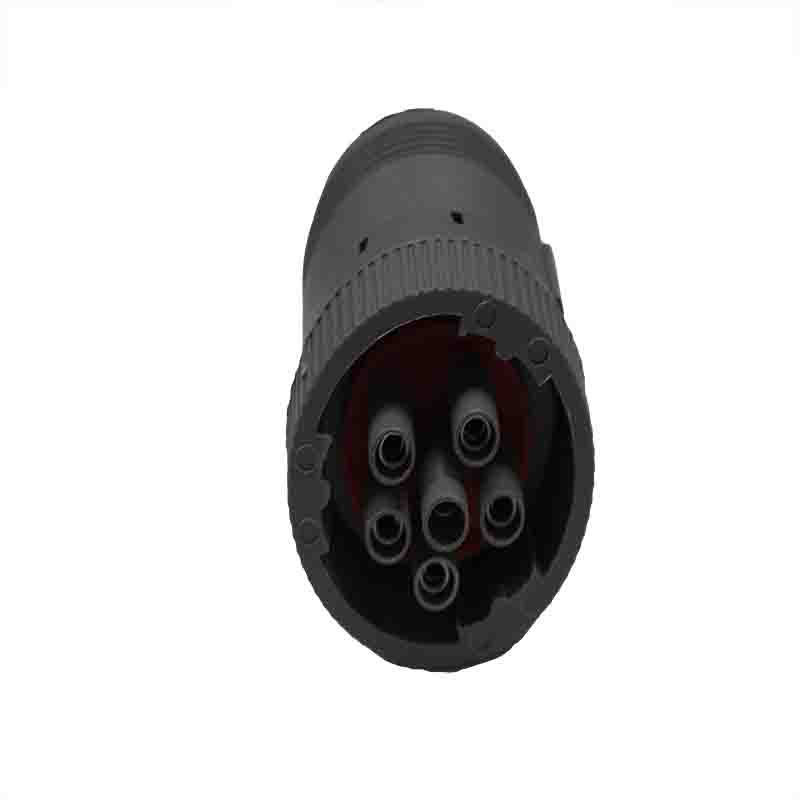

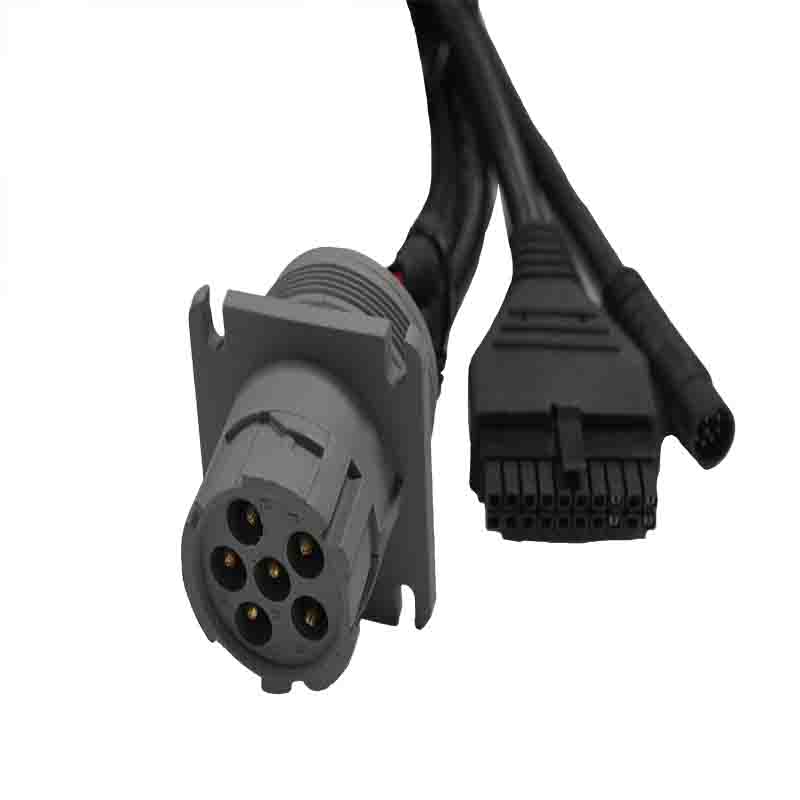

This Cummins BMW Molex Diagnostic Adapter Cable designed with four different terminal ports including Cummins 6Pin male/female, Molex 20Pin and BMW 10Pin connectors, it bridges multiple mainstream vehicle interfaces to realize smooth data communication between diagnostic tools and truck ECUs.

Item	Description
Product Name	Cummins BMW Molex Diagnostic Adapter Cable
Connector Configuration	• P1: Cummins 6Pin Male circular connector, gray plastic housing with threaded locking structure • P2: Cummins 6Pin Female circular connector, matching gray housing for male-female butt joint • P3: Molex 20Pin Male plastic connector, empty pins sealed with dedicated rubber plugs as required • P4: BMW 10Pin Male connector with black plastic shell, standard pin layout for automotive matching • Built-in 3A inline fuse on the main circuit for overcurrent protection
Length	• Main trunk from P1 to P2 / P3: 1000±20 mm • Branch L2 from P1 to P4 BMW connector: 300±20 mm • Short segment near inline fuse: 150±10 mm • Heat shrink tubing reserved length at every connector inlet: 30±5 mm
Electrical Performance	• 100% continuity inspection to eliminate short, open or misconnection issues • Withstand voltage: DC 500V for 10ms without breakdown • Min insulation resistance ≥10MΩ, Max conduction resistance ≤3Ω • Built-in 3A fuse for circuit overload protection
Application Scenarios	Commercial vehicle diagnostic detection, Cummins engine ECU data reading, heavy truck fault troubleshooting, aftermarket vehicle modification and bench testing connection

As one of our core automotive diagnostic cables, it is constructed with UL2464 certified 20AWG stranded wire wrapped in wear-resistant black PVC jacket. Color-coded inner cores streamline on-site wiring, while built-in 3A inline fuse effectively prevents unexpected circuit overload during detection.

Functioning as a practical vehicle diagnostic cable adapter, this cord is finished with tight heat-shrink sealing at every cable entry to enhance moisture and vibration resistance. It works well for heavy-duty trucks fitted with Cummins engines and BMW-related vehicle modules.

Expertly processed as a durable diagnostic harness, the item undergoes full electrical testing up to DC500V withstand voltage standard, complying with RoHS regulation. It becomes an essential replacement part for repair shops to complete fault scanning, parameter reading and regular engine maintenance.
