Product details

Fubon Harness specializes in tailor-made wiring solutions for electronic and industrial equipment. We leverage mature production techniques to deliver dependable connection products to global buyers.

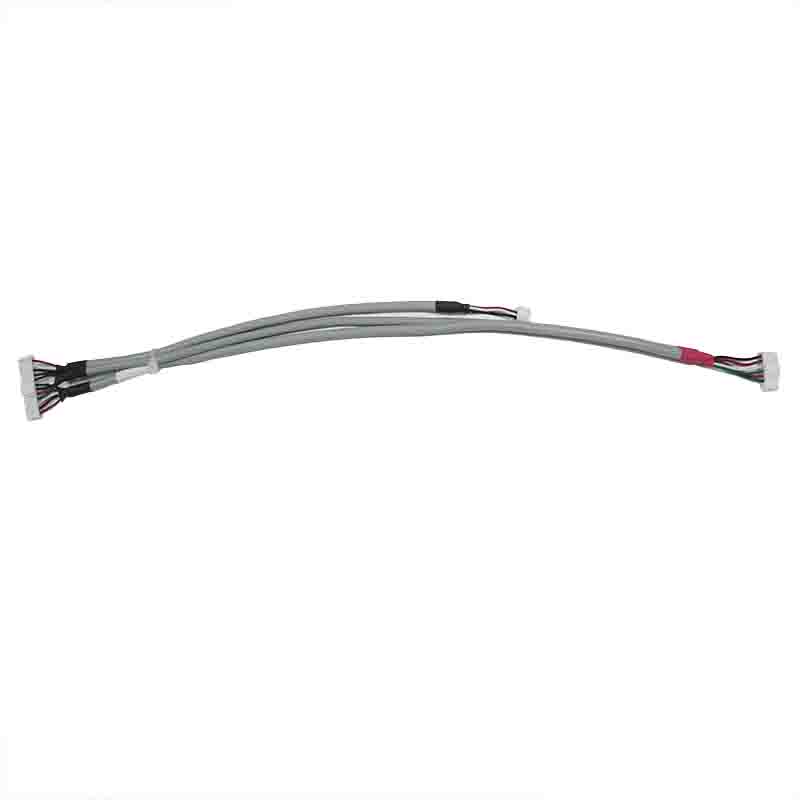

JST 12Pin to 7Pin and 3Pin Custom Wiring Harness

This JST multi-terminal wiring harness serves as a well-structured internal connection component built to customized dimensional and pinout demands. It combines two different UL2464 gray cables alongside three types of original JST white plastic connectors, with unused spare conductors neatly cut and sealed by heat shrink tubing to eliminate hidden circuit risks.

Item	Description
Product Name	JST 12Pin to 7Pin and 3Pin Custom Wiring Harness

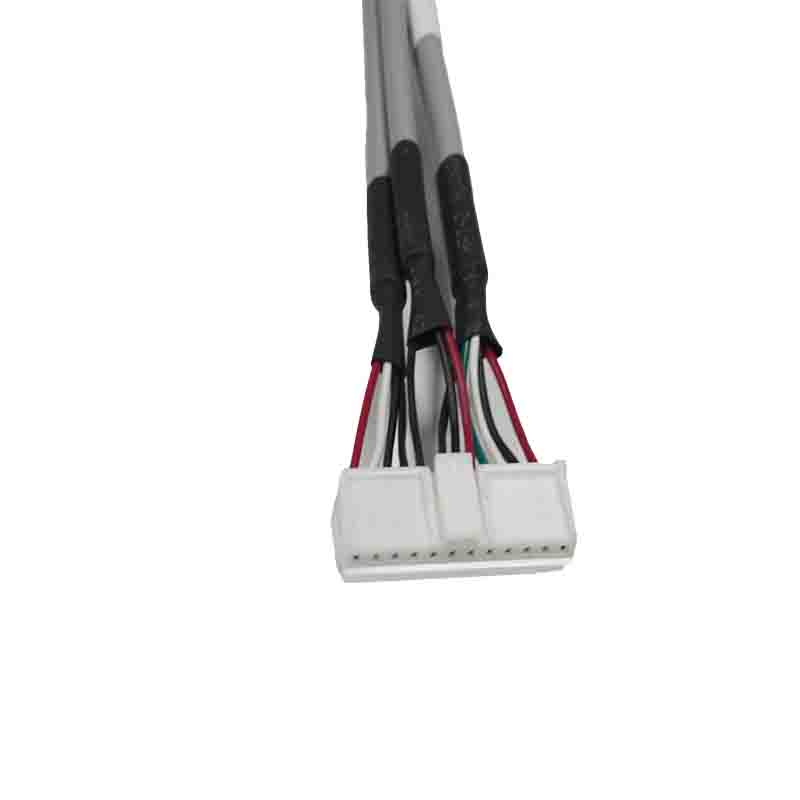

Connector Configuration	• P1: JST XAP-07V-1 white plastic 7Pin housing with original SXA-01T-P0.6 terminals • P2: JST XAP-07V-1 white plastic 7Pin housing, matches P1 terminal specification • P3: JST XAP-03V-1 white plastic 3Pin housing with JST standard crimp terminals • Unused spare core wires and ground leads at P2 & P3 ends are cut short and fully covered by heat shrink tubing per design
Length	• Overall full length from P1 to P2: 540±30 mm • Branch length from main cable to P3 connector: 370±20 mm • Heat shrink tubing length at every connector wire inlet: 25±5 mm • Segment dimension near terminal wrapping: 45±5 mm / 90±7.5 mm as marked on drawing
Electrical Performance	• 100% continuity inspection: No short, open or miswiring defects • Withstand voltage test: DC300V for 10ms without breakdown • Max conduction resistance ≤2Ω, Minimum insulation resistance ≥10MΩ • Terminal pull force ≥5LB (2.27KG) to guarantee stable connection
Application Scenarios	Household appliances internal wiring, industrial control panel connection, small electronic equipment internal power & signal transmission, customized equipment internal wiring assembly

We have rich experience developing customized electrical harnesses matching diverse internal equipment layout requirements. Color-coded inner wires simplify on-site wiring and troubleshooting, while graded black and white heat shrink sleeves effectively strengthen insulation at each cable outlet.

Precision-made as one typical custom wiring harness, the product passes strict pull force and high-voltage testing to secure long-term stable connection. All raw materials conform to RoHS standards, improving environmental safety for end electronic devices.

From prototype verification to bulk manufacturing, we flexibly adjust specifications to meet unique client needs, making this piece a reliable example of practical custom cable assembly and wiring harness widely used in small home appliances and industrial control modules.
