M11 8Pin Waterproof Female Connector to Open Bare Wire Cable

2 month ago

20 0 

2 year

Product details

Fubon Harness has years of experience in customized automotive and industrial wiring production. Equipped with automated processing equipment and full-process quality inspection, we supply durable connecting cables suited for diversified working conditions worldwide.

M11 8Pin Waterproof Female Connector to Open Bare Wire Cable

This M11 8Pin waterproof open-end cable is engineered with a sealed circular plug on one side and pre-tinned bare wires on the opposite end. Fitted with an inline 3A fuse on the red lead, it effectively guards peripheral equipment against sudden overcurrent damage during operation.

Item	Description
Product Name	JST 12Pin to 7Pin and 3Pin Custom Wiring Harness
Connector Configuration	• P1: M11 8Pin circular waterproof female plug with threaded locking plastic housing • P2: Open stripped bare wire end without connector, 8-core separated multi-color leads • A 3A inline blade fuse is pre-installed on the red wire circuit for overcurrent protection
Length	• Total overall cable length: 1220±20 mm • Distance from fuse position to wire stripping end: 305±10 mm • Stripped & tinned length of each bare wire tip: 8±1 mm • Cable coil dimension for packing: 240*160mm
Electrical Performance	• 100% continuity test: No short circuit, open circuit or misconnection • Withstand voltage: DC300V /10ms • Max conduction resistance ≤2Ω, Min insulation resistance ≥10MΩ
Material & Compliance	• Wire: 22AWG tinned copper stranded wire with black PVC insulation • Connector: M11 waterproof plastic female housing with locking nut • Accessories: 3A blade fuse, assorted size black heat shrink tubing, cable tie; all materials meet RoHS requirement
Application	Outdoor sensor wiring, industrial equipment power connection, vehicle auxiliary equipment wiring, outdoor monitoring device connection

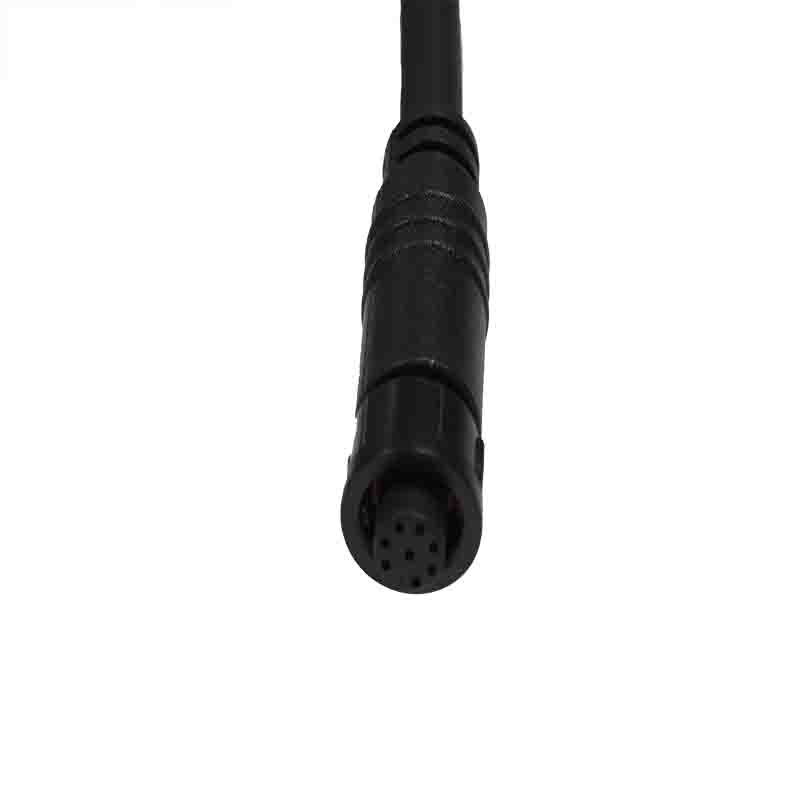

Well-matched with standard automotive wiring harness connectors, the black M11 round plug features threaded locking design to block moisture and dust, fitting tightly into corresponding equipment ports for long-term stable outdoor connection.

Built as practical automotive cable and connectors combination, the cable uses wear-resistant black outer sheath and eight color-coded inner cores. Each exposed wire tip is pre-soldered, and the yellow core gets extra heat shrink wrapping for enhanced insulation protection as drawing specified.

We customize size and terminal options flexibly, so this finished piece stands as a functional custom wiring harness widely used for auto auxiliary parts, outdoor sensors and industrial machinery power wiring.
