Y Type M12 Waterproof Wiring Harness

2 month ago

16 0 

2 year

Product details

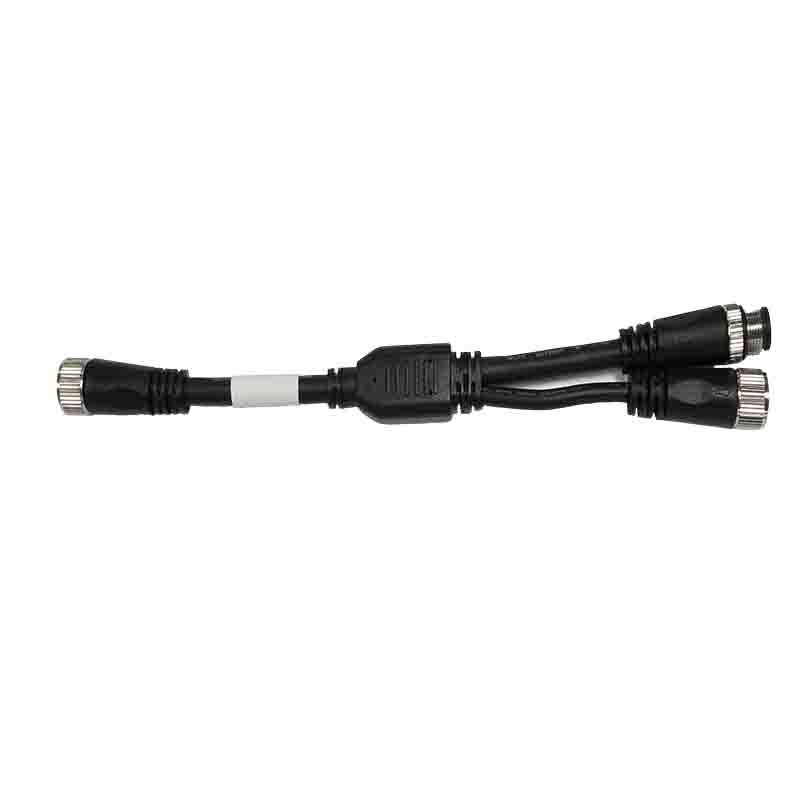

This Y Type M12 Waterproof Wiring Harness features a classic one-input dual-output split layout, converting a single M12 8Pin female port into separate M12 3Pin and M12 6Pin male terminals for diversified signal split connection. Built-in silicone sealing rings inside every plug make it a reliable Waterproof Splitter Cable, capable of stable data transmission under damp, dusty outdoor working environments.

Designed with mature connector technology borrowed from standard automotive wiring harness connectors, all metal screw locking rings on M12 plugs lock tightly to prevent accidental looseness caused by equipment vibration during long-term operation. Color-coded inner core wires simplify circuit inspection and field wiring debugging for installers.

Item	Description
Product Name	Y-Type M12 Waterproof Wiring Harness

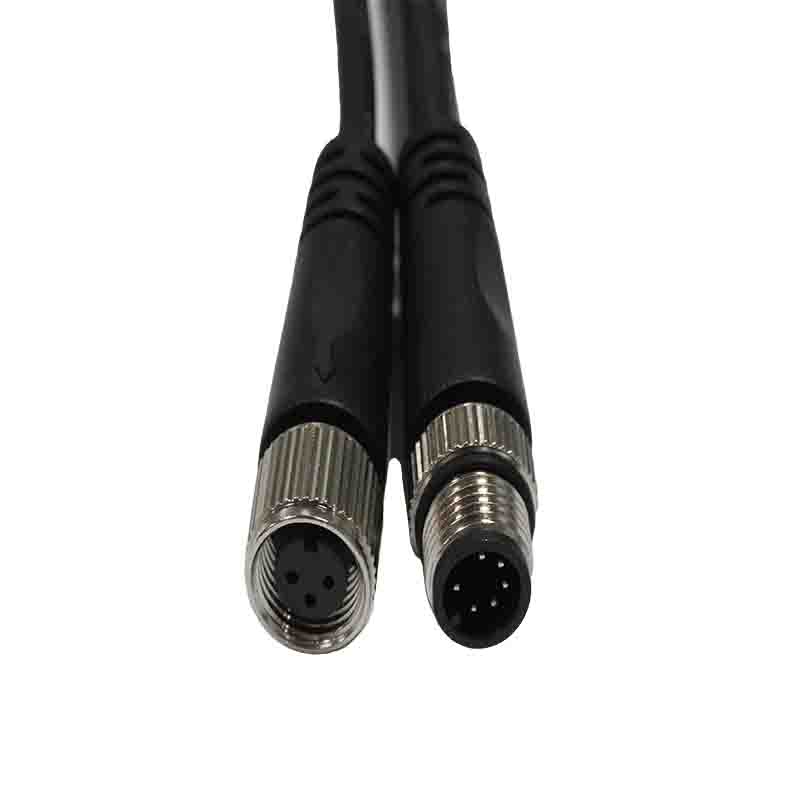

Connector Configuration	• P1: M12 8Pin circular waterproof female connector, fitted with 10.5L straight thread nut and built-in waterproof silicone ring, black plastic housing with metal threaded locking structure • P2: M12 3Pin circular waterproof male connector, matching standard M12 interface with complete waterproof sealing design • P3: M12 6Pin circular waterproof male connector, same waterproof and locking structure as P2, for multi-channel signal/power transmission • Integrated black plastic Y-split junction box in the middle, with strain relief structure at all cable inlets and outlets
Length	• Total overall length from P1 to P2/P3 end: 255±10mm • Length from Y-junction box to P2 3Pin connector: 50±10mm • Length from Y-junction box to P3 6Pin connector: 50±10mm • Length of the middle Y-junction box body: 10±2mm • Heat shrink tubing length at each cable transition position: 12±1mm
Electrical Performance	• 100% continuity inspection: No short circuit, open circuit, misconnection or instantaneous disconnection defects • Withstand voltage test: DC 300V fo5r 10ms without breakdown • Minimum insulation resistance: ≥10MΩ • Maximum conduction resistance: ≤3Ω • Cable bending test: 1000 times without damage, meeting industrial long-term use requirements
Application Scenarios	Industrial automation sensor wiring, vehicle-mounted auxiliary equipment signal connection, outdoor monitoring device power and data transmission, mechanical equipment internal wiring, harsh environment industrial site connection

Optimized to satisfy compact layout needs of onboard equipment, it serves as a durable car wiring harness alternative for auxiliary vehicle sensor and accessory wiring. UL2464 certified black PVC cable resists abrasion and extreme temperature ranging from -40℃ to +105℃ to adapt to variable working conditions.

We adjust pin assignment, cable length and connector types per client’s unique project parameters, making this split cord a practical customized sample of our versatile custom wiring harness lineup, widely adopted in factory automation sensors, surveillance equipment and off-road vehicle peripheral wiring.
