Custom Industrial Multi Lead Roller Drive Wiring Harness
2 month ago
Product details

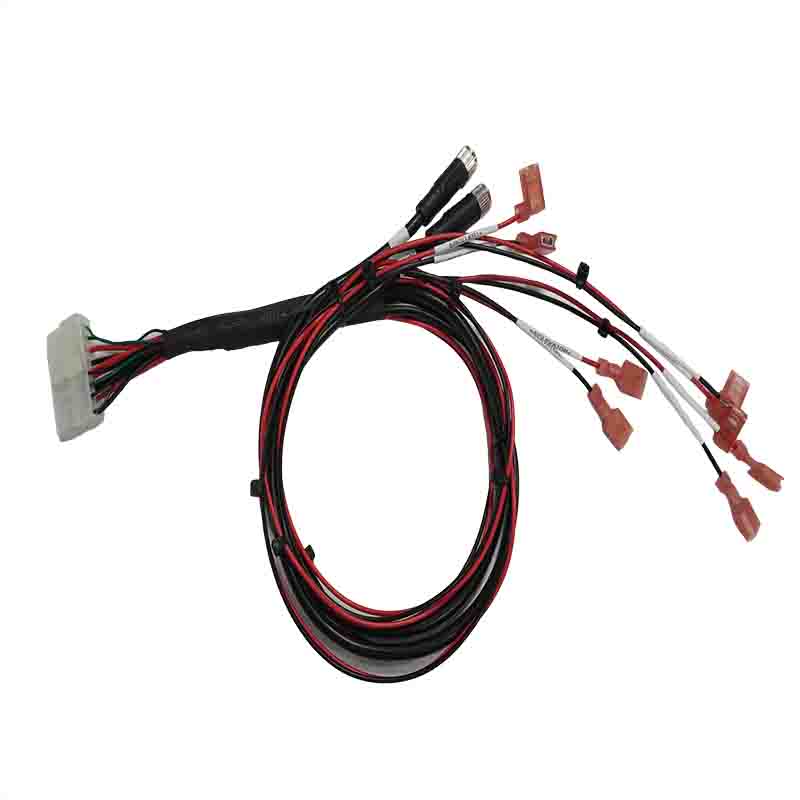

Marked as Custom Industrial Multi-Lead Roller Drive Wiring Harness, this multi-branched assembly is customized to match SEEFRID roller motor and conveyor control systems. The main end adopts a 16Pin 5557 transparent plastic connector, splitting out into M8 waterproof connectors and various 187/250 flag terminals to realize distributed power and signal transmission for multiple equipment components. Well-selected UL1007 and UL2464 insulated wires feature differentiated core colors, effectively accelerating field installation and later troubleshooting.
Years of experience in custom industrial wiring enable our engineering team to optimize branch layout and wire gauge strictly per original equipment drawing, avoiding messy wiring inside compact motor casings. The M8 connectors are equipped with integrated silicone waterproof gaskets to block workshop dust and splash, extending service lifespan under continuous operating conditions.
| Item | Description |
| Product Name | Custom Industrial Multi-Lead Roller Drive Wiring Harness |
| Connector Configuration | • P1 Main Input: 5557 series 2*8Pin (16Pin) transparent white male plastic housing, fitted with 16AWG high-foot crimp terminals • P2/P3 Branch Output: 2 sets of M8-3Pin A-type long-body female waterproof connectors, with screw cap, built-in waterproof ring, dust-proof and moisture-proof design • P4-P11 Branch Output: 8 sets of 2Pin female connectors, matched with 187 series flag-type crimp terminals for signal transmission • High-Current Power Branches: 250 series flag-type crimp terminals for stable power supply connection • All terminals adopt professional crimping process, with secondary anti-withdrawal structure to ensure long-term stable connection |
| Length | Total overall length of the main harness: 864±20mm |
| Electrical Performance | • 100% Continuity Inspection: No short circuit, open circuit, instantaneous disconnection or misconnection defects • Withstand Voltage Test: DC 500V for 10ms without breakdown • Minimum Insulation Resistance: ≥5MΩ • Maximum Conduction Resistance: ≤3Ω • All electrical performance meets industrial equipment wiring safety standards |
| Material & Compliance | • Conductors: High-purity tinned copper stranded wire, UL1007/UL2464 certified, 20AWG/16AWG gauge • Connectors: 5557 series plastic housing, M8 waterproof connectors, made of RoHS compliant PE/PVC material • Terminals: 187/250 flag-type crimp terminals, high-conductivity copper with tin plating • Auxiliary Parts: Black/white printed heat shrink tubing, number tubes, black cable ties, self-sealing PE bags; all raw materials fully comply with RoHS environmental protection requirements |
| Application | Industrial roller motor wiring, conveyor system internal connection, elevator equipment control wiring, mechanical equipment power and signal transmission, industrial automation device internal wiring harness |
Our flexible production capability for custom electrical wiring supports changes on total length, split position and terminal styles whenever clients upgrade their conveyor mechanical structures. All crimping processes go through pull force and continuity tests to eliminate hidden circuit faults.
We also leverage proven manufacturing experience from custom automotive wire harness production to apply rigorous automotive-level inspection standards onto this industrial cable, helping it withstand frequent vibration and fluctuating ambient temperature on automated production lines. This harness is extensively applied on roller conveyors, logistics transport equipment and automated processing machinery.
