Custom Cummins 9Pin Male to Female Waterproof Heavy Duty Wiring Harness

2 month ago

26 0 

2 year

Product details

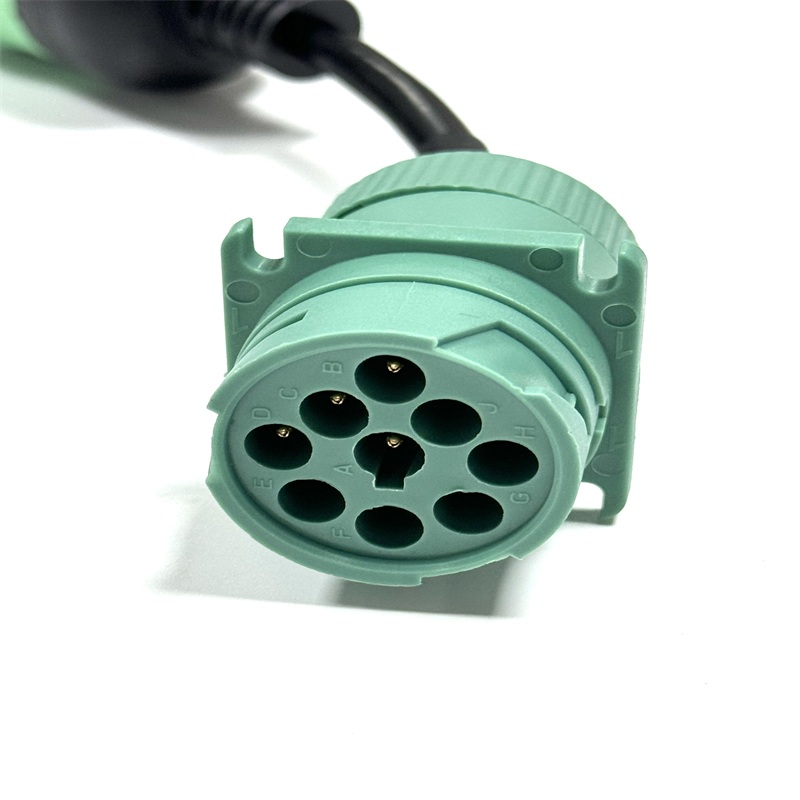

This Cummins 9Pin Male to Female Adapter Harness is a compact extension cable designed to link a standard Cummins 9Pin round male connector to its matching female counterpart. Built with green-cased connectors on both ends, it includes a red silicone sealing gasket at each interface to maintain reliable dustproof and splashproof performance in harsh workshop environments. The short cable body uses UL2464 certified black PVC wire, with color-coded internal conductors to ensure quick and accurate signal identification during maintenance work.

Custom Cummins 9Pin Male to Female Waterproof Heavy Duty Wiring Harness

As part of our custom wiring harness portfolio, this adapter is fully adjustable in cable length and connector orientation to fit tight spaces on heavy-duty truck diagnostic tools or vehicle dashboards. Our engineering team ensures every crimped terminal meets strict pull force and continuity standards to eliminate loose connections.

Item	Description
Product Name	Custom Cummins 9Pin Male to Female Waterproof Heavy Duty Wiring Harness
Type	Cummins 9Pin Male to Female Extension & Conversion Wiring Harness
Voltage	12V 24V For Heavy Duty Truck Systems / Customized
Pins Material	Nickel Plating / Gold-Plating Optional Brass Terminals
Plug Material	PA66+GF (ABS+PC) Automotive Grade Housing, with Red Silicone Waterproof Sealing Gasket
Working Temperature	-40℃~+105℃ / Customized
Length	76±15mm/ Customized Length Available
Minimum Insulation Resistance	≥5MΩ
Maximum Conduction Resistance	≤3Ω
Specific Shipping Cost	Please Contact Us

Drawing on extensive experience in customized car wiring harness development, we also support pinout modifications and connector upgrades to match special diagnostic tool protocols or regional truck ECU standards. The harness is tested under DC 300V and 5MΩ insulation resistance requirements, guaranteeing stable operation in 12V/24V heavy-duty truck systems.

Designed with automotive-grade materials, this automotive wiring harness serves as a reliable extension for Cummins diesel engine fault scanning, truck ECU programming, and on-board circuit testing. It is widely used in fleet maintenance centers, roadside repair services, and commercial vehicle workshops.
