OBDII 16Pin to FC1 14Pin diagnostic cable

2 month ago

9 0 

2 year

Product details

Fubon Harness has long specialized in manufacturing high-quality vehicle connection solutions, with in-house testing and assembly facilities to meet the demands of diagnostic equipment and aftermarket partners worldwide.

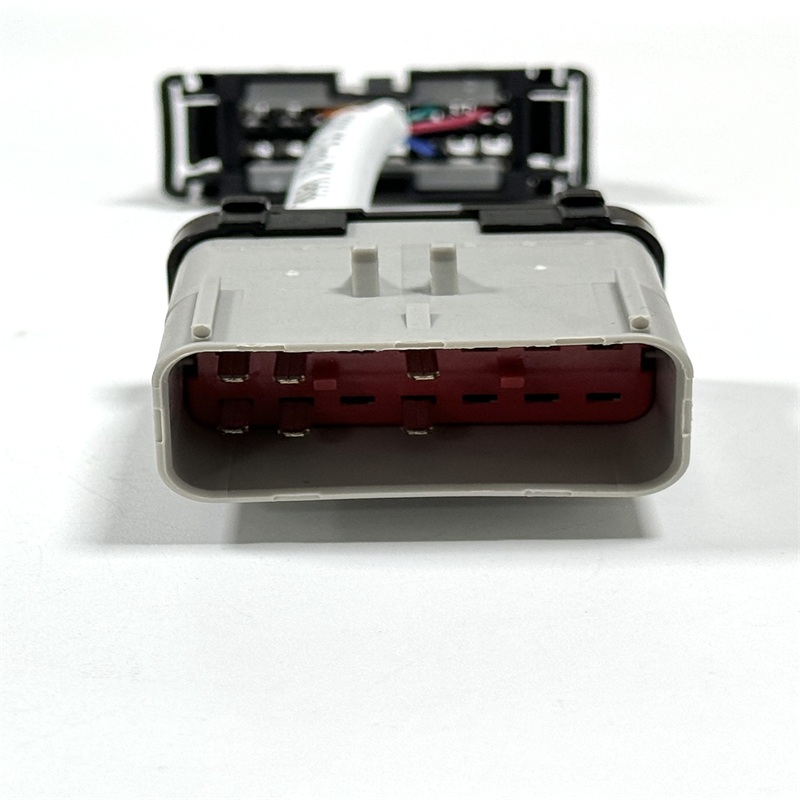

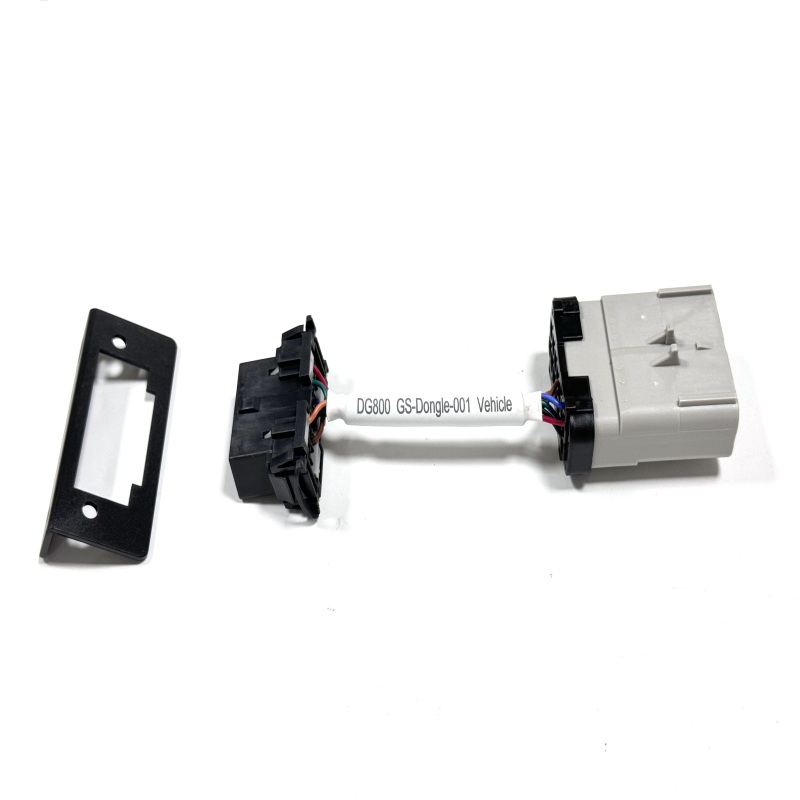

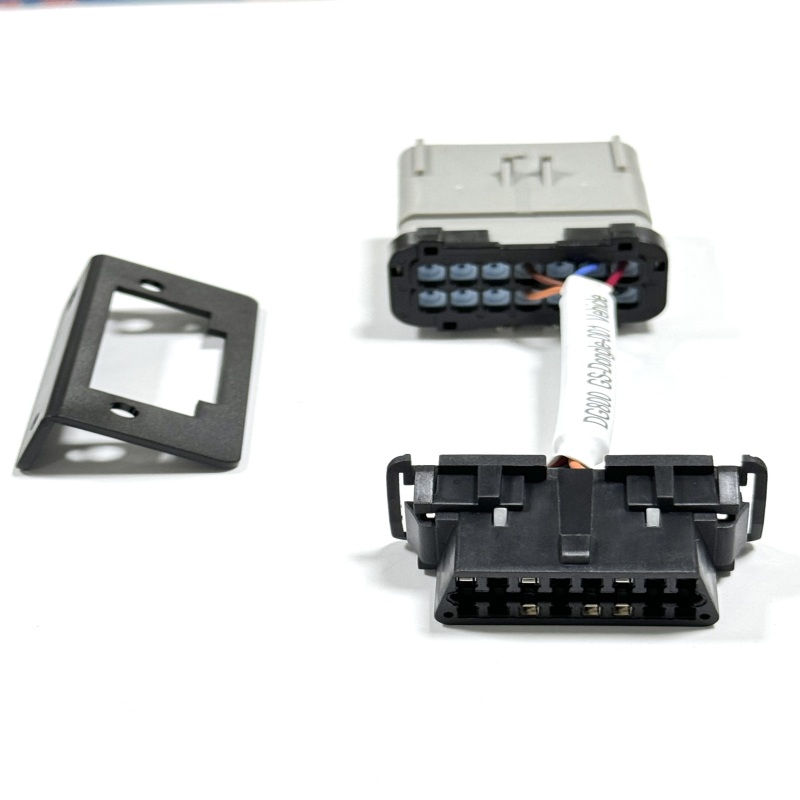

Known as the OBDII 16Pin to FC1 14Pin diagnostic cable, this compact adapter converts a standard 16-pin OBDII interface into a dedicated 14-pin FC1 connector, enabling compatibility between mainstream automotive diagnostic tools and specific vehicle systems. Built with automotive-grade black and gray plastic housings, it features clearly color-coded conductors to ensure accurate signal transmission and simplify pin identification during maintenance. The short, rigid design fits easily into tight spaces within diagnostic tool housings or vehicle dashboards, making it ideal for both bench programming and in-vehicle testing scenarios.

Item	Description
Product Name	OBDII 16Pin to FC1 14Pin diagnostic cable
Type	OBDII 16Pin to FC1 14Pin Automotive Diagnostic Adapter Cable
Voltage	12V / 24V Vehicle System, Customized Available
Pins Material	Nickel-Plated Brass Terminals, Gold-Plating Optional
Plug Material	PA66+GF Automotive Grade Housing, Black/ Gray Color-Coded Connectors
Working Temperature	-40℃~+105℃ Or Customized
Length	76±15mm/ Customized Length Available
Minimum Insulation Resistance	≥5MΩ
Maximum Conduction Resistance	≤3Ω
Specific Shipping Cost	Please Contact Us

As part of our custom cable assembly and wiring harness offerings, this adapter can be tailored in length, connector orientation, and labeling to suit specific diagnostic workflows or equipment models. Our engineering team works closely with clients to ensure the cable meets exact mechanical and electrical requirements for reliable, long-term use.

Every unit undergoes rigorous continuity, insulation, and pull-force tests, following the strict standards we apply to all our electrical harness assembly projects. Withstanding DC 300V testing and maintaining insulation resistance above 5MΩ, the cable delivers stable performance in 12V automotive systems.

Functioning as a reliable vehicle diagnostic cable adapter, it serves as an essential accessory for specialized vehicle fault code reading, ECU programming, and system calibration. Widely used in professional repair shops and diagnostic service centers, it provides a simple, robust connection solution for technicians working with FC1-equipped vehicles.
