Automotive Multi-Branch Diagnostic and Tracking Harness

2 month ago

21 0 

2 year

Product details

Fubon Harness has built its reputation on delivering robust, application-specific connection solutions for automotive and fleet telematics systems, with rigorous quality checks built into every stage of production.

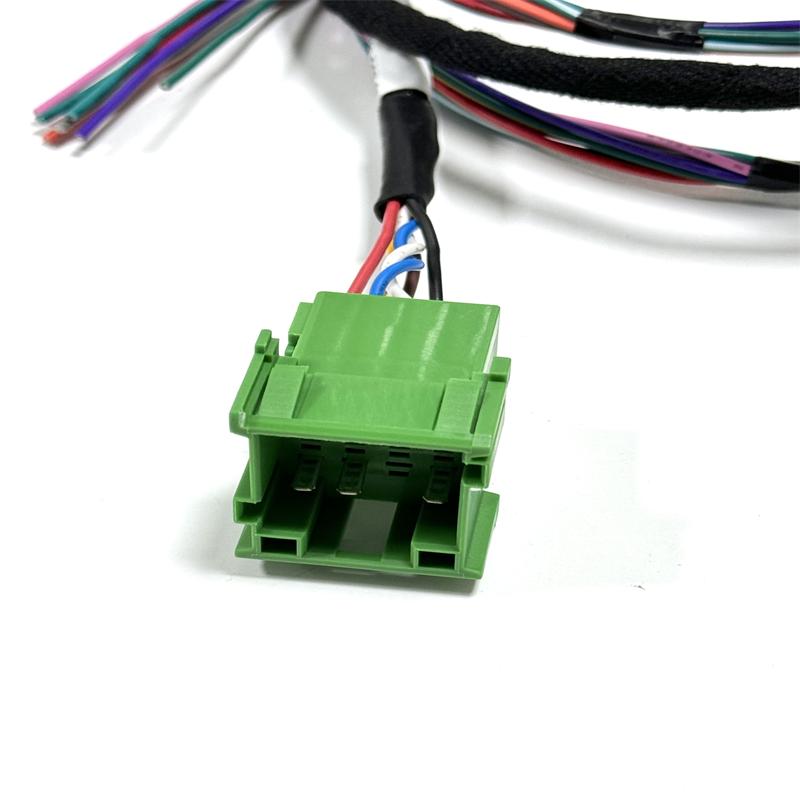

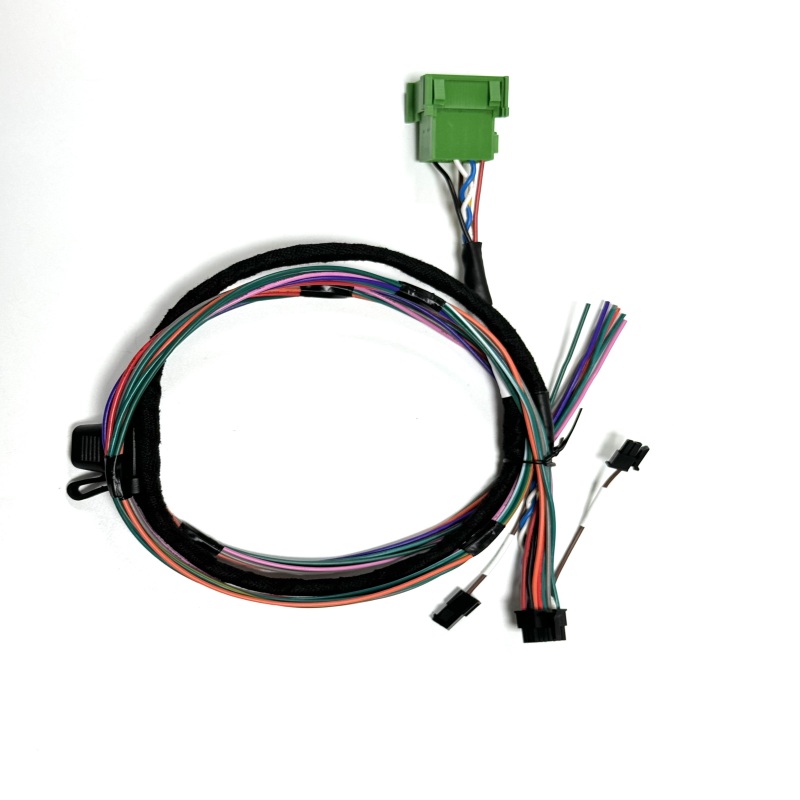

The Automotive Multi-Branch Diagnostic and Tracking Harness is engineered to serve as a versatile interface for both vehicle diagnostic tools and GPS tracking devices. Built with a central green multi-pin connector and several branched leads, it enables simultaneous power and data distribution for fleet management systems, code readers, and onboard monitoring units. Each wire is individually color-coded and secured with automotive-grade tape, ensuring reliable signal integrity even in vibration-heavy environments. The harness is tested under DC 500V and 5MΩ insulation resistance requirements, making it suitable for long-term use in 12V and 24V vehicle electrical systems.

Item	Description
Product Name	Automotive multi-branch diagnostic and tracking harness
Type	Multi-Branch FMS & Diagnostic Extension Wiring Harness
Voltage	12V / 24V Automotive System, Customized Available
Pins Material	Nickel-Plated Brass Terminals, Gold-Plating Optional
Plug Material	PA66+GF Automotive Grade Housing, Color-Coded Connectors
Working Temperature	-40℃~+105℃ Or Customized
Length	1000±30mm / Customized Length Available
Minimum Insulation Resistance	≥5MΩ
Maximum Conduction Resistance	≤3Ω
Specific Shipping Cost	Please Contact Us

As part of our customized car wiring harness services, this multi-branch assembly can be adjusted in length, pinout configuration, and connector types to fit specific telematics units or vehicle models. Our engineering team tailors each branch layout to avoid interference and simplify installation in tight dash or control module locations.

This product is built to the same high standards we apply to every electrical harness assembly we produce. Every crimped terminal and connection point undergoes continuity and pull-force testing, eliminating loose connections or intermittent issues common in multi-signal setups. The use of automotive-grade materials ensures resistance to temperature swings, moisture, and wear.

Functioning as both a power distribution loom and a vehicle diagnostic cable adapter, it is widely used in fleet management installations, aftermarket tracking system integration, and multi-device vehicle testing setups. The harness provides a single, organized connection point, reducing clutter and streamlining the installation process for technicians and fleet operators alike.
