DB15 to OBDII 16Pin Automotive Diagnostic Test Cable

2 month ago

20 0 

2 year

Product details

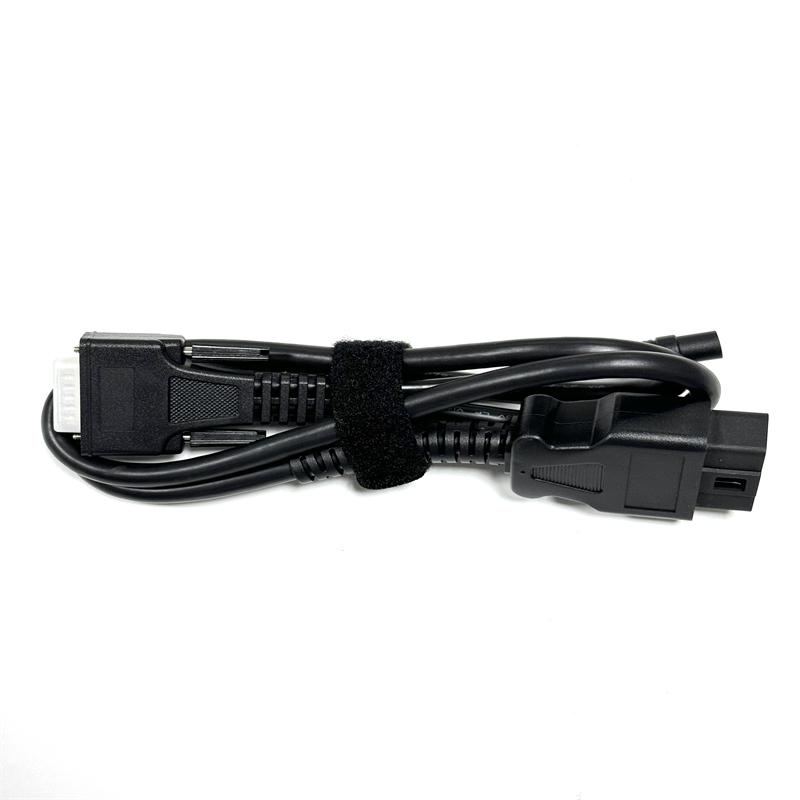

This DB15 to OBDII 16Pin Automotive Diagnostic Test Cable is purpose-built to link DB15-equipped scan tools to standard vehicle OBDII ports. It features a fully molded, strain-relieved DB15 connector on one end, paired with a robust OBDII 16Pin connector on the other, plus an integrated DC power lead to support direct power delivery to the tool. The 1000mm cable is constructed with color-coded UL2464 wire and reinforced with black PVC jacket, offering reliable performance even in high-vibration workshop environments.

Custom DB15 to OBDII 16Pin Automotive Diagnostic Test Cable

As a key OBD diagnostic cable, it supports full bidirectional communication for fault code reading, ECU programming, and real-time data streaming across a wide range of passenger and light commercial vehicles. Every connection undergoes continuity and insulation resistance testing to eliminate signal dropouts.

Item	Description
Product Name	Custom DB15 to OBDII 16Pin Automotive Diagnostic Test Cable
Type	DB15 to OBDII 16Pin Diagnostic Test Wiring Harness
Voltage	12V 24V Or Customized
Pins Material	Nickel Plating/Gold-Plating Optional
Plug Material	PA66+GF (ABS+PC) Automotive Grade Housing
Working Temperature	-40℃~+105℃ Or Customized
Length	1000±30mm / Customized Length Available
Minimum Insulation Resistance	≥2MΩ
Maximum Conduction Resistance	≤2Ω
Specific Shipping Cost	Please Contact Us

Designed as a versatile OBD diagnostic adapter, it serves as a core component for fourth-generation diagnostic tools, enabling technicians to connect older or specialized equipment to modern OBDII systems without adapters or converters. The cable is built to withstand repeated plugging and unplugging, with reinforced strain relief at both ends to prevent wear and tear.

This is a reliable vehicle diagnostic OBDII cable, engineered to meet the demands of busy service centers, mobile repair fleets, and diagnostic labs. It provides a stable, direct link between scan tools and vehicle ECUs, helping technicians perform fast, accurate diagnostics with confidence.
