Custom 30-Pin Mixed Pinout Automotive Connector Wiring Harness

2 month ago

11 0 

2 year

Product details

Fubon Harness specializes in high-quality custom connection solutions for automotive and industrial applications, delivering precision-built assemblies that meet strict OEM and aftermarket standards.

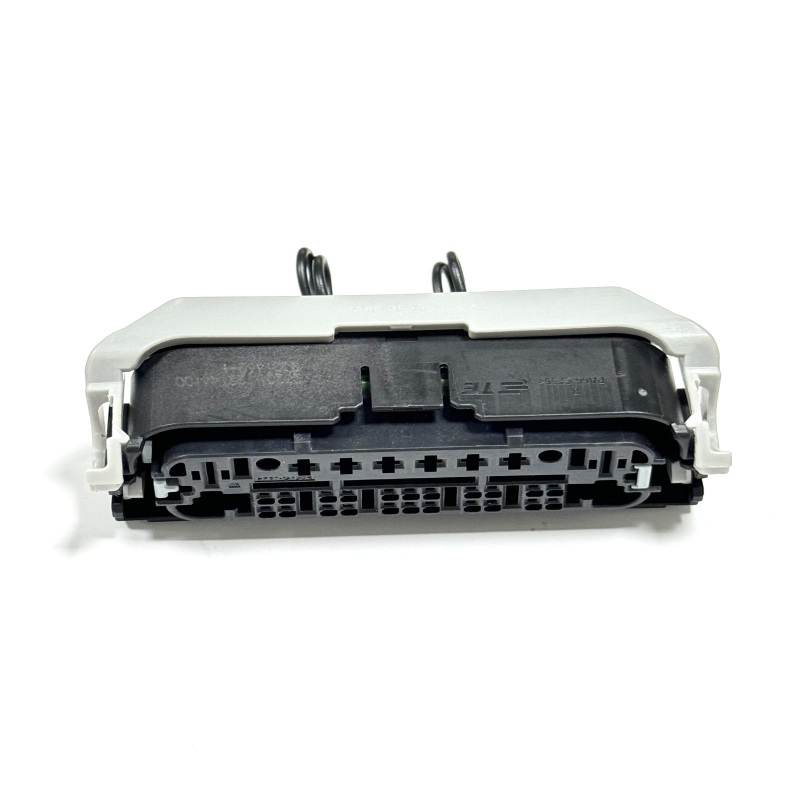

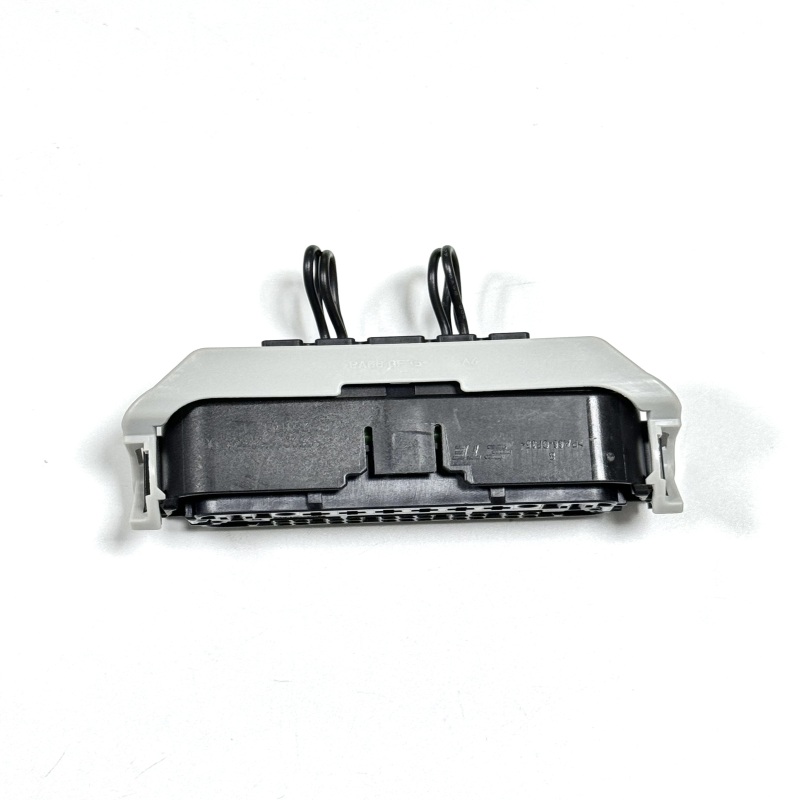

This 30-Pin Mixed Pinout Automotive Connector Wiring Harness is engineered for seamless integration with complex vehicle systems, featuring a robust multi-position housing designed to accommodate mixed-signal and power circuits. Built with automotive-grade materials, the assembly includes precision-crimped terminals and silicone sealing elements to ensure reliable performance in harsh underhood or dash environments. Every unit undergoes continuity, insulation resistance, and pull-force testing to eliminate common failure points.

Custom 30-Pin Mixed Pinout Automotive Connector Wiring Harness

As a customized car wiring harness, it can be tailored to specific pin assignments, wire gauges, and lengths to match the exact requirements of your project. Whether you need a direct replacement for a factory harness or a modified assembly for a custom build, we adapt the design to fit your application perfectly.

Item	Description
Product Name	Custom 30-Pin Mixed Pinout Automotive Connector Wiring Harness
Type	30-Pin (2P+6P+22P) Automotive Mixed Connector Wiring Harness
Voltage	12V / 24V Automotive System, Customized Available
Pins Material	Nickel-Plated Brass Terminals, Gold-Plating Optional
Plug Material	Automotive Grade Connector Housing with Sealing Gaskets
Working Temperature	-40℃~+105℃ Or Customized
Length	110mm / Customized Length Available
Minimum Insulation Resistance	≥10MΩ
Maximum Conduction Resistance	≤2Ω
Specific Shipping Cost	Please Contact Us

This product is part of our broader range of Customized Electrical Connectors And Harnesses, where we combine modular connector designs with custom wiring layouts to solve unique connection challenges. We work closely with clients to optimize every detail, from material selection to assembly methods, ensuring the final product aligns with both technical specifications and budget needs.

We also offer a variety of customized electrical connectors and sealing solutions, including blanking plugs and different housing configurations, to ensure compatibility with various vehicle platforms and system architectures. This flexibility makes the harness ideal for ECU modifications, engine swaps, and diagnostic applications where a one-size-fits-all solution won’t work.
