Custom Multi Branch Automotive Wiring Harness 6P+3P to 6P+4P

2 month ago

20 0 

2 year

Product details

Fubon Harness is a specialized manufacturer of tailored connection solutions, with years of experience in designing high-performance assemblies that meet the strict quality and reliability standards of the automotive industry.

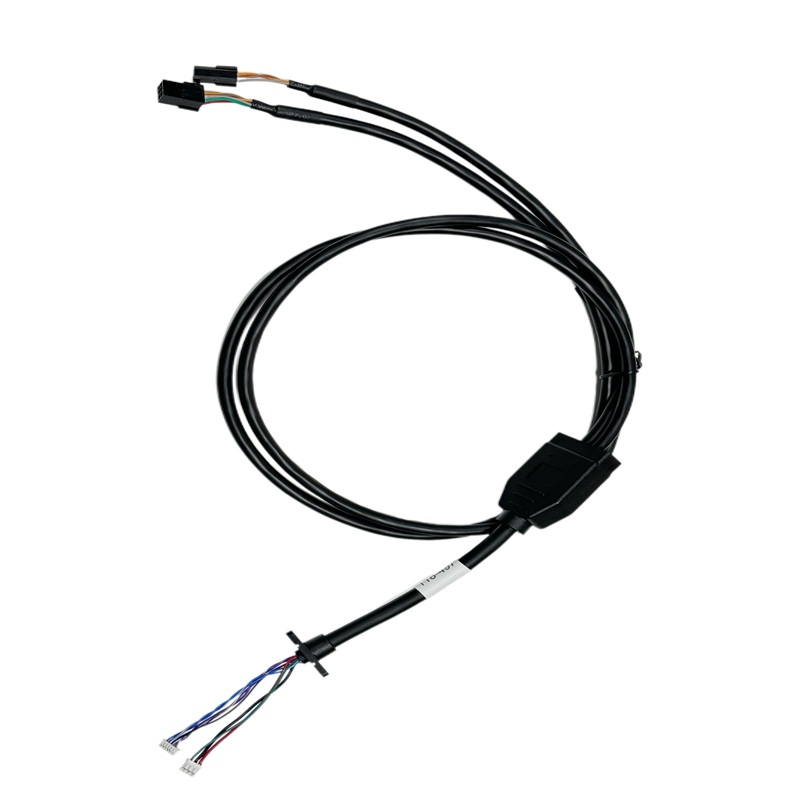

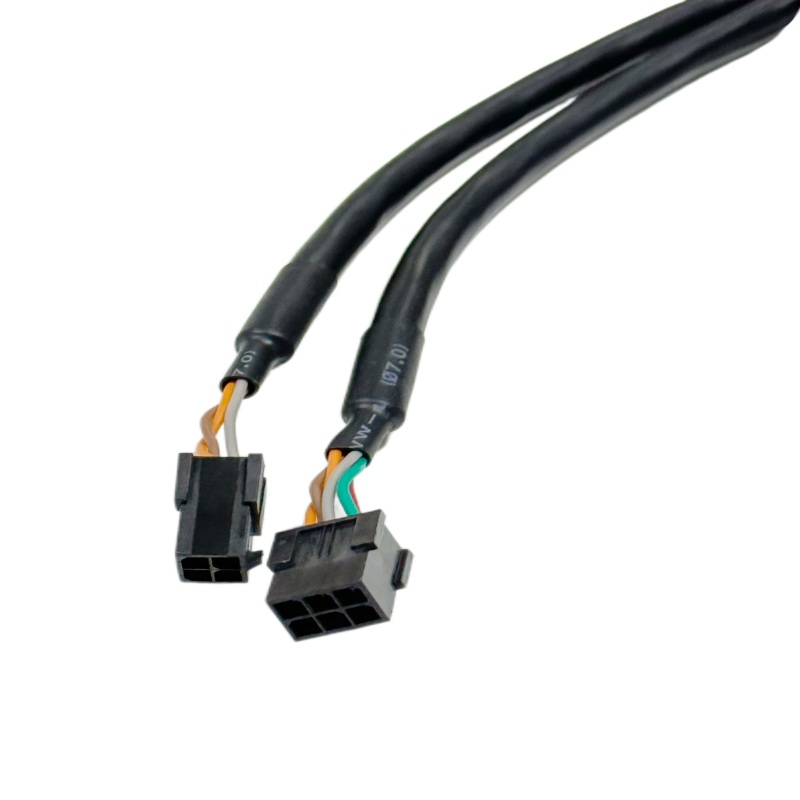

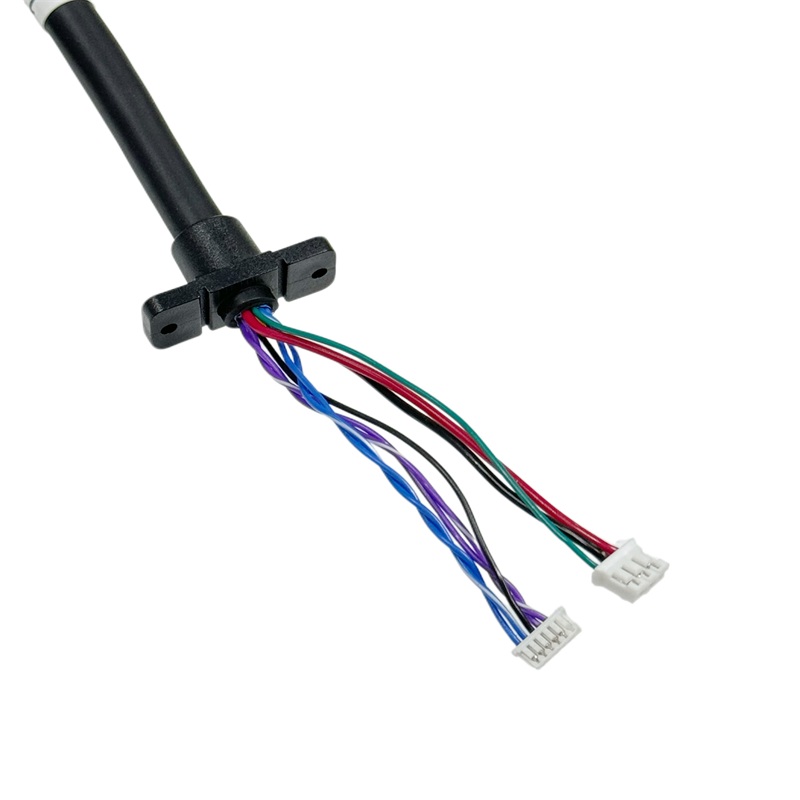

The Custom Multi-Branch Automotive Wiring Harness 6P+3P to 6P+4P is engineered to deliver stable signal and power distribution across multiple vehicle components. Built with UL-rated wire and reinforced with heat-shrink tubing and strain relief, it ensures consistent performance even in the high-vibration, temperature-fluctuating environments typical of automotive systems. Each harness undergoes 100% continuity and insulation testing to eliminate the risk of shorts or connection failures.

Item	Description
Product Name	Custom Multi Branch Automotive Wiring Harness 6P+3P to 6P+4P
Type	Automotive & Industrial Multi-Branch Signal & Power Wiring Harness
Voltage	12V / 24V DC, Customized Available
Pins Material	Nickel-Plated Brass Terminals, Gold-Plating Optional
Plug Material	PA66+GF Automotive Grade Connector Housing with Black PVC Outer Jacket
Working Temperature	-40℃~+105℃ Or Customized
Length	1070±40mm / Customized Length Available
Minimum Insulation Resistance	≥10MΩ
Maximum Conduction Resistance	≤2Ω
Withstand Voltage Test	DC 300V 10MS
Application Fields	Automotive electronic system signal transmission, on-board sensor & device power connection, car modification & custom wiring projects, industrial control equipment wiring, ECU communication & data transfer, DIY automotive electronic projects
Specific Shipping Cost	Please Contact Us

As a robust automotive wiring harness, it is designed to simplify complex multi-component installations, providing a clean, organized solution for integrating sensors, control modules, and auxiliary electronics. Its precise pin assignment and multi-branch structure make it ideal for OEM replacements and custom vehicle builds alike.

As part of our custom services, this assembly is also a practical customized car wiring harness, fully configurable to match your exact specifications—including connector types, wire gauges, and lengths. We work closely with you to refine every detail, ensuring the final product fits perfectly into your application.

This design also represents the flexibility of our custom automotive wire harness offerings, where we adapt every element to meet unique project requirements. Whether for new vehicle development, aftermarket upgrades, or industrial equipment, we deliver solutions built for durability and seamless integration.
