15-pin d sub connector housing: A “tough fortress” built for complex signal transmission.
Within the vast system of electronic connections, if the 9-pin D-Sub is the classic data communication bridge, then the metal casing of the 15-pin D-Sub (typically corresponding to VGA video or high-density signal transmission) serves as a “strong fortress” for ensuring the stable transmission of complex analog or mixed signals. It is not merely a physical protective cover; it is also a core component that determines the overall system’s resistance to interference, mechanical lifespan, and environmental adaptability.
Excellent electromagnetic shielding and signal integrity.

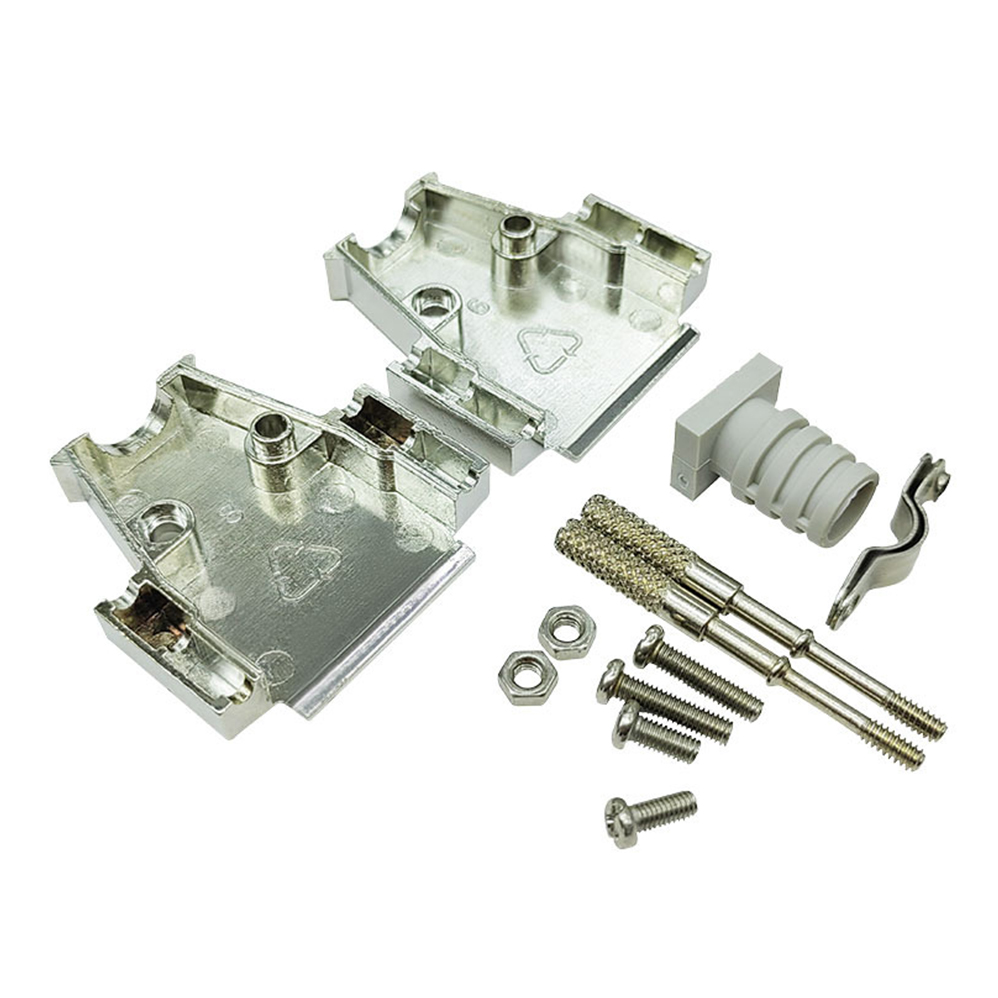

For 15-pin d connector, the internal components typically include three-color analog video signals (red, green, and blue) and horizontal-vertical synchronization signals. These connectors are highly susceptible to electromagnetic interference (EMI) from external sources. High-quality 15-pin metal housings are often made using zinc alloy die-casting, with a nickel-plated surface, which provides EMI shielding attenuation of up to 70 dB@1 GHz. This 360-degree shielding design, combined with internal stress-relieving clips, not only effectively isolates radio-frequency interference in industrial environments but also prevents the emission of internal high-frequency signals, ensuring that images or data transmissions remain undistorted and free of ghosting.
Precise structural design and spatial adaptability.

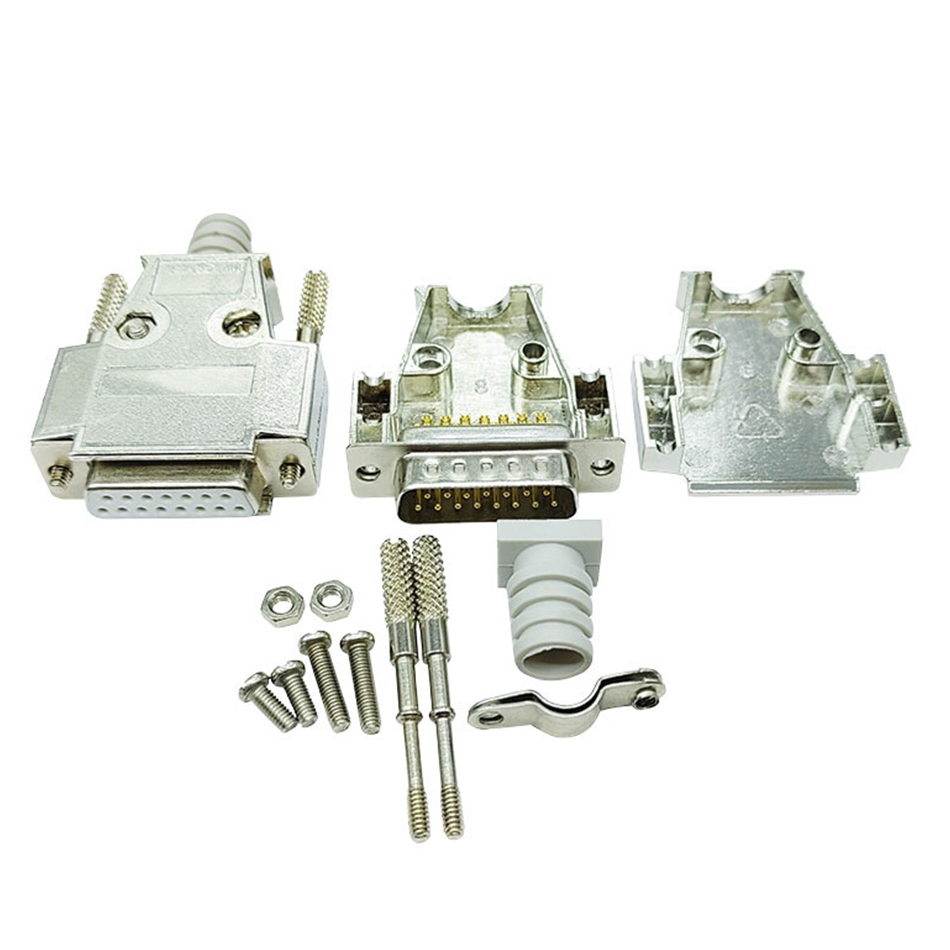

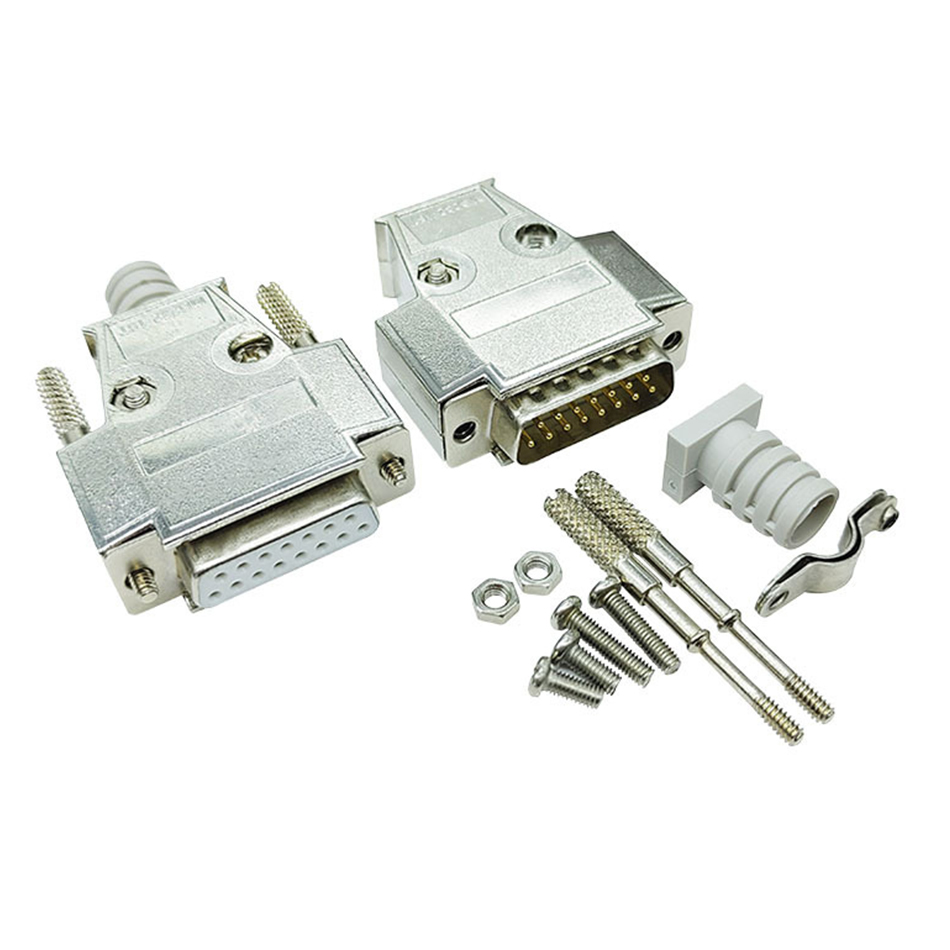

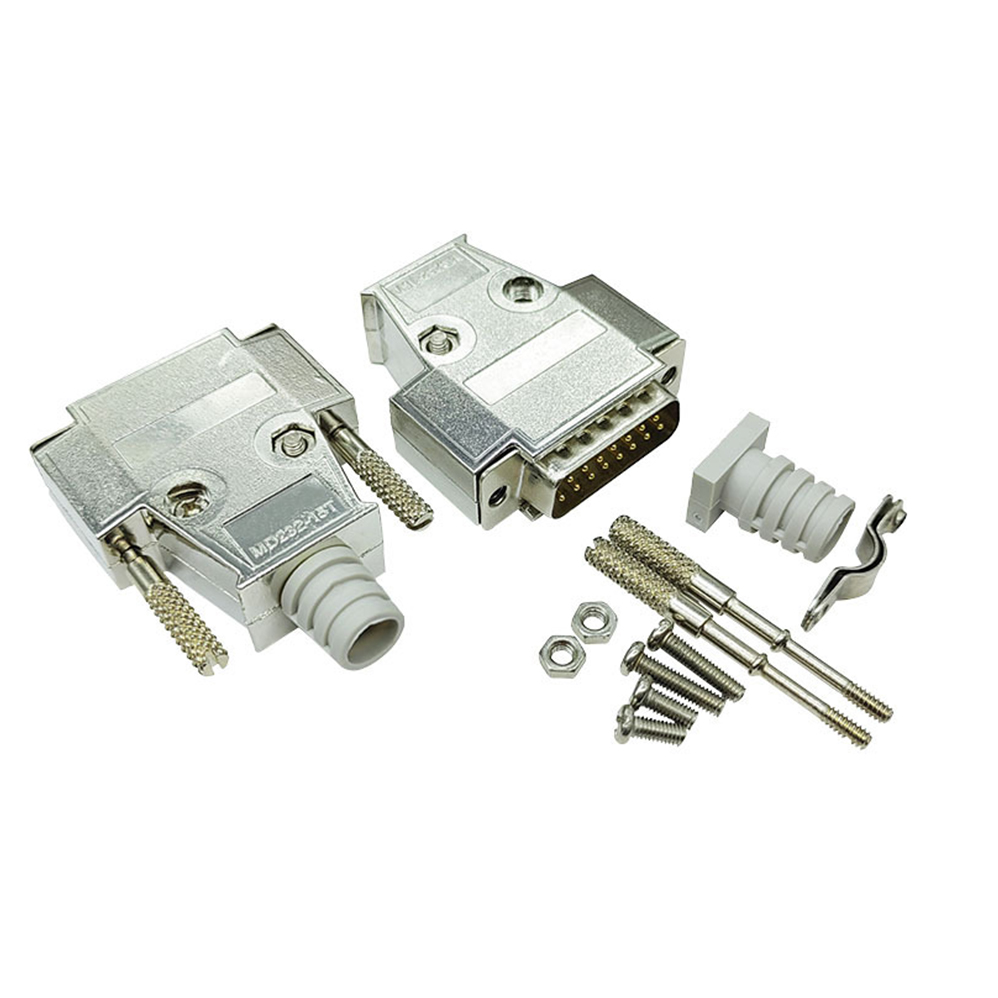

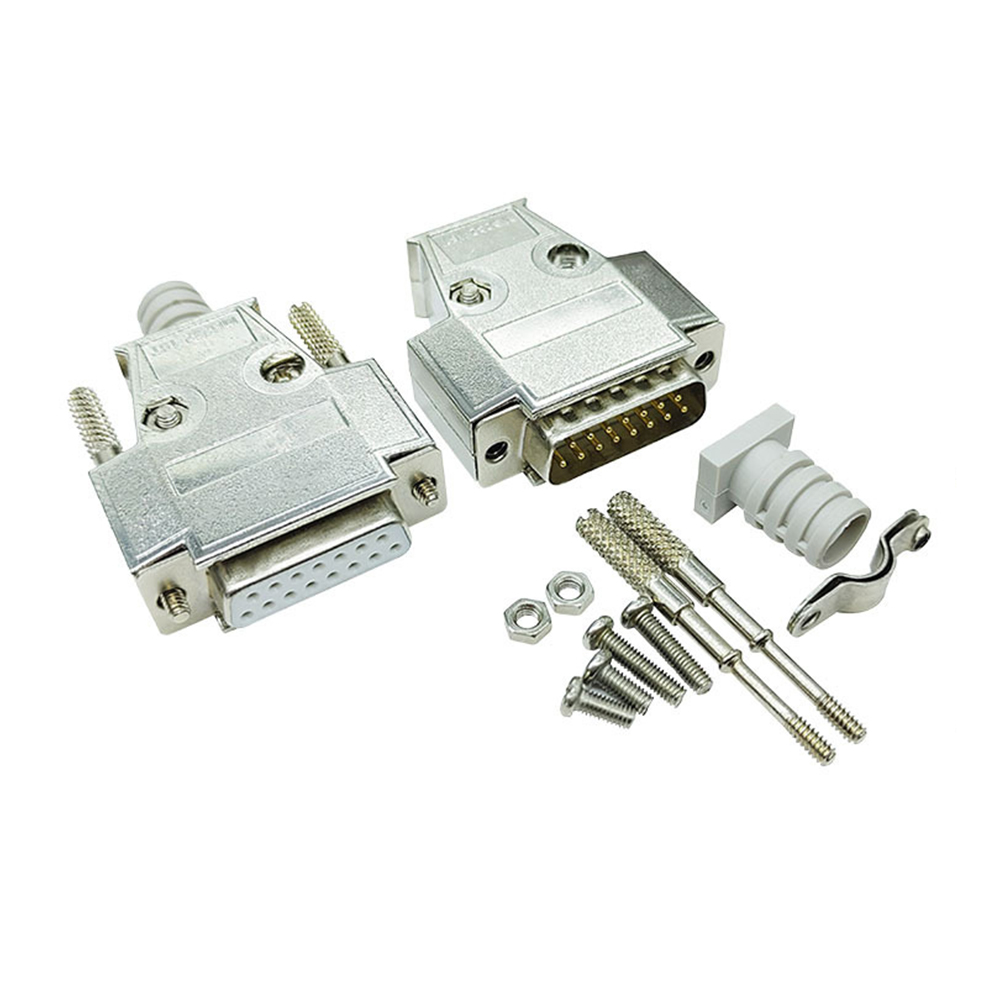

Compared to the 9-pin housing, the 15-pin d-sub metal hood requires more pins and thicker cable bundles. To accommodate the installation constraints of different devices, this type of housing is highly flexible in design. In addition to the standard 180° straight-out cable design, the 45° angled-out design is particularly crucial. This design allows the cables to quickly bend after leaving the d sub connector, thereby significantly saving space behind the cabinet or on narrow equipment panels. Additionally, the standard 4-40 UNC threaded screws or hand-tightened long screws on both sides provide a locking force of up to 40Ncm, ensuring that the connections remain secure and stable even in harsh vibration environments, such as those found in rail transportation and CNC machines.
Enhanced rugged environmental adaptability and protection features.
The 15-pin d sub connector backshell for industrial and automotive applications far surpass ordinary consumer-grade products in terms of protection performance. Their operating temperature range typically spans from –35°C to +100°C, and the rubber cores often use flame-retardant PBT material with 30% glass fiber content, providing exceptional mechanical strength and thermal stability. For environments that are humid or dusty, many models incorporate molded-in silicone seals at the flange, combined with the waterproof wiring structure of the back cover, easily meeting the IP67 standard for dust and water resistance, allowing them to handle harsh conditions such as salt fog corrosion and high-pressure water washing with ease.
