IP67 connectorS 44 pin

The 44 Pin D Connector Ip67 comes in three models: solder-cup, straight-through, and right-angle. It features a three-row gold-plated machined pin layout designed to save valuable equipment space.

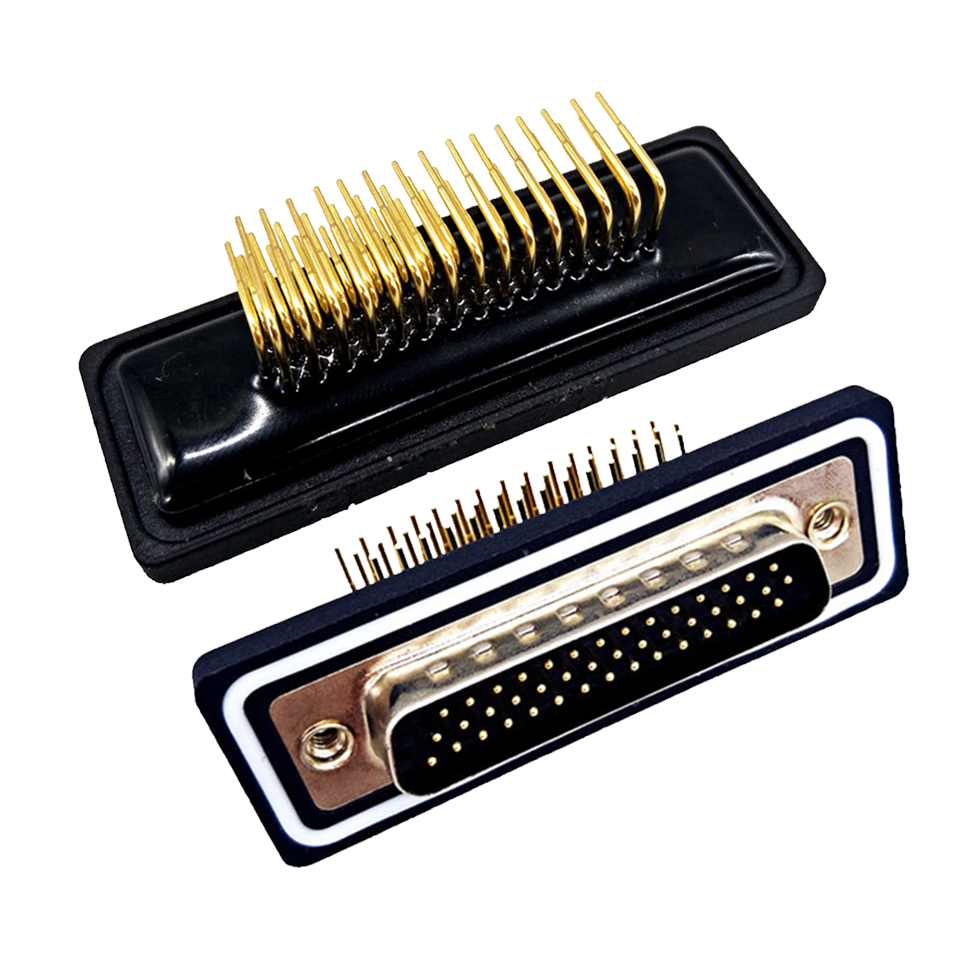

What is an HDR44 ip67 d sub connector?

It features a 90° right-angle pin configuration. "HDR44" typically refers to a specific high-density custom or industry-standard interface (common in industrial control boards, specialized displays, or server backplanes). This means 44 signal transmission points are packed into a limited D-sub metal shell, with each pin carrying critical data or control commands. It delivers stable data transmission and is highly favored by customers in the industry.

Advantages of the Right-Angle Version

Saves Rear Space: The 90-degree design allows cables to run directly along the equipment housing, eliminating the need for vertical plug/unplug clearance. This is crucial for devices installed deep within narrow cabinets or wall-mounted enclosures.

Protects the Interface: The right-angle exit effectively reduces stress on solder joints caused by accidental cable pulls, preventing PCB pads from peeling off.

Clean Aesthetics: Cables sit flush against the chassis, looking more professional and aligning with industrial design principles.

What is an HDB44 D-Sub Waterproof Connector?

This is the 180° solder version, also featuring a three-row gold-plated machined pin layout. It is designed to transmit massive amounts of signals within a minimal footprint while remaining incredibly rugged.

The D Sub Hd44 Pin Female is a "Special Forces" Operative

1. Challenges and Advantages of High Density

Standard D-Sub interfaces have relatively sparse pin spacing, whereas the HDB44 crams 44 pins into the same size metal shell.

Advantage: One cable does the work of two or three, allowing for a much more compact equipment interface panel.

Challenge: Due to the dense pin spacing, soldering is difficult, and insulation requirements are extremely high. Once water ingress causes a short circuit, the damage is far more severe than with larger pitch interfaces. Therefore, waterproofing here isn't an option—it's a lifeline.

2. Connection Methods

Solder Type: Suitable for fixed installations; offers good waterproofing but is troublesome to repair.

Crimp/Piercing Type: Ideal for rapid on-site wiring but requires specialized tools.

PCB Mount Right-Angle/Straight Pins: If soldering onto a circuit board, you must clarify whether it is "recessed" or "surface mount"—a height difference of even one millimeter will prevent mating.

IP67 Protection: More Than Just Splash-Proof

The core selling point of this connector lies in its rigorous protection capabilities.

Dustproof: Completely prevents foreign object intrusion; dust has no chance.

Waterproof: Will not take on water even when submerged in 1 meter of water for a short period. This is thanks to precision rubber O-rings and potting processes. Whether facing outdoor rainstorms, factory high-pressure washdowns, or seaside salt spray environments, it stands firm like a rock.

Application Scenarios

Outdoor Chassis/Servers: Prevents rainwater from seeping into the chassis along the cable and burning out the motherboard.

Vehicle/Marine Systems: Withstands the dual test of vibration and humidity.

Stage Lighting & Audio: Spray and rain during performances are no longer a concern.

Automation Production Lines: Resists erosion from coolants and oils.

Purchasing and Usage Tips

Confirm Male/Female: D-sub connectors come in male (pins) and female (sockets); be sure to verify the device port before ordering.

Soldering Process: Due to the high-density pins, soldering requires care to avoid bridging/short circuits. Using a PCB footprint with locating posts is recommended for added stability.

Locking Screws: Be sure to tighten the fixing screws on both sides during installation; this is the critical step to ensuring IP67 sealing performance.
