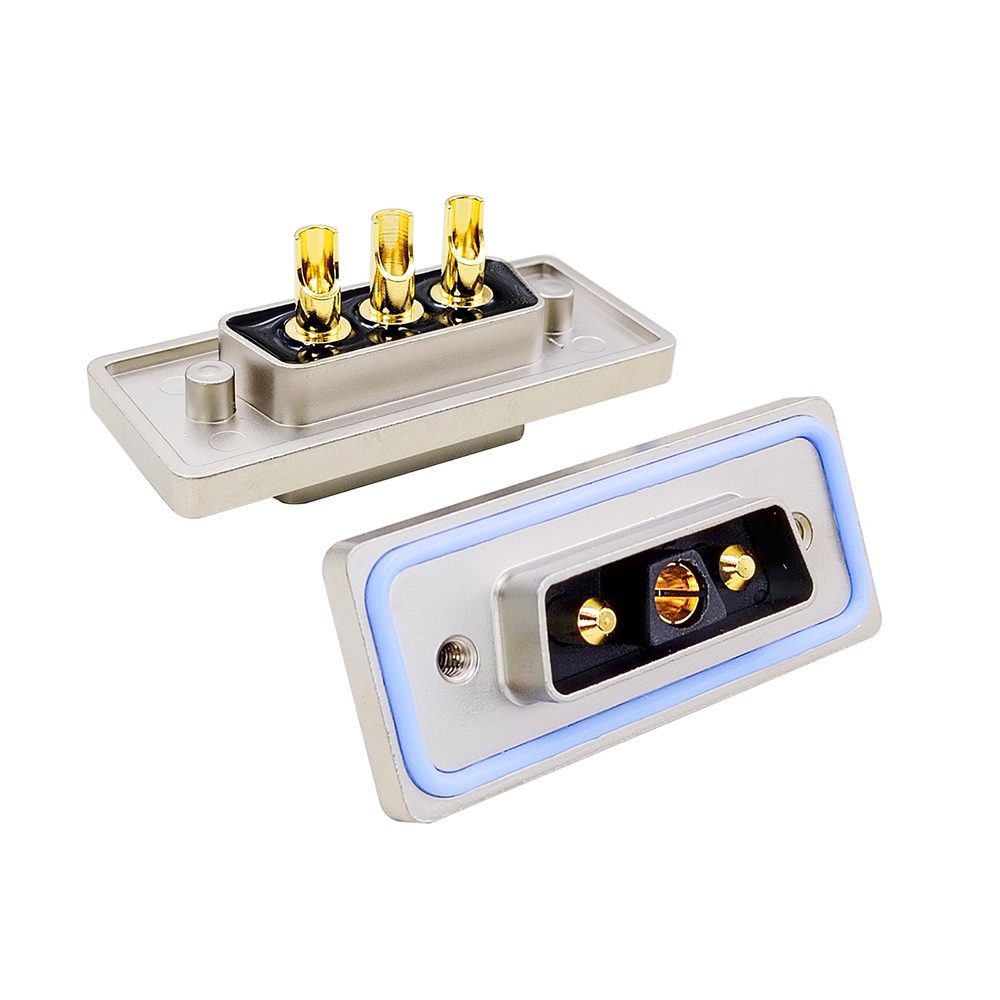

3v3 Connector Female And Male(ip67 connector ) – Built for Harsh Environments

In industrial automation, new energy equipment, outdoor lighting and other fields, the reliability of connectors directly affects the stable operation of the entire system. The 3V3 metal high-current waterproof d sub connector is a high-performance connection solution designed to address these stringent challenges. It is a professional-grade connector integrating high current-carrying capacity, IP67 or higher protection rating, and a rugged metal housing, suitable for various scenarios requiring stable power and signal transmission in harsh environments such as high humidity, dust, vibration and corrosion.

The 3v3 Ip67 D-sub Connector generally achieves an IP67 or higher protection rating, meaning the product can completely prevent the ingress of foreign objects (including dust) and continue to operate normally after being submerged in 1‑meter‑deep water for 30 minutes. Some models can be customized to IP68 for long‑term continuous immersion protection.

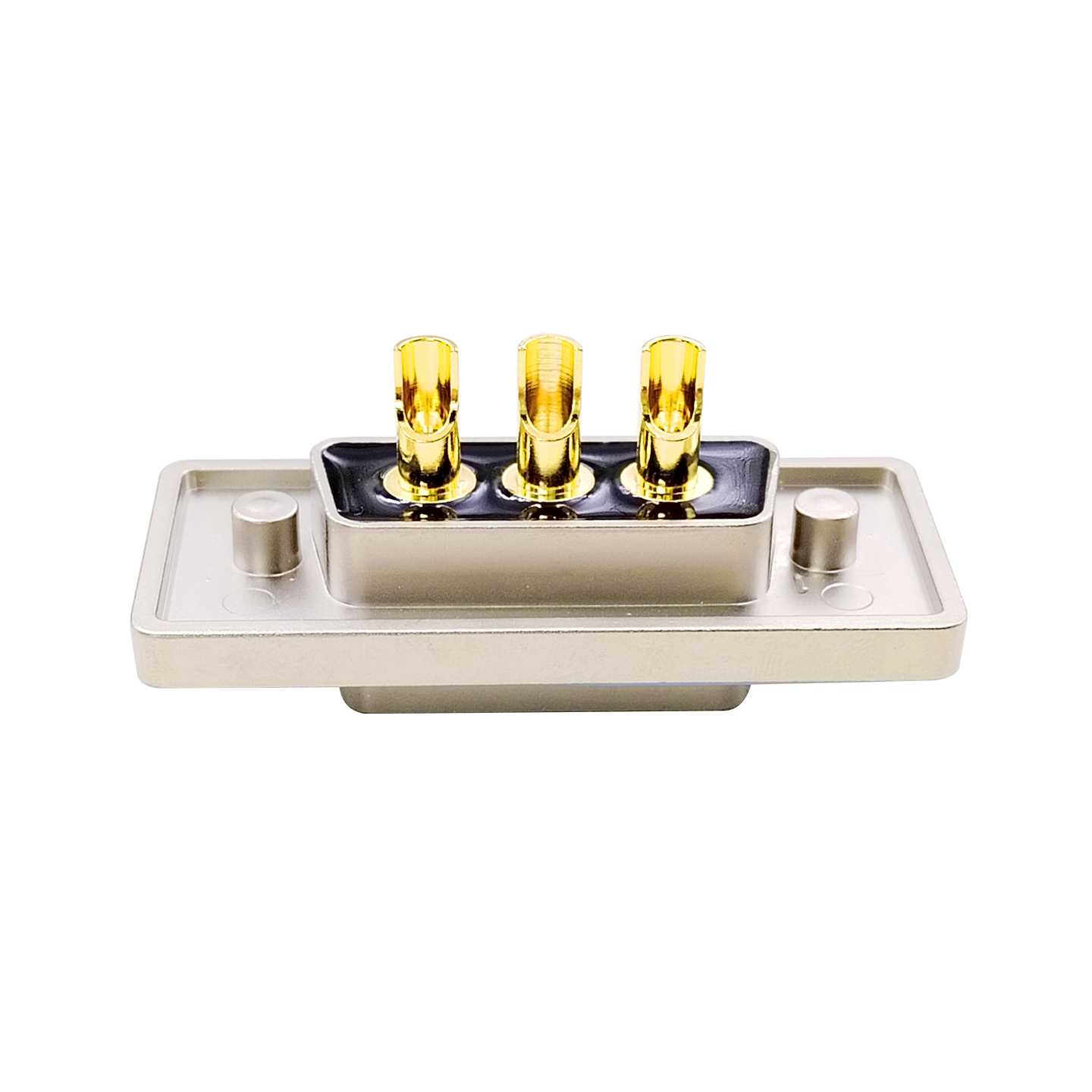

The Power D-sub Connector 3 pin is a typical code for the "3P+3V" hybrid configuration in connectors, usually referring to a composite layout design with 3 power/high-current contacts and 3 signal contacts. This "power + signal" simultaneous transmission architecture allows a single cable to complete both power delivery and signal monitoring at the same time, greatly simplifying the wiring complexity of outdoor equipment.3v3 Ip67 d sub Connector is PANDI’s primary product.

As one of the enduring classic specifications in the d dub connector family, the 3V3 layout is widely used in scenarios requiring both high‑power supply and data feedback – whether driving high‑power LED luminaires or connecting new energy storage equipment, the 3V3 provides sufficient interface capability in a compact form factor.

Selection Parameters & Key Considerations

Rated Current: Select according to the maximum load current of the equipment; it is recommended to reserve more than 20% margin. Multiple options from 10A to 40A are available.

Protection Rating: IP67 meets most outdoor scenarios; IP68 is suitable for long‑term immersion or extremely humid environments.

Mounting Style: Wire solder, 90° through‑hole, 180° through‑hole, crimp type and other connection methods are optional.

Housing Material: Stainless steel (best corrosion resistance), zinc alloy (balanced cost‑performance and shielding performance), brass (excellent conductivity).

Contact Plating: Gold plating (oxidation resistance, low contact resistance), silver plating (high conductivity), etc.

Operating Temperature: Generally ranges from -55℃ to 125℃.

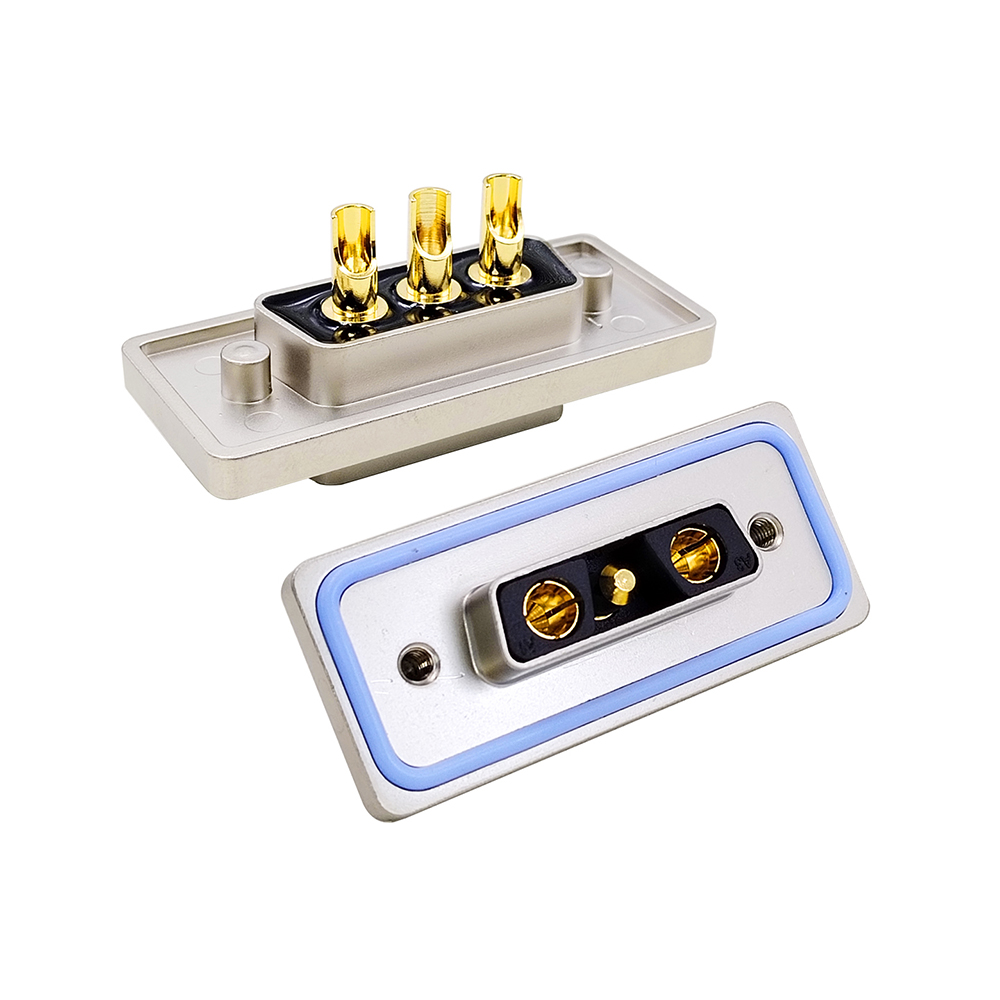

waterproof d connectors 3V3 IP67 Connector
