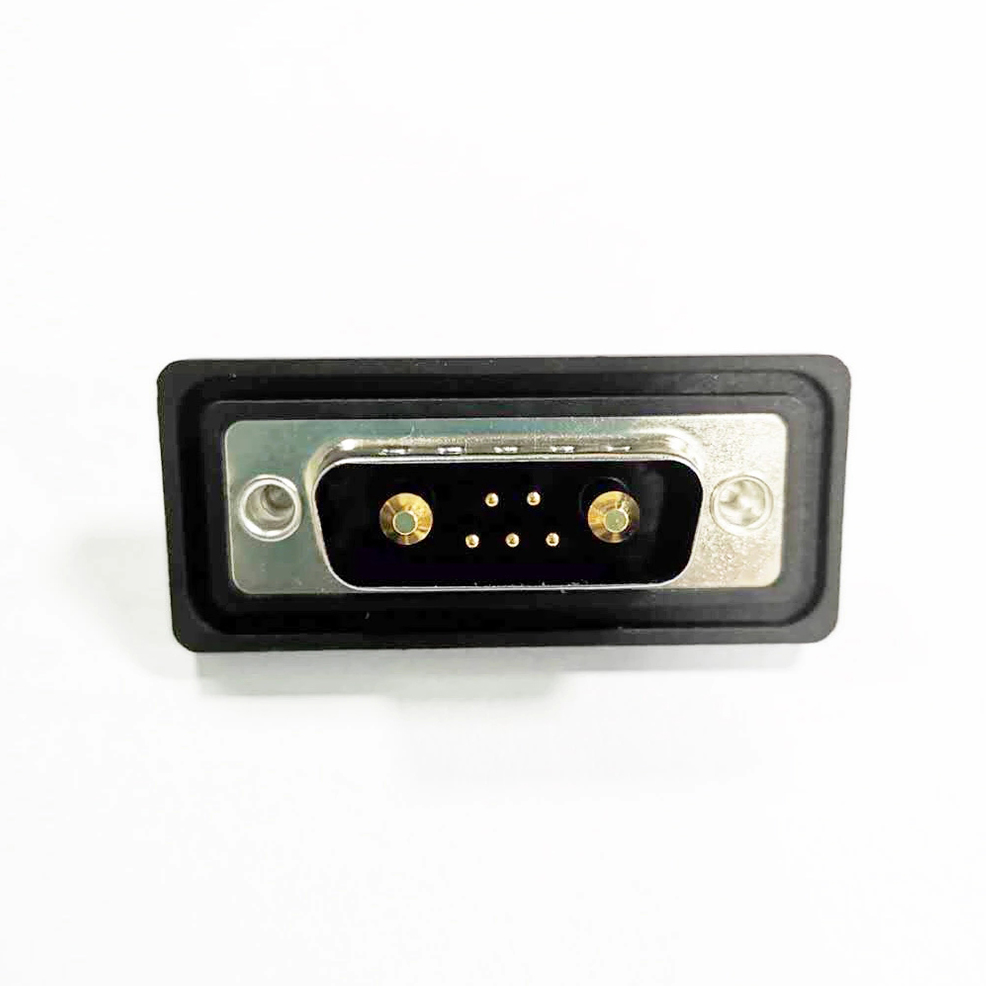

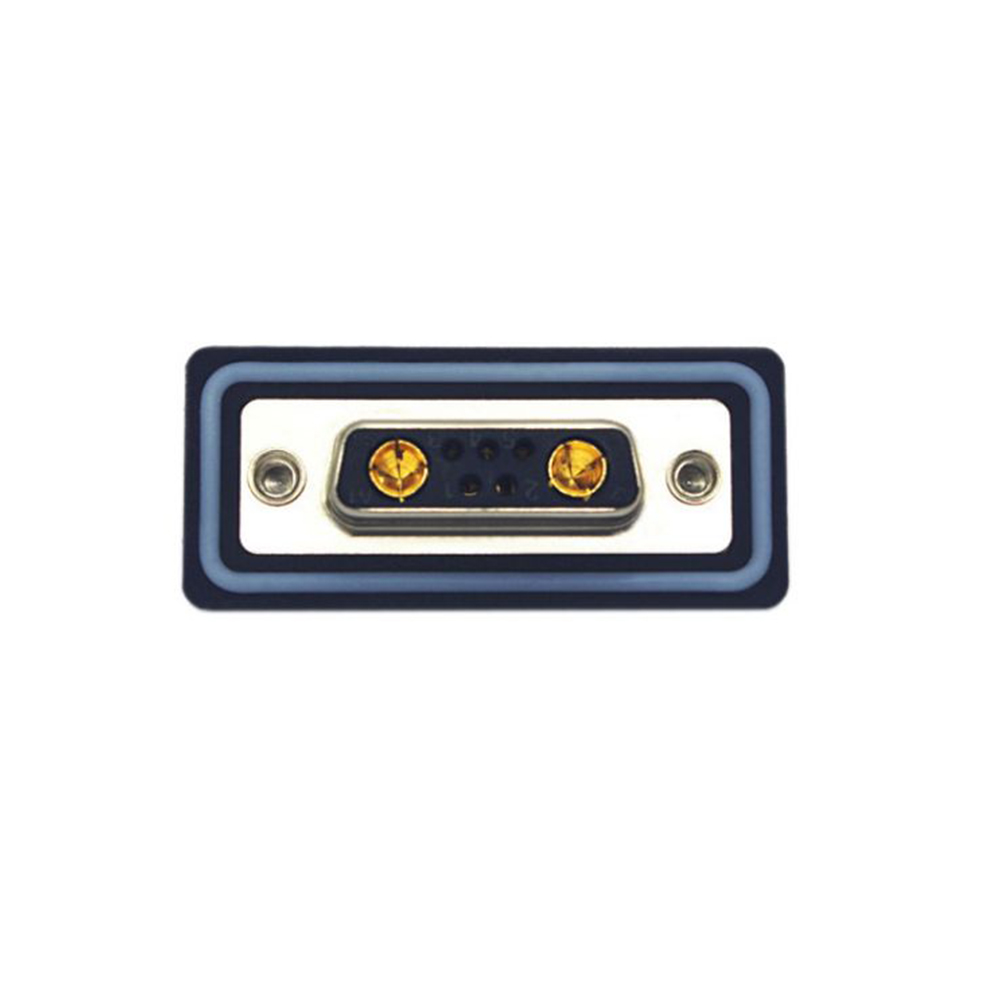

Meet the Right-Angle 7w2 D Sub Ip67 Connector: It bends so you don't have to.

Most connectors are straight.

Straforward.

And frankly? A little stiff.

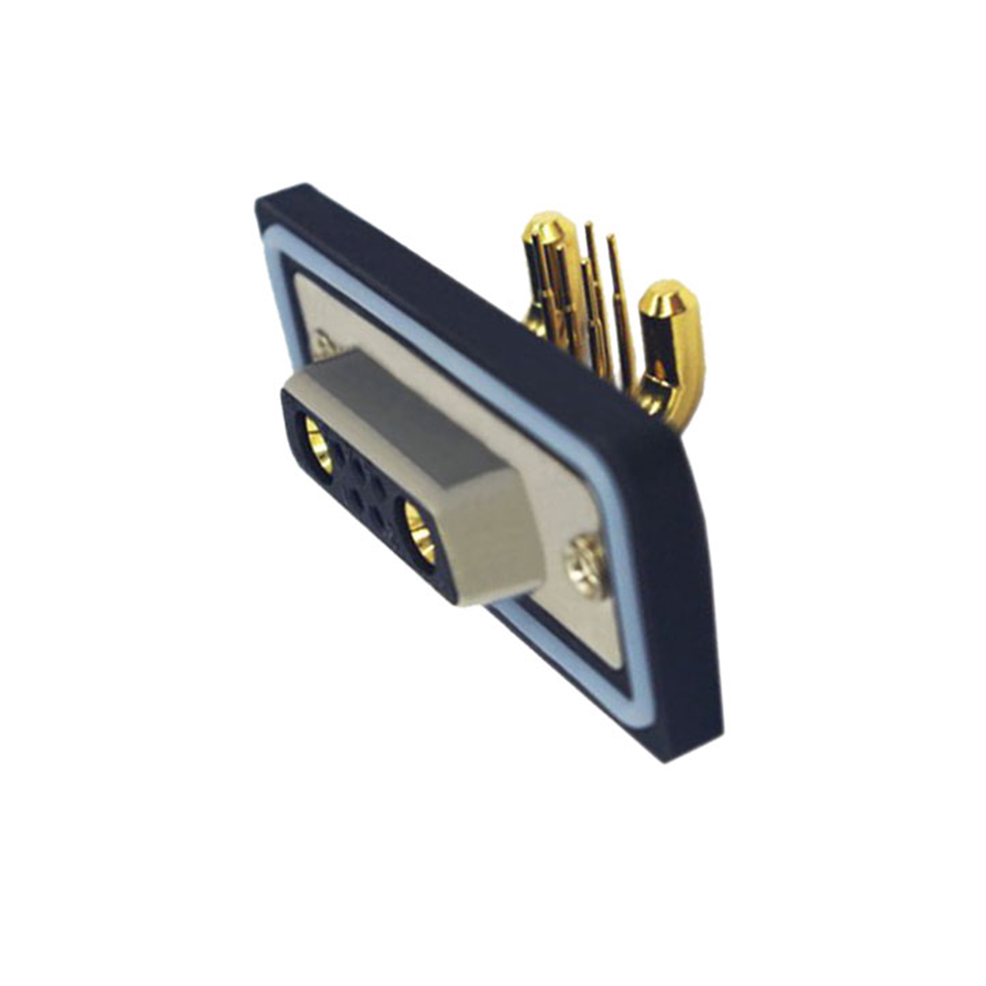

Then comes the 7W2 Right-Angle IP67 Waterproof Connector — the first connector that knows when to take a turn. Think of it as the yoga master of the D-sub world. Downward dog? No problem. Fits into tight spaces where straight connectors get bullied and pushed around? Absolutely.

Why go straight when you can go smart?

Space-saving 90° bend – Perfect for tight enclosures, shallow panels, or anywhere cable strain looks you right in the eye and says "I'm about to snap." Not today, strain.

IP67 waterproof – Rain, pressure wash, accidental drop in a bucket of grease-monkey iced tea? Bring it. This thing seals tighter than a jar your grandpa opened in 1998.

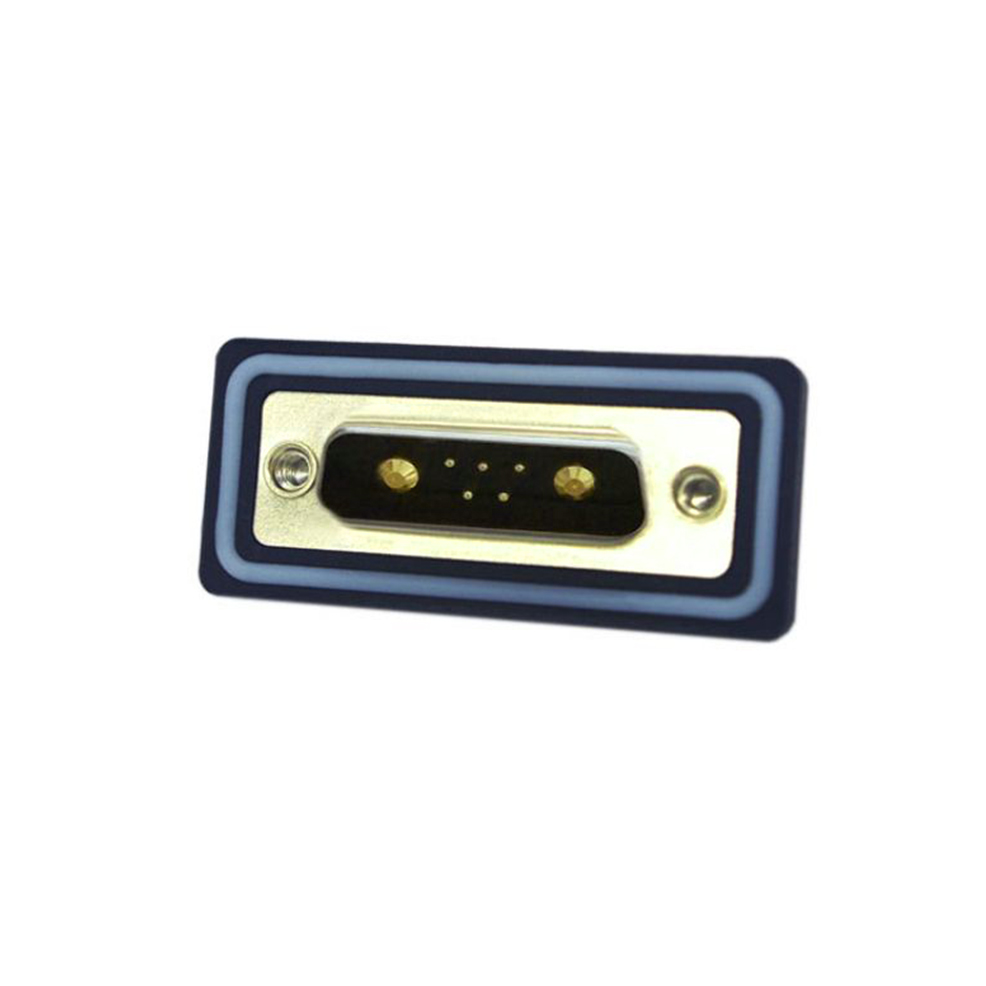

D Sub 7 Pin Ip67 Connector hybrid layout – Power and signal sharing the same connector. Like peanut butter and jelly, but rated for 300 volts.

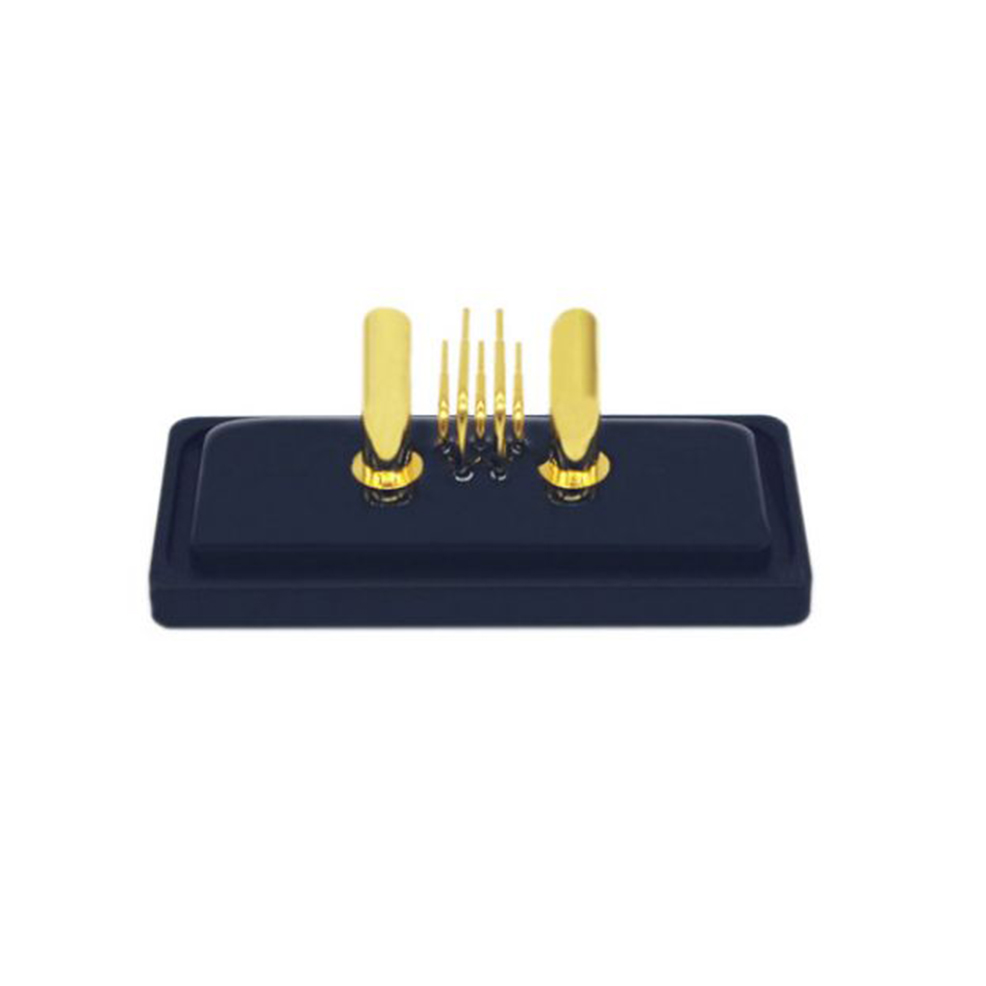

Where the7w2 Connector Female shines:

Industrial robots with zero patience for cable loops

Outdoor LED displays getting hosed by weather (or actual hoses)

Medical carts that get wiped down with enough chemicals to clean a crime scene

EV charging systems, because your battery deserves a bendy best friend.

Technical Specifications:

Parameter: Specification

Contact Layout : 7W2 (2 High-Current Coaxial/Power Contacts)

Protection Rating : IP67

Rated Current : 10A / 20A / 30A / 40A (Customizable)

Rated Voltage: 250V

Contact Resistance: ≤15mΩ

Insulation Resistance: ≥2000MΩ

Dielectric Withstand Voltage： 750V AC / 1min

Operating Temperature： -55°C ~ +105°C

Contact Material： Brass / Pure Copper, Gold Plated

Insulator Material： PBT + 30% Glass Fiber (UL94 V-0)

Shell Material： Aluminum Alloy / Cold Rolled Steel (Nickel Plated)

Mechanical Durability： ≥1000 Mating Cycles

Locking Mechanism： Threaded Locking (Jackscrews)
