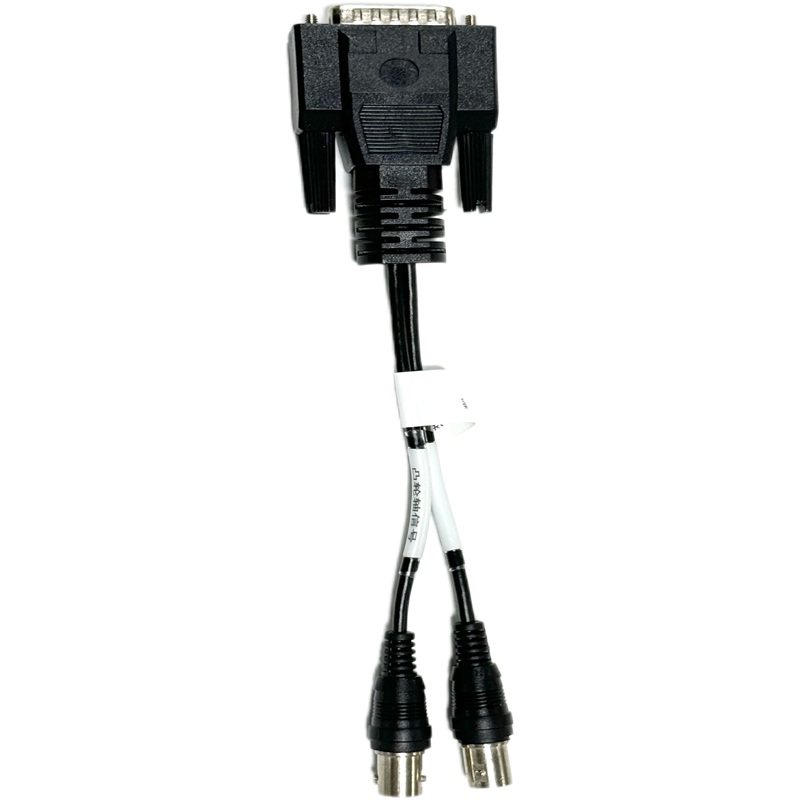

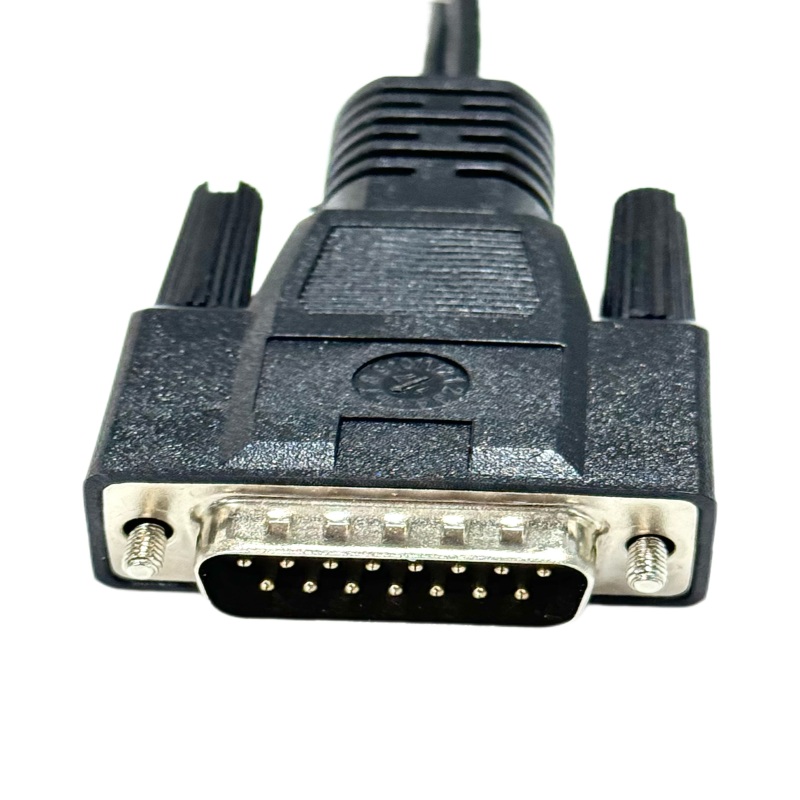

Custom D-sub 15P Male to Dual BNC Female Signal Cable

2 month ago

20 0 

2 year

Product details

Fubon Harness focuses on developing and producing professional wiring assemblies, catering to diverse connection demands across automotive testing and industrial measurement fields. We adhere to strict production standards to deliver stable and durable products for global clients.

This Custom D-sub 15P Male to Dual BNC Female Signal Cable is engineered for professional signal conversion and collection. Adopting full shielding structure, it effectively filters external electromagnetic interference and keeps signal transmission clear and undistorted. The sturdy overmolded housing also delivers excellent resistance to wear and vibration for long-term use in workshop environments.

This practical automotive diagnostic adapter acts as an efficient interface converter. It connects standard D-sub ports on testing instruments and splits signals to dual BNC interfaces, perfectly matching mainstream oscilloscopes and signal detection devices. It is widely used to acquire crankshaft and camshaft data during engine inspection.

Item	Description
Product Name	Custom D-sub 15P Male to Dual BNC Female Signal Cable
Type	Automotive & Industrial Diagnostic Signal Wiring Harness
Voltage	12V / 24V DC, Customized Available
Pins Material	Nickel-Plated Brass Terminals, Gold-Plating Optional
Plug Material	PA66+GF Industrial Grade Connector Housing with Black PVC Overmolding
Working Temperature	-40℃~+105℃ Or Customized
Length	200±20mm / Customized Length Available
Minimum Insulation Resistance	≥10MΩ
Maximum Conduction Resistance	≤2Ω
Withstand Voltage Test	DC 300V 10MS
Application Fields	Automotive engine sensor signal transmission, crankshaft and camshaft signal connection, diagnostic equipment interface conversion, industrial test and measurement system wiring, automotive ECU communication and waveform analysis, vehicle maintenance and calibration
Specific Shipping Cost	Please Contact Us

Built for professional testing scenarios, this car diagnostic cable features compact size and easy installation. It helps technicians streamline testing steps and improve work efficiency, becoming a practical helper for vehicle fault detection and performance debugging.

As one of our dedicated diagnostic harnesses, it supports personalized customization on cable length and wiring definition. We can adjust the product according to your equipment parameters to realize seamless matching with your testing systems.

Many professional auto repair shops and testing institutions have chosen this product. It consistently maintains excellent signal performance during long-hour testing and has won wide recognition from users.
