Fubon Harness is a professional manufacturer concentrating on automotive wiring assemblies for passenger cars and modified vehicle markets. We own complete production lines for cable extrusion, connector molding and precision terminal processing, capable of meeting varied circuit connection requirements for auto repair, interior refit and onboard electronic equipment across global markets.

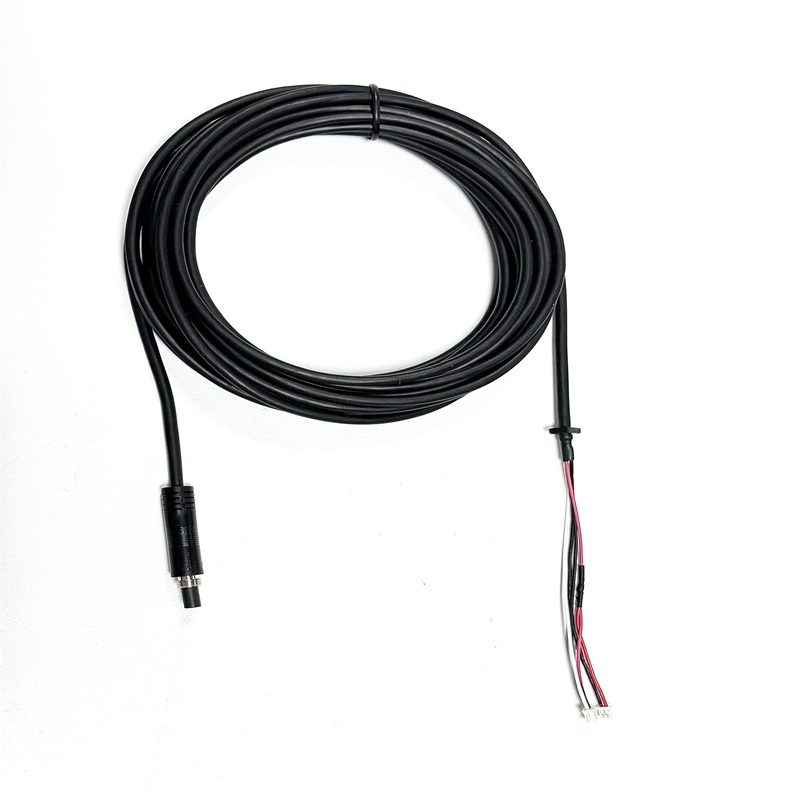

This Custom BMW 4Pin Splitter Power Signal Wiring Harness is engineered for long-distance interior circuit layout of BMW models. It uses thickened 60A TPE cable as outer sheath, with excellent anti-abrasion, oil-proof and anti-aging properties, adapting to the complex vibration environment inside car cabins all year round. Every production link from heat shrink wrapping to terminal crimping follows strict RoHS and automotive electrical standards, and each finished product undergoes 100% continuity and withstand voltage testing to rule out short-circuit or disconnection faults.

Item	Description
Product Name	Custom BMW 4Pin Splitter Power Signal Wiring Harness
Type	Automotive Power & Signal Transmission Wiring Harness
Voltage	12V / 24V DC, Customized Available
Pins Material	Tin-Plated Brass Terminals, Gold-Plating Optional
Plug Material	PA66+GF Automotive Grade Connector Housing with TPE Overmolding
Working Temperature	-40℃~+105℃ Or Customized
Length	5000±30mm / Customized Length Available
Minimum Insulation Resistance	≥10MΩ
Maximum Conduction Resistance	≤2Ω
Withstand Voltage Test	DC 300V 10MS
Application Fields	BMW vehicle on-board electronic device connection, automotive power and signal transmission, vehicle interior electronics wiring, automotive modification and custom wiring projects, OEM replacement wiring harness, vehicle sensor and control module connection
Specific Shipping Cost	Please Contact Us

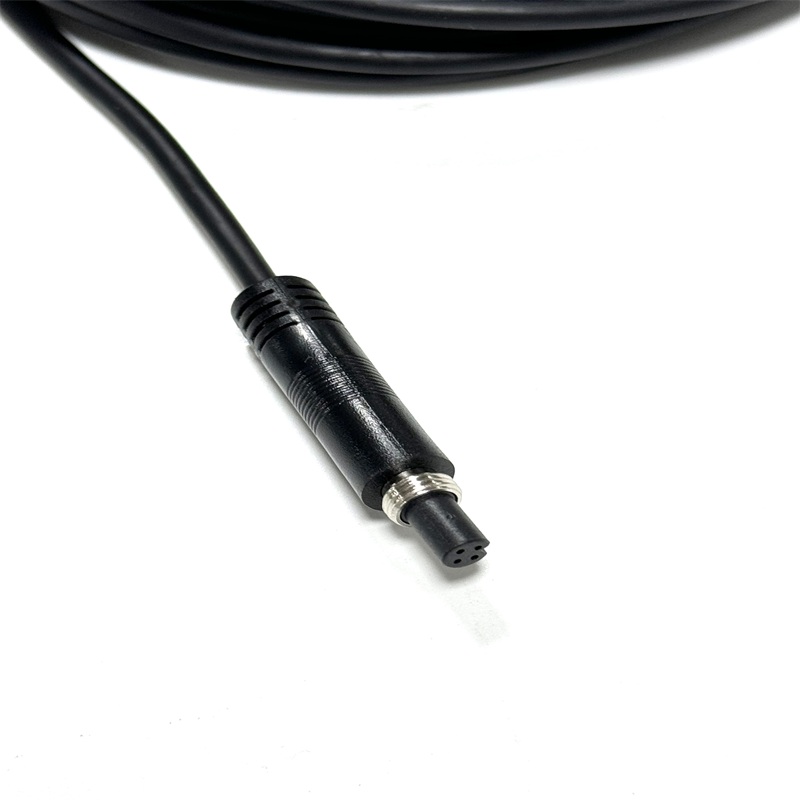

The input terminal of this harness adopts a durable automotive circular connectors cable with built-in orange waterproof sealing ring. The tight overmolding structure effectively locks the wire and connector together, preventing the wire core from falling off during repeated bending or vehicle bumping. The standard overall length reaches 5000±30mm, leaving abundant space for hidden wiring inside dashboards, seats and car door panels.

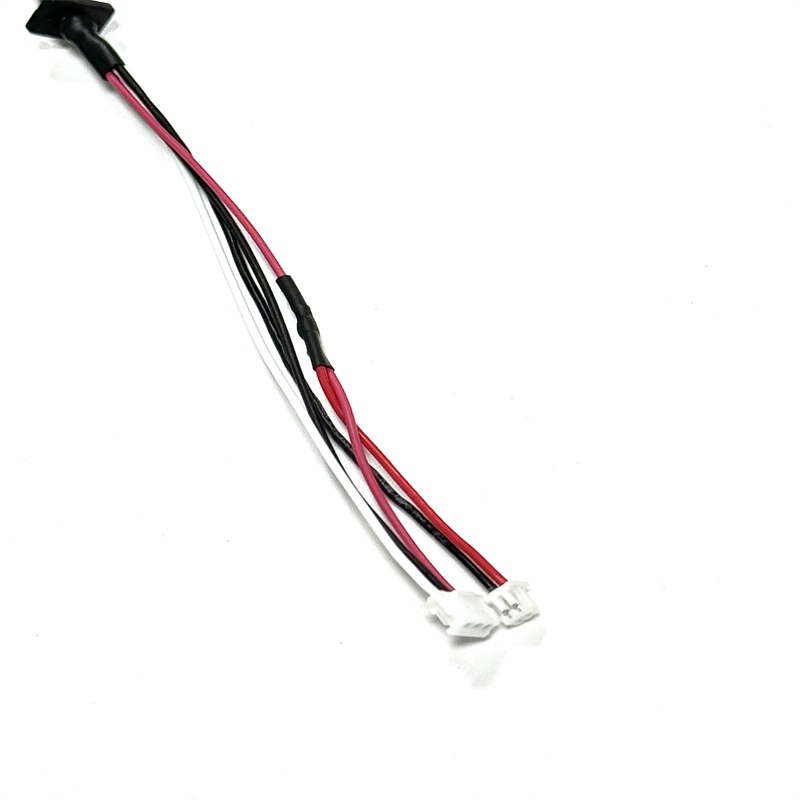

This long-distance split assembly belongs to our mature range of car wiring cables, integrating power supply and signal transmission in one single cable set. It can connect vehicle sensors, central control hosts and aftermarket auxiliary devices stably, delivering consistent signal output without distortion or attenuation. The internal multi-strand tinned copper wire ensures ultra-low conduction resistance while maintaining flexible bending performance for narrow installation spaces.

For clients with unique layout demands, such as adjusted cable length, different terminal pin definitions or customized outer sheath colors, our technical team can develop exclusive customized car wiring harness according to your drawings and test parameters. A large number of auto modification stores and auto parts suppliers have selected this harness for batch matching, and we also support small-batch sample customization for project verification.
