DB15 to BNC CAN Signal Test Cable for Automotive Diagnostic Equipment
2 month ago
Product details
Fubon Harness specializes in the R&D and manufacturing of precision signal transmission wiring assemblies targeting automotive testing and industrial measurement sectors. Supported by full-process production facilities including precision crimping, injection molding and automated electrical testing stations, we deliver stable, RoHS-compliant wiring solutions that fit diverse vehicle repair, ECU debugging and laboratory testing demands for global buyers.

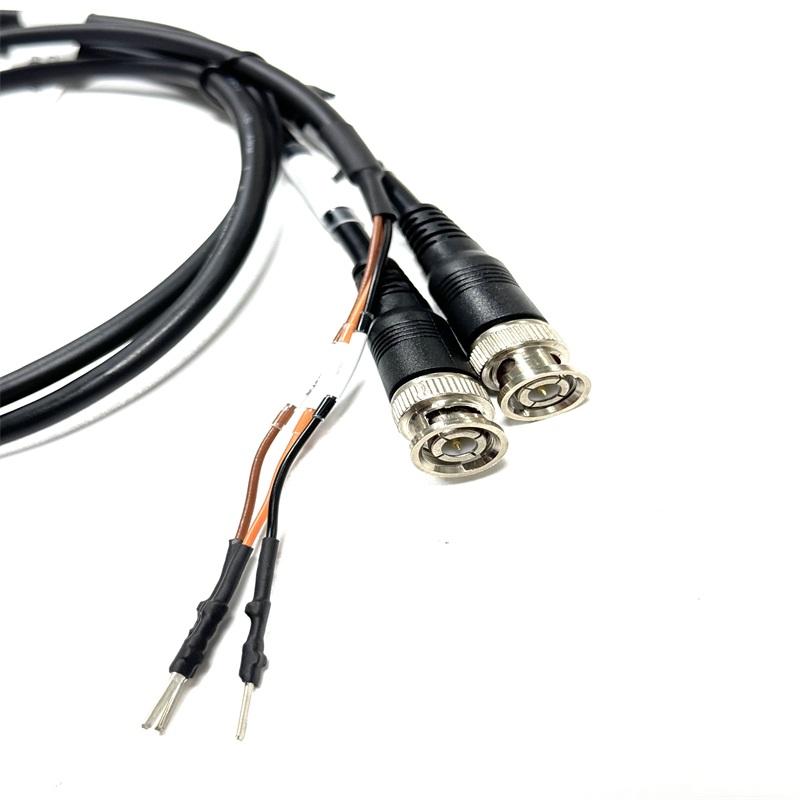

Our DB15 to BNC CAN Signal Test Cable for Automotive Diagnostic Equipment is tailor-made for CAN bus data capture and waveform analysis. It adopts double shielded coaxial wire matched with durable PVC outer jacket, delivering outstanding anti-interference performance to guarantee intact signal transmission in complex electromagnetic workshop environments. Every solder joint of the dual BNC connectors undergoes tension inspection after welding, and integrated overmolding firmly combines wire and plugs to avoid loosening during frequent plug-and-test operations. The overall length of 1100±20mm provides enough layout space for bench testing, while clear printed labels on each branch help technicians quickly distinguish CAN-H, CAN-L and ground circuits.
| Item | Description |
| Product Name | DB15 to BNC CAN Signal Test Cable for Automotive Diagnostic Equipment |
| Type | Automotive & Industrial CAN Signal Diagnostic Wiring Harness |
| Voltage | 12V / 24V DC, Customized Available |
| Pins Material | Nickel-Plated Brass Terminals, Gold-Plating Optional |
| Plug Material | PA66+GF Industrial Grade Connector Housing with Black PVC Overmolding |
| Working Temperature | -40℃~+105℃ Or Customized |
| Length | 1100±20mm / Customized Length Available |
| Minimum Insulation Resistance | ≥10MΩ |
| Maximum Conduction Resistance | ≤2Ω |
| Withstand Voltage Test | DC 300V 10MS |
| Application Fields | Automotive CAN bus signal analysis, engine crankshaft & camshaft signal acquisition, vehicle ECU communication and waveform monitoring, automotive diagnostic equipment interface conversion, industrial test and measurement system wiring, vehicle maintenance and calibration, custom automotive signal transmission projects |
| Specific Shipping Cost | Please Contact Us |

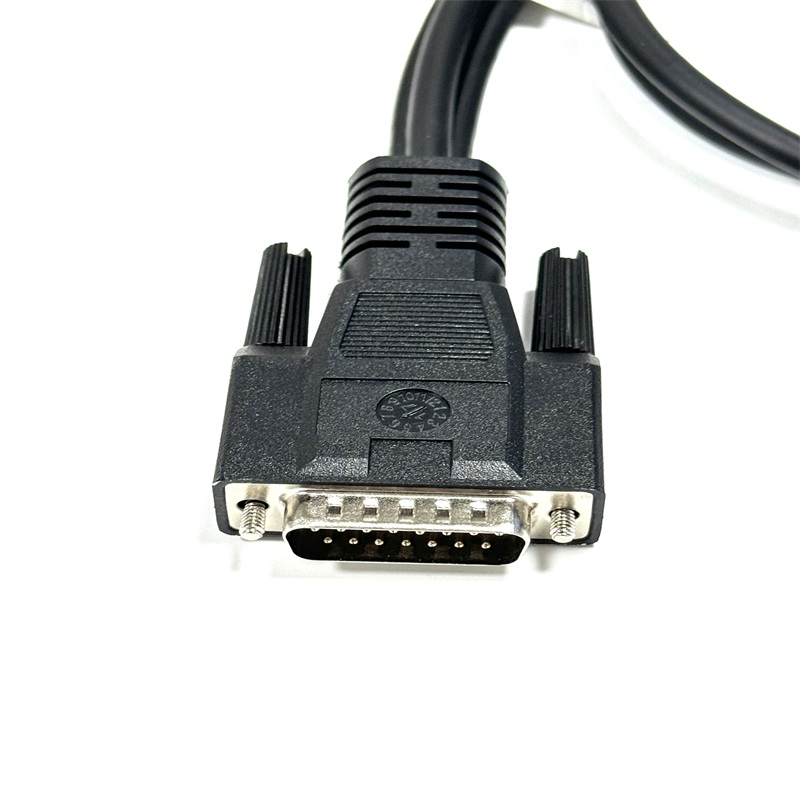

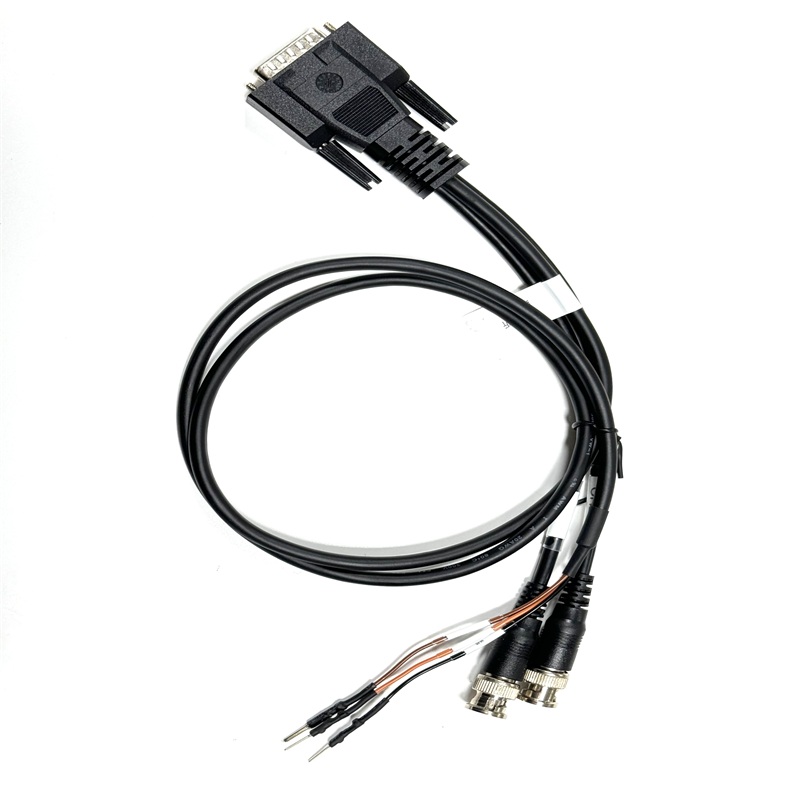

As a professional automotive diagnostic adapter, this assembly integrates a DB15 male port, two BNC male connectors and bare pin terminals in one single cable. It realizes seamless signal transfer between diagnostic host equipment and vehicle on-board CAN systems, supporting real-time monitoring of ECU communication signals, sensor data and engine operating waveforms. Strict quality control is implemented throughout production; each finished piece passes DC 300V withstand voltage, insulation resistance and continuity testing to eliminate hidden risks such as open circuits or signal attenuation.
Compared with ordinary short connecting wires, this robust solution stands out among various automotive diagnostic cables thanks to its multi-branch split design. It can simultaneously output multiple groups of analog signals to oscilloscopes and analysis devices, greatly simplifying the wiring layout during vehicle fault diagnosis and performance calibration. The wide working temperature range of -40℃ to 105℃ allows consistent use in cold outdoor repair sites and high-temperature indoor test benches.
If you require adjustments to cable length, pin assignment or connector types to match your testing instruments, our engineering team can customize exclusive diagnostic harness according to your technical drawings. It has been widely adopted by auto repair workshops, automotive electronic R&D laboratories and vehicle inspection institutions, and we also support small-batch sample orders for project verification and performance testing.
