75mm Short MOLEX Connector Automotive Wiring Harness Service Kit Adapter
2 month ago
Product details
Shenzhen Fubang Wiring Harness Co., Ltd. is a professional manufacturer focusing on tailor-made wiring solutions for automotive electronics, testing instruments and indoor low-voltage control modules. We have rich experience in developing all kinds of connection assemblies and can provide complete custom cable assembly kit solutions based on clients’ specific equipment structure, pin definition and space layout demands. Our technical team supports early sample proofing, parameter optimization and mass stable delivery, serving vehicle electronic manufacturers, diagnostic equipment brands and engineering research labs all over the world. Whether clients need short miniature jumpers or long multi-branch wiring assemblies, we can design matched custom wiring harness to solve different signal transmission and power connection troubles.

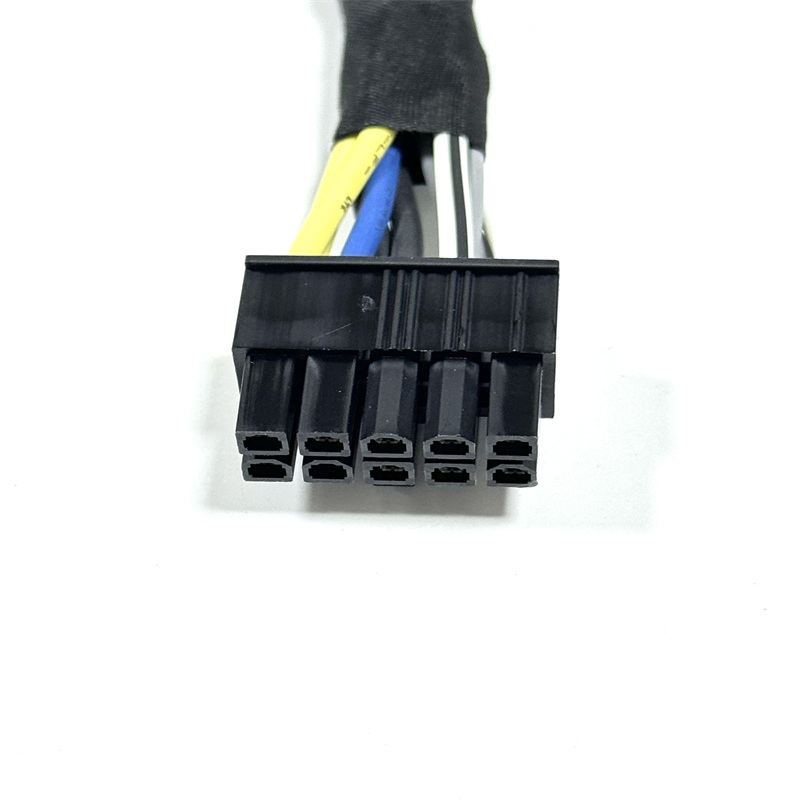

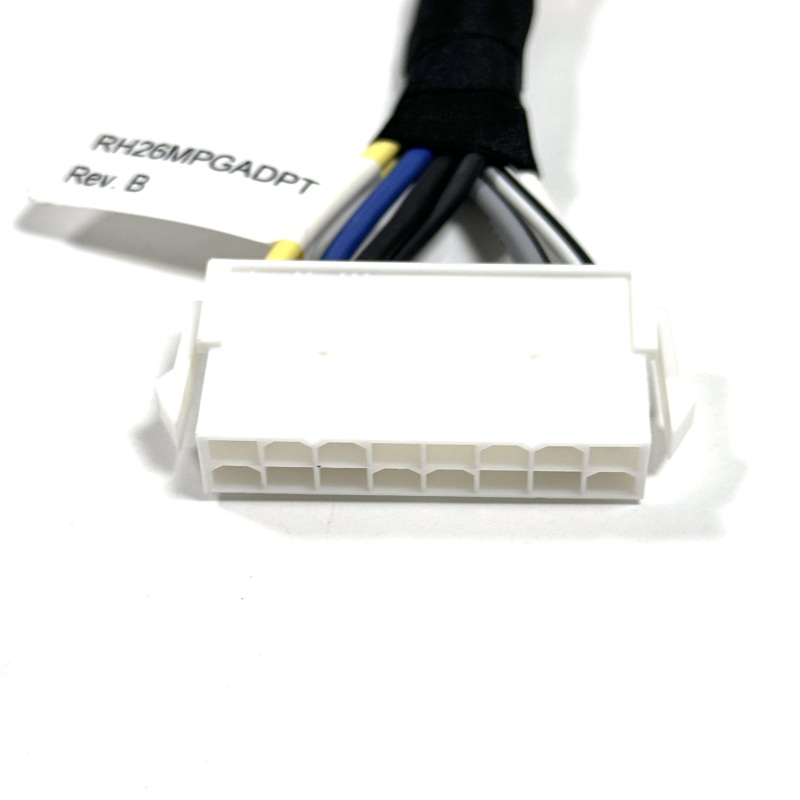

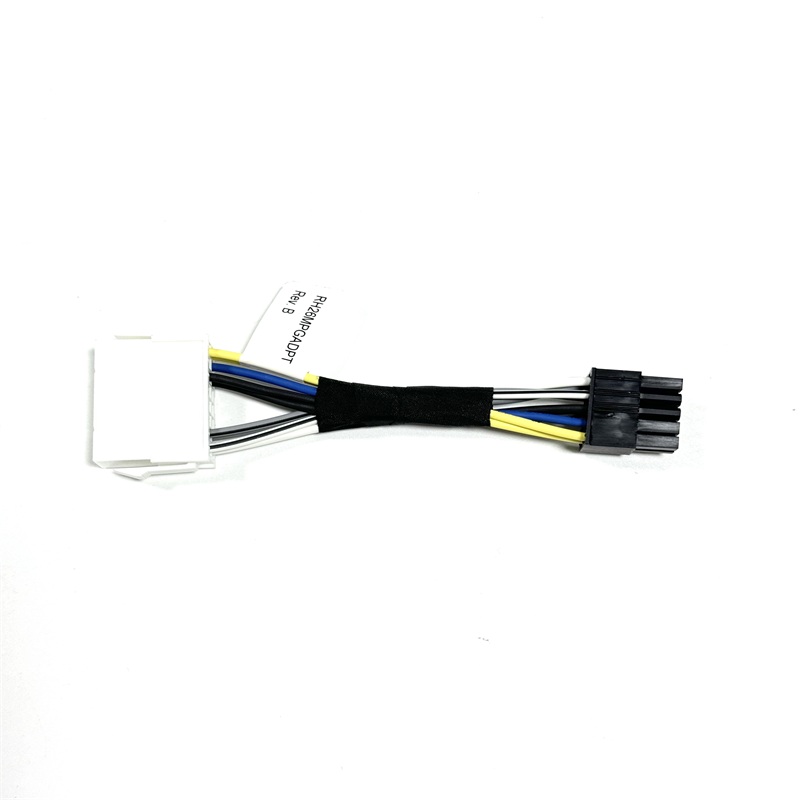

This 75mm short MOLEX connector adapter is a compact internal connecting assembly specially developed for small-space automotive electronic equipment. Different from long-distance extension wires or multi-way split harnesses, this jumper adopts MOLEX original 4.2mm pitch 16Pin female to 10Pin male connectors, with color-distinguished 18AWG signal wires for easy identification during equipment assembly. The middle wire section is tightly wrapped with PET cloth adhesive tape, which effectively restrains wire scattering, improves anti-abrasion performance and avoids short circuits caused by friction inside narrow equipment casings. The whole assembly only takes up a tiny installation space, perfectly fitting the compact structural design of vehicle control modules and portable diagnostic devices.
| Item | Description |
| Product Name | 75mm Short MOLEX Connector Automotive Wiring Harness Service Kit Adapter |
| Type | Automotive MOLEX Connector Pin-to-Pin Signal Wiring Harness |
| Voltage | DC 500V, Customized Available |
| Pins Material | Nickel-Plated Brass MOLEX Original Terminals, Gold-Plating Optional |
| Plug Material | PA66+GF Automotive Grade MOLEX Connector Housing, PET Cloth Tape Wrapped Protection |
| Working Temperature | -40℃~+105℃ Or Customized |
| Length | 75±10mm / Customized Length Available |
| Minimum Insulation Resistance | ≥10MΩ |
| Maximum Conduction Resistance | ≤3Ω |
| Withstand Voltage Test | DC 300V 10MS |
| Application Fields | Sservice kit assembly, automotive electronic equipment internal wiring, MOLEX connector conversion harness, automotive diagnostic tool internal connection, vehicle on-board module signal transmission, automotive electronic R&D bench testing, custom MOLEX pin-to-pin wiring harness, DIY electronic projects |
| Specific Shipping Cost | Please Contact Us |
In the production phase, this short adapter strictly follows the standardized manufacturing flow of custom cable assembly kit. All wires are cut to a fixed total length of 75mm with precise tolerance; terminals are crimped with uniform pressure to guarantee stable contact, and each finished unit passes DC 500V withstand voltage test, continuity inspection, insulation resistance test and conduction resistance screening. The matched MOLEX plastic housings feature locking structures to prevent loose disconnection during equipment vibration or disassembly maintenance. A waterproof and oil-proof identification label is attached on the wire bundle to facilitate batch inspection and after-sales troubleshooting for equipment factories.
This mini MOLEX jumper is widely used as internal transition wiring for on-board control modules, portable vehicle diagnostic devices, automotive electronic bench test equipment and small industrial sensing modules. We offer flexible personalized adjustments for this standard model, including adjusting overall length, switching connector pin counts and changing wrapping materials. As one of our mature small-size assembly products, it fully demonstrates our capacity to design mini-specification custom wiring harness for limited installation space. Apart from automotive electronic equipment, this compact adapter can also be integrated into industrial testing instruments and household intelligent control hardware, providing reliable pin-to-pin signal transmission for various small electronic assembly projects.
