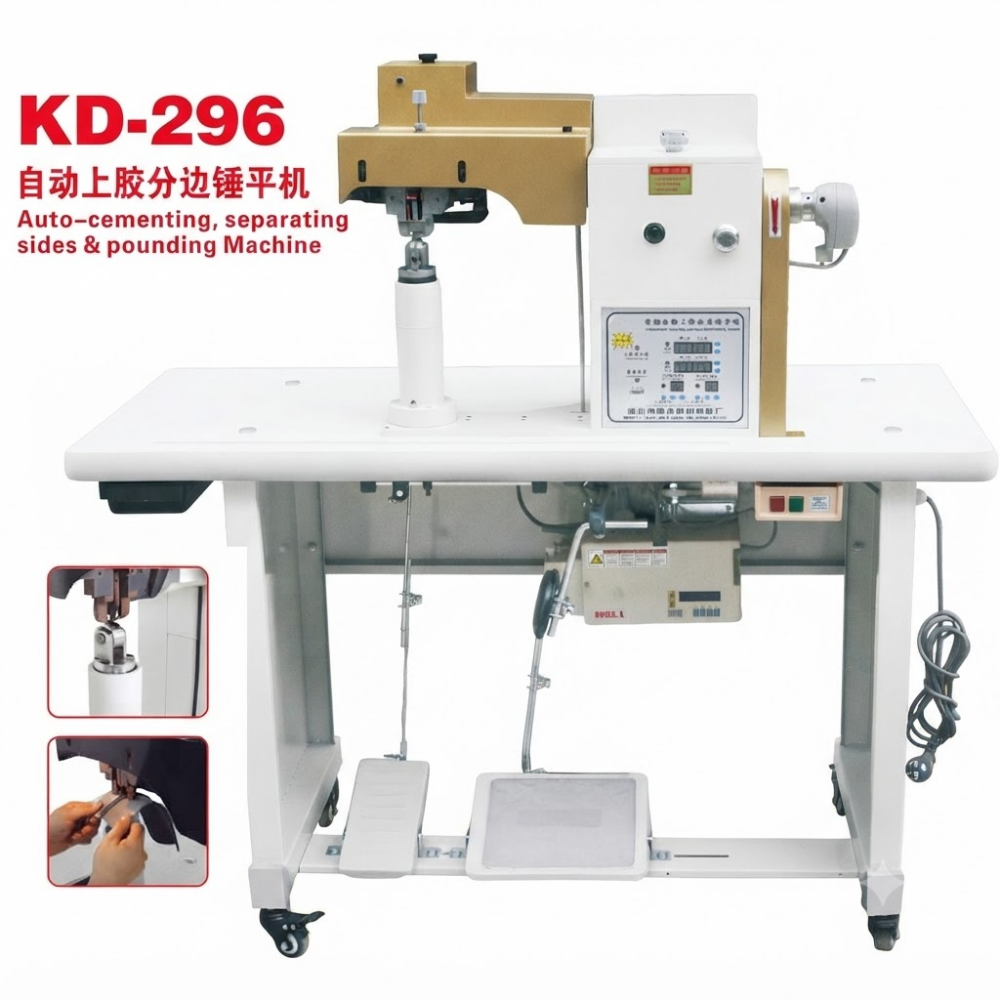

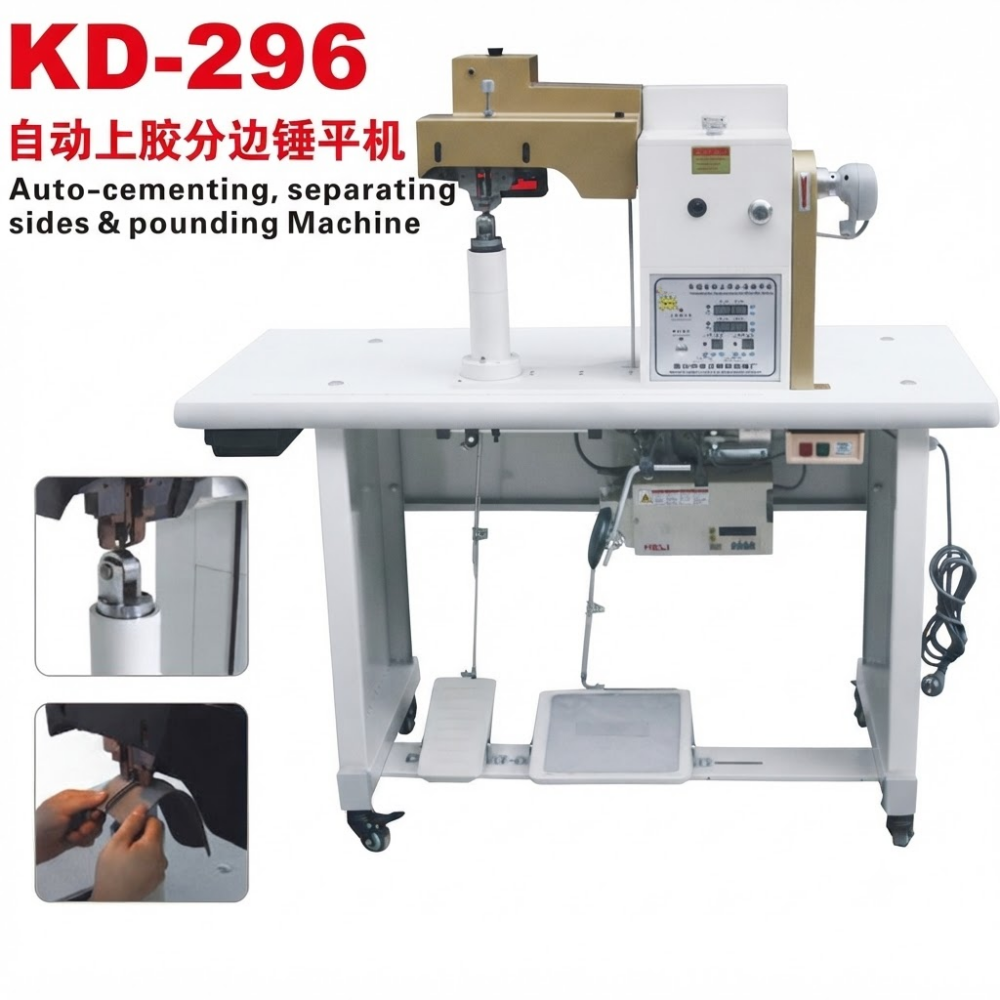

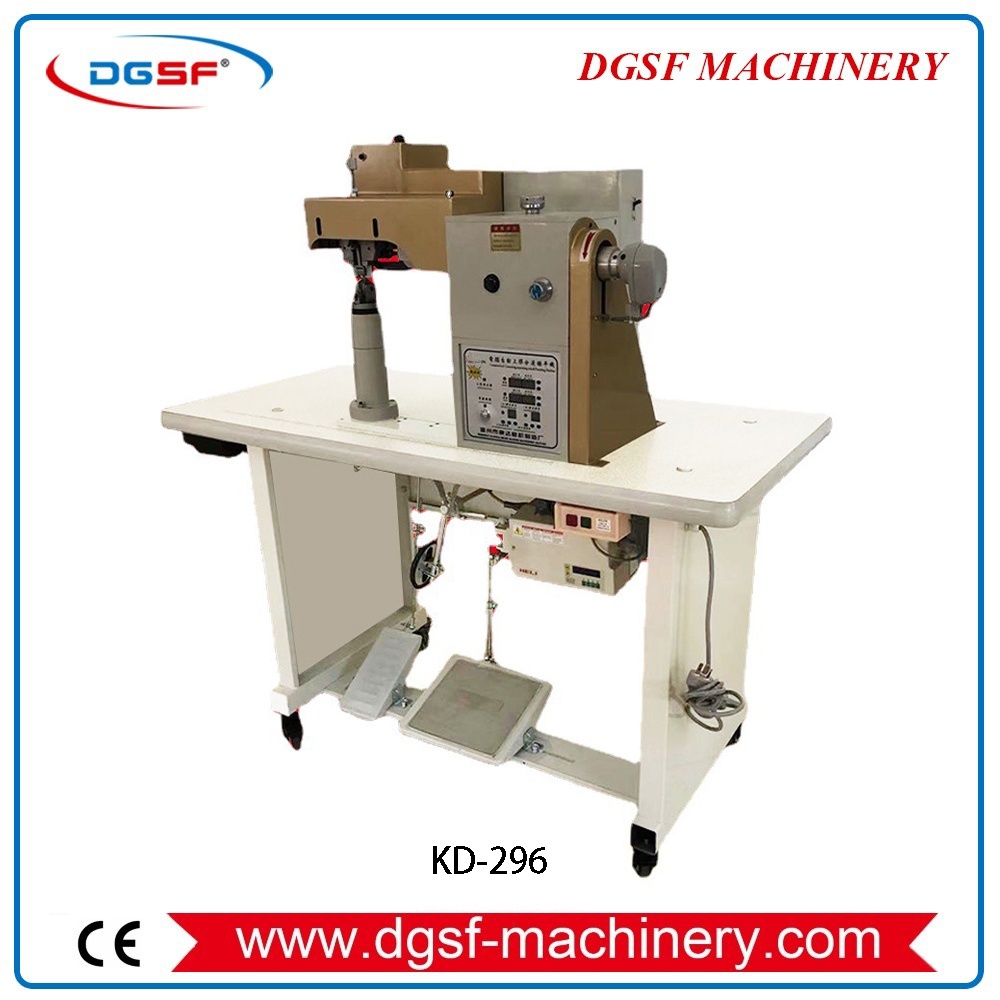

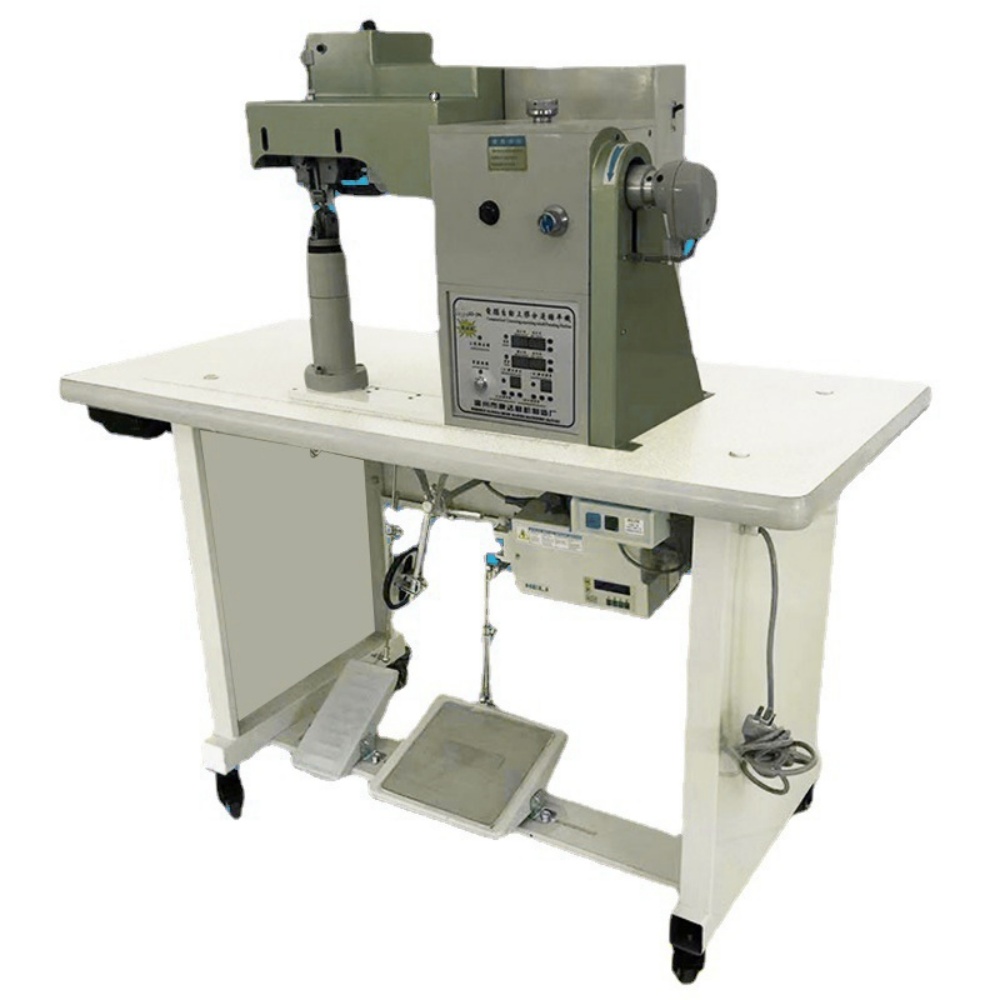

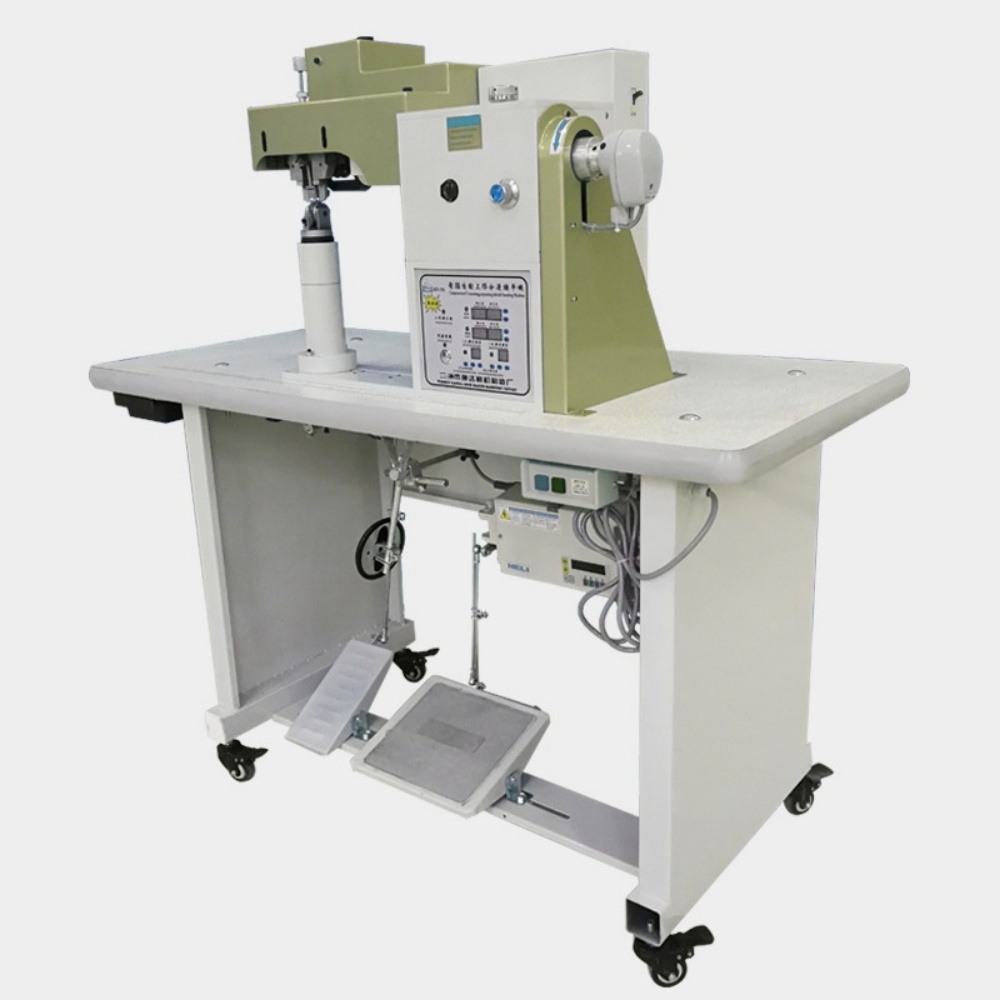

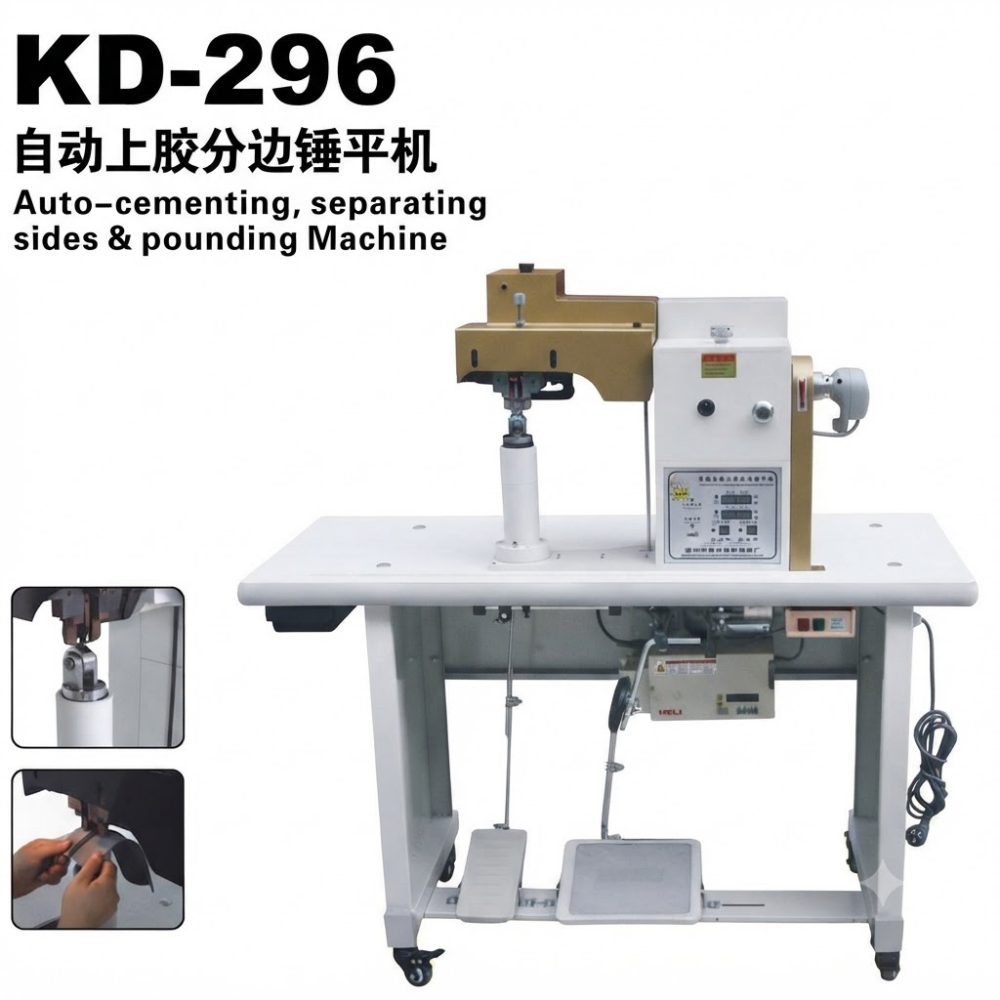

KD-296 Auto-cementing,separating sides £ing Machine (1)

Use:

This machine is suitable for the automatic edge splitting, gluing, and flattening of seams on various leather products such as shoe uppers, bags, and mobile phone cases, using materials such as PVC, PU, natural leather, artificial leather, and fabric. Using this machine improves work efficiency, reduces the number of processes, and prevents damage to the materials.

Features:

1. This machine is an improved version that integrates the functions of an automatic electronic gluing machine, folding machine, and massaging machine.  Leather is automatically reversed, edged, glued, and flattened in one pass; improving work efficiency and reducing processing steps. One machine is equivalent to the work of ten people, and the edging and gluing are uniform without damaging the material.

2. This machine uses hot-melt adhesive, saving the time required for applying white glue, yellow glue, etc., and is environmentally friendly.

3. The hot-melt adhesive temperature and glue flow rate are electronically adjustable for easy adjustment; glue output is automatically controlled by a photosensitive resistor, ensuring stable and accurate glue output; speed is adjustable.

4. This machine is suitable for different types of work, easy to adjust, and easy for employees to operate.

5. It uses a servo motor, ensuring stable performance and a low failure rate.

Technical Parameters:

Equipment Model:  KD-296

VOLTAGE:  220V 50-60HZ

MOTOR POWER: 0.55KW

TOTAL POWER:  ≈1.6(KW)

DIMENSIONS(L*W*H):  1200×550×1240(mm)

NET WEIGHT: 109(KG)
