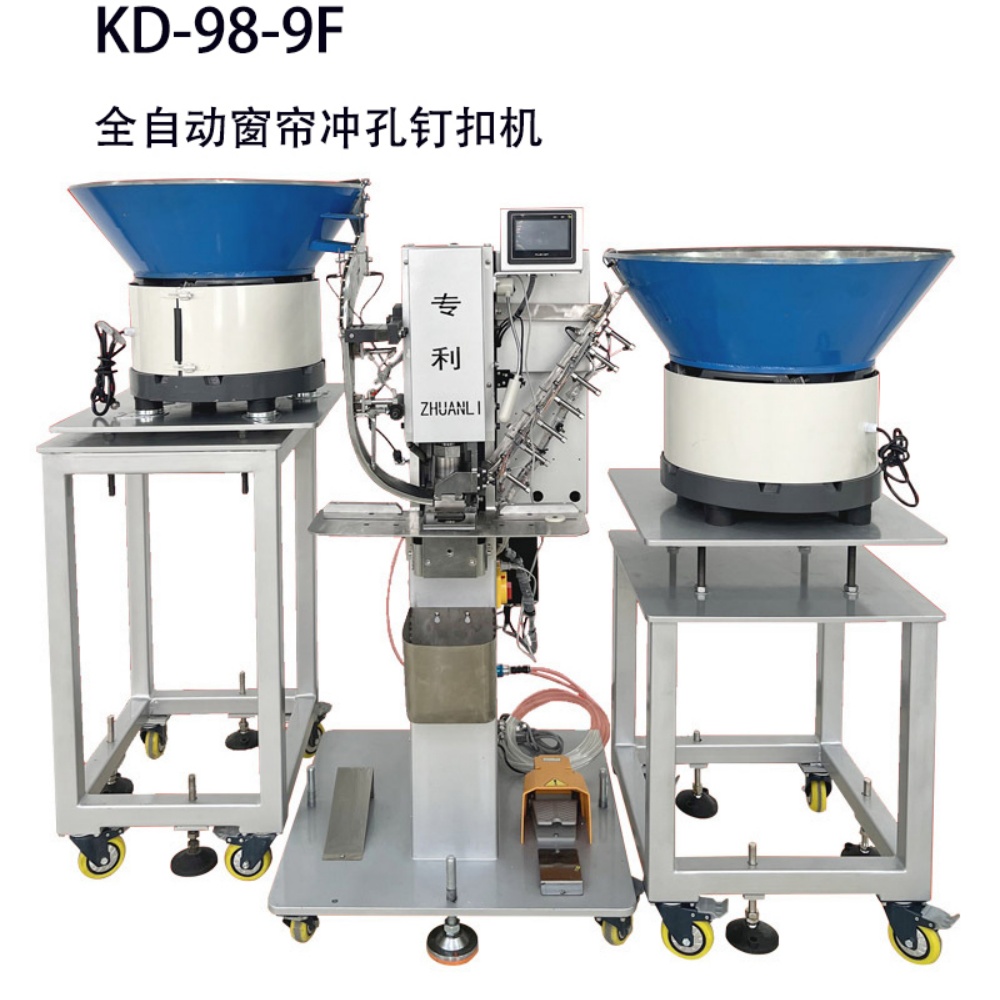

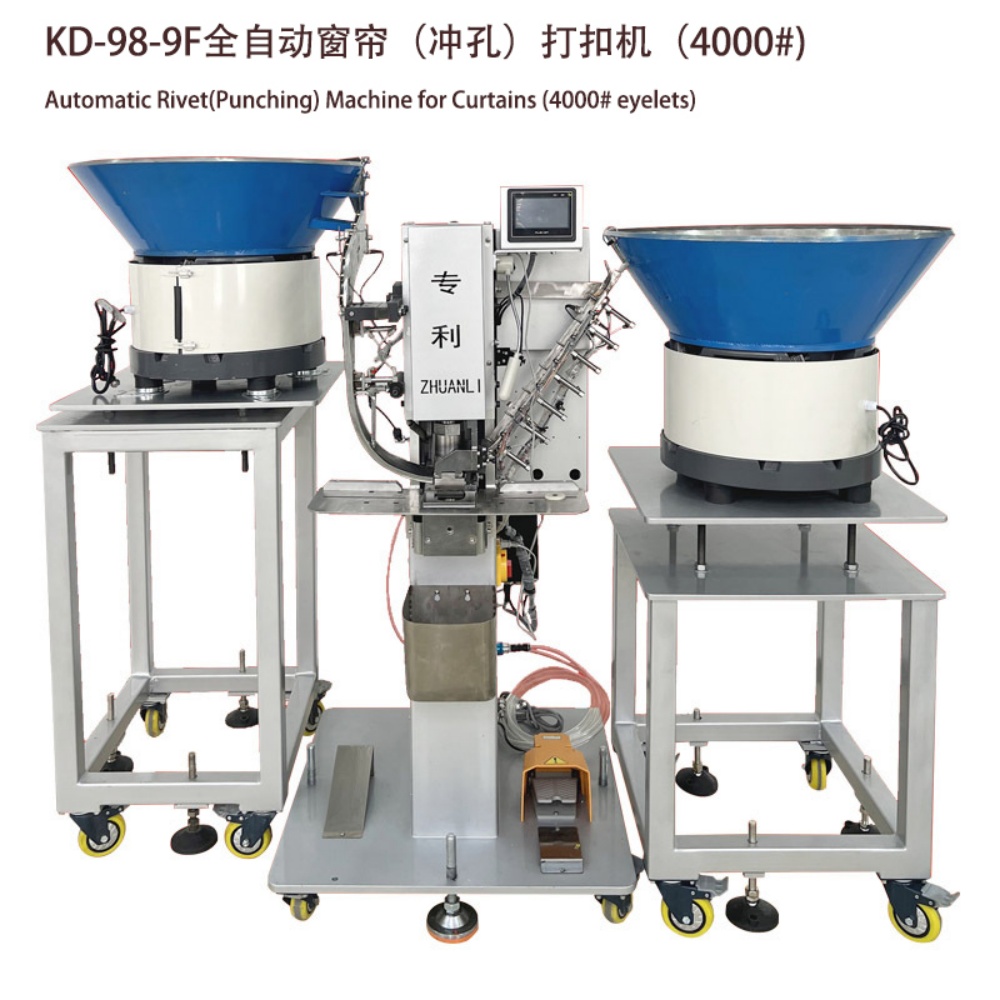

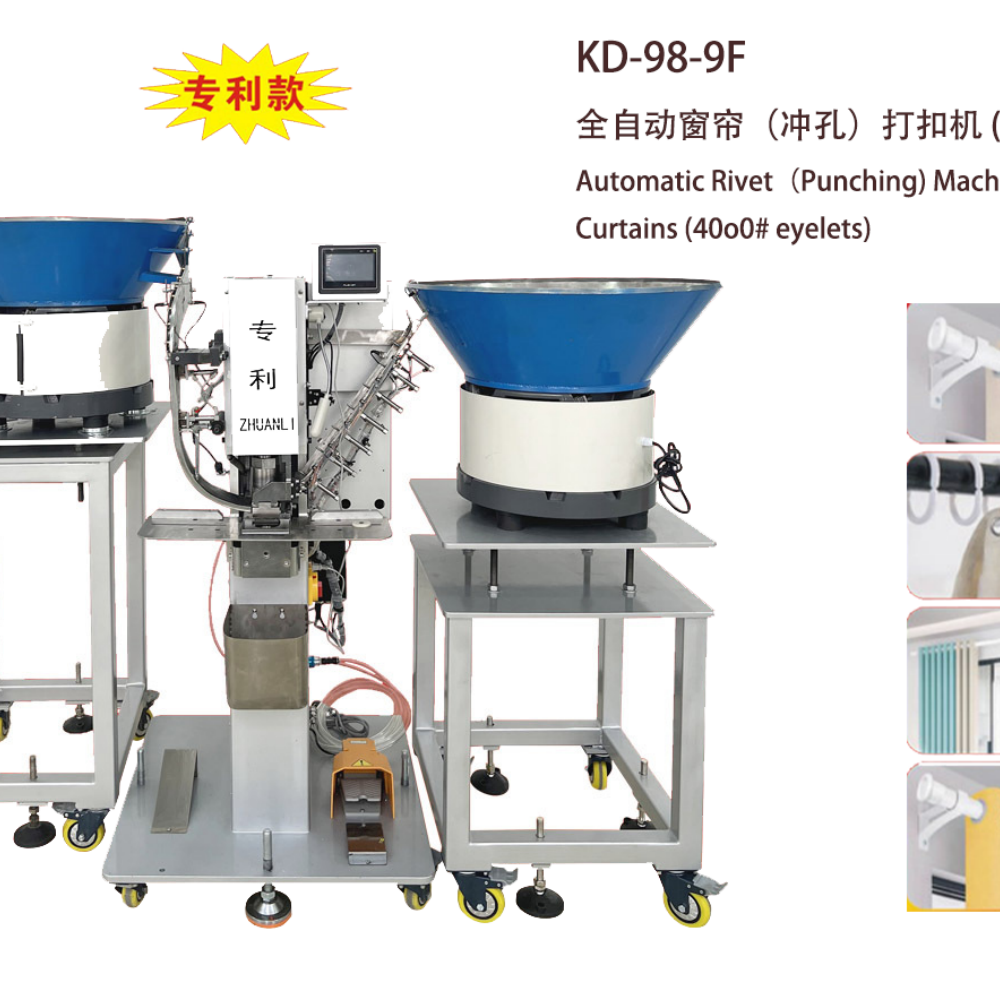

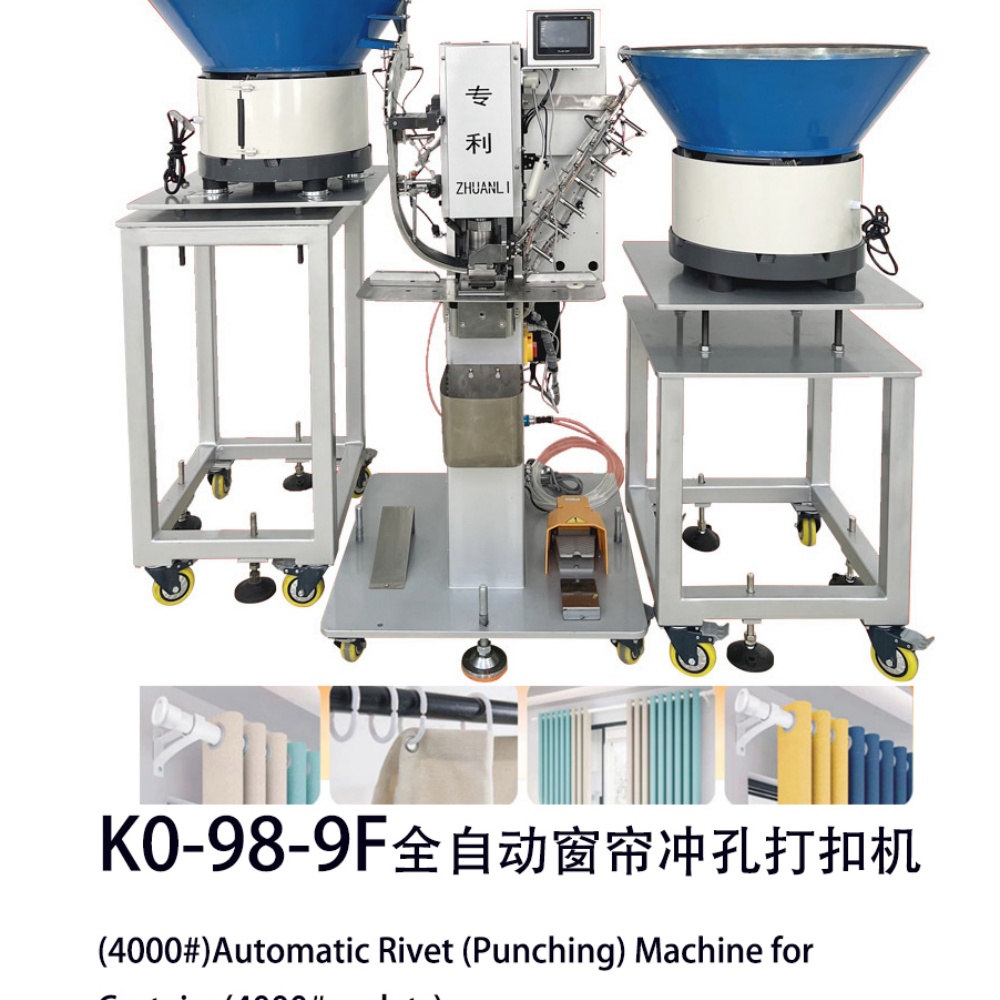

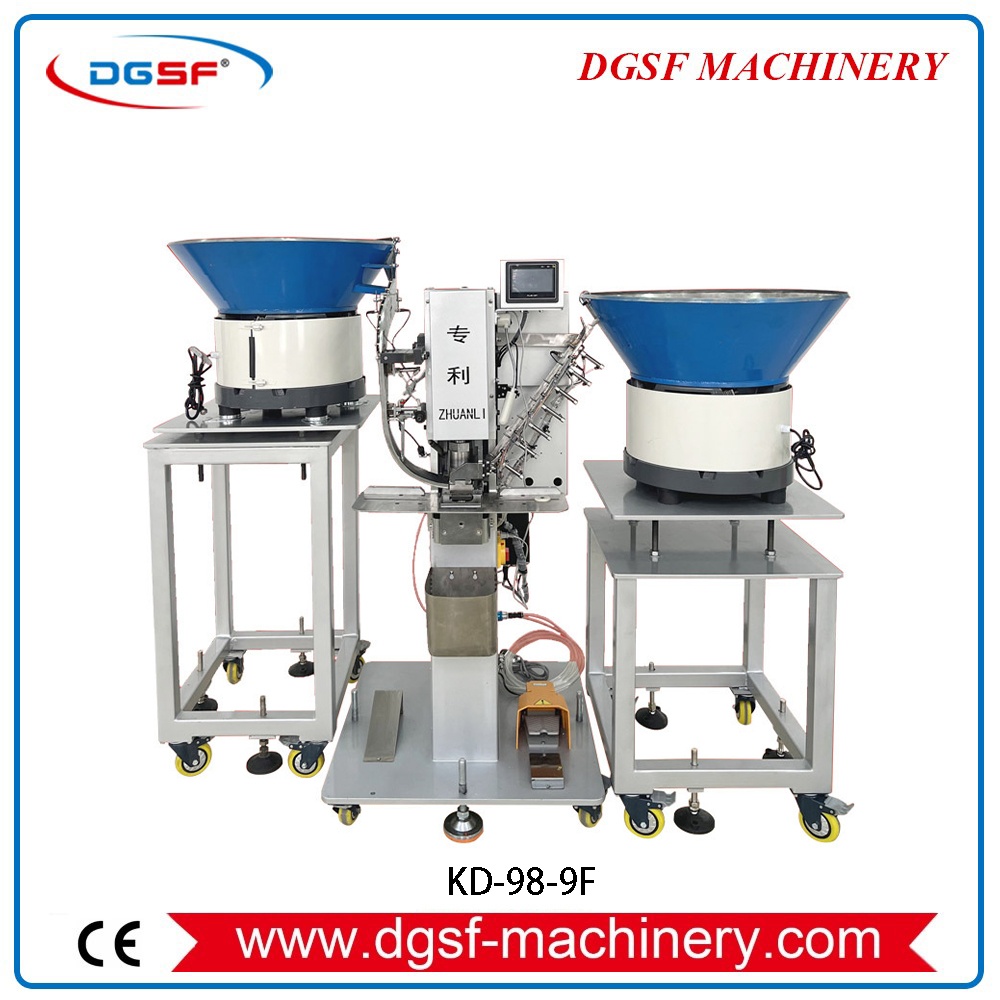

KD-98-9F Automatic Rivet(Punching)Machine for Curtains(4000# eyelets) (2)

Use:

This machine is suitable for riveting large metal and plastic buckles onto curtains, tarpaulins, and woven bags (made of leather, fabric, etc.).

Features:

1.  The machine uses a touchscreen control system for parameter adjustment, making operation simple and convenient.

2.  The upgraded system uses a servo motor to control forward and reverse rotation without manual intervention; the speed can be adjusted at any time via the touchscreen, achieving 40-60 button fastenings per minute.

3.  The main structure uses in-situ punching, upper and lower button fastening in a single operation, making it easy for ordinary employees to operate, saving time and effort, and increasing productivity.

4.  It features a dual-vibrating plate separate button feeding device, which is easy to adjust and provides more stable button feeding.

5.  Equipped with a button sensing device, it prevents empty strikes when there are no bottom buttons, reducing unnecessary material waste and improving work efficiency.

6.  Equipped with laser positioning, operation is more intuitive, accurate, and stable.

7.  It has an automatic counting function.

8.  A waste bin is added, allowing waste materials to be directly collected, reducing the need for manual cleaning and improving the cleanliness of the production workshop.

9.  Applicable button sizes: 2000# - 4000#.

Technical Parameters:

Equipment Model: KD-98-9F

VOLTAGE:  220V 50-60HZ

MOTOR POWER: 2.35KW

A IRPRESSURE:0.4(MPA)

two vibrating plates:1320×760×1740(mm)

GrossWeight：430(KG)

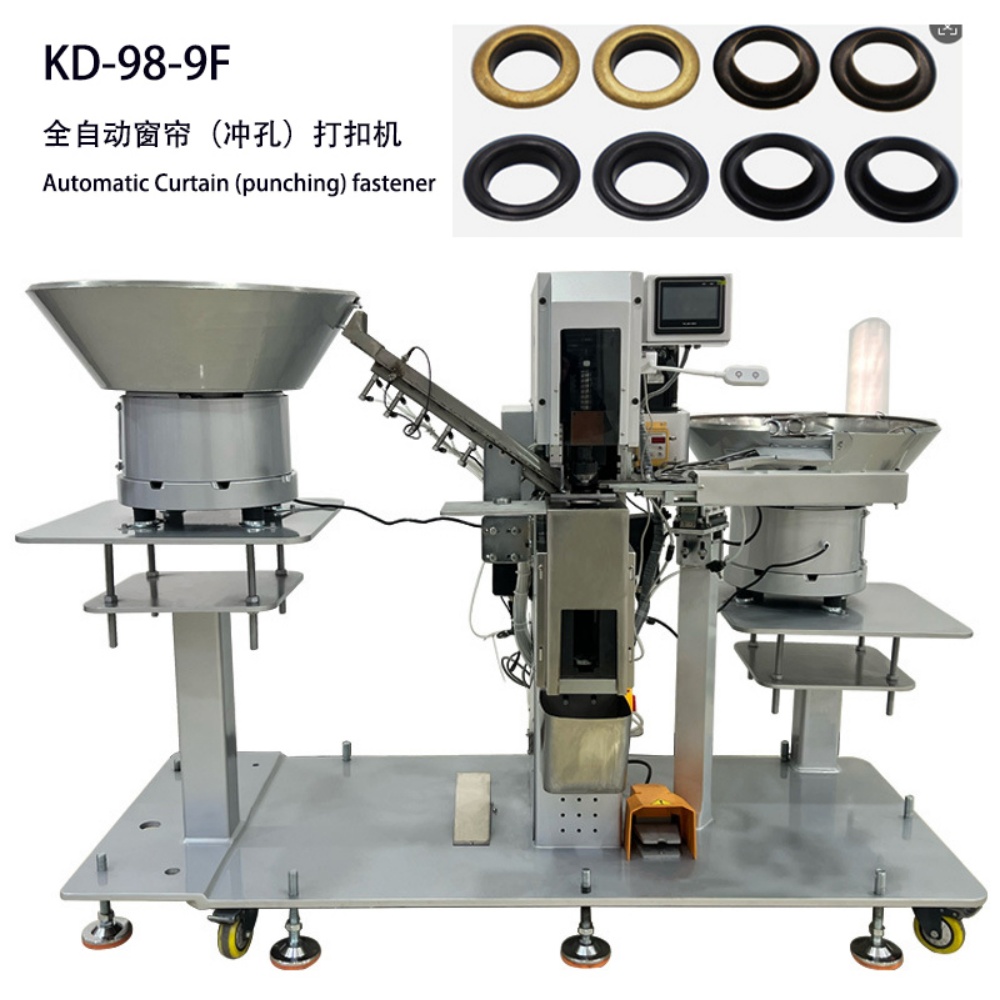

runner in the middle：1120×870×1720(mm)

GrossWeight：310(KG)
