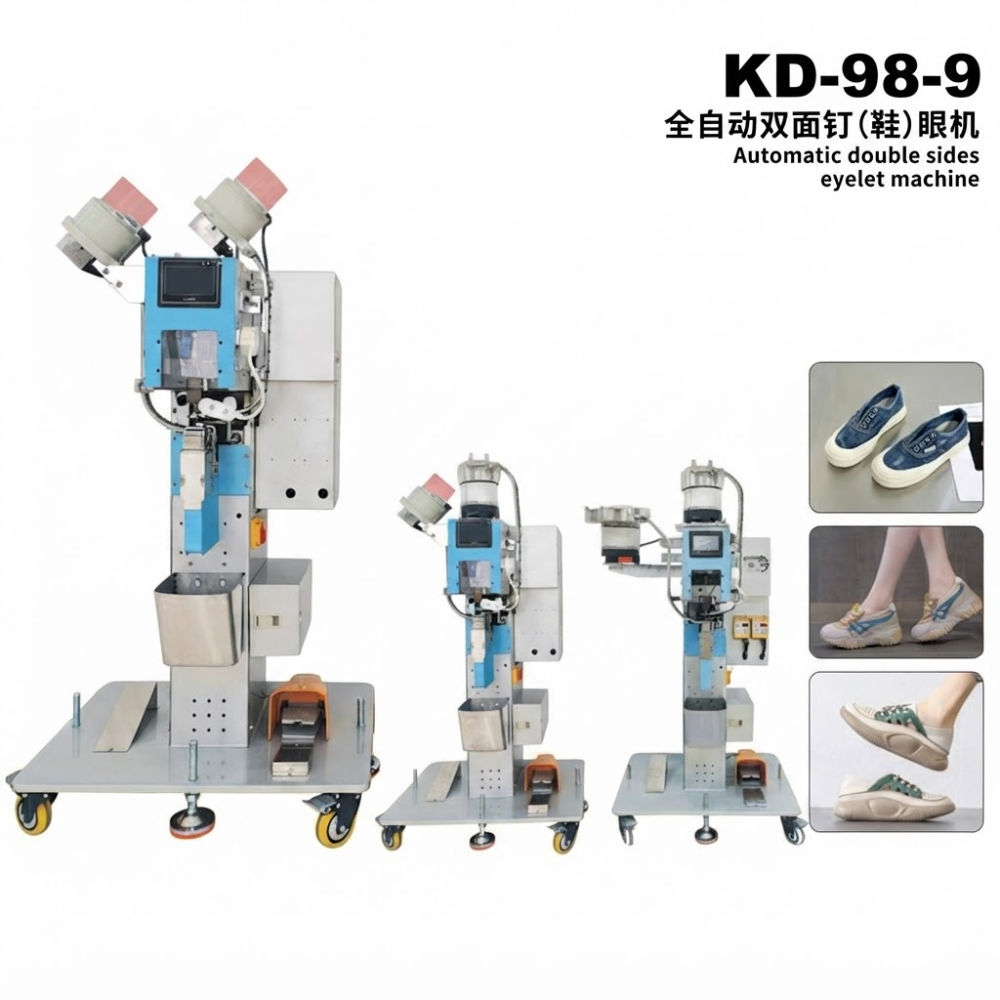

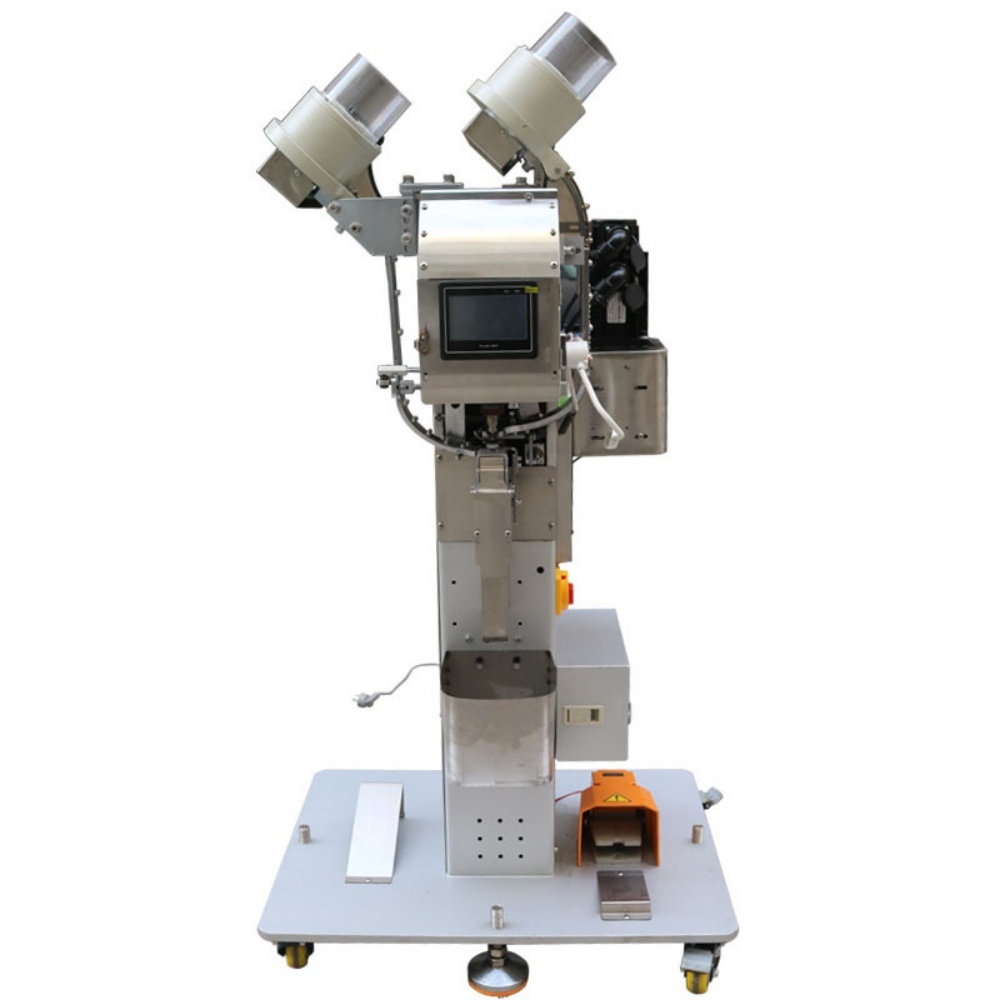

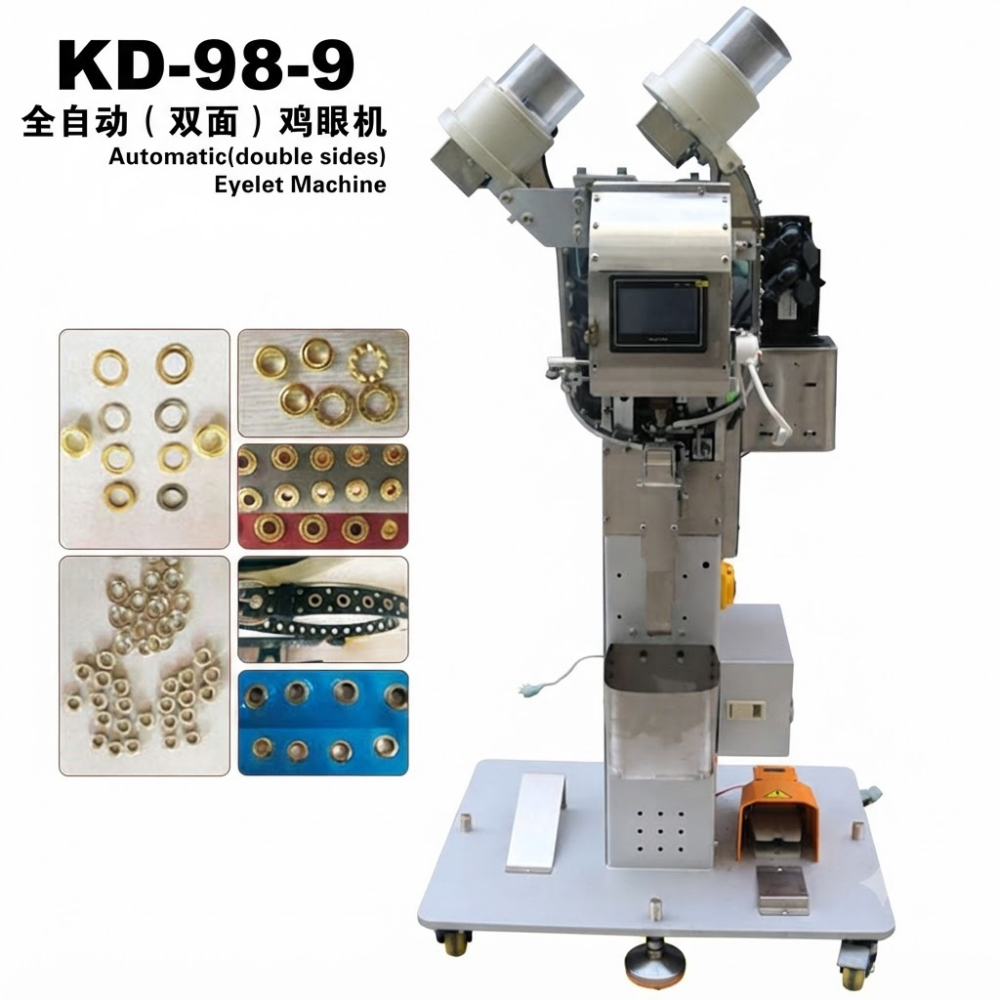

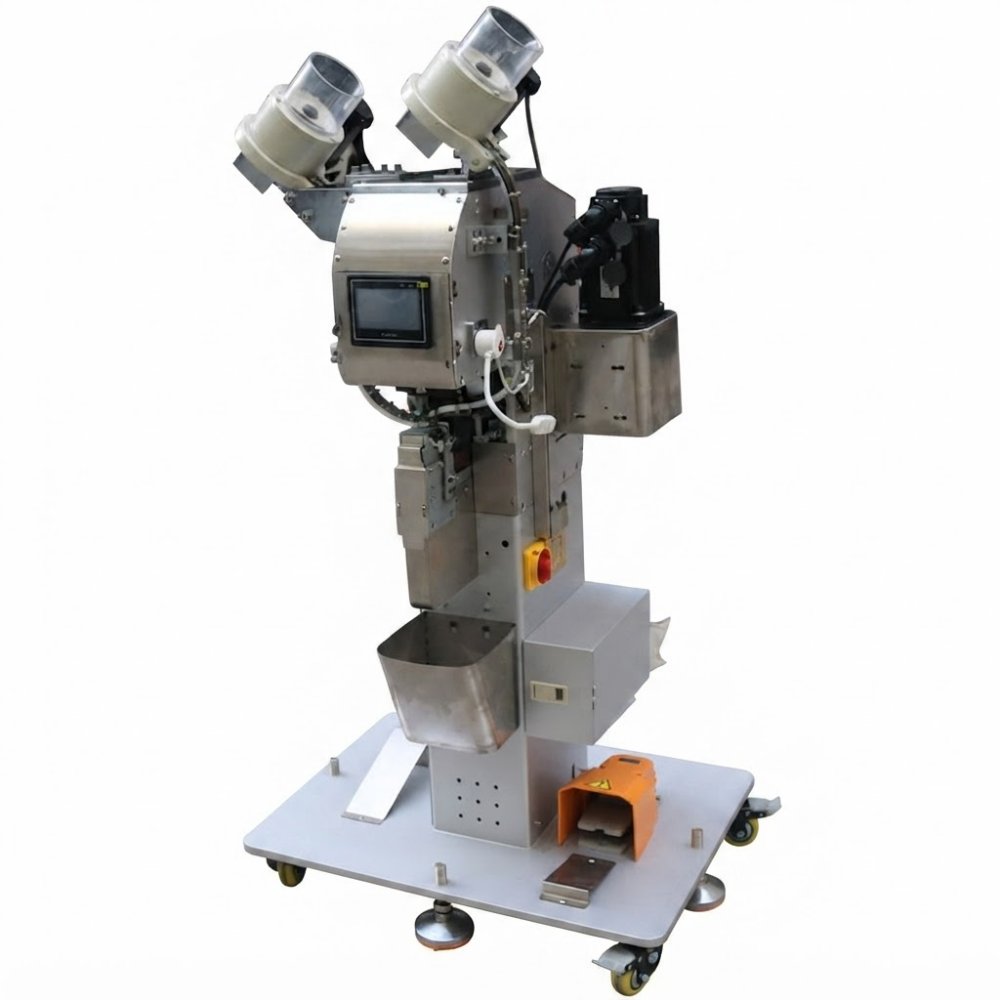

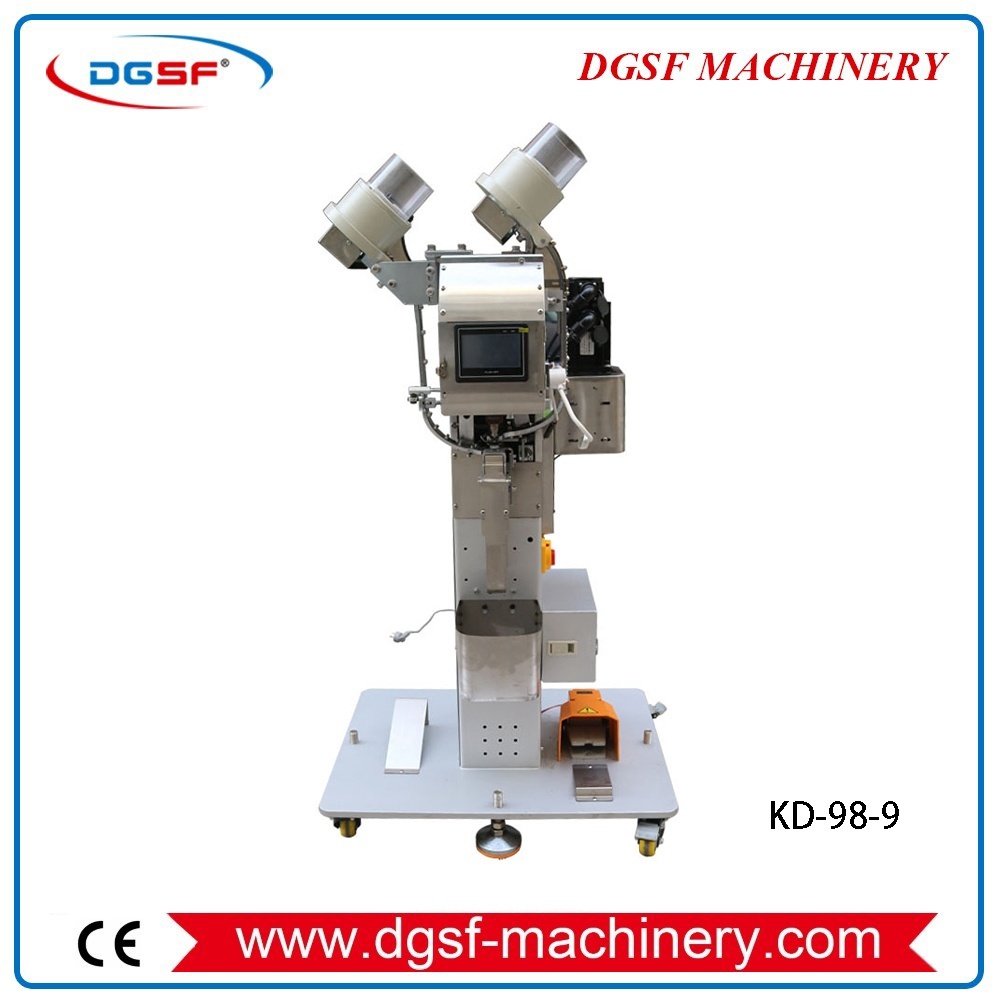

KD-98-9 Automatic double sides eyelet machine (1)

Use:

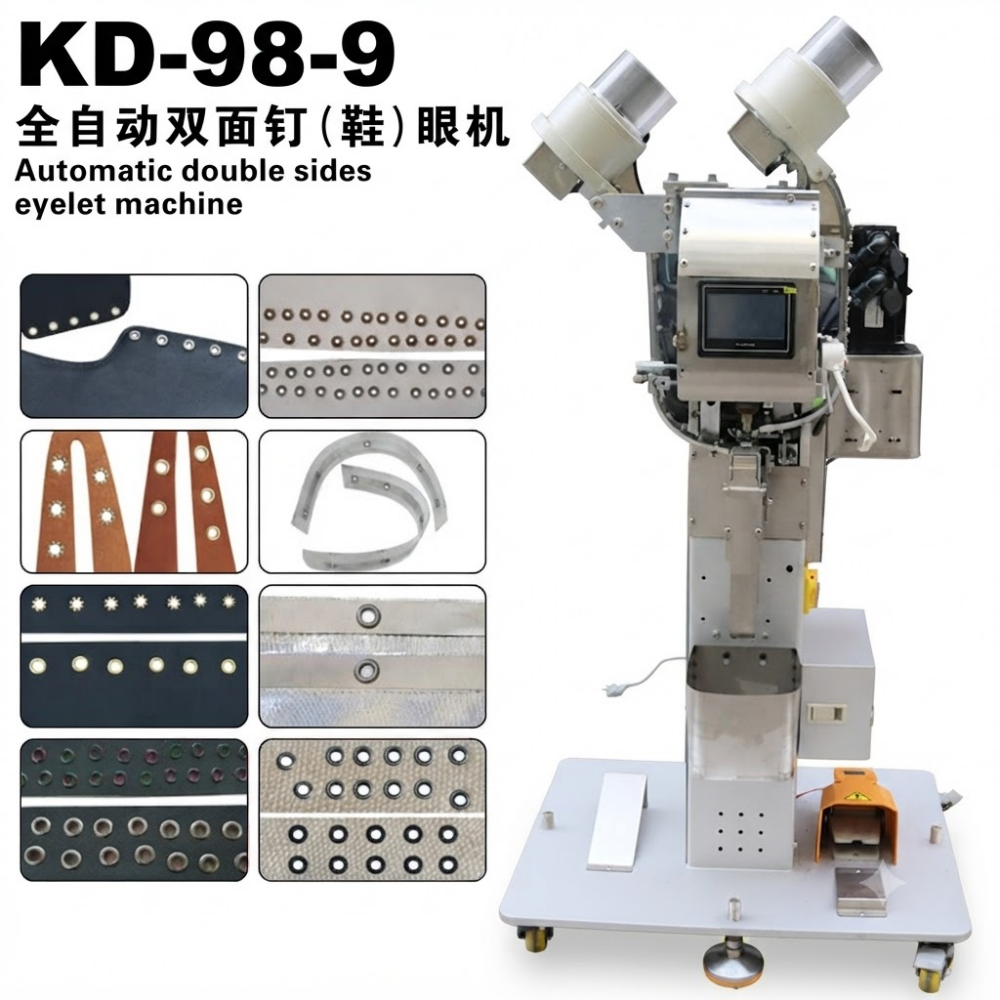

This machine is mainly suitable for riveting metal eyelets on footwear, belts, webbing, clothing, paper bags, and other similar products.

Features:

1.  The machine uses a touchscreen control system for parameter adjustment, making operation simple and convenient.

2.  Upgraded with a servo motor, the machine's forward and reverse rotation is controlled automatically without manual intervention.  Speed ​​can be adjusted instantly via the touchscreen, with a production rate of 60-100 buttons per minute.

3.  The main structure features in-situ punching, upper and lower button fastening completed in a single operation.  No professional technical personnel are required; ordinary employees can easily operate the machine, saving time and effort and increasing production while reducing unnecessary material waste.

4.  Equipped with laser positioning for more intuitive, accurate, and stable operation.

5.  Features an automatic counting function.

6.  Includes a waste bin, allowing waste materials to be directly collected, reducing the need for manual cleaning and improving the cleanliness of the production workshop.

7.  Suitable for button sizes between 150# and 600#.

It uses a dual-hopper feeding device (customizable with a vibratory feeder for the upper fastener or vibratory feeders for both upper and lower fasteners).

Custom-made features:

1. Reduces manual loading/unloading of fasteners, allows for adjustable feeding speed, and improves the brightness and wear resistance of painted fasteners.

2. Applicable fastener sizes can be increased to between 600# and 1000#.

Technical Parameters:

Equipment Model: KD-98-9

VOLTAGE:  220V 50-60HZ

TOTAL POWER: ≈1.75(KW)

NAILING SIZE: 150-1000(#)

STARTING METHOD: FOOT REST

NET WEIGHT: 176(KG)
