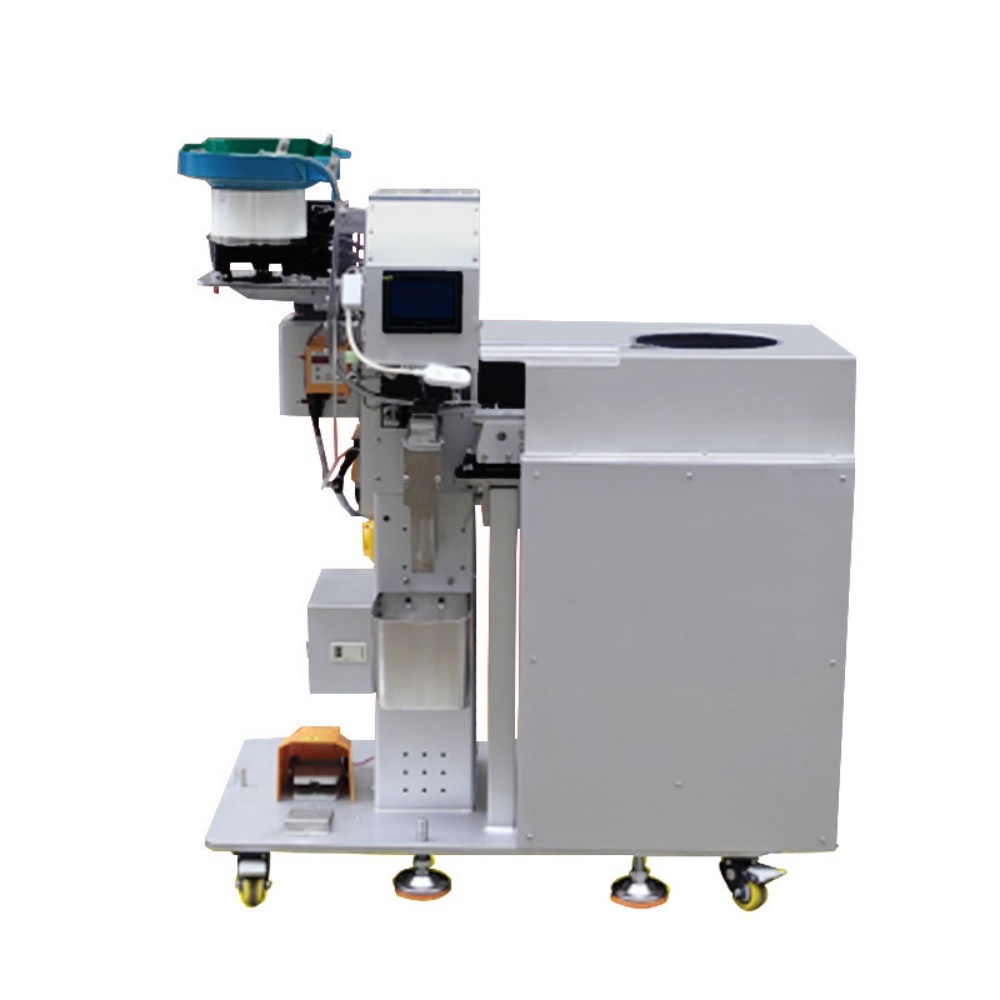

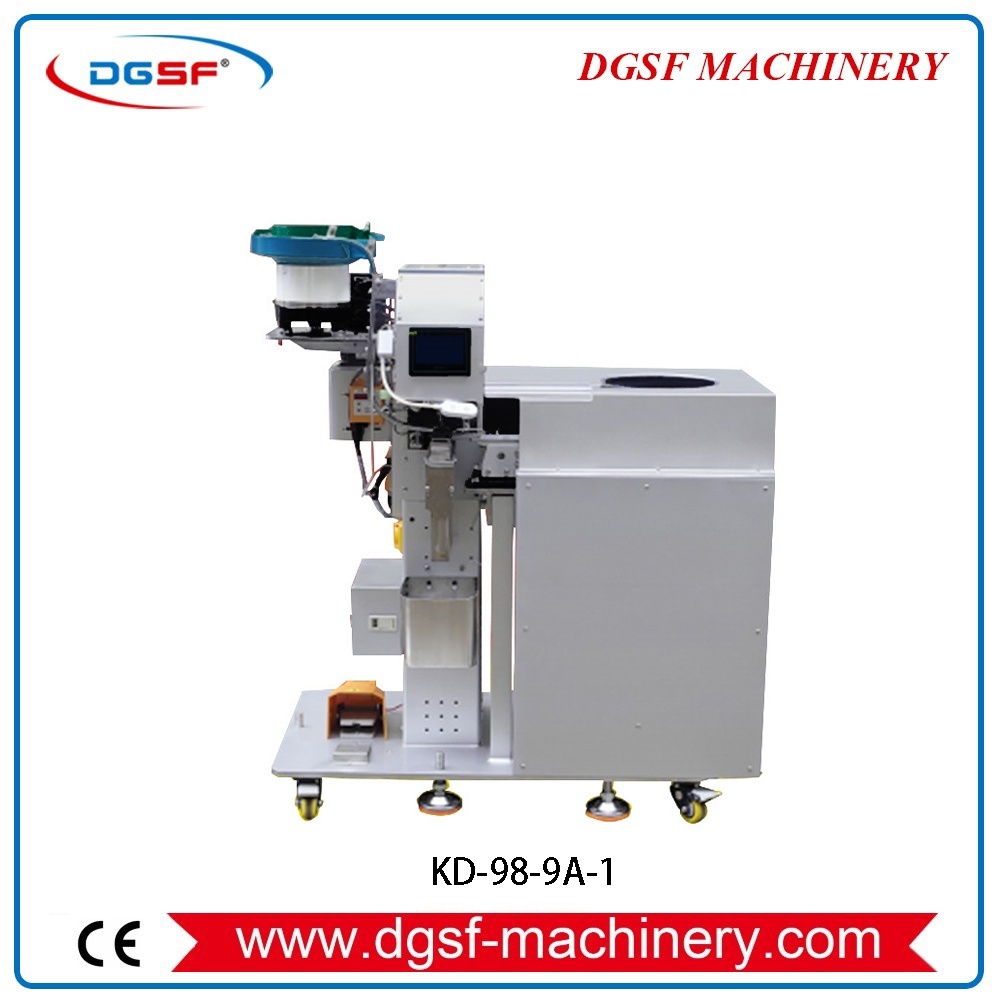

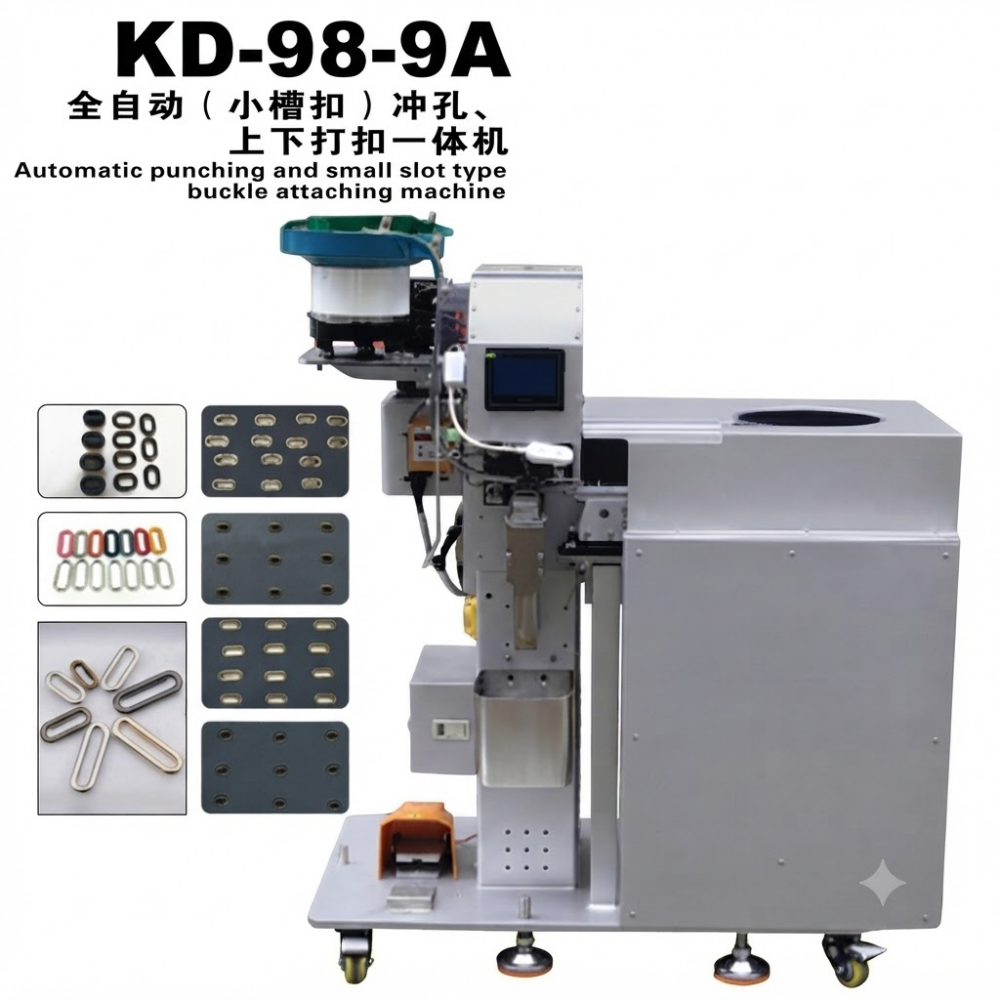

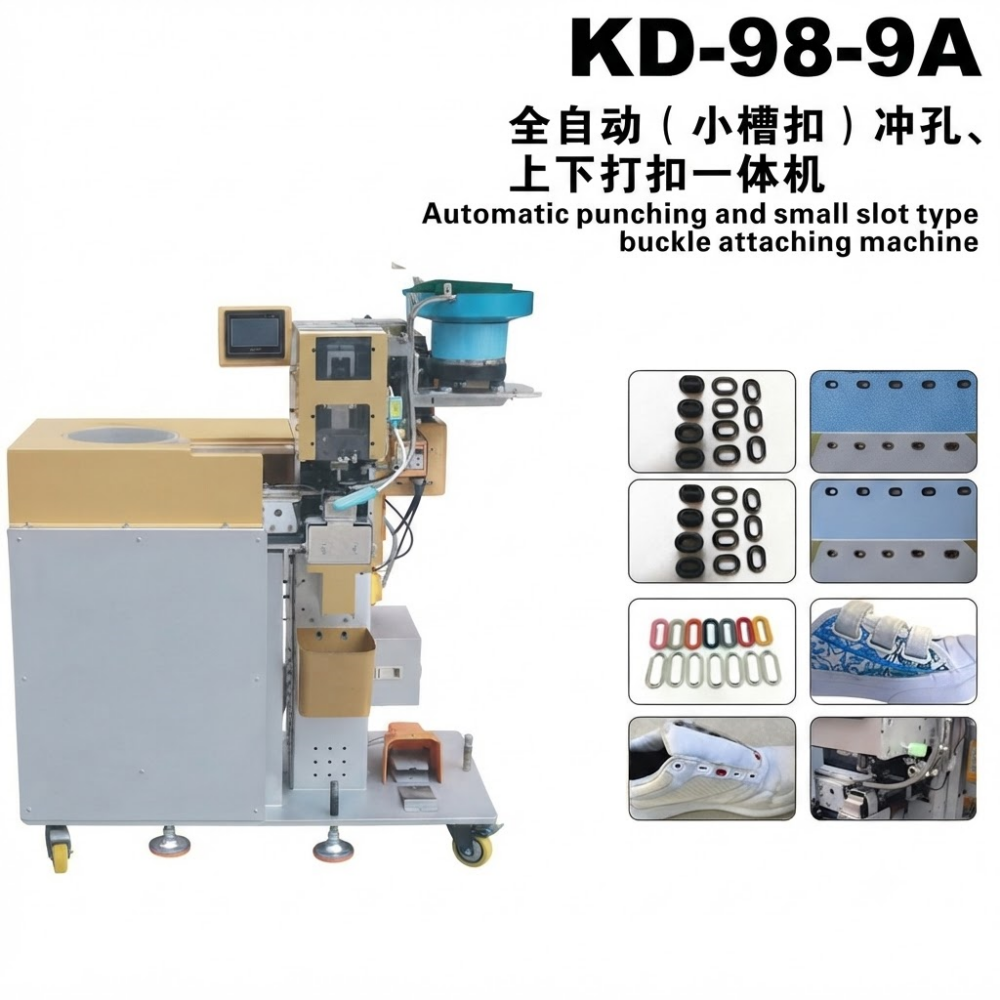

KD-98-9A-1 Automatic punching and small slot type buckle attaching machine (1)

Use:

Used for riveting groove-shaped eyelets in various industries such as garment manufacturing, shoemaking, leather goods, printing, and advertising.

Features:

1.  The system has been upgraded to a PLC control system with a touch screen for easier and faster setting and adjustment, and includes an automatic counting function.

3.  Punching and riveting are completed in one step, saving punching time and improving work efficiency.

4.  A laser light provides vertical illumination, ensuring accurate rivet placement and eliminating the need for tedious adjustments due to variations in material thickness.

5.  Equipped with a sensor, it prevents empty strokes when no rivets are present, making it convenient and simple to use and further improving work efficiency.

6.  It replaces the previous manual feeding mechanism, reflecting significant progress and technological advancement in the machinery industry.

7.  A waste bin is added to prevent waste material from scattering on the ground, thus reducing pollution to the production environment and promoting environmental protection.

8.  This machine is suitable for 0.6# small groove rivets.

Technical Parameters:

Equipment Model: KD-98-9A-1

VOLTAGE:  220V 50-60HZ

 POWER: ≈1.8(KW)D

AIR PRESSURE:0.3(MPA)DI

DIMENSIONS(L*W*H): 1250×580×1400(mm)0×630×1530(mm)760×630×1530(mm)MENSIONS(L*W*H

NET WEIGHT: 322(KG)
