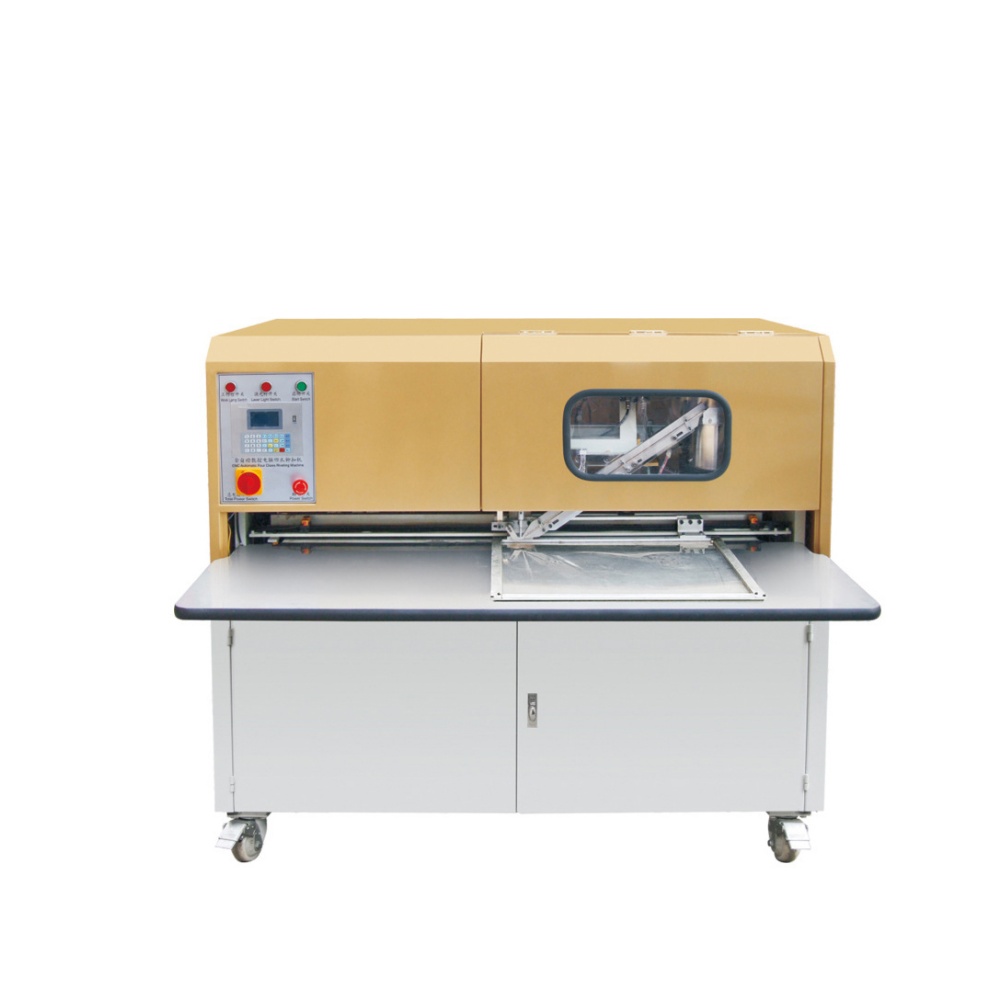

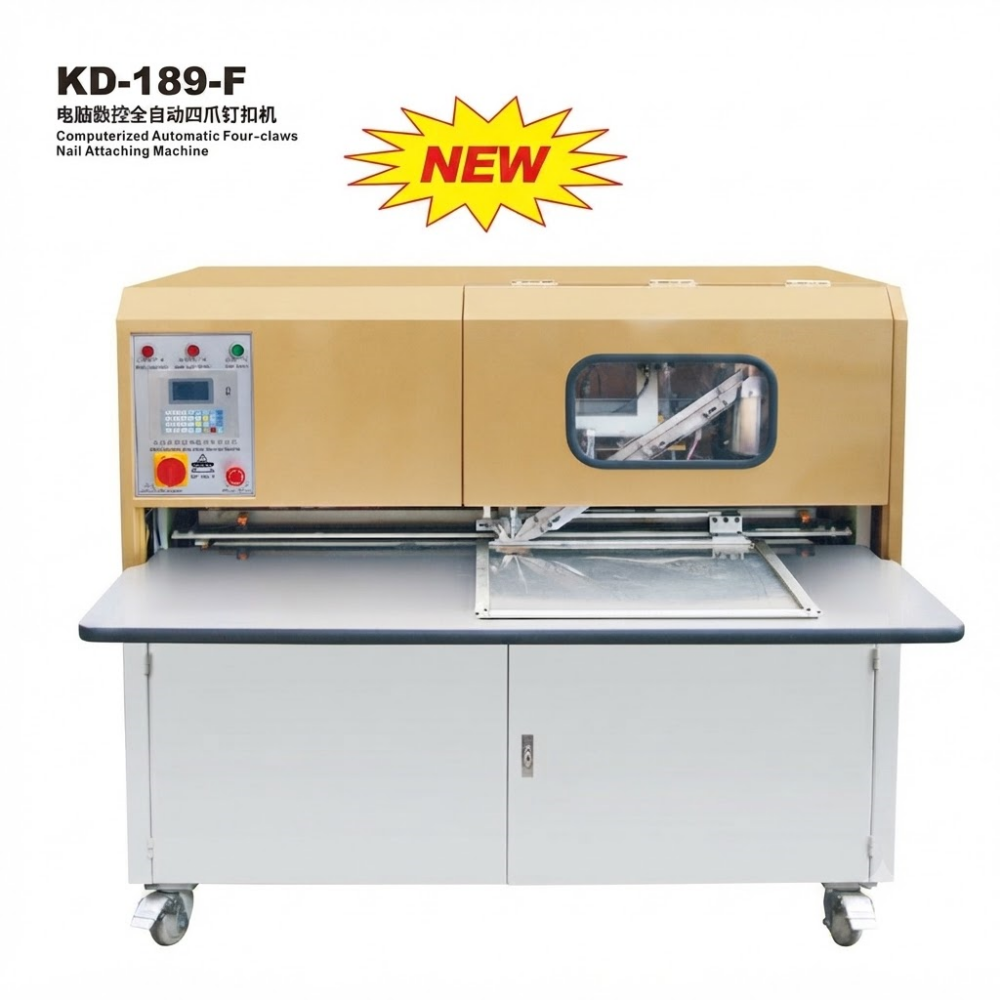

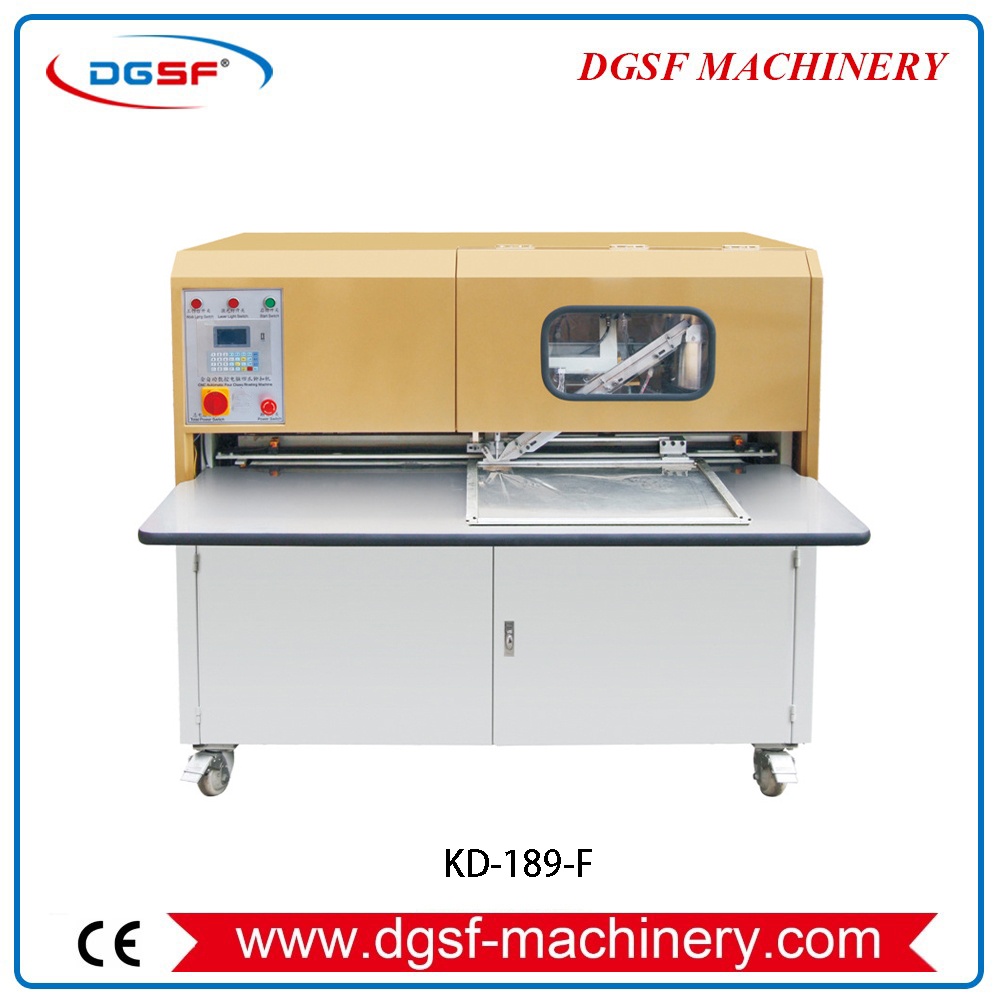

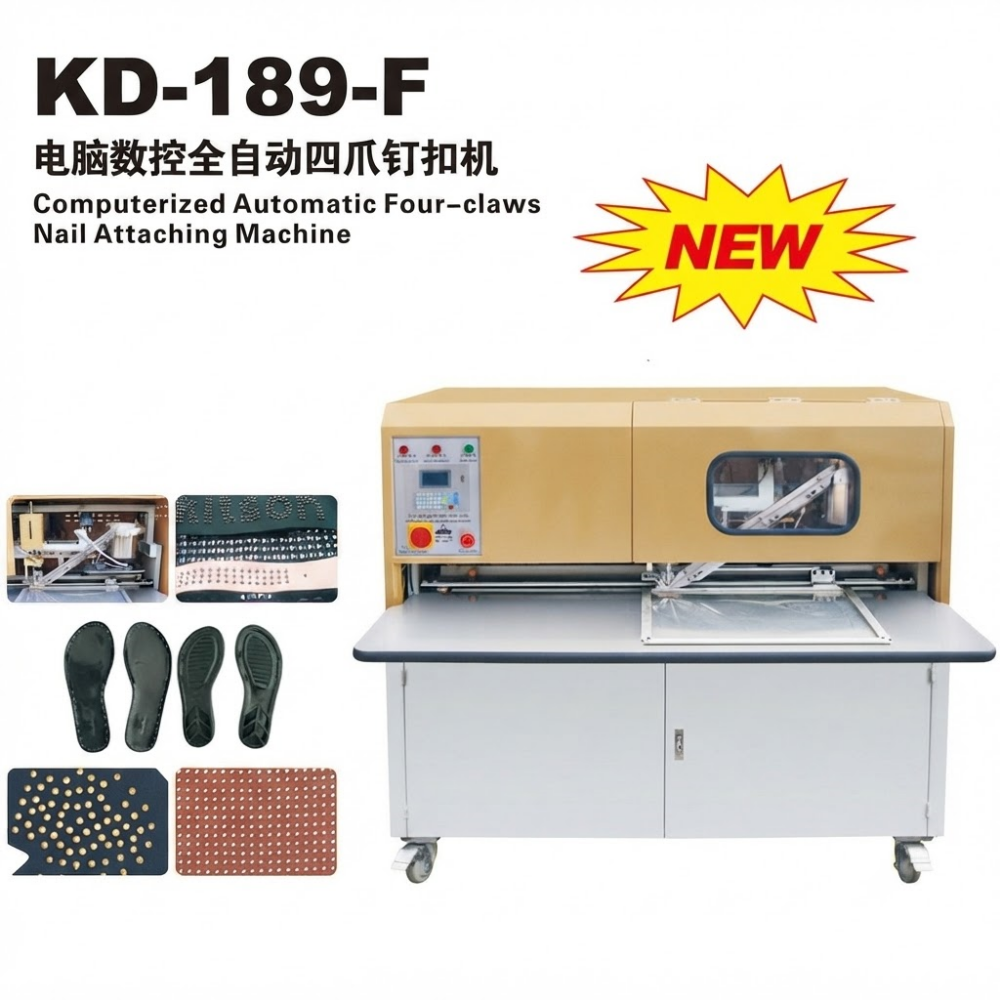

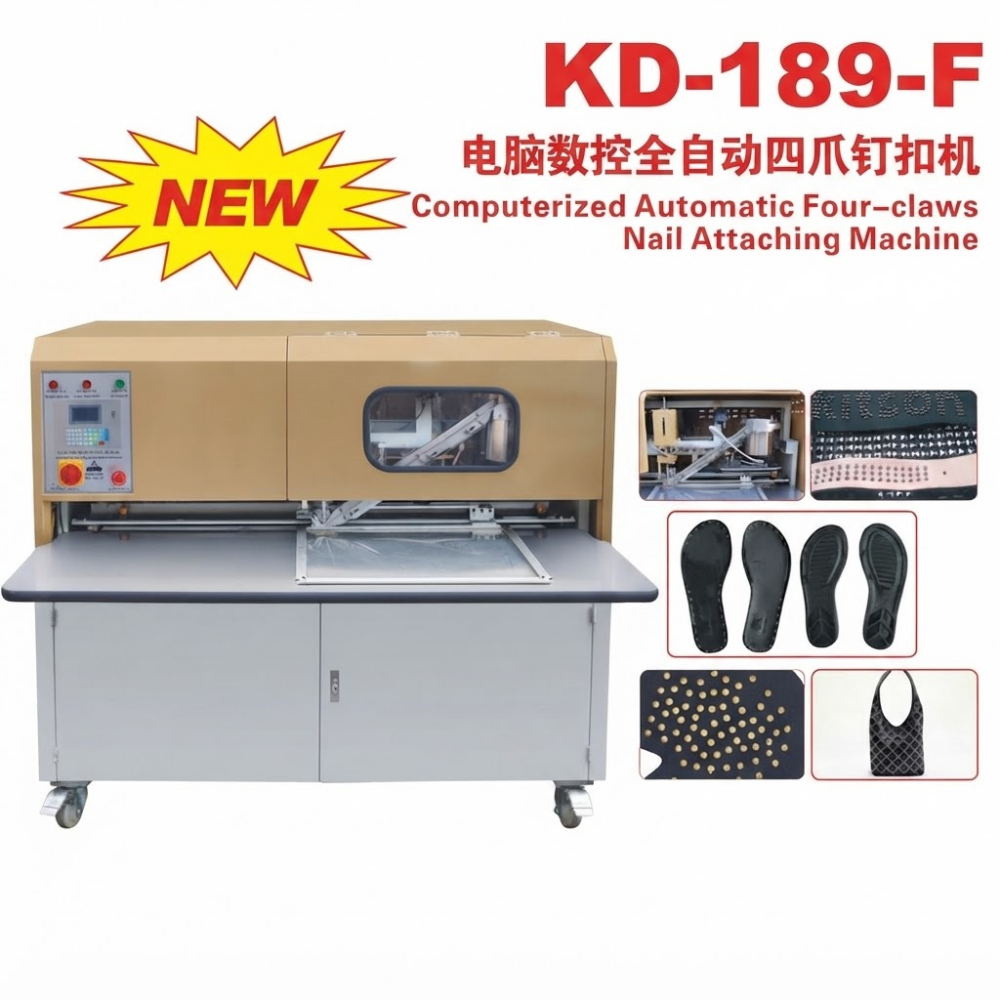

KD-189-F ComputerizedAutomatic Four-claws Nail Attaching Machine (1)

Use:

This machine is widely used in the clothing, footwear, shoe sole, leather goods, belts, jewelry, handicrafts, and luggage industries. It features simple operation, stable performance, and aesthetically pleasing results.

Utilizing a new type of stepper motor, the machine does not require an air pump during operation, significantly improving work efficiency (the machine's working speed can reach 200-220 buttons per minute). During operation, if there are irregular four-prong rivets or if the buttons are finished, the machine will automatically stop through computer program sensing, preventing empty button placement and eliminating the need for manual rework, thus greatly reducing rework times. It also incorporates a vibration and noise reduction device, minimizing noise and achieving zero noise pollution. This equipment is an ideal choice for the footwear, bag manufacturing, and clothing industries.

Features:

1. Suitable for use with four-prong rivets of various shapes, ranging from 2.0mm to 12mm.

2.  Utilizes a new type of vibrating disc device; whether using square or round buckles, there is no need to replace the vibrating disc for automatic feeding. This also increases the machine's wear resistance, thus extending its service life.

3.  The machine can operate in a fully automatic mode after setting the program according to different patterns. It features automatic layout, automatic rivet feeding, and precise positioning.  A single button press completes one pattern, and the interface remains consistent, with neat and aesthetically pleasing reverse buckles.

4.  Adjustable working speed, fixing force, and brightness. The simple operating system is ideal for beginners.

5. High working efficiency, significantly saving labor and reducing production costs.

Technical Parameters:

Equipment Model: KD-189-F

VOLTAGE: 220V 50-60HZ

TOTAL POWER:≈0.45(kw)

PDIMENSIONS(L*W*H):1630×1230×1350mm

NET WEIGHT:540(KG)
