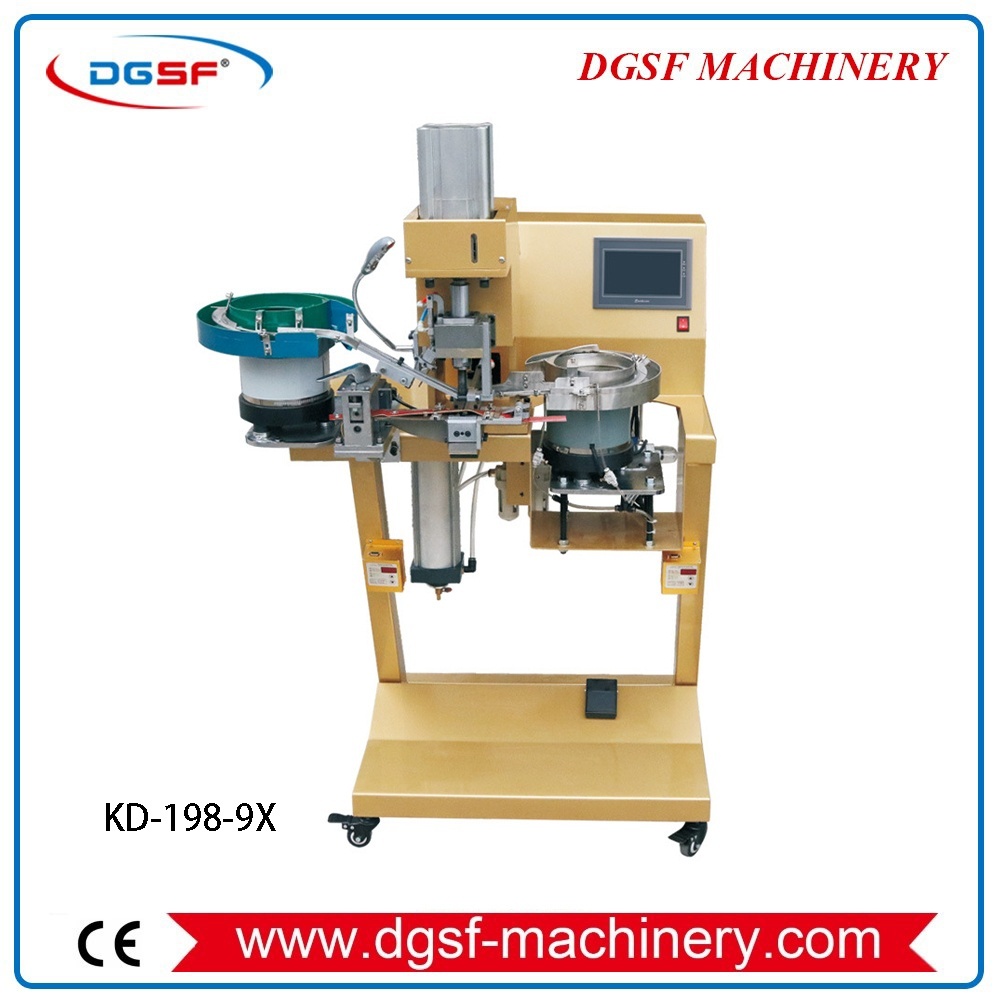

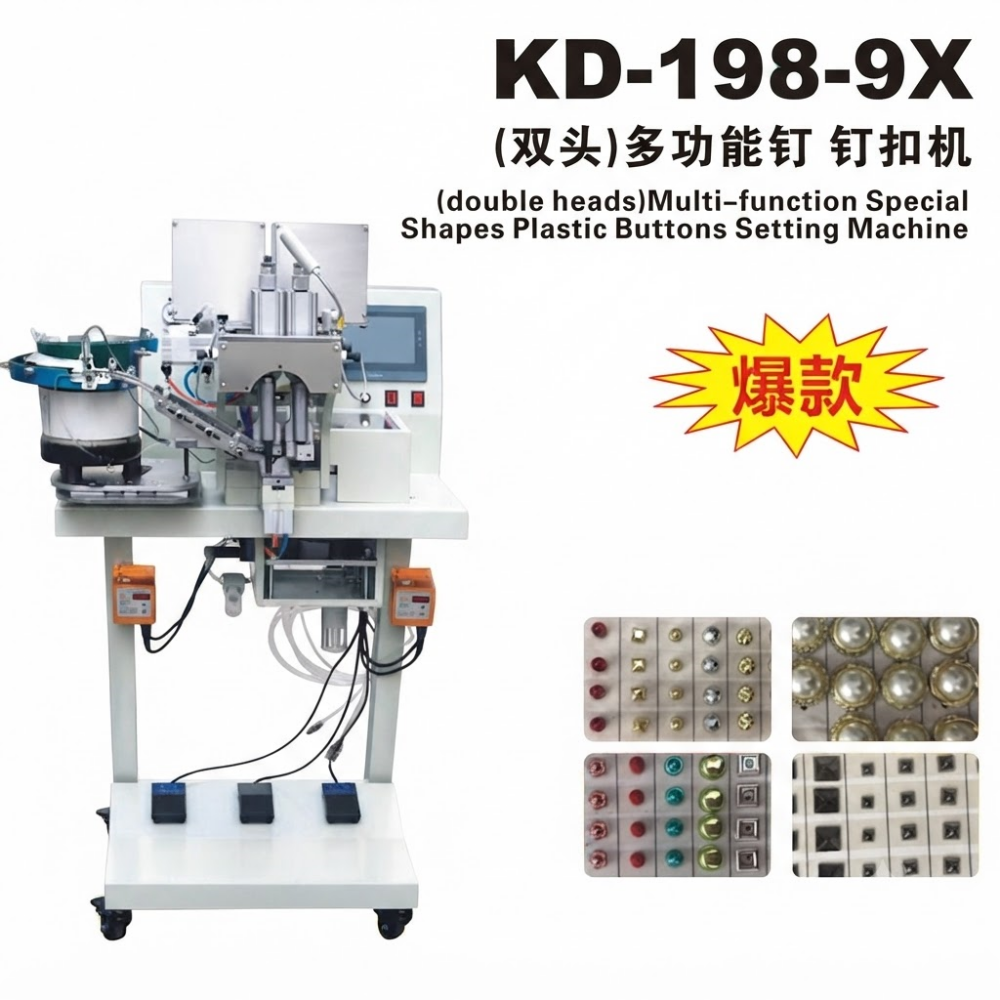

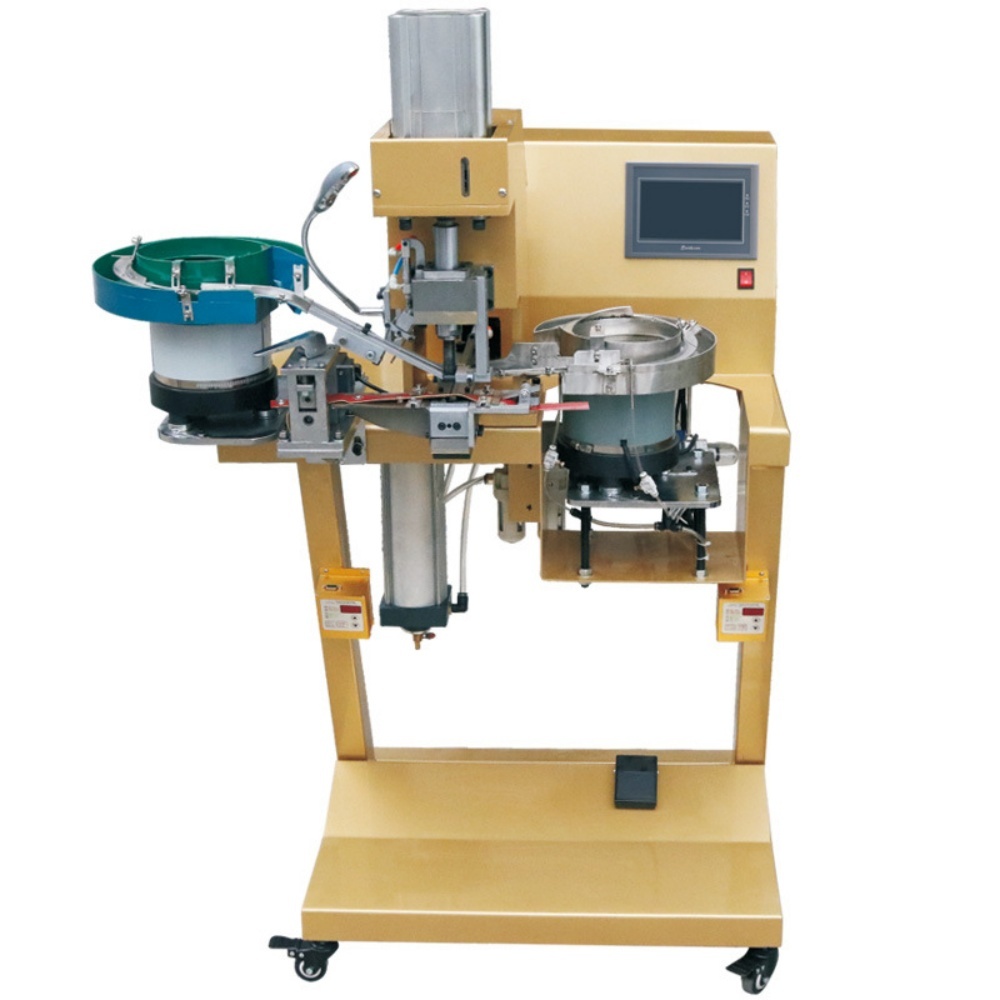

KD-198-9X (double heads)Muli-function Special Shapes Plastic Buttons Seting Machine (1)

Use:

This machine is widely used in industries such as clothing, footwear, bags and leather goods, belts, scarves, curtains, mosquito nets, elastic bands, handicrafts, and decorative items.

Features:

1. This machine is suitable for plastic buttons with shapes such as round, semi-circular, barrel-shaped, conical, and square, as well as 4mm-16mm round pearls. It can operate with two heads simultaneously, alternating between pearls and irregularly shaped buttons without changing molds, or it can operate with single pearls or single irregularly shaped buttons. The bottom button is a four-prong snap button.

2. The new design concept allows for multi-purpose use in one machine, significantly saving production costs for customers. It also features simple operation and beautiful results. It is an excellent product choice for various industries.

3.  The new vibrating disc device and higher precision molds ensure smoother feeding of both the top and bottom buttons. Laser positioning ensures accurate and error-free button placement.

4. The button fastening strength is adjustable as needed.

5.  A touch-screen control panel makes speed adjustment convenient.

6.  Using imported pneumatic components increases the machine's stability and durability.

7. When not working with irregularly shaped buttons, two different sizes of round pearls can be processed simultaneously.

Technical Parameters:

Equ Model:KD-198-9X

VOLTAGE: 220V 50-60HZ

TOTAL POWER:≈0.65(kw)

AIR PRESSURE:0.6(MPA)

PDIMENSIONS(L*W*H):800×740×1400mm

NET WEIGHT: 107(KG)
