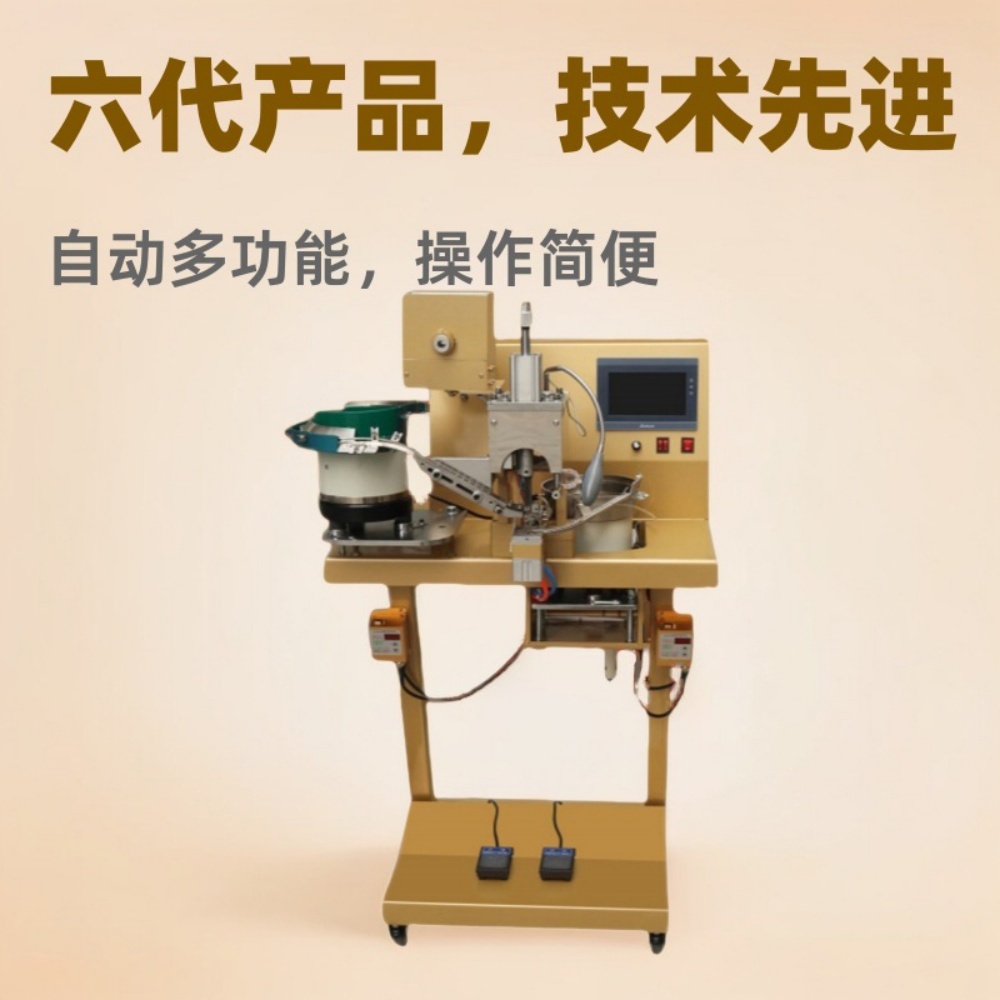

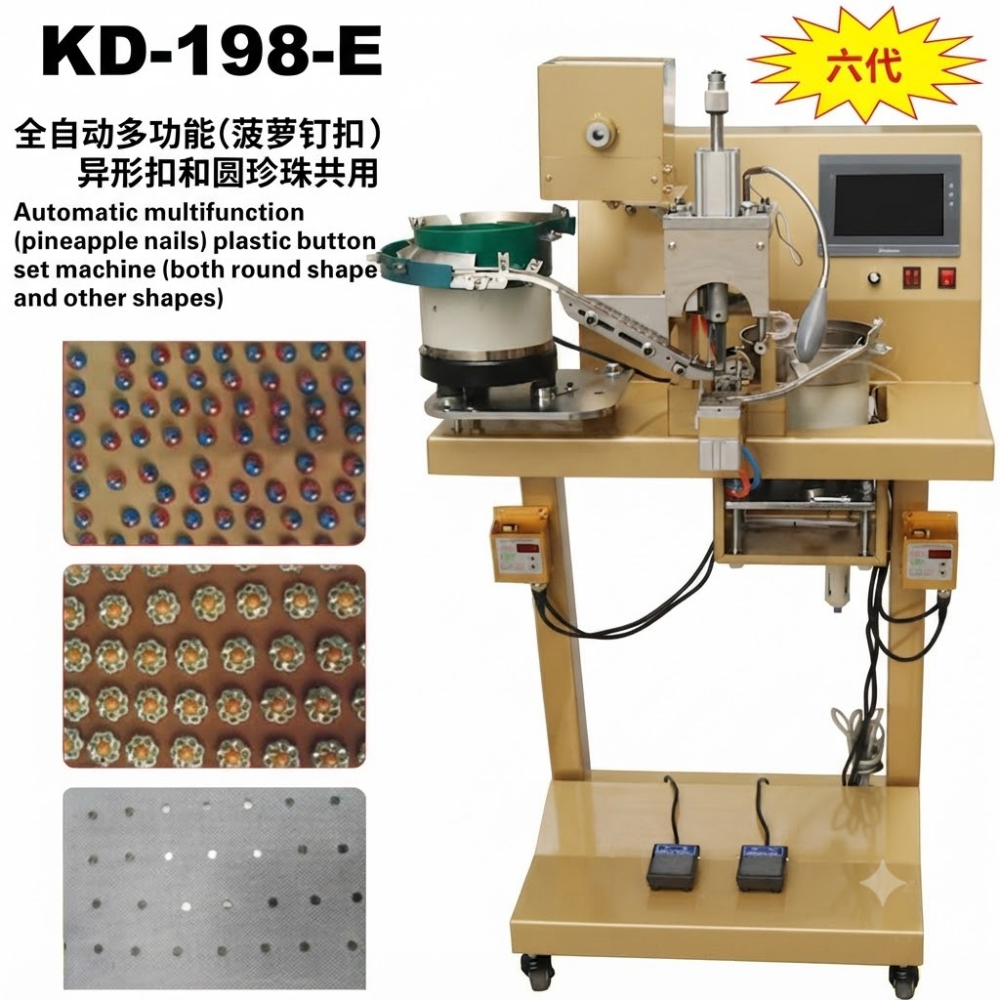

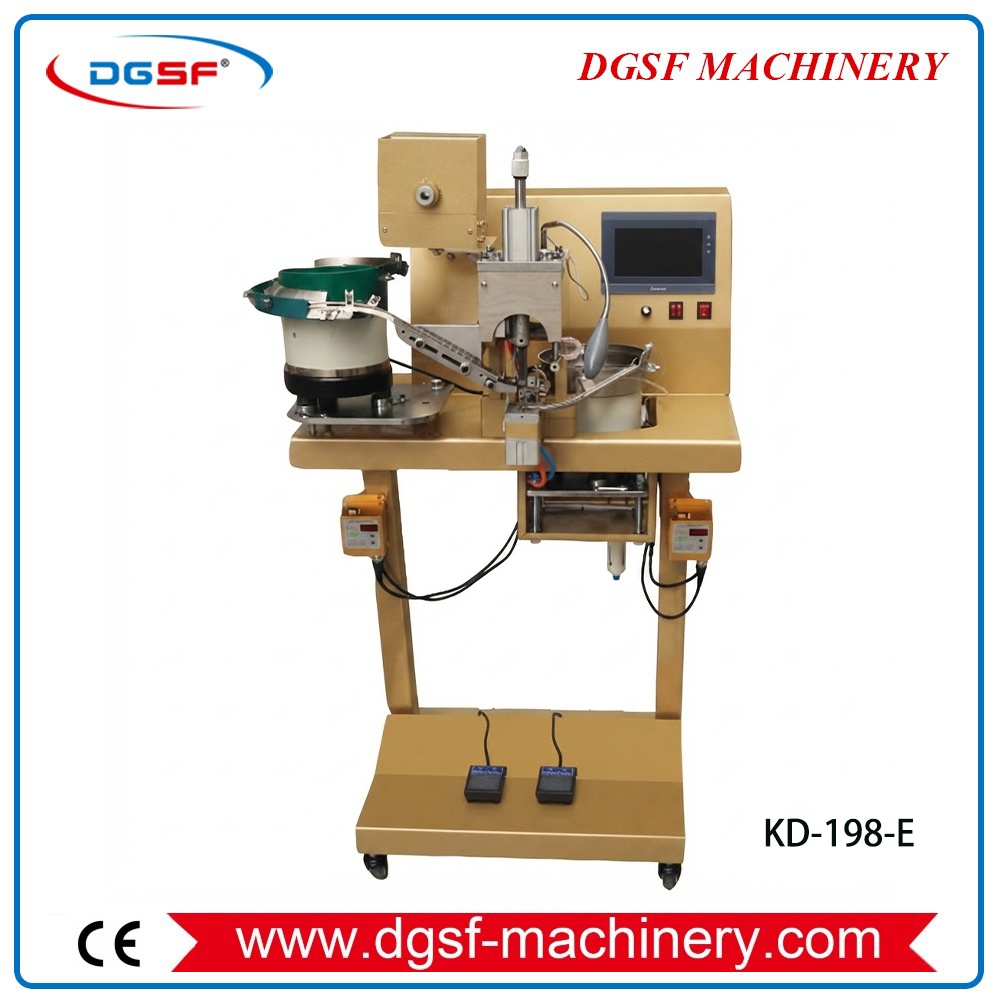

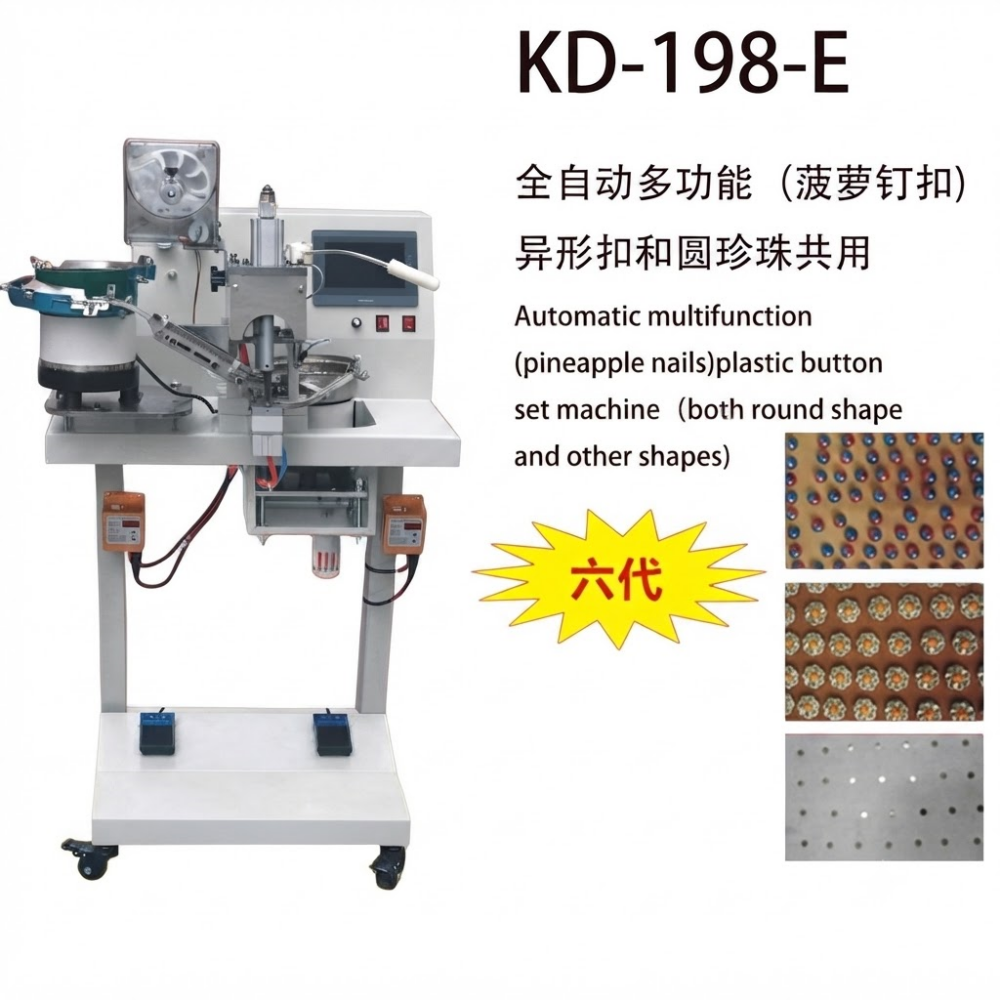

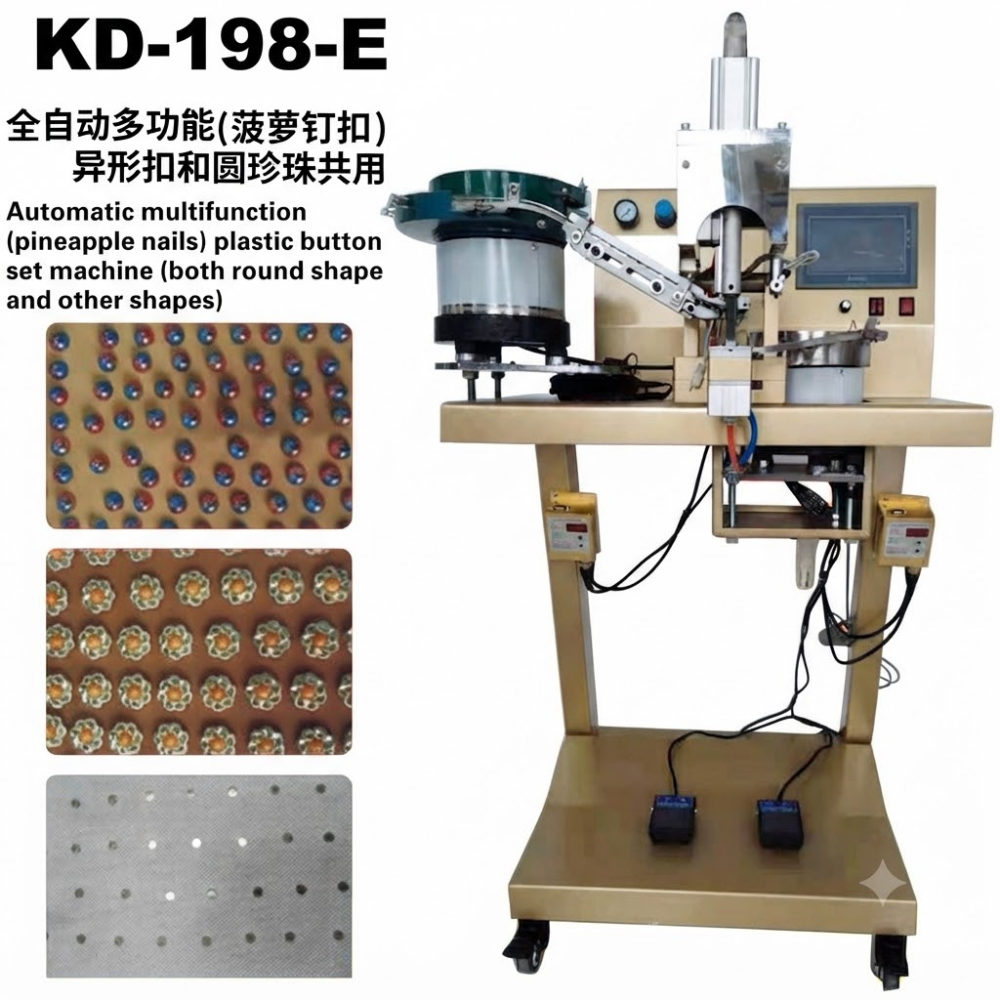

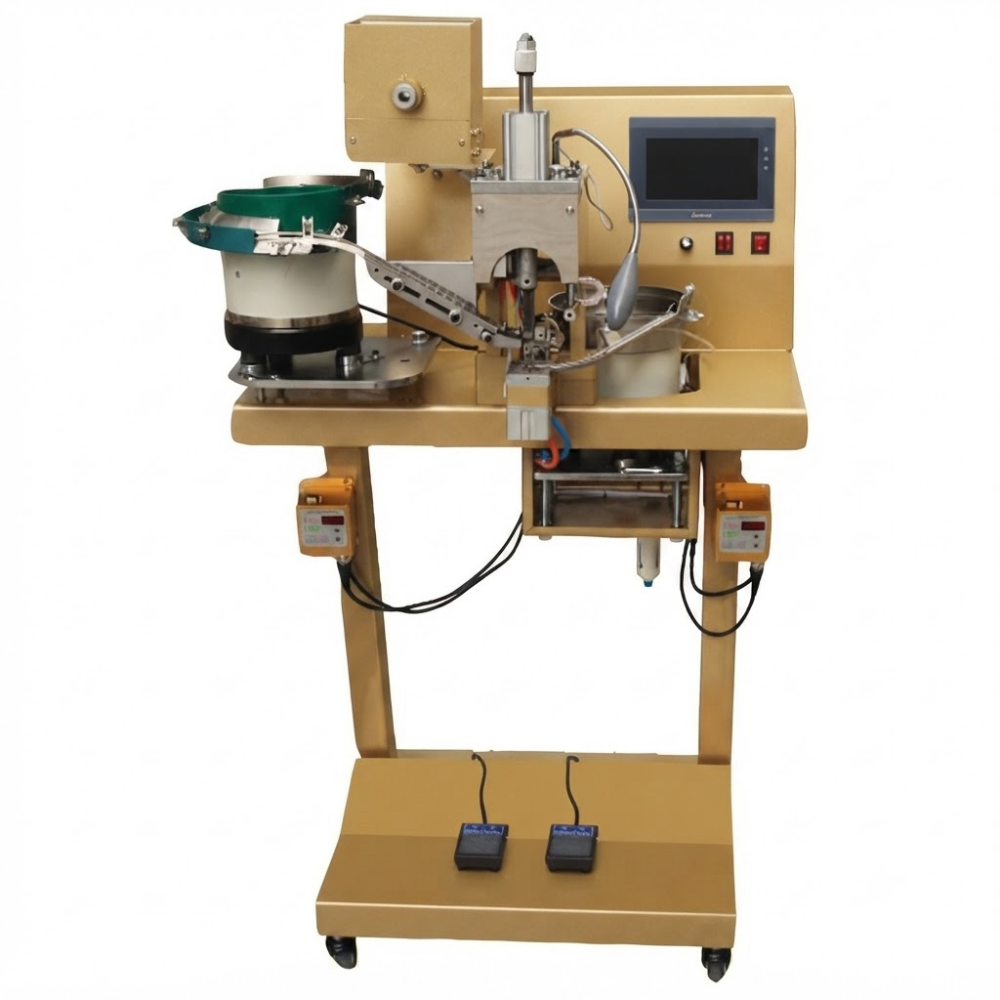

KD-198-E 6th Automatic multifunction(pineapple nails)plastic button set machine (both round shape and other shapes) (2)

Use:

This machine is widely used in industries such as clothing, footwear, bags and leather goods, belts, jewelry, and handicrafts.

Features:

1. This machine is suitable for plastic buttons with shapes such as round, semi-circular, barrel-shaped, conical, and square, as well as 4mm-16mm full-round pearls. The bottom fastener is a threaded stud.

2. The machine adopts a new type of vibrating disc device, automatically supplying rivets and bottom fasteners from both the upper and lower ends, and simultaneously pressing them together.

3. Rivets are automatically supplied through the vibration system, ensuring accuracy and no errors; (the length of the rivet and the size of the cap do not require changing the bottom mold and can be used interchangeably).

4. Improved bottom fastener clamp for greater stability.

5. This machine allows adjustment of working speed, fastening force, brightness, etc.

6. It features simple operation, stable performance, and aesthetically pleasing results.

Technical Parameters:

Equ Model:KD-198-E

VOLTAGE: 220V 50-60HZ

TOTAL POWER:≈0.65(kw)

AIR PRESSURE:0.6(MPA)

THE SPEEDOFRIVETING:80-100(PCS/M)

PDIMENSIONS(L*W*H):740×650×1260mm

NET WEIGHT: 93(KG)
