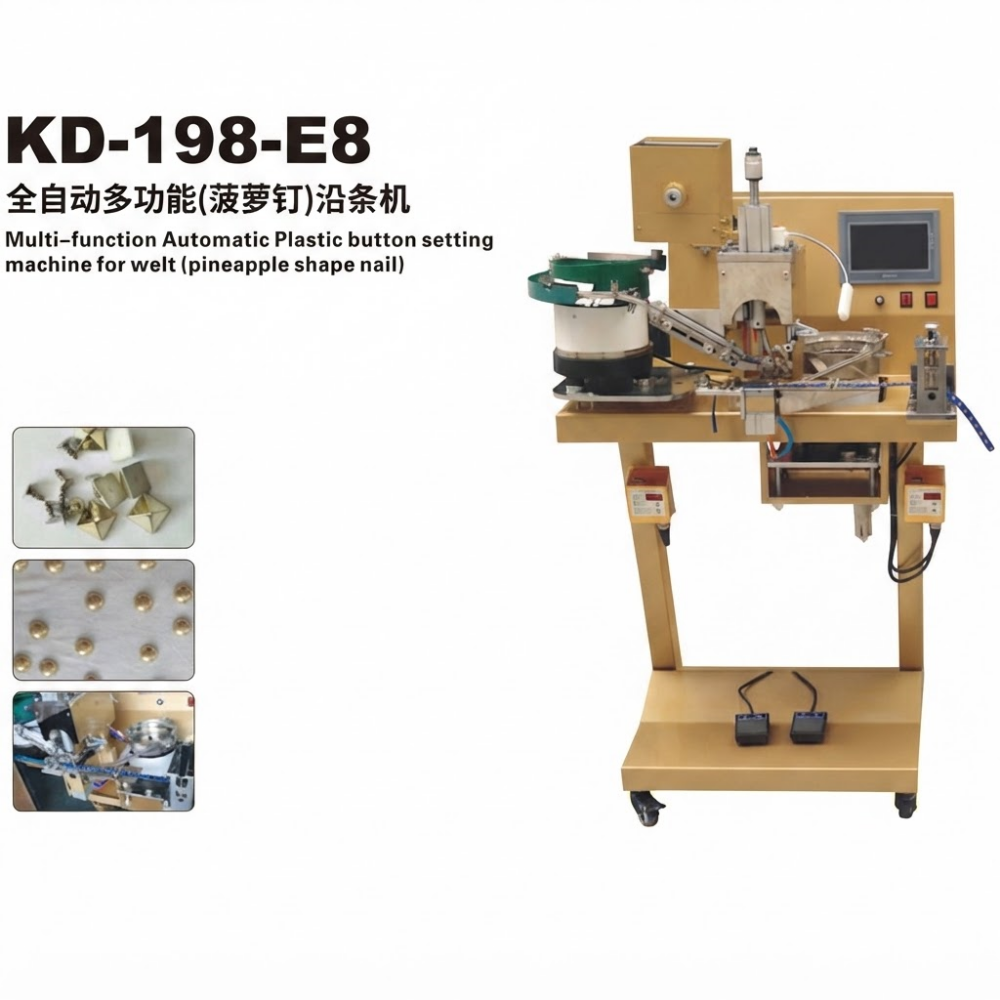

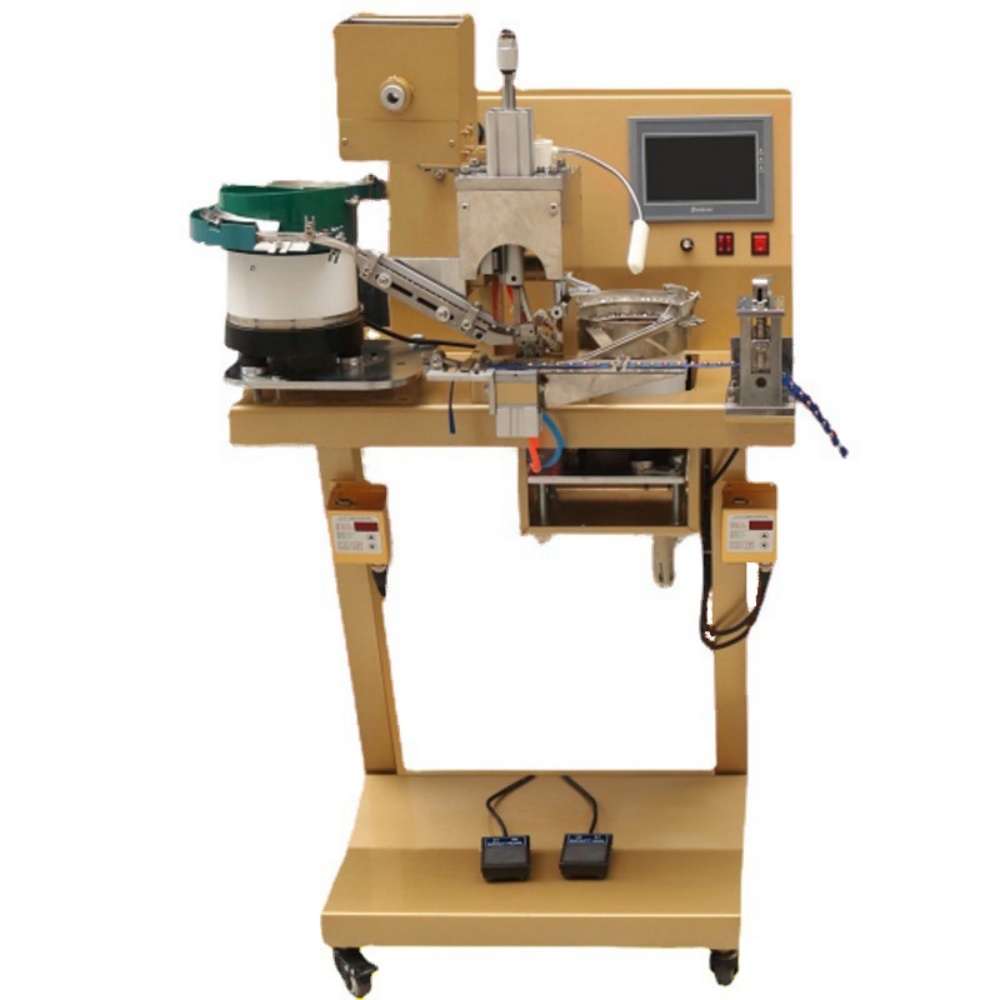

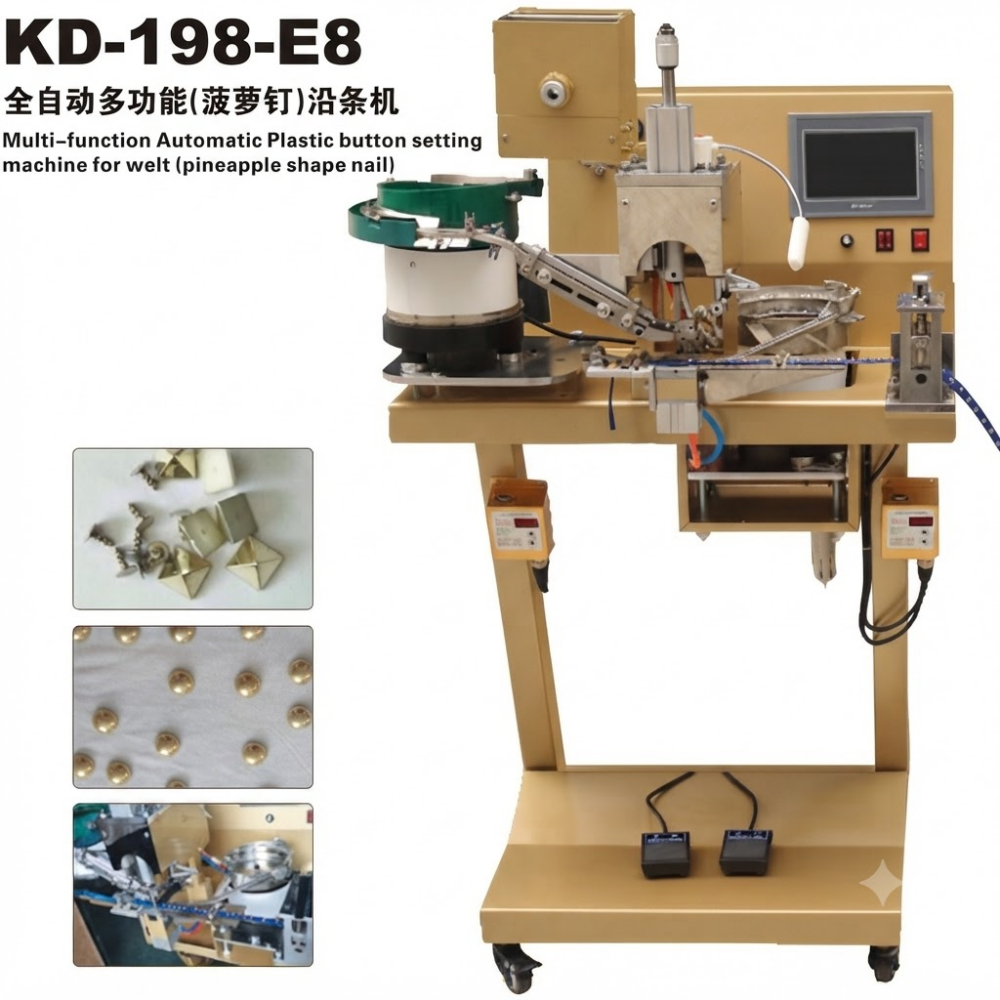

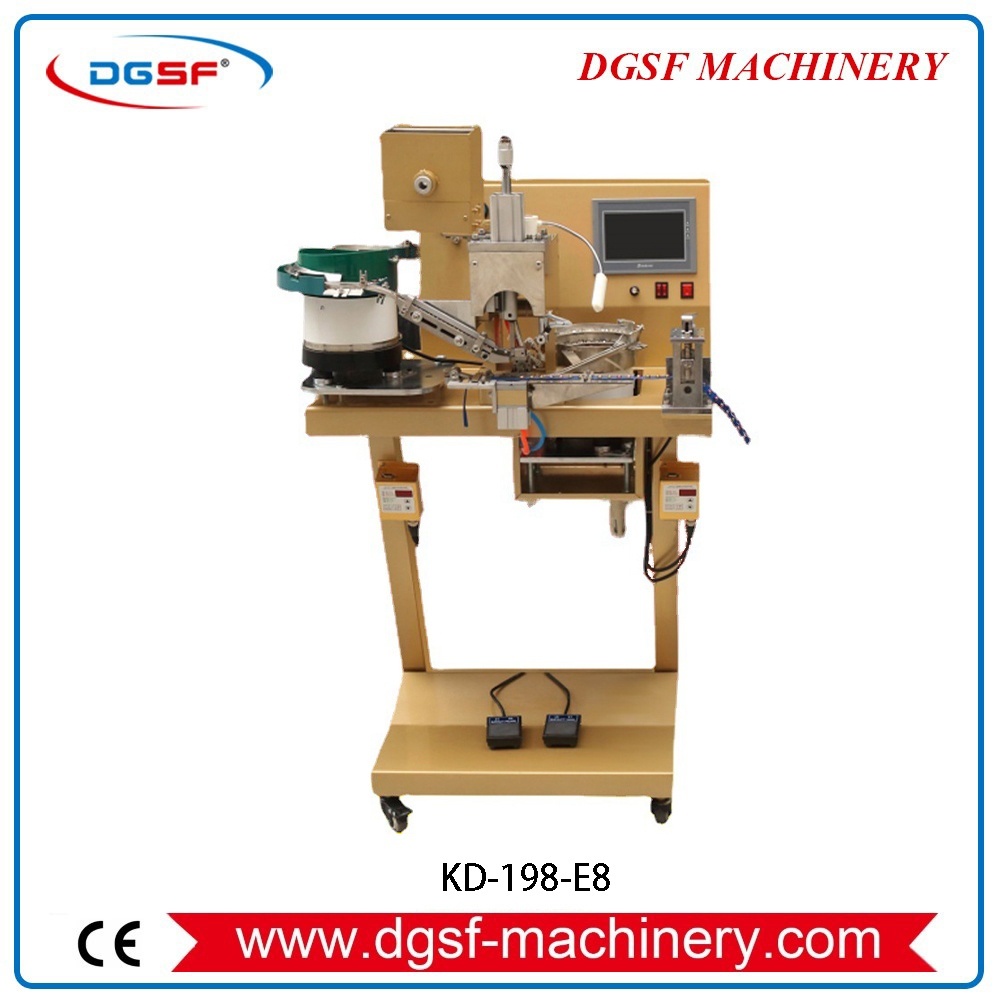

KD-198-E8 Multi-function Automatic Plastic button setting machine for welt (pineapple shape nail) (1)

Use:

This machine is suitable for handbags, shoes, belts, handicrafts, decorative items, and various leather decorative strips and straps, etc.

Features:

1. Suitable for various irregular buckles from 4mm to 16mm; different molds are used for different specifications.

2. Adopts PLC positioning system and automatic feeding guide rail device, requiring no manual control.

3. The spacing and quantity of buckles can be freely adjusted; (the length of the nail and the size of the cap can be used interchangeably without changing the base mold).

4. Uses imported pneumatic components, ensuring accurate positioning, convenient operation, and increased machine stability and wear resistance.

5. One machine is equivalent to 5-6 times the output of manual labor; one worker can operate multiple machines simultaneously, thus improving work efficiency.

6. User-friendly human-machine interface design for more comfortable and intuitive operation.

Technical Parameters:

Equ Model:KD-198-E8

VOLTAGE: 220V 50-60HZ

TOTAL POWER:≈0.75(kw)

AIR PRESSURE:0.6(MPA)

PDIMENSIONS(L*W*H):850×680×1410mm

NET WEIGHT: 101(KG)
