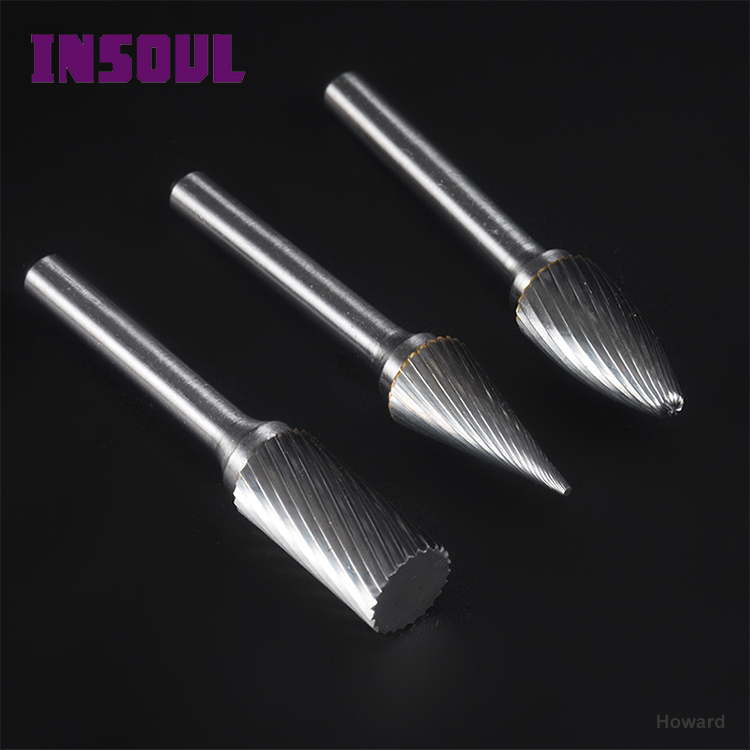

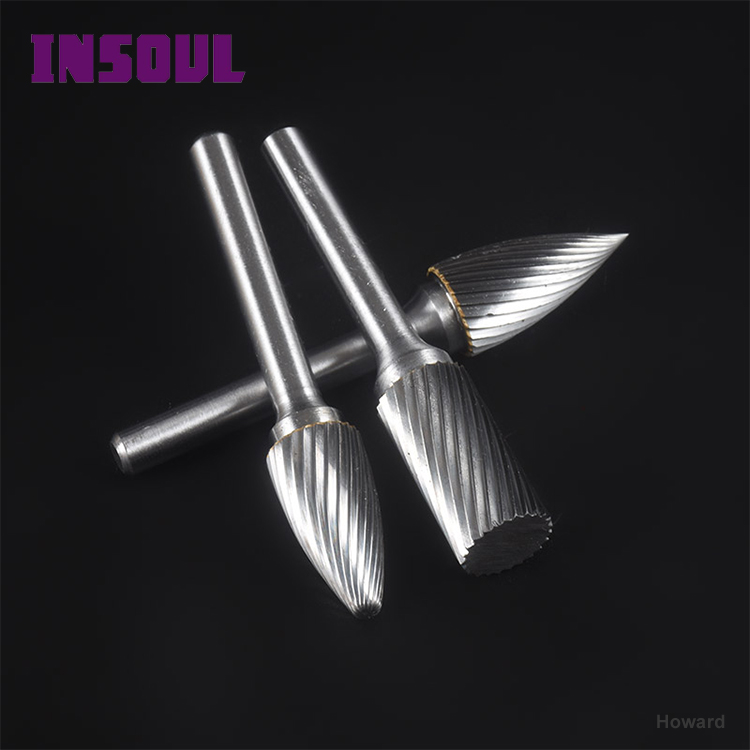

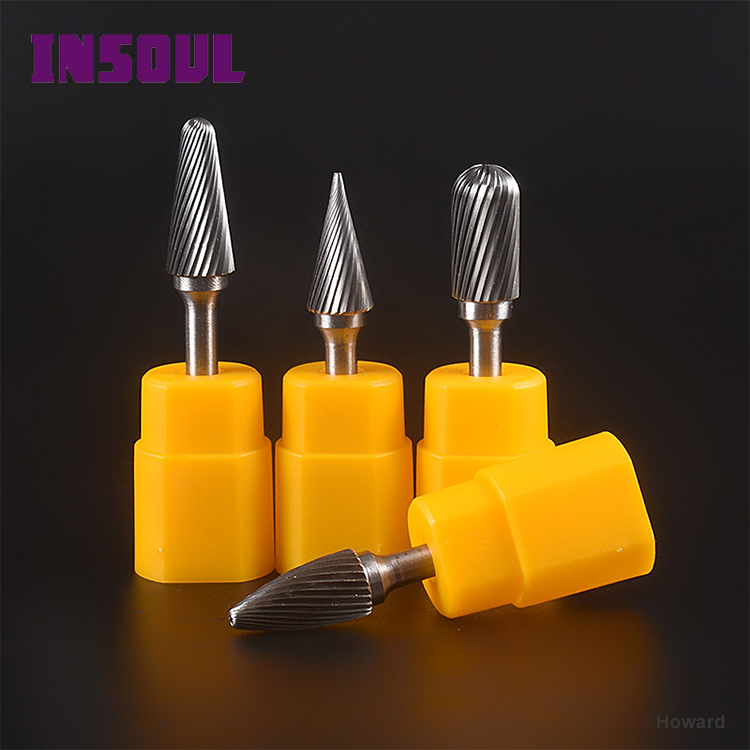

carbide burrs

Built for longevity, Insoul Carbide Burrs (Rotary Files) are designed to withstand rigorous shaping and finishing operations. Utilizing high-quality micro-grain carbide, these files offer exceptional wear resistance, making them ideal for continuous heavy stock removal on tough materials. From metalworking to composite fabrication, they provide reliable performance without compromising on detail precision. As a testament to our manufacturing excellence—spanning 22 years in a 5000m² facility with over 100 CNC machines—each burr guarantees dimensional consistency and edge retention. Complemented by our range of hex shank twist drill bits and hammer drill bits, Insoul delivers a comprehensive toolkit for professionals who demand durability from their carbide rotary files.

Technical Specifications

Product Images

Product Features & Advantages

• Premium micro-grain carbide: Exceptional hardness (HRA 91-93) and toughness for extended tool life even in abrasive materials.
• Precision-ground flutes: CNC-ground cutting edges ensure consistent geometry, smooth operation, and superior surface finish.
• High concentricity: <0.02 mm TIR ensures vibration-free operation and precise control.
• Versatile application: Works on metals (steel, stainless, aluminum, brass), wood, plastics, fiberglass, ceramics, and composites.
• Strict quality control: 100% inspected for dimensional accuracy, edge quality, and balance.

How to Use Insoul Carbide Burrs

1. Select the right burr: Choose shape based on your workpiece contour, cut type based on material (single-cut for soft metals/plastics, double-cut for hard metals, diamond-cut for composites).
2. Choose appropriate tool: Carbide burrs are designed for use with die grinders, flexible shafts, or high-speed rotary tools (pneumatic or electric).
3. Insert and secure: Insert shank fully into collet/chuck. Ensure it's tightly secured to prevent slippage.
4. Set correct speed: Follow recommended RPM based on burr diameter and material (typically 10,000 – 35,000 RPM). Larger burrs require lower speeds.
5. Secure workpiece: Clamp the workpiece firmly to prevent movement.
6. Start grinding: Hold the tool at a slight angle (10-15°) and apply light, consistent pressure. Let the burr do the work – excessive pressure can cause chipping or overheating.
7. Use proper technique: Move the burr in smooth, controlled passes. For material removal, use a back-and-forth motion. For finishing, use lighter passes.
8. Clear chips regularly: Lift the burr frequently to clear chips and prevent clogging (especially with single-cut burrs on soft materials).
9. Cooling: For extended use on metals, consider using a light cutting fluid or coolant to prevent overheating.
10. After use: Clean burr with a wire brush or compressed air to remove debris. Store in a dry place to prevent corrosion.

Application Scenarios

• Metalworking & Fabrication: Deburring cut edges, removing weld splatter, smoothing sharp corners, and cleaning up castings.
• Woodworking & Carving: Shaping wooden sculptures, creating decorative details, hollowing out bowls, and refining intricate designs.
• Automotive & Aerospace: Porting cylinder heads, deburring machined components, and cleaning up cast aluminum parts.
• Composite Fabrication: Trimming fiberglass, carbon fiber, and Kevlar materials without delamination.
• Jewelry Making: Engraving, texturing, and shaping precious metals with precision.
• Mold & Die Finishing: Reaching tight corners and complex geometries in mold cavities.

Certifications & Compliance

• ISO 9001:2015 certified manufacturing facility.
• CE marked (meets European safety standards).
• Manufactured in accordance with ISO 7755 (hardmetal burr standards).
• REACH and RoHS compliant.
