carbide burrs2

The Insoul Carbide Burrs (Rotary Files) are precision-crafted tools designed for rapid material removal, deburring, shaping, and finishing on a wide range of materials. Made from high-quality micro-grain carbide, these burrs offer exceptional hardness and wear resistance, ensuring long-lasting performance even under continuous use. Whether you are a metalworker, woodcarver, or composite fabricator, Insoul carbide burrs provide the versatility and reliability needed for intricate detail work and heavy stock removal alike.

As part of Insoul's comprehensive cutting tool family, our carbide burrs complement our extensive range of twist drill bits, hex shank twist drill bits, hammer drill bits, and hole saws. With over 22 years of manufacturing excellence, a 5000m² facility, and 100+ CNC machines, we ensure every burr meets the highest standards of quality and consistency.

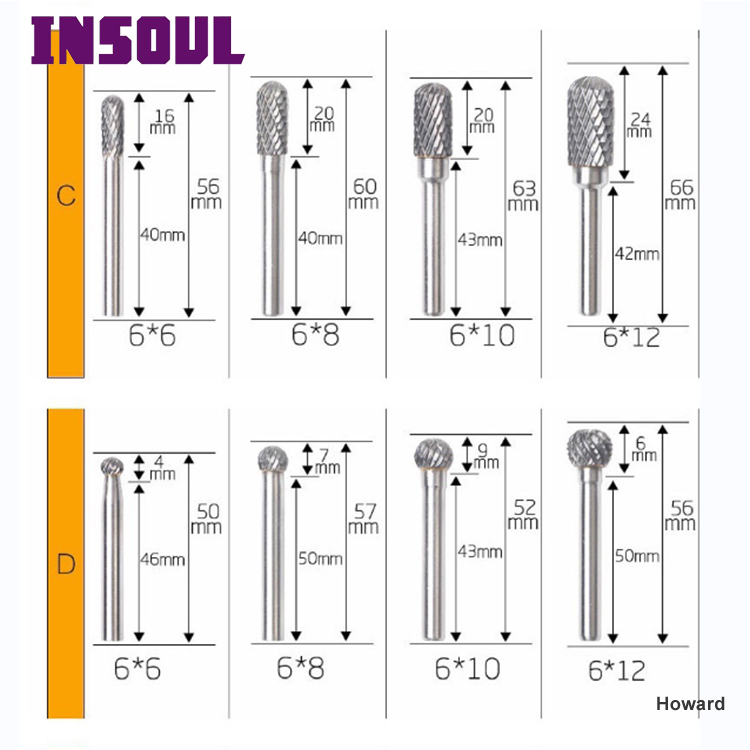

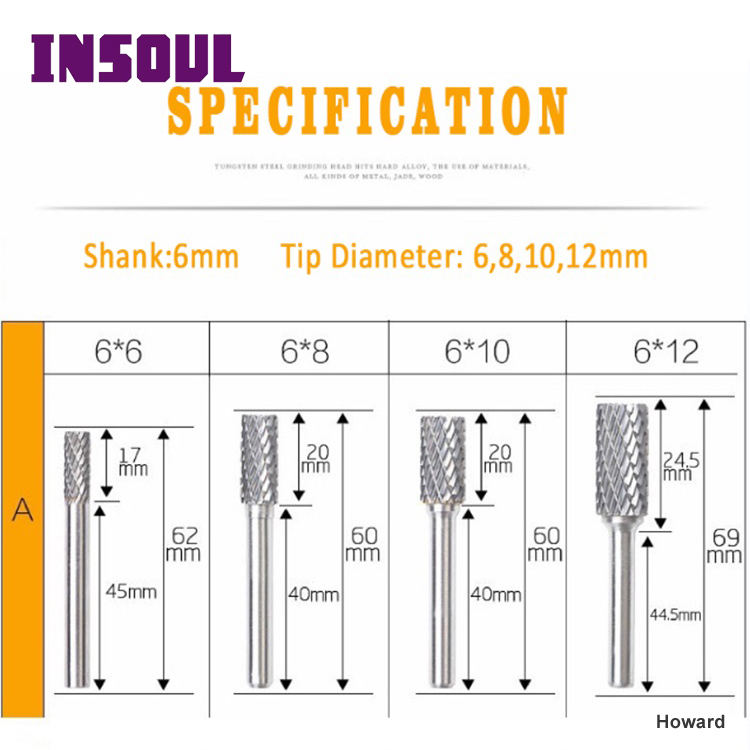

Technical Specifications

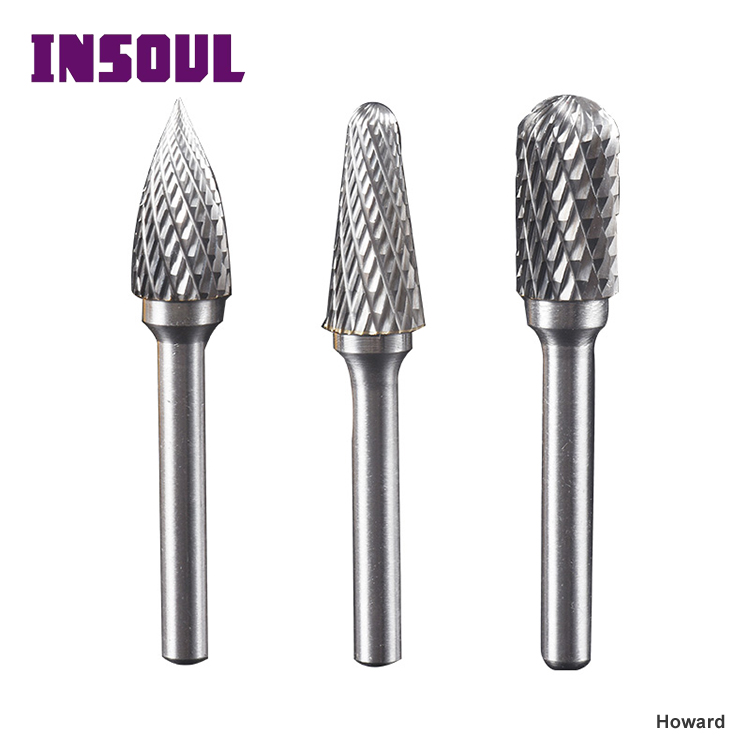

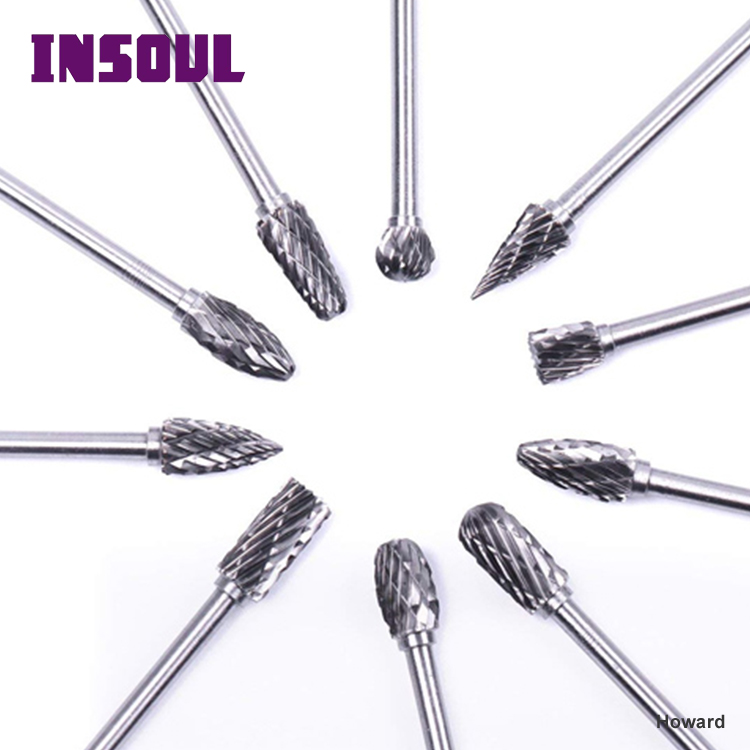

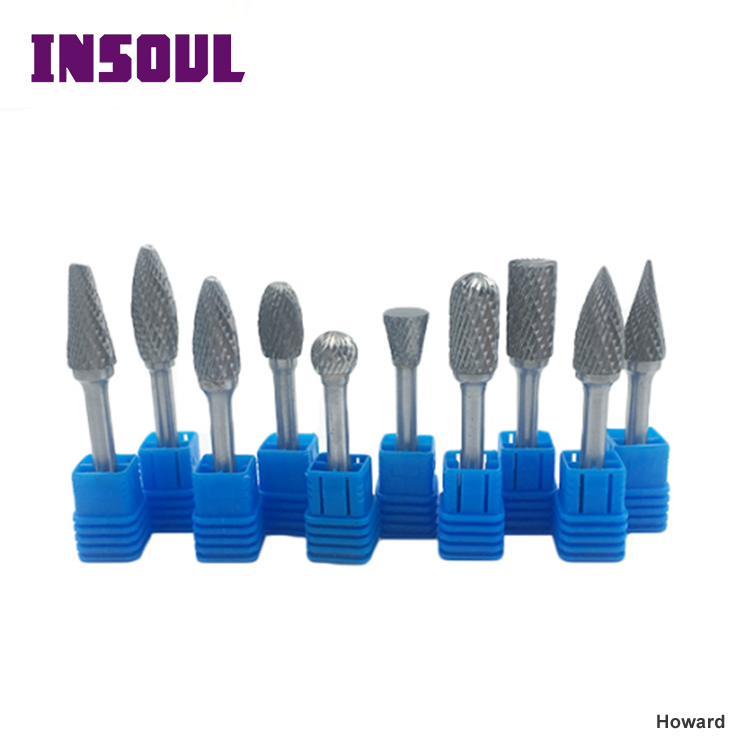

Product Images



Product Features & Advantages

• Premium micro-grain carbide: Exceptional hardness (HRA 91-93) and toughness for extended tool life even in abrasive materials.
• Precision-ground flutes: CNC-ground cutting edges ensure consistent geometry, smooth operation, and superior surface finish.
• Multiple cut types: Single-cut (for aluminum, copper, plastics – produces long chips), Double-cut (for steel, stainless, cast iron – produces fine chips), Diamond-cut (for composites, fiberglass, carbon fiber – extra fine finish).
• Wide shape selection: Over 15 standard shapes to match any contour, edge, or cavity requirement.
• High concentricity: <0.02 mm TIR ensures vibration-free operation and precise control.

How to Use Insoul Carbide Burrs

1. Select the right burr: Choose shape based on your workpiece contour, cut type based on material (single-cut for soft metals/plastics, double-cut for hard metals, diamond-cut for composites).
2. Choose appropriate tool: Carbide burrs are designed for use with die grinders, flexible shafts, or high-speed rotary tools (pneumatic or electric).
3. Insert and secure: Insert shank fully into collet/chuck. Ensure it's tightly secured to prevent slippage.
4. Set correct speed: Follow recommended RPM based on burr diameter and material (typically 10,000 – 35,000 RPM). Larger burrs require lower speeds.
5. Secure workpiece: Clamp the workpiece firmly to prevent movement.
6. Start grinding: Hold the tool at a slight angle (10-15°) and apply light, consistent pressure. Let the burr do the work – excessive pressure can cause chipping or overheating.
7. Use proper technique: Move the burr in smooth, controlled passes. For material removal, use a back-and-forth motion. For finishing, use lighter passes.
8. Clear chips regularly: Lift the burr frequently to clear chips and prevent clogging (especially with single-cut burrs on soft materials).
9. Cooling: For extended use on metals, consider using a light cutting fluid or coolant to prevent overheating.
10. After use: Clean burr with a wire brush or compressed air to remove debris. Store in a dry place to prevent corrosion.

Application Scenarios

• Metalworking & Fabrication: Deburring cut edges, removing weld splatter, smoothing sharp corners, and cleaning up castings.
• Woodworking & Carving: Shaping wooden sculptures, creating decorative details, hollowing out bowls, and refining intricate designs.
• Automotive & Aerospace: Porting cylinder heads, deburring machined components, and cleaning up cast aluminum parts.
• Mold & Die Finishing: Reaching tight corners and complex geometries in mold cavities.

Customer Benefits

• Versatility: One burr can work on multiple materials – reduce tool inventory.
• Fast material removal: Aggressive cutting action saves time on roughing and shaping.
• Superior finish: Precision-ground flutes produce smooth surfaces, often eliminating secondary finishing.
• Technical support: Insoul's experts can recommend the best burr for your specific application.

Certifications & Compliance

• ISO 9001:2015 certified manufacturing facility.
• CE marked (meets European safety standards).
• Manufactured in accordance with ISO 7755 (hardmetal burr standards).
• REACH and RoHS compliant.
