50mm 1.2mm steel belt heavy coil strapping machine

4 month ago

7 0 

Shenzhen Packway Technology Development Co., LTD

3 year

Product details

Ful-automatic Buckle Type Steel Belt Strapping Machine(Exclusive Release: 50mm Width 1.2mm Thickness)

Exclusive release of a fully automatic lock-type steel band strapping machine with a width of 50mm and a thickness of 1.2mm. Specifically designed for heavy steel coils, the 50mm width provides a larger contact area and stronger binding force, effectively preventing the steel coils from loosening or deforming during hoisting, transportation and storage.

Combined with a closed lock, it forms a closed loop with the steel band, providing stronger locking force and preventing loosening due to severe impacts.

The company, based on years of strapping technology and thousands of tests, has effectively suppressed the problem of flying bands. It has now been put into production and use by many steel enterprises.

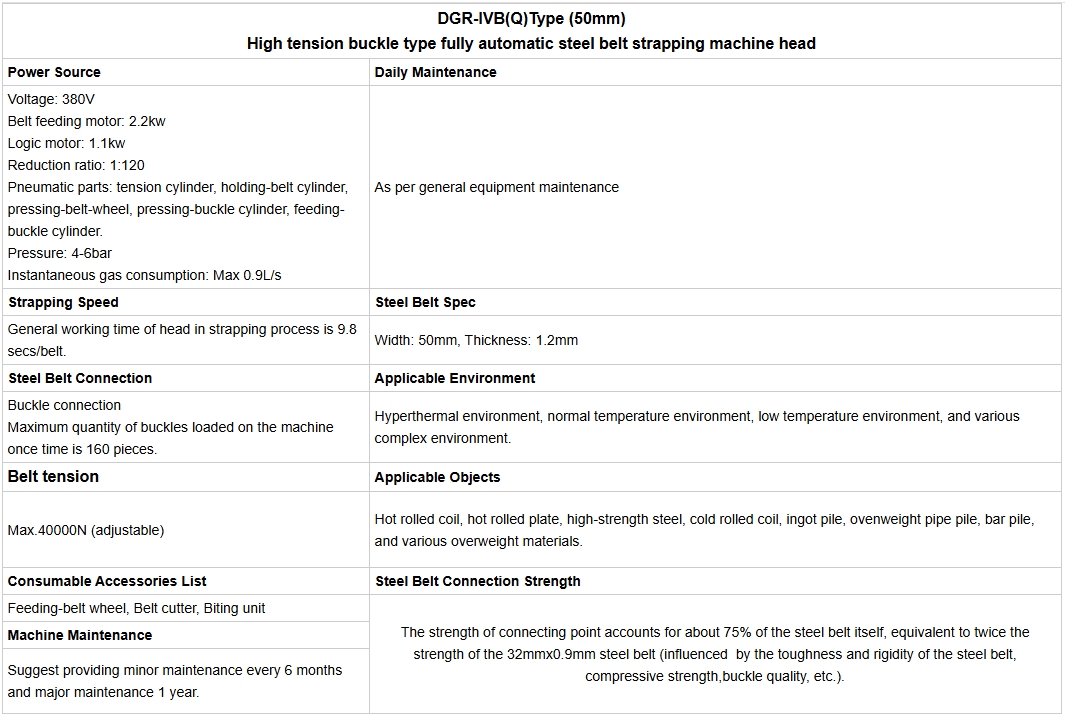

The specifications of the strapping machine head

The advantages of strapping machine

1. Save material costs: The buckle-free strapping machine does not require the purchase of iron buckles, which can save about 10% of the overall packaging cost. Each machine can save over 100,000 iron buckles per year, and this alone can save more than 10,000 yuan in costs. At the same time, the buckle-free connection method is 40-80mm shorter than the joint with iron buckles, further saving steel strap materials.

2. Energy conservation and environmental protection: Pneumatic strapping machines use compressed air as power, which is more energy-efficient and environmentally friendly compared to electric equipment.

3. Extremely high connection strength: The buckle-free strapping machine uses a "male-female buckle" connection, with the joint strength reaching up to 80% of the tensile strength of the steel strap itself. In contrast, the traditional connection method using iron buckles usually has a joint strength of only 30-60% of the steel strap's strength. The higher connection strength ensures that heavy objects do not fall apart during transportation and storage, providing greater safety.

4. Strong binding force: The equipment can provide a powerful binding force. For instance, the tensioning force of the pneumatic detachable tensioner can reach over 9800N, and the manual buckle-free type can also easily achieve the binding of heavy packaging items such as steel and aluminum ingots.

5. Extremely high connection strength: The non-slip packaging machine adopts "yin-yang buckle" connection, and the connection strength can reach 80% of the tensile strength of the steel belt itself. While the traditional connection method using iron buckles usually has a connection strength of only 30-60% of the steel belt's strength. The higher connection strength ensures that heavy objects do not fall during transportation and storage, and the safety is higher.

6. Strong binding force: The equipment can provide powerful tensioning force. For example, the tensioning force of the pneumatic split-type tensioning machine can reach over 9800N, and the manual non-loop type can also easily achieve the tensioning of heavy packaging materials such as steel and aluminum ingots.
