Cable Connection Heat Shrink Tubing
4 month ago

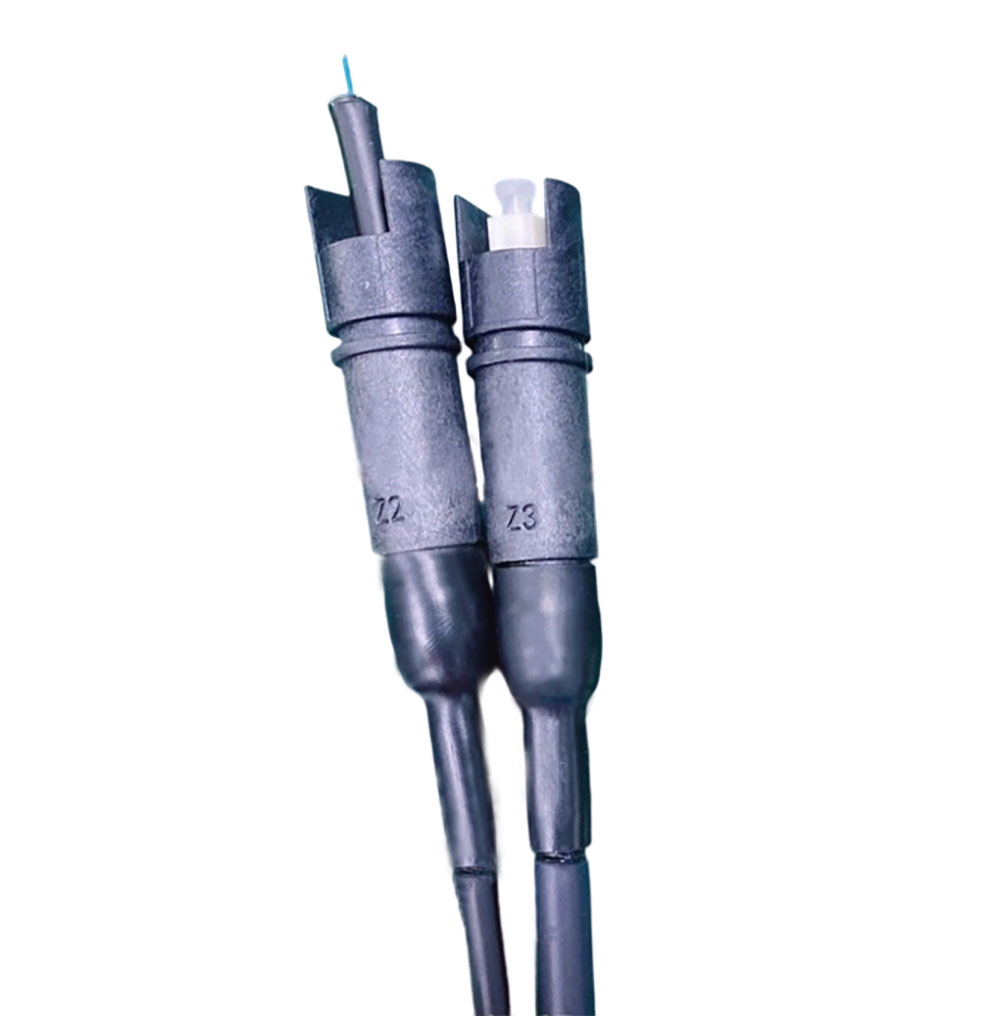

HUS-DW Non-Squeezeout Dual Wall Heat Shrink Tube
Product Overview：
Product Features:
- Start Temperature: 70℃
- Full Shrink Temperature: 125℃
- Operating Temperature: -45℃ ~ 125℃
- Shrink Ratio: 3:1, 4:1
- RoHS Compliant
- Standard Color: Black; other colors are customizable.
- Custom sizes and cutting services are available upon customer request.
Product Specifications：
Technical data:
| Product Property | Test method | Test Date |
| Tensile strength | ASTM D 2671 | 10.4MPa |
| Elongation at break | ASTM D 2671 | 2200% |
| Tensile strength after aging | 158°C, 168hrs | ≥7.3MPa |
| Elongation at Break afteraging (%) | ≥100% | |
| Longitudinal shrinkage | ASTM D 2671 | -8%~+8% |
| Dielectric strength (kv/mm) | IEC 60243 | ≥15kV/mm |
| Flammability | ASTM D 2671B | PASS |
| Volume resistance | IEC 60093 | 1014Ω. cm(min.) |
| Hot melt adhesive technology index | ||
| water absorption | <0.2% | ASTM-D570 |
| Vicat Softening Point | 95°C | ASTM-E28 |
| peel strength (PE) | ≥120N/25mm | ASTM D 1000 |
| peel strength (Al) | ≥80N/25mm | ASTM D 1000 |
| Material: PE+hot-meltadhesive | ||
